Features

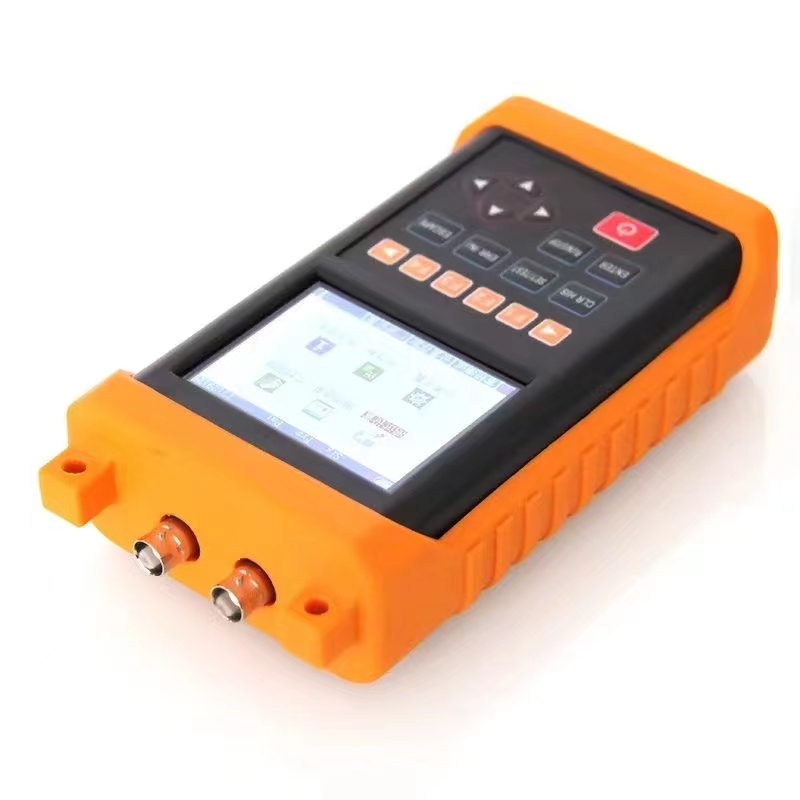

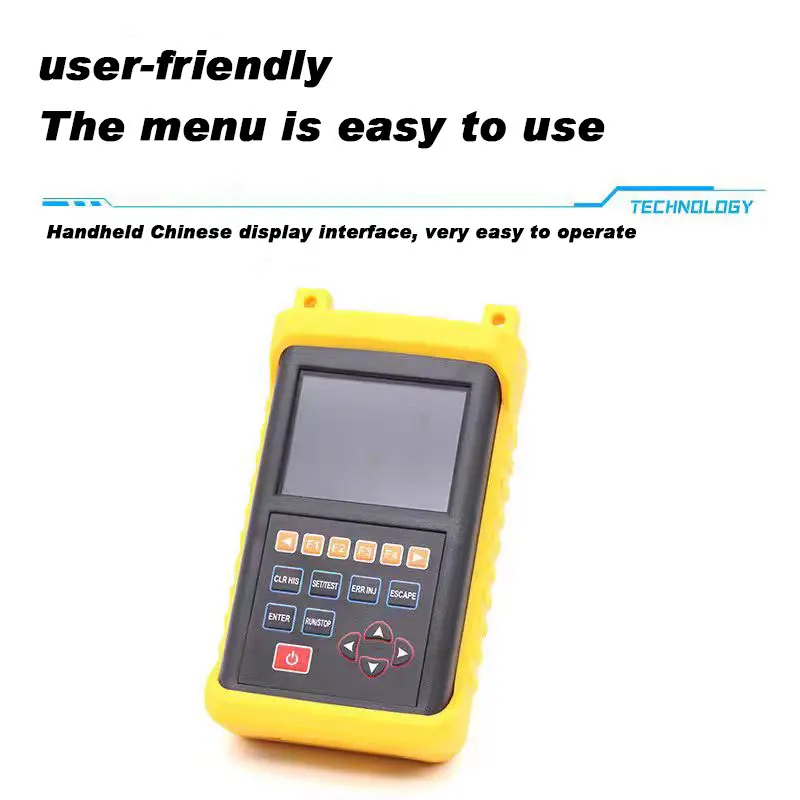

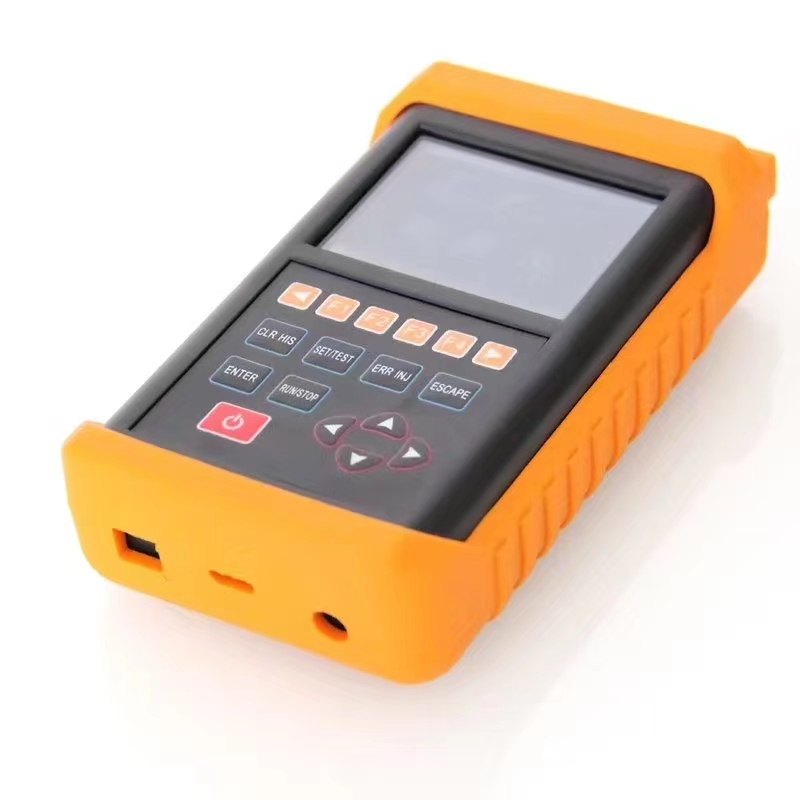

Handheld design and easy-to-use; High resolution backlight color TFT LCD screen

Save/Recall of 7 user-defined setups and 7 sets of results

Run and stop testing can be controlled automatically by timer

Histograms analysis of alarm and error events

Functions

2M measurement

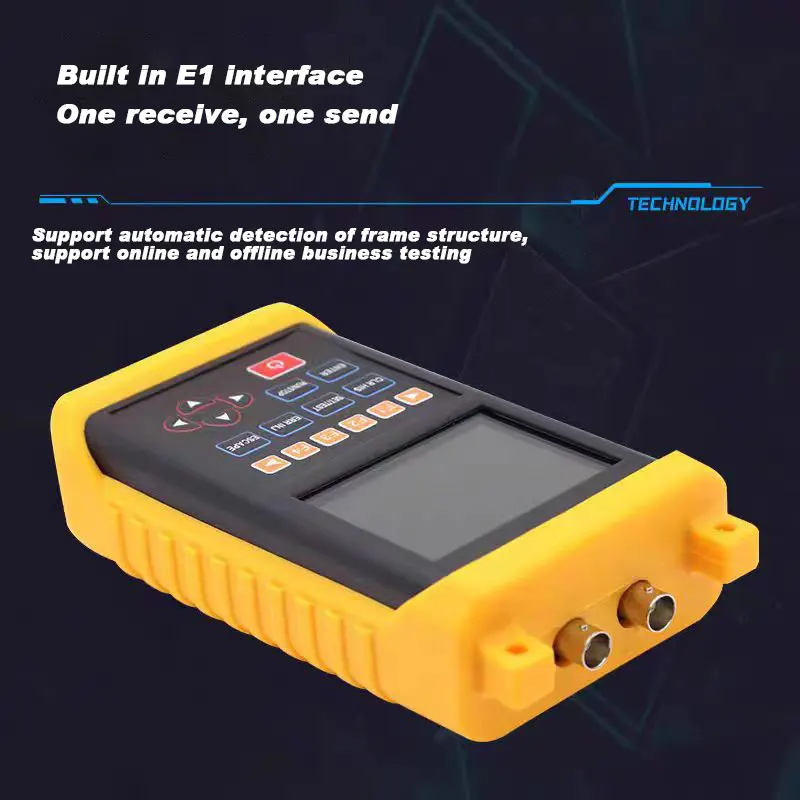

75Ω and 120Ω line interfaces

HDB3 and AMI line codes

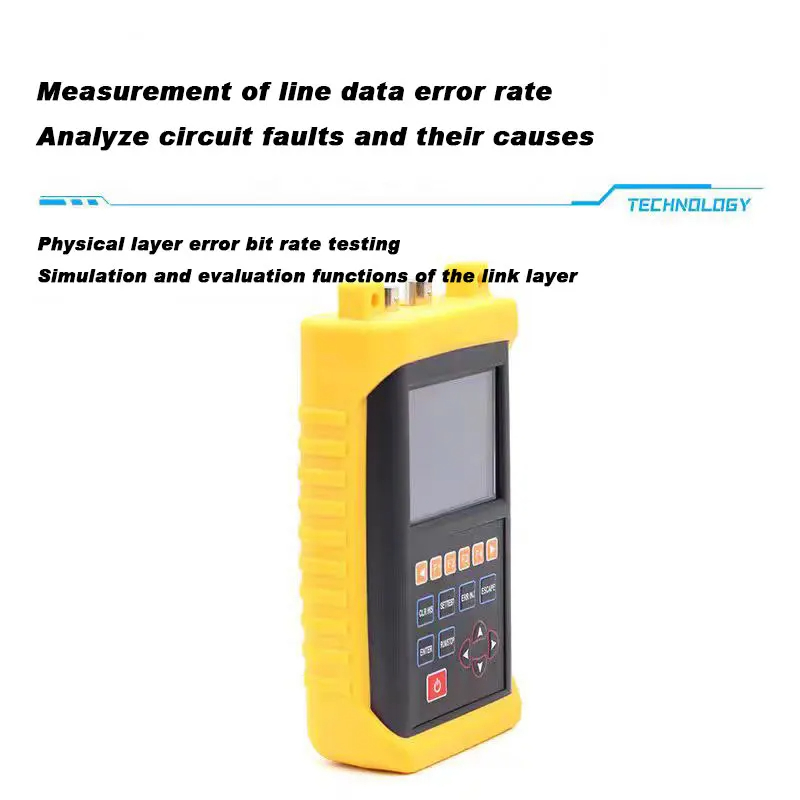

Out-of-service 2Mb/s, N×64kb/s BER testing

In-service framed and unframed double-channel testing

“PCM simulator” mode testing

Frame data control and monitoring

Timeslot activity monitoring, FAS, N-FAS, TS16MFO analysis

Built-in 64kb/s tone channel listen capability

CAS and CCS signaling generation and monitoring

Extensive error and alarm generation

Level measurement

Frequency and offset measurement

Clock slip measurement

Up to ±999ppm transmit clock deviation

Clock source: Internal, Interface or External 2M clock/signal
