ONT Inventory Module

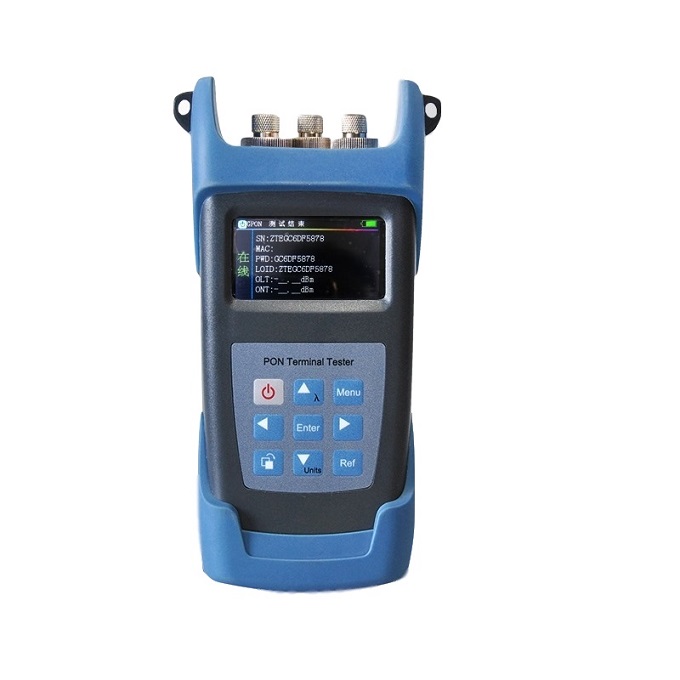

1. Support ONU user self-checking in the module of EPON, GPON. Online user’s information could be read directly, (SN, MAC, Password, LOID)
2. Check the idle occupation situations of optical terminal port and connection states of ONT online offline. (Fall off, Cut, No power, NOT fatal)
3. Support OPM testing for upstream and downstream.
Optical Resource Verification Module
1. With auto-aligning functions for householder access;
A: Support the connection ahead of splitters and get all online ONU resources (SN. MAC. Password. LOID. etc.). Under the splitter module. Users could plug in/out each fiber.
B: Support the connection at the back of splitters and get all information of online ONU (SN, MAC, Password, LOID, etc.)
2. Support the function of OPM testing for all online users.
3. The information of SN, MAC, PASSWORD, LOID. Upstream and downstream power is generated to get QR code for data reading, printing and management.
Specifications
1310 upstream | 1490 downstream | 1550 downstream | |
Detection Range(dBm) | +10 ~ -40 | +12 ~ -40 | +25 ~ -40 |
Measurement Uncertainty(dB) | ≤0.5 | ||
Resolution(dB) | 0.01 | ||
OPM Module | |||
Calibrate Wavelength(nm) | 1310/1490/1550/1625 | ||
Detection Range(dBm) | +10~-70 | ||
Uncertainty(dB) | ≤0.5 | ||
VFL Module(optional) | |||
Wavelength(nm) | 650±20 | ||
Output Power(mW) | ≥1 | ||
OLS Module (optional) | |||
Wavelength(nm) | 1310±20 & 1550±20 | ||
Output Power(dBm) | 0 | ||
Others | |||

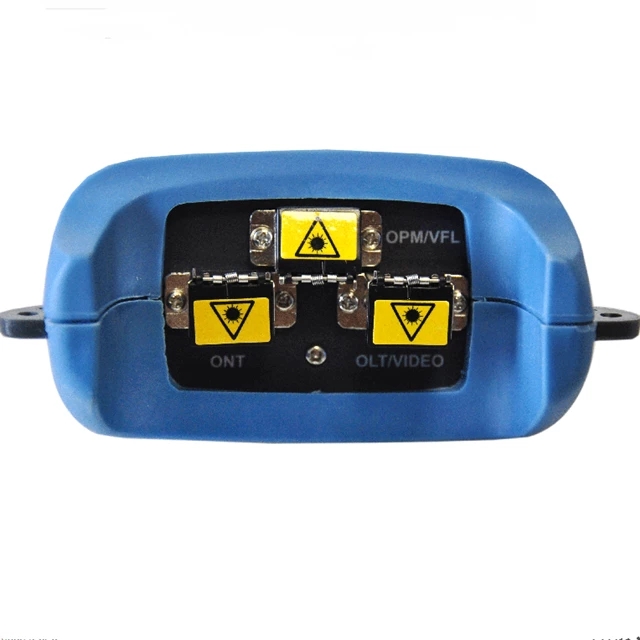

Connector Type | (FC/SC)/PC | ||
Display | TFT colorful screen | ||
Power Supply | 3.7V Lithium battery / DC 5V | ||
Communication Interface | Mini USB | ||
Battery Operation Time(h) | ≥10 | ||
Operation Temperature (℃) | -5~40 | ||
Storage Temperature (℃) | -10~70 | ||
Relative Humidity | 0~95% (no condensation) | ||
Dimension | 23.5*16*8cm | ||
Weight | 0.65kg | ||
