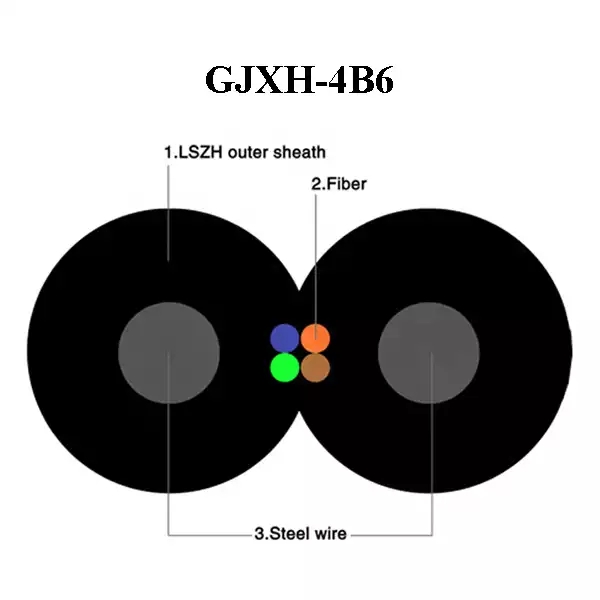

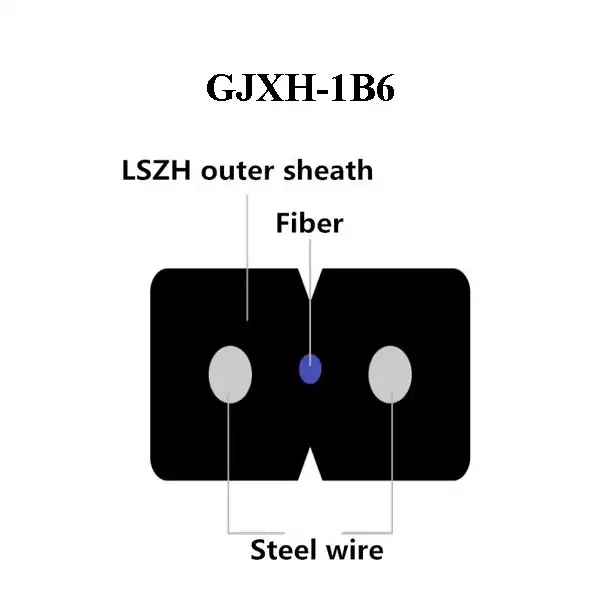

The FTTH indoor cable is centered on the optical communication unit, with two parallel non-metallic reinforcing elements (FRP) placed on both sides, and finally, a black or colored low-smoke halogen-free sheath is extruded.
Specifications
Fiber count | 1/2/4/6/8/12 |
Color Of fiber | Blue, Orange, Green, Brown |
Fiber Type | G652D/G657A1/G657A2 |
Strength member | Steel wire/FRP/KFRP |

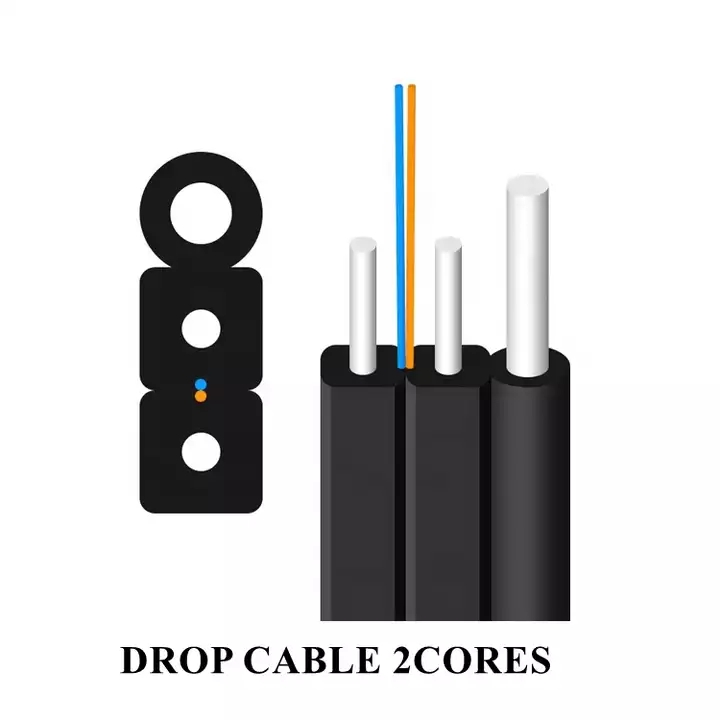

Supporting messenger wire | 1.0MM*x1 steel wire |
Outer sheath | LSZH Lower smoke zero halogen frame retardant & UV Anti |
Cable Diameter dimensions | 2.0( Height) × 5.0W ± 0.1 mm(width) |
Operation temperature range | -20 ℃ to + 70 ℃ |
Installation temperature range | -20 ℃ to + 60 ℃ |
Transport and storage temperature range | -20 ℃ to + 70 ℃ |
Tension Load (N) | Short term: 800N Long term: 500N |
Crush Load(N) | Long term: 1000N/100mm; Short term: 2200N/100mm |
Minimal installation bending radius | 30 x OD |
Minimal operation bending radius | 15 x OD |
Cable marking | The marking length 1meter apart, as required. |
