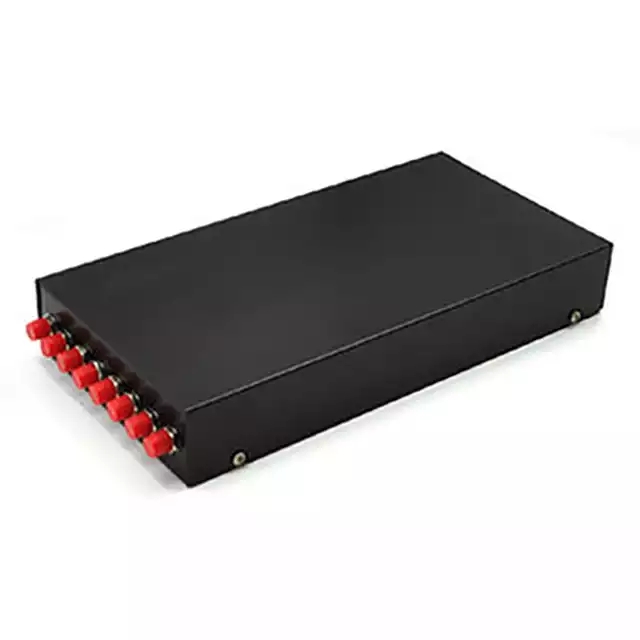

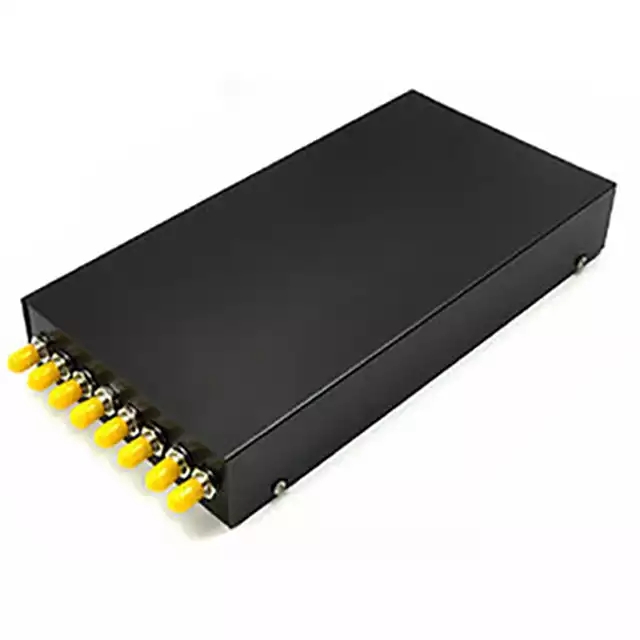

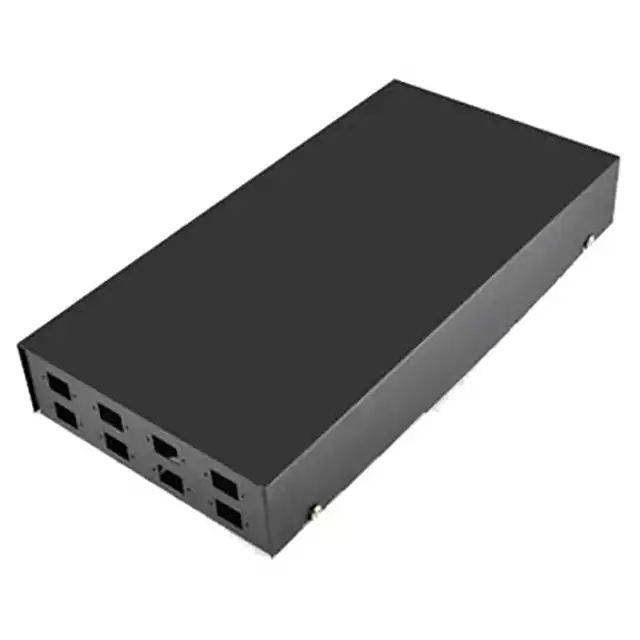

FTTH optical terminal box or min ODF is designed to connect feeder/distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. It is easy to install on the wall or pole. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.

It is suitable for the protective connection of loose tube optical cables or bundled pigtails and jumpers, branch optical cables and jumpers, steel tube type PLC splitters and jumpers, jumpers and jumpers. It is designed with 2U, 3U, and 4U heights, which are suitable for 48, 72 and 96 core distribution respectively. Chassis with 19 or 21 inch mounting ears, installed in a cabinet or rack.

Technical Characters

Made of cold-rolling steel, static spreading-plastic, color and lustre is uniform, elegant appearance, easy for operation.

The box has a pothook, which is convenient to install and dismantle.

The box is of unique structure, reasonable layout, and has adequate room for operation.

Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are tightly.

The indoor type is of excellent seal performance, which could prevent water from entering effectively.

Features

Standard size, light weight and reasonable structure.

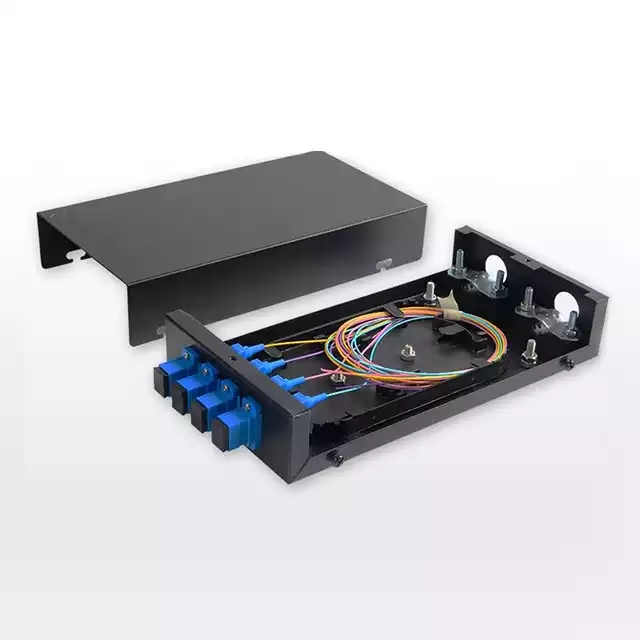

Splice tray inside changeable

Can be used in 19'', 23'' standard distribution frame.

Suitable for ribbon and single fiber

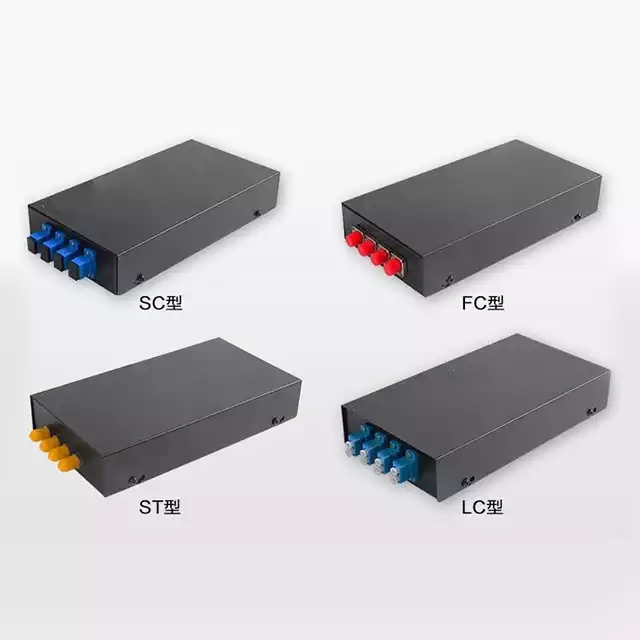

Various panel plate to fit different adapter interface

Front mark on the plate is easy for identification and operation

24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters.

Easy for management and operation

Applications

Outdoor environment, IP55.

Wall mount; pole mount.

Comprehensive computer network engineering

Intelligent Building Cabling

Fiber To The Home (FTTH)

Residential Intelligent Network System

Campus Network, Enterprise.
