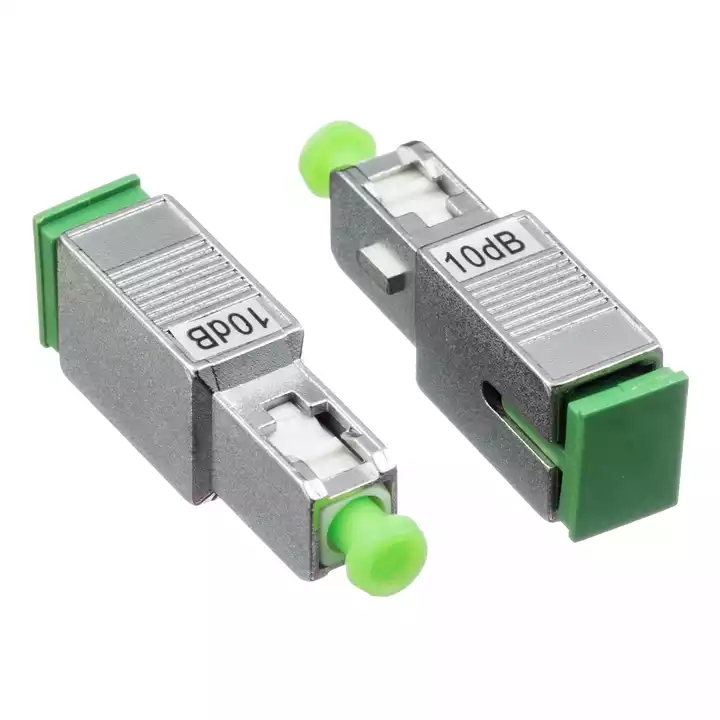

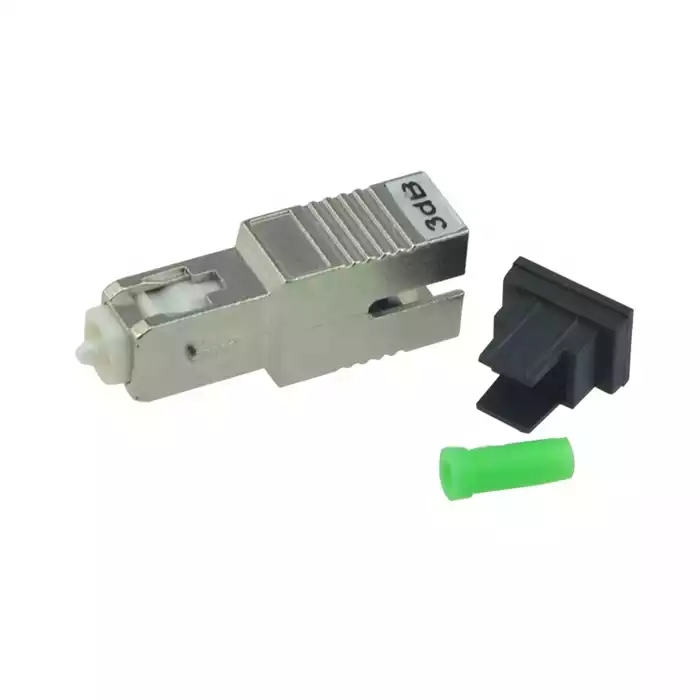

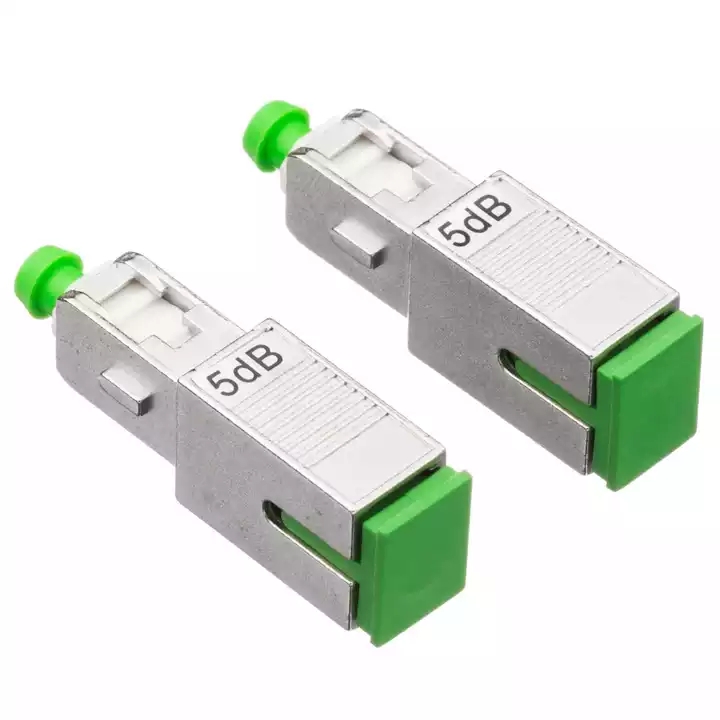

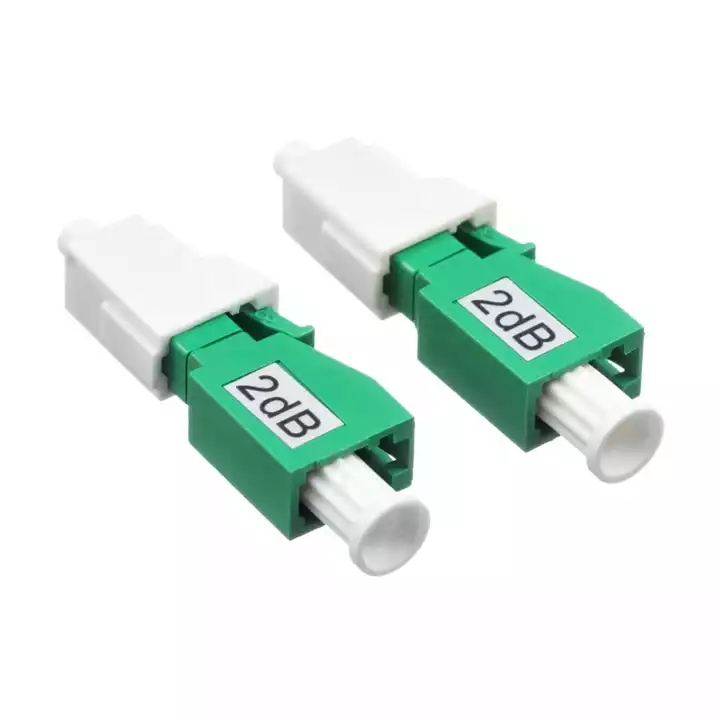

Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter and attenuator.
Applications
Fiber optical telecommunication system
Fiber optical CATV
Fiber optical sensor
Testing equipment
Specifications
Product type | Coupler Attenuator Male to Female |
Operation wavelength | SM: 1200 to 1600nm or 1310/1550nm |
MM: 850nm, 1300nm | |
Return Loss | ≥ 50 db (PC) |
≥ 55 db (UPC) | |
≥ 65 db (APC) | |
Attenuation Accuracy | +/-0.5 db for 1 to 5db attenuation |
+/-10% for 6 to 30db attenuation | |
Polarization Dependent loss | ≤ 0.2db |
Mechanical endurance | >1000 |
Maximum optical Input power | 200MW |
Operating Temp Range | -40 to + 80degree |
Standard | YD/T 1272.4-2007 |
