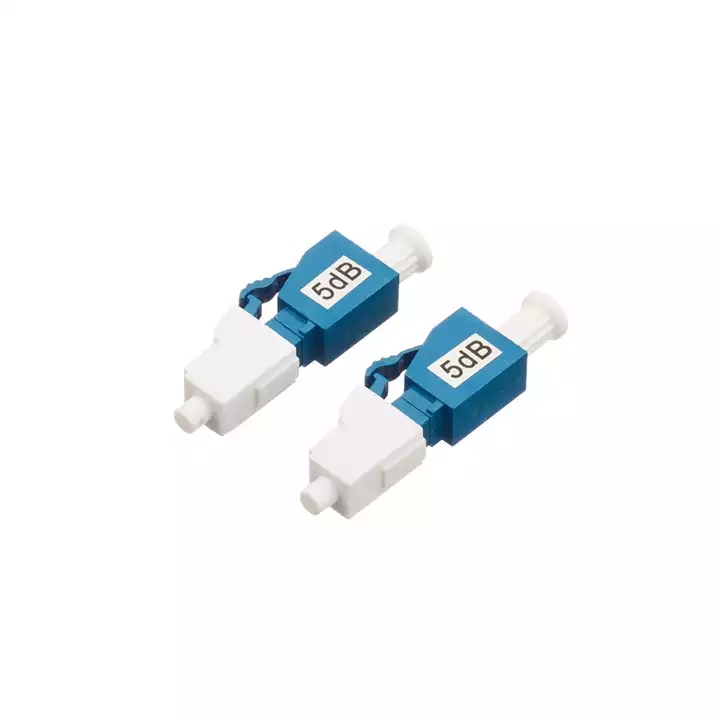

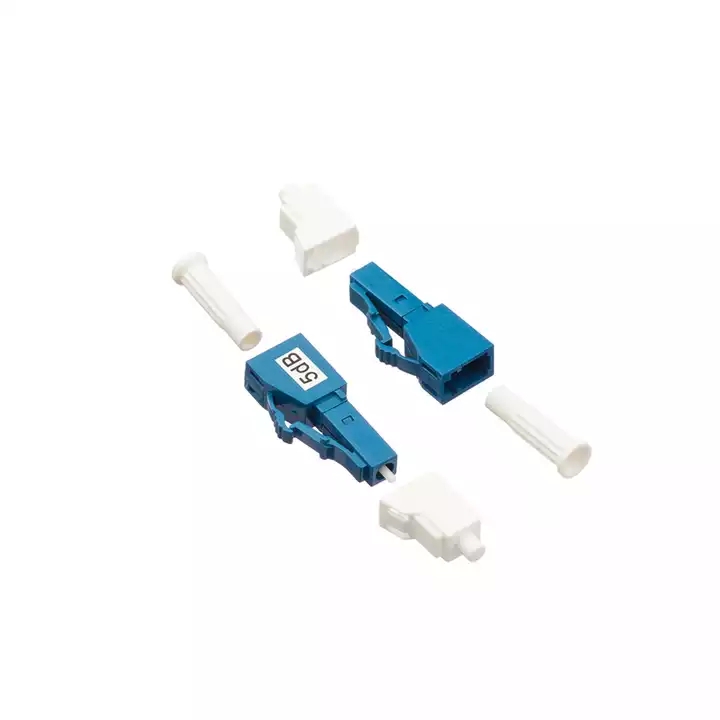

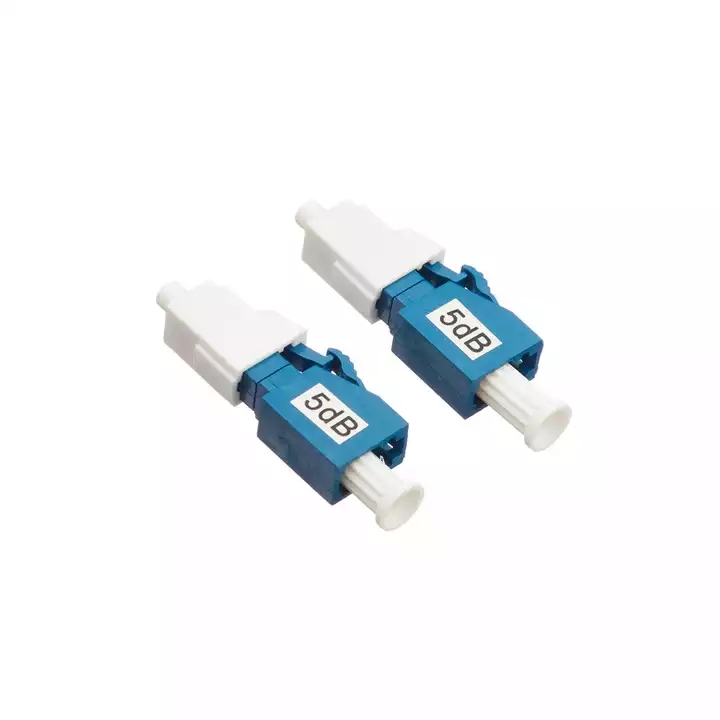

Optical fiber attenuator is an electronic device that reduces the amplitude of an electronic signal.
Features
Low insertion loss and back reflection
Definable attenuation from 1dB to 30dB
PC, UPC and APC polish types
Available with FC, SC, ST and LC terminations
Specifications
Optical Performance | M-F Plug Type | F-F Adaptor Type |
Testing Wavelength(nm) | SM: 1310nm/1550nm | 1310nm |
MM: 850nm/1300nm | ||
Attenuation Accuracy(dB) | 1-9dB; 0.5dB; 10-30dB; 10% of Attenuation Value | |
Return Loss(dB) | ≥50dB (PC) | ≥50dB (PC) |
≥60dB (APC) | ≥60dB (APC) | |
Input Power (Max.) (mW) | 300 | |
Durability(dB) | <0.2dB Typical, 1000 Matings | |
Operating Temperature(°C) | -40~+80 | |
Storage Temperature(°C) | -40~+85 | |
