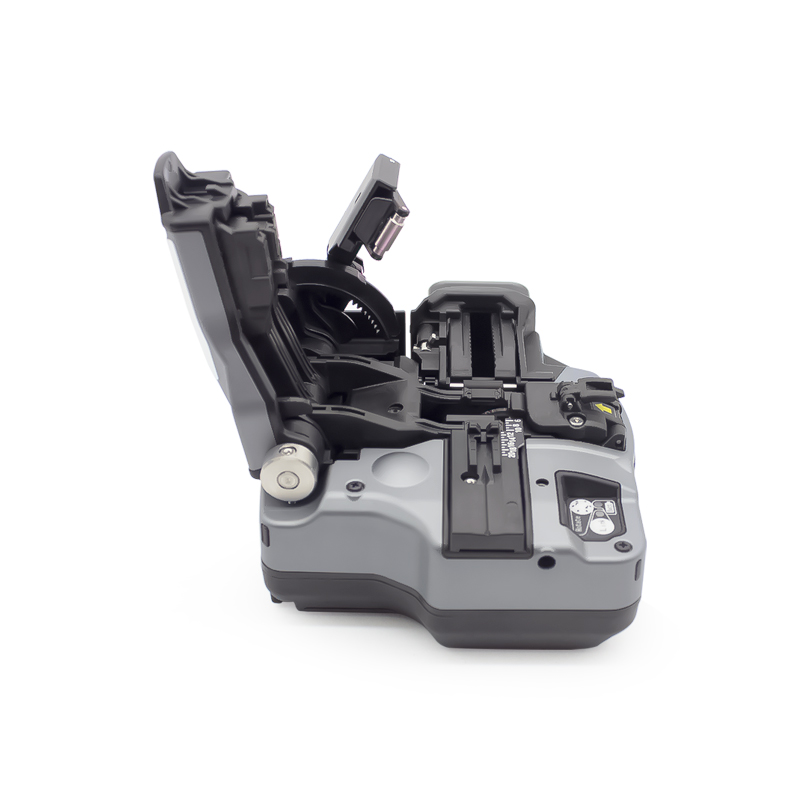

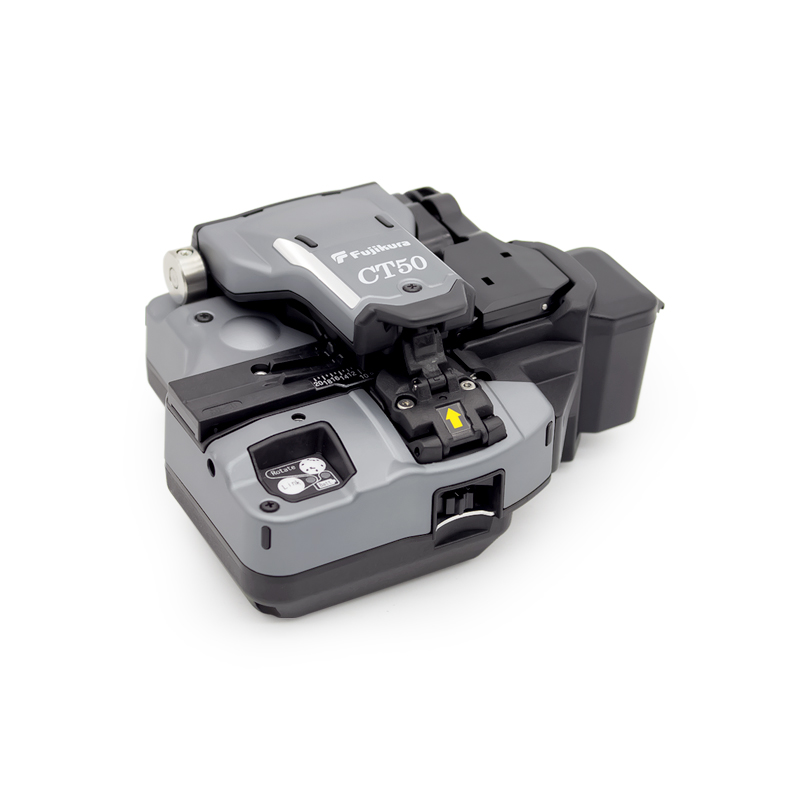

Compared with other existing cutting knives, Fujikura CT50 has stronger drop impact resistance, and allows staff to replace the blade, greatly reducing processing time and maintenance costs for customers. The CT50 can automatically change the position of the cutting blade according to the cutting status of the optical fiber on the fusion splicer via Bluetooth. In addition, the CT50 can complete fiber cutting and fiber waste collection in one step.

Application

New High Precision Fiber Cleaver CT08/New Original Fiber Optic Cleaver

Used for Single Fiber Cleaving

Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency

Prevents Double Scoring of the Fibers

Has Superior Blade Height and Rotational Adjustment

Available With Automatic Fiber Scrap Collection

Features

1. Cutting angle: Typical 0.5°
2. Fiber count:Up to 12
3. Fiber diameter: 125μm
4. Coating diameter: 160um to 900um 2 to 3mm cord&drop cable)
5. Dimensions: 120W × 95D × 58 H (mm)
6. Weight: 300g
7. Blade life: 60,000 fibers (1250 fibers×16 positions × 3 heights)
8. Wireless connectivity:Wireless technical standard:Bluetooth 4.1 LE*2 OS : Andoroid 5.0 or above, iOS 8.0 or above (iPhone6 above)
9. Operation condition:0 to 95% RH and 0 to 40°C (non-dew) Storage condition:0 to 95% RH and -40 to 80°C (non-dew)
10. Resistance features*3:Dust resistance: Exposure to dust (0.1 to 500μm dia. Alumina Silicate) Rain resistance: H=10mm/hr for 10min
