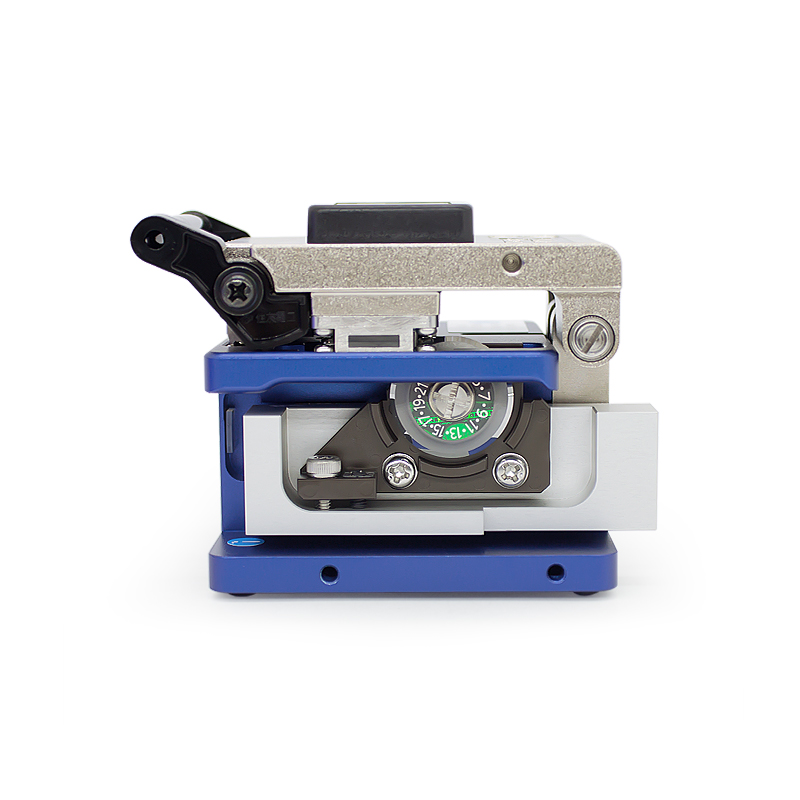

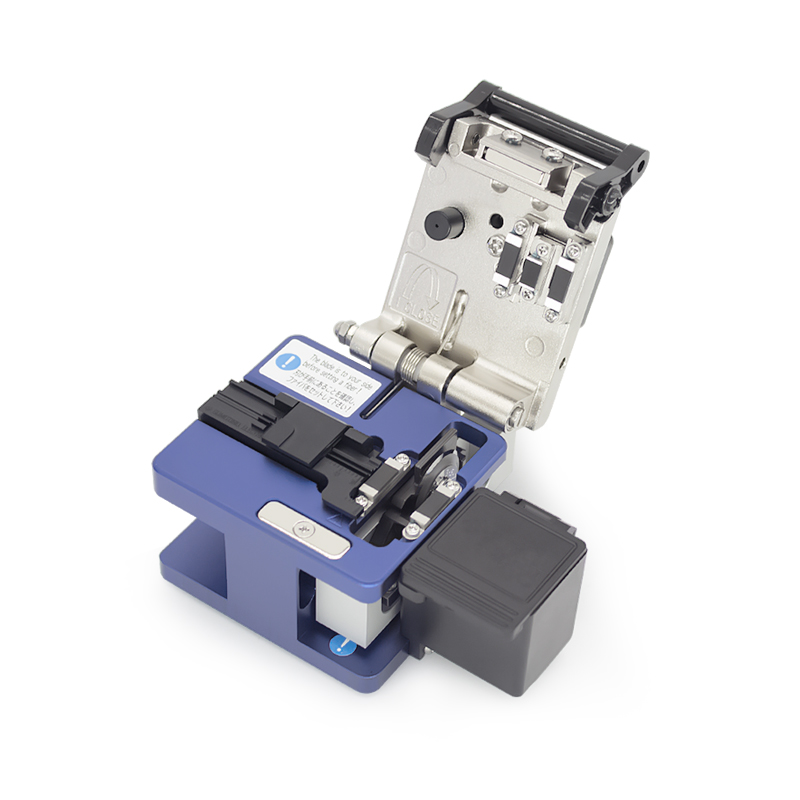

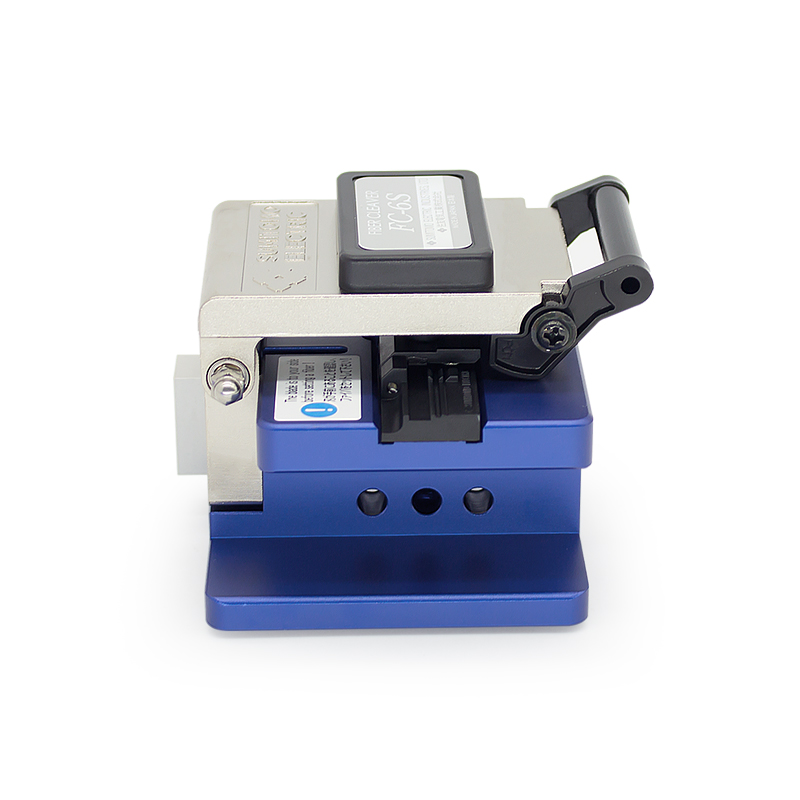

Sumitomo FC-6S high precision cleaver is designed for field use alongside the Sumitomo splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 48,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. The FC-6S is the latest cleaver . Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving.

Features

Small size, lightweight, and easy handling

Applicable up to 12-fibre ribbon cleaving

Fibre collector equipped as standard

2-action operation including fibre scrap collection

Operation: Push back blade -> Set fibre -> Close body

Blade speed and anvil speed are mechanically controlled

Blade life:60000 fibers

Specifications
