High Quality Fiber Cleaver MT-20-FutureFiber Solutions

High Quality Fiber Cleaver MT-20

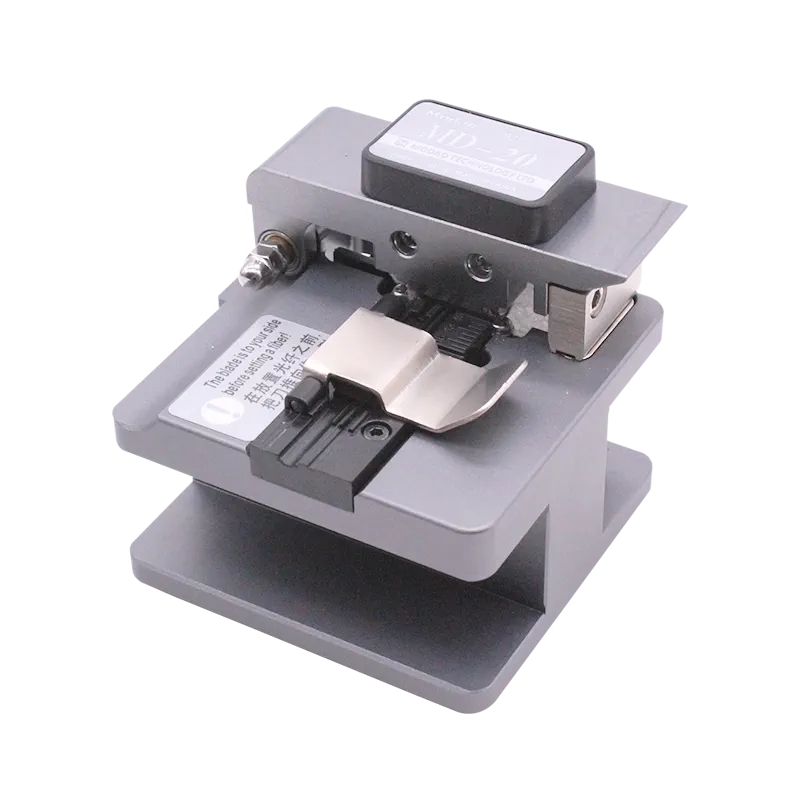

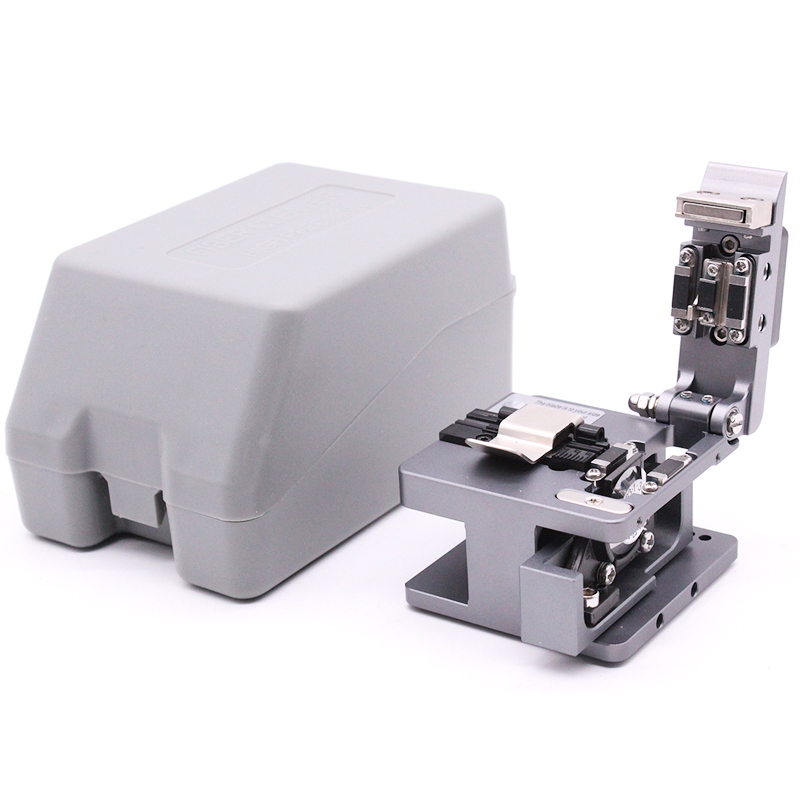

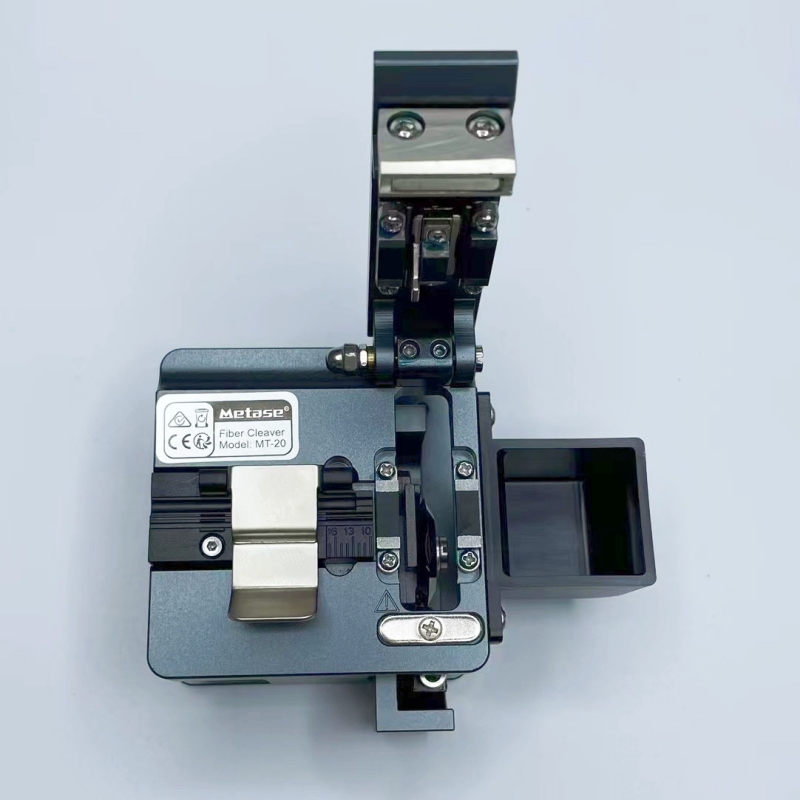

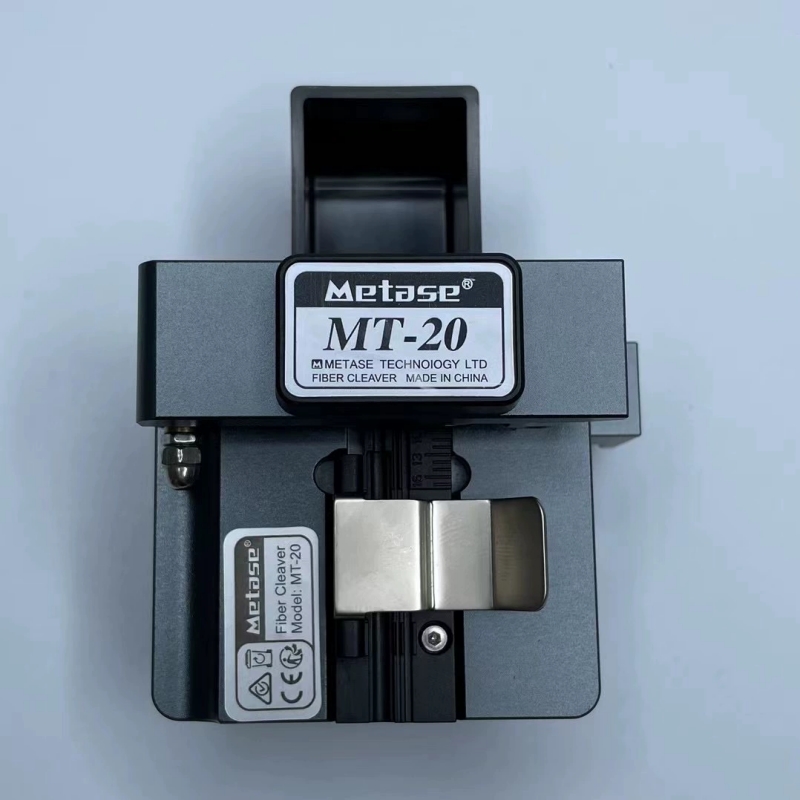

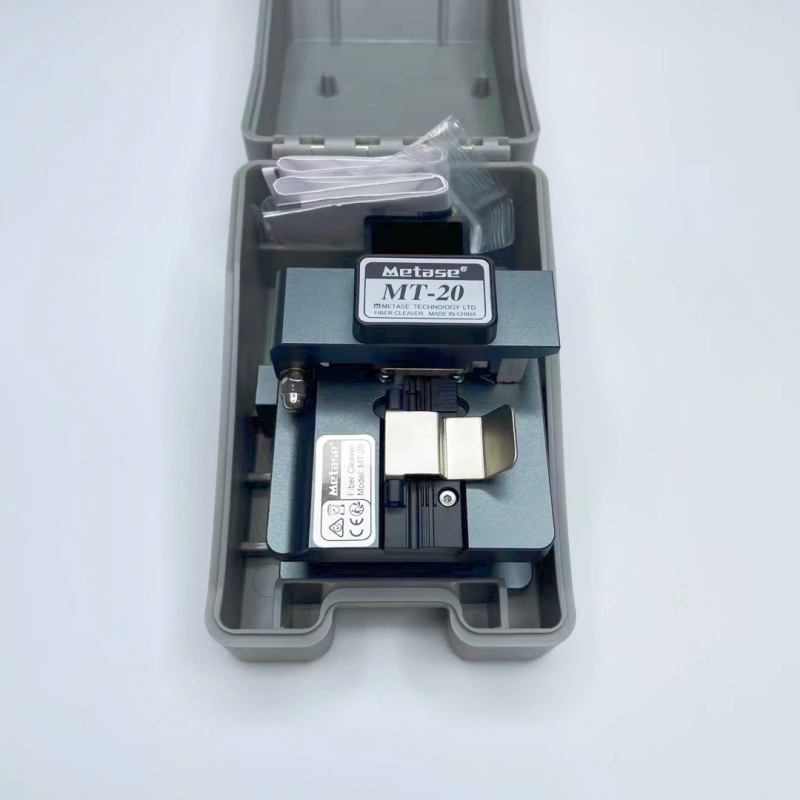

The New MT-20 High Precision Cleaver is an instrument for high precision fiber cutting.

Installed with a universal holder which is applicable to 250μm, 900μm, 3.0mm fiber cable and flat cable.

Work efficiency can be maximized with easy and simple 2 step operations(Automatic Return of Blade)

Product description

Features

Cleaved Angel＜0.5°

Simple 2 step operations

Universal Fiber Holder

Durable and reliable design

High capacity waste bin

48,000 times Long blade life

Universal fiber holder for 250μm, 900μm, 3.0mm fiber cable

Rubber armor protection

Specifications

Fiber Types	All fiber types
Fiber Count	Single fiber
Clad Diameter	125μm
Coating Diameter	Single fiber:250 to 900μm
Cleave Length	Single fiber:Fixed length 10&16mm,Variable length 3 to 20mm
Blade life*1	48000 fibers(2000 fibers×24 positions)
Dimensions	62W×64D×74H mm
Weight	350g

*1:The blade life depends on the operation environment and condition.The number can vary and is not guaranteed.
