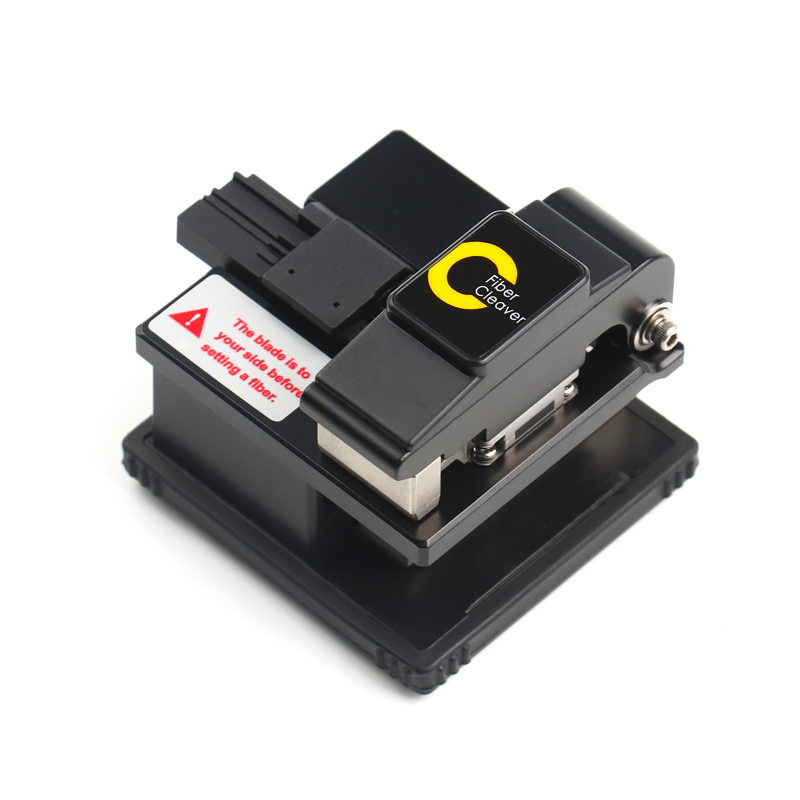

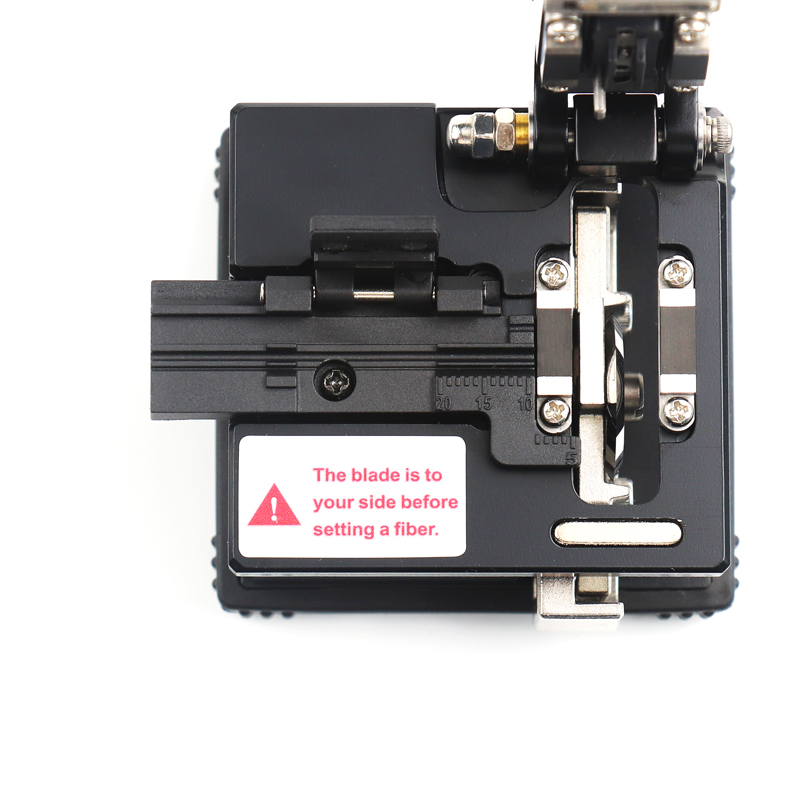

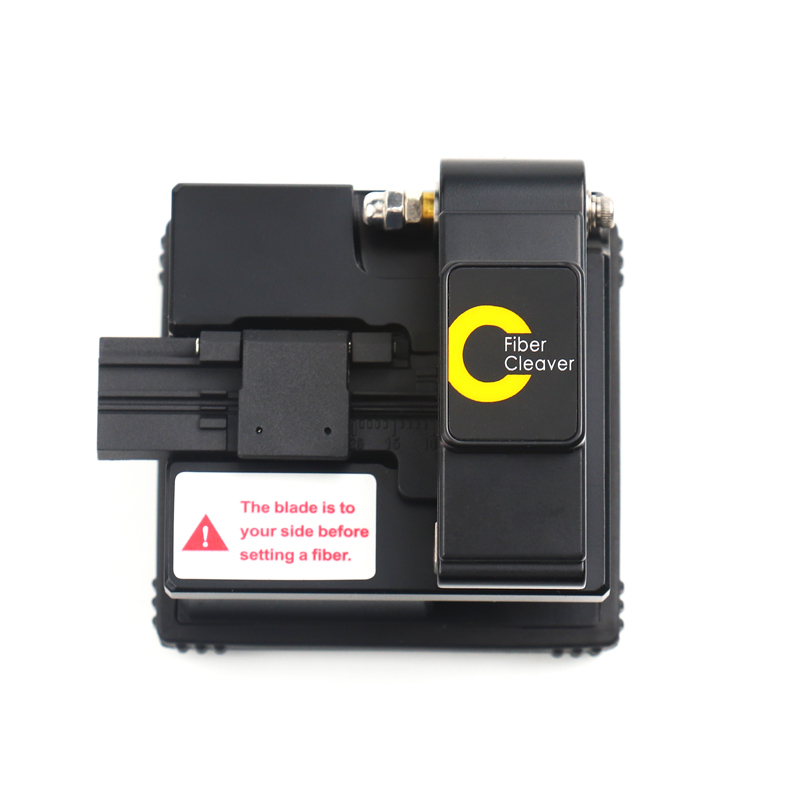

High precision optical fiber cleaver is used for precision cutting single core fiber tool, suitable for FTTH optical fiber to the home.
Cutting angle is smaller and more precise ,easy to operate, do not need special skills.
What's more, small size fiber cleave is easy to carry.
Under the condition of guarantee stability at the same time , more important is relatively affordable price, optional fiber collector, convenient installation.
Specifications
Fiber diameter | 125µm |
Outer-coat diameter | 0.25mm-0.9mm |
Fiber type | Single tube fiber and Ribbon fiber (exchangeable) |
Cleaved length | 5-20mm |
Cleaved angle | ≤0.5° |
blade life | 48000 |
Mode | Manual |
Fiber collector | Not available |
Dimension | 55mm(W)×61(D)mm×60mm(H) |
Weight | 188g |
