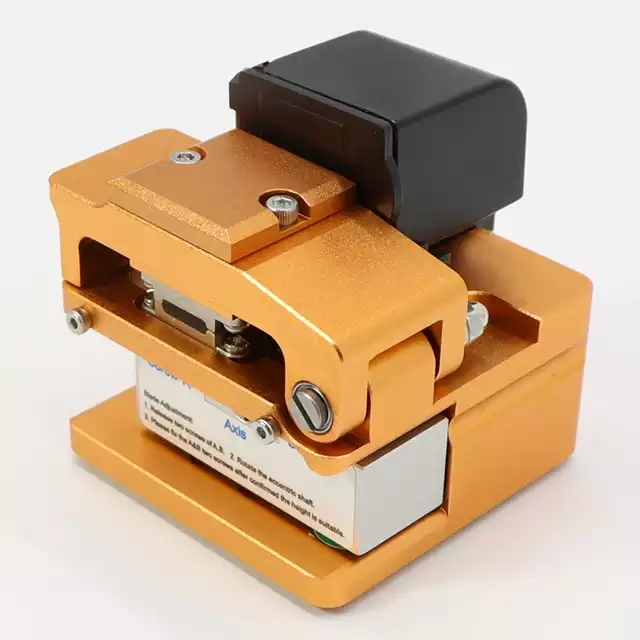

High precision optical fiber cleaver is used for precision cutting single core fiber tool, suitable for FTTH optical fiber to the home.
Cutting angle is smaller and more precise ,easy to operate, do not need special skills.
What's more, small size fiber cleave is easy to carry.
Under the condition of guarantee stability at the same time, more important is relatively affordable price, optional fiber collector, convenient installation.
Specifications

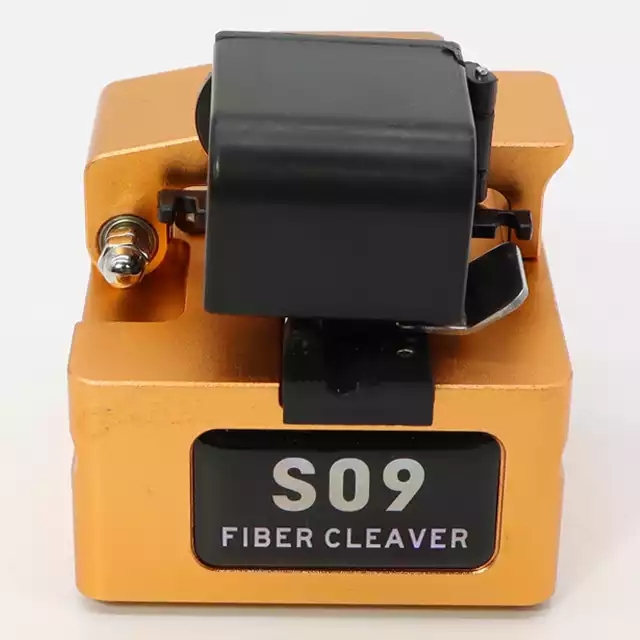

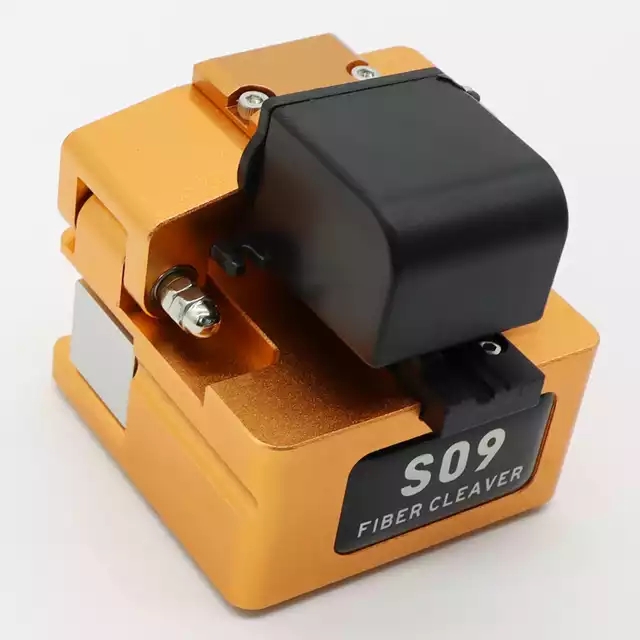

Model Number | S09 (single core & ribbon Fiber Cleaver ) |
Type | Fibre optic cleaver |
Place of Origin | China |
Applicable Fibers | All fibre types |
Average cutting angle | Less than 0.8 degrees |
Cladding Diameter | 125um |
Coating Diameter | Single Fibre: 250 ~ 900um |
Applied optical fiber cable | Single core fiber: 250um, 900um, 3.0mm. Indoor cable/Banded fiber: 2-12 cores ribbon cable |
Cutting length | Single core fiber: 8-20mm/Banded fiber: 10mm |

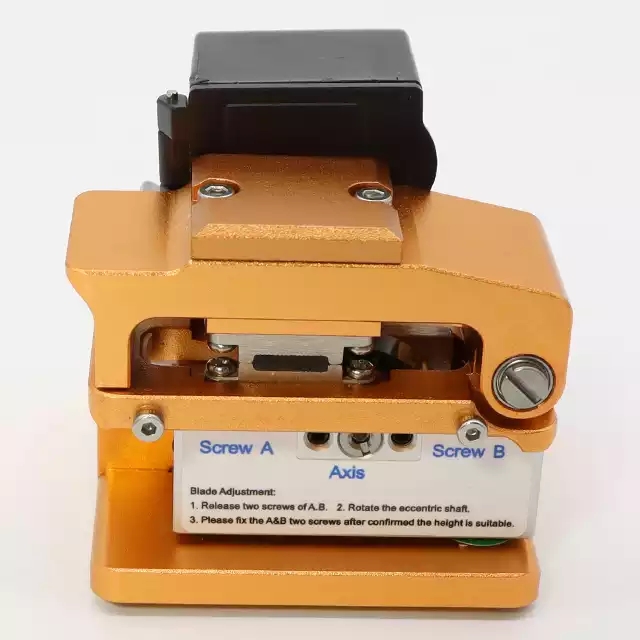

Reposition function | Manual reduction of blade |
Blade life | 36000 times |
Operate steps | Three steps |
Optical fiber clamp | Single core fiber: Universal fiber clamp Ribbon fiber: replaceable banded fiber clamp |

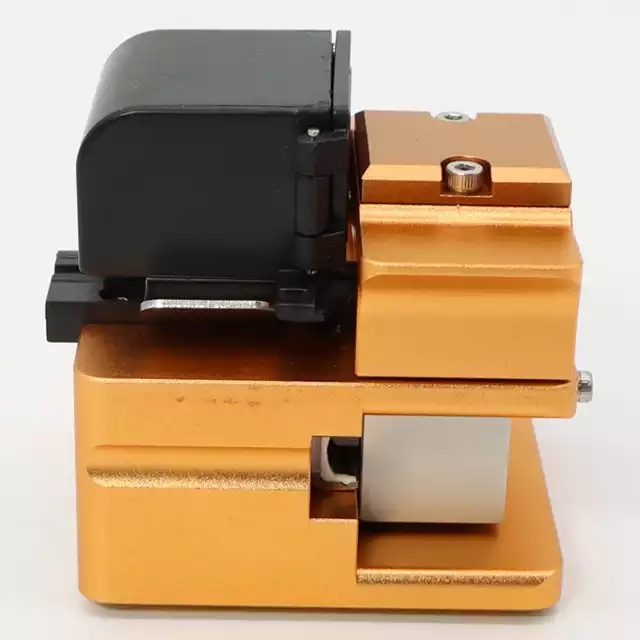

Dimensions | 59W x 60D x 51H(mm) |
Weight | 300g |
Resistance features*3 | Shock: 76cm (30inch) all directions drop |
Dust resistance: Exposure to dust (0.1 to 500μm dia. Alumina Silicate) | |
Rain resistance: H=10mm/hr for 10min |
