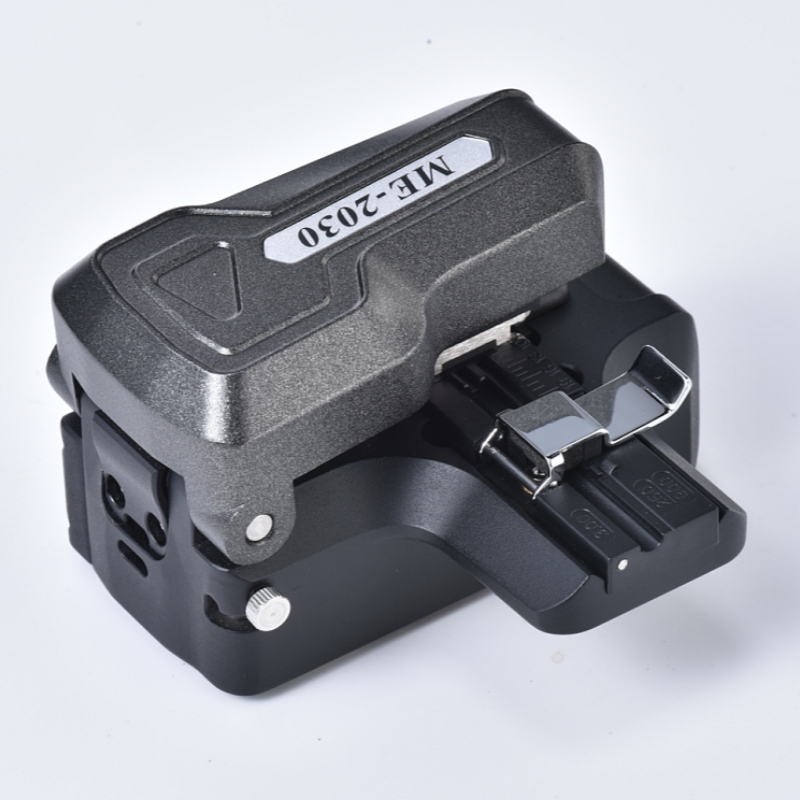

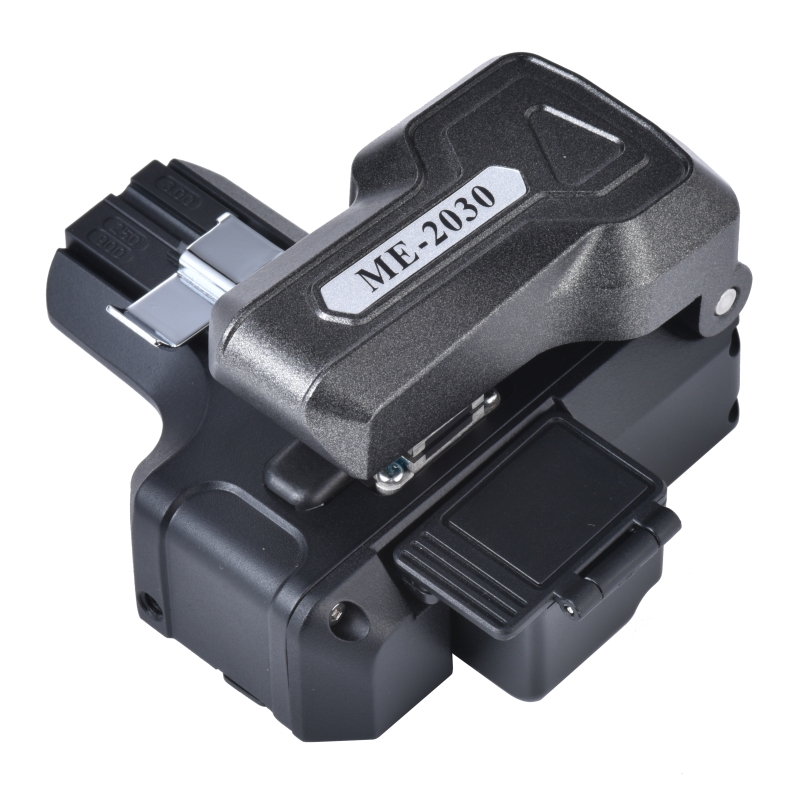

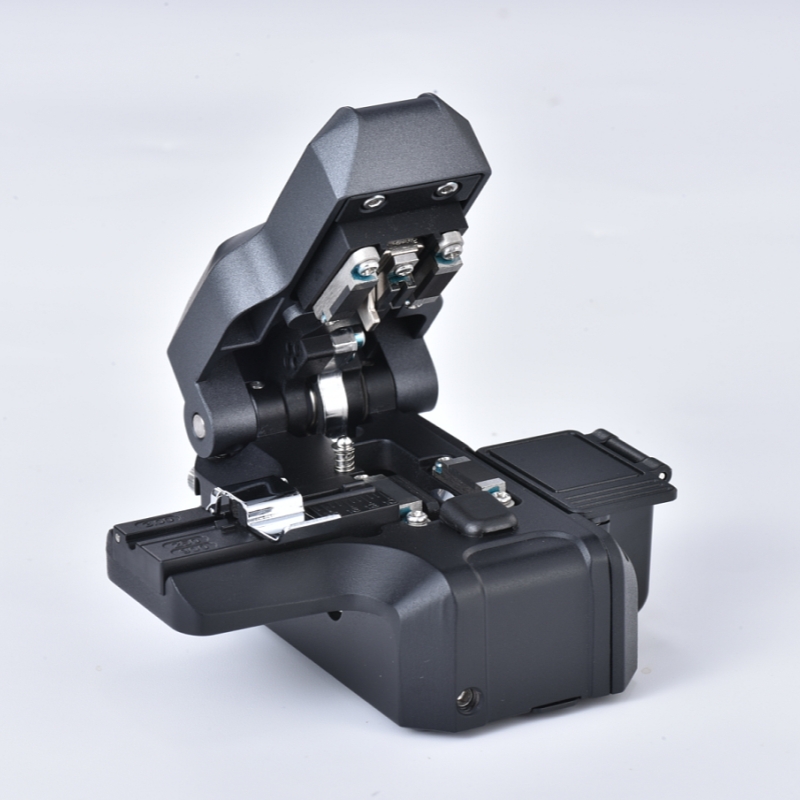

New Type mini One-step Automatic Fiber Cleaver ME-2030
Hot melt and cold junction can be used

3-in-1 fiber holder, imported tungsten steel blade.

High-precision cutting knives, assured quality.
Product description

1.Please read the instructions carefully before use;

2.Optical fiber and debris of the fiber are very fine, sharp at the tip, please adopt a special container for fiber debris collection to prevent fiber debris from pricking the skin or entering into the eyes.

3.Do not disassemble the cleaver, if repair is required, please contact the after-sales person of the manufacturer.

Specifications

Applicable fiber

Single-core silica optical fiber

Applicable fiber coating-layer diameter

φ0.25, φ0.9, φ2.0, φ3.0

Applicable fiber diameter

125μm

Cleaved fiber length

9-20mm

Dimensions

85mm(W)×89mm(D) ×45mm(H)

Weight

138g

Cleaving angle

≤0.6°

Blade life

48000times
