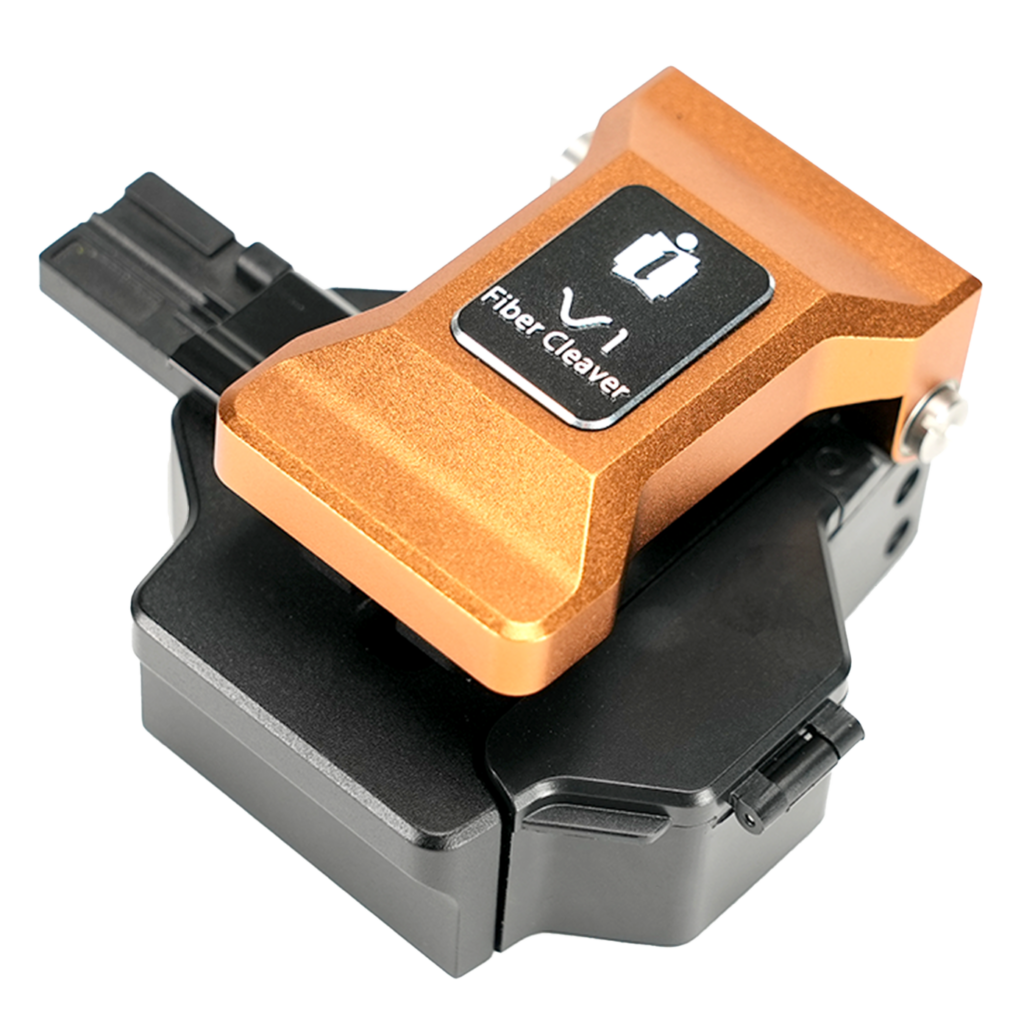

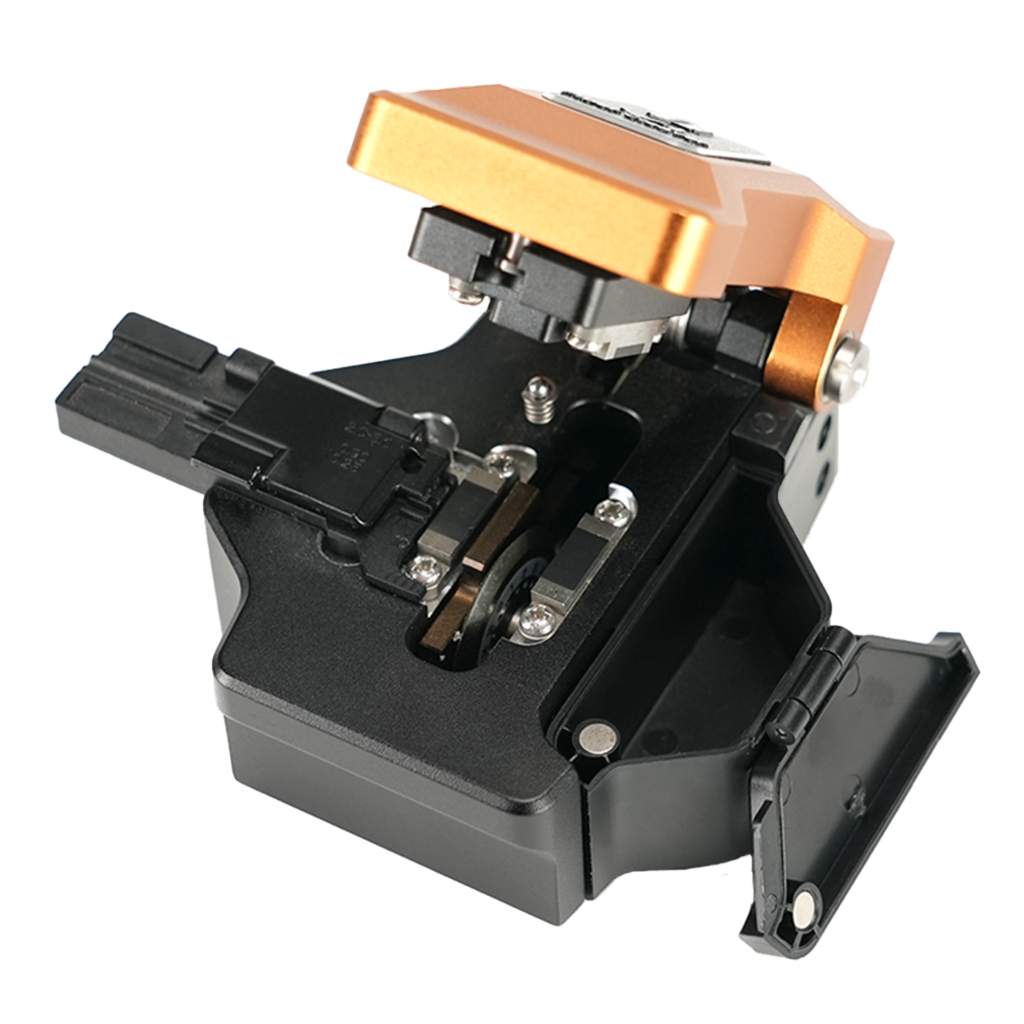

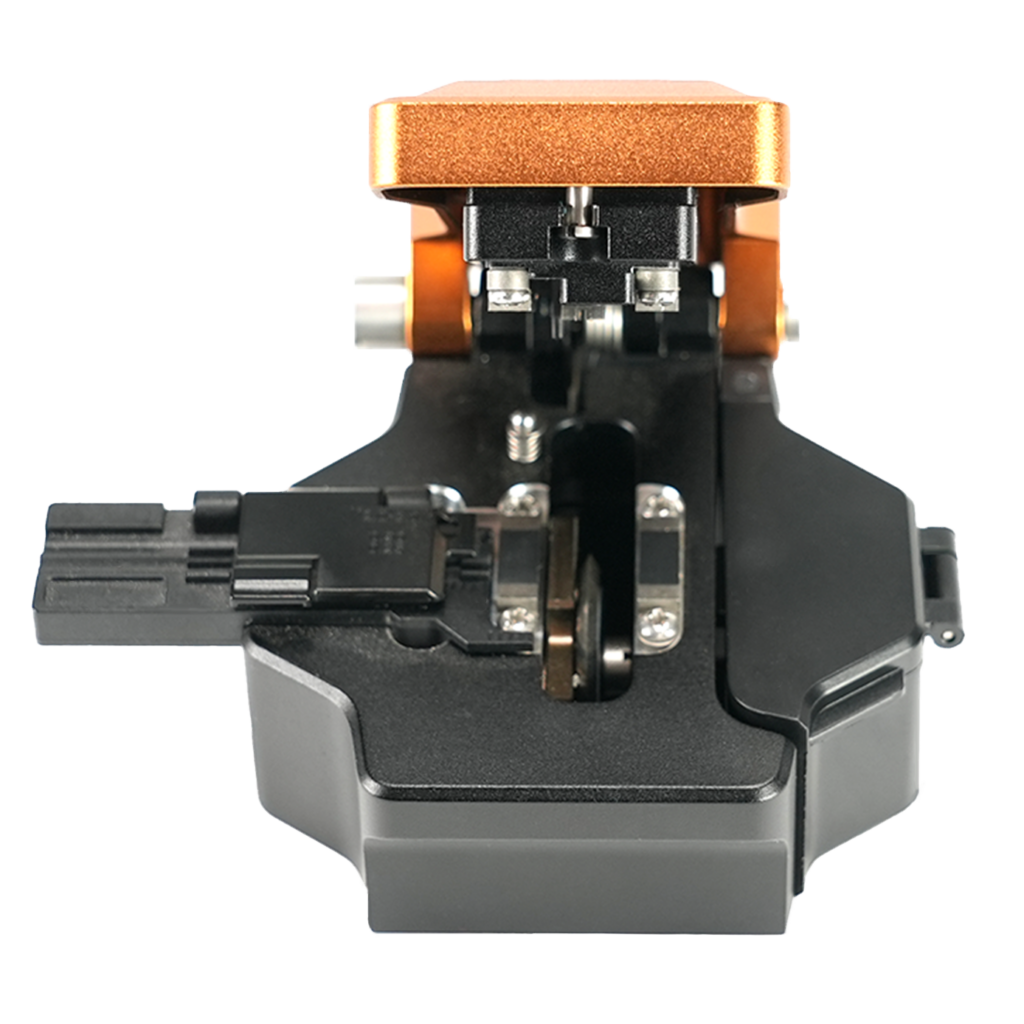

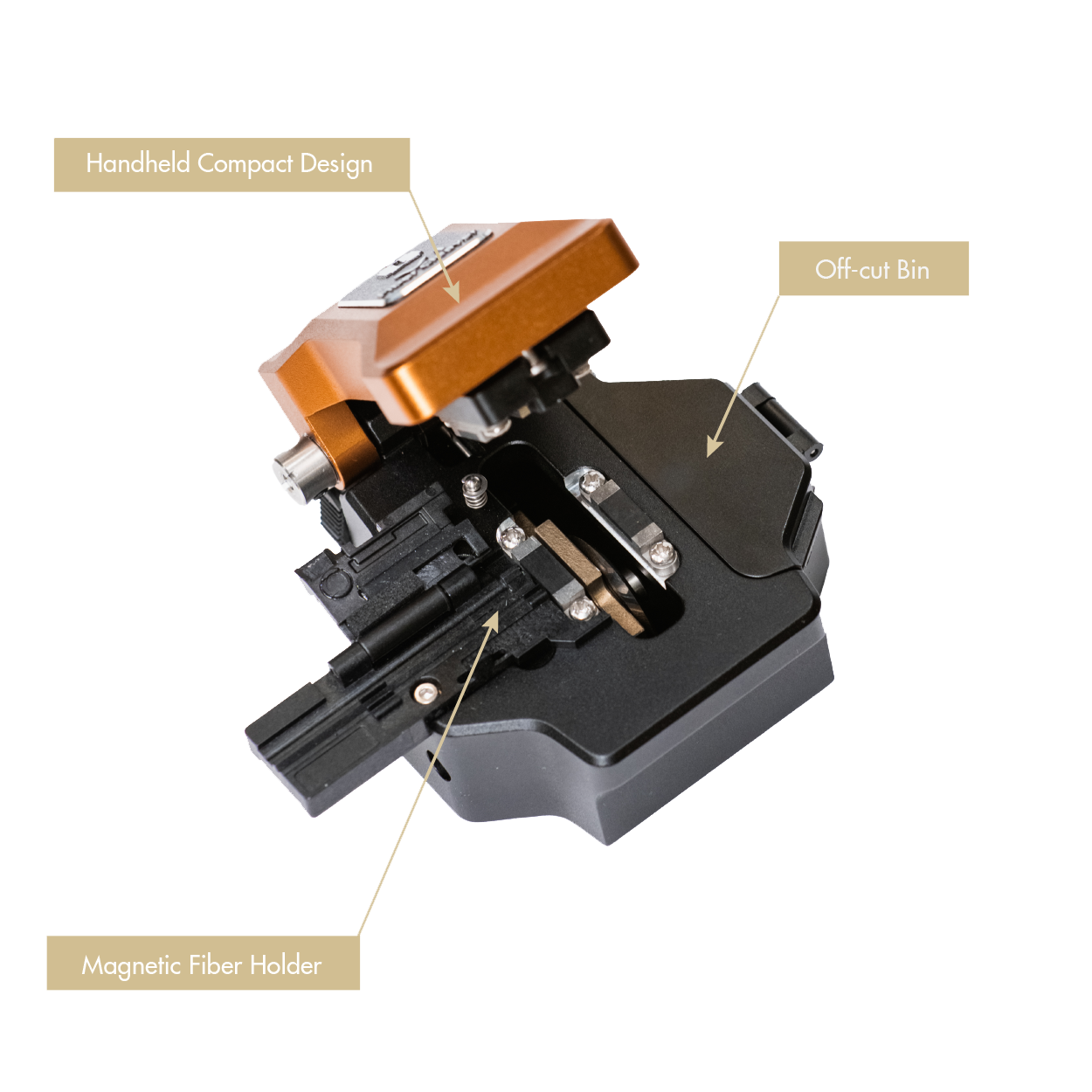

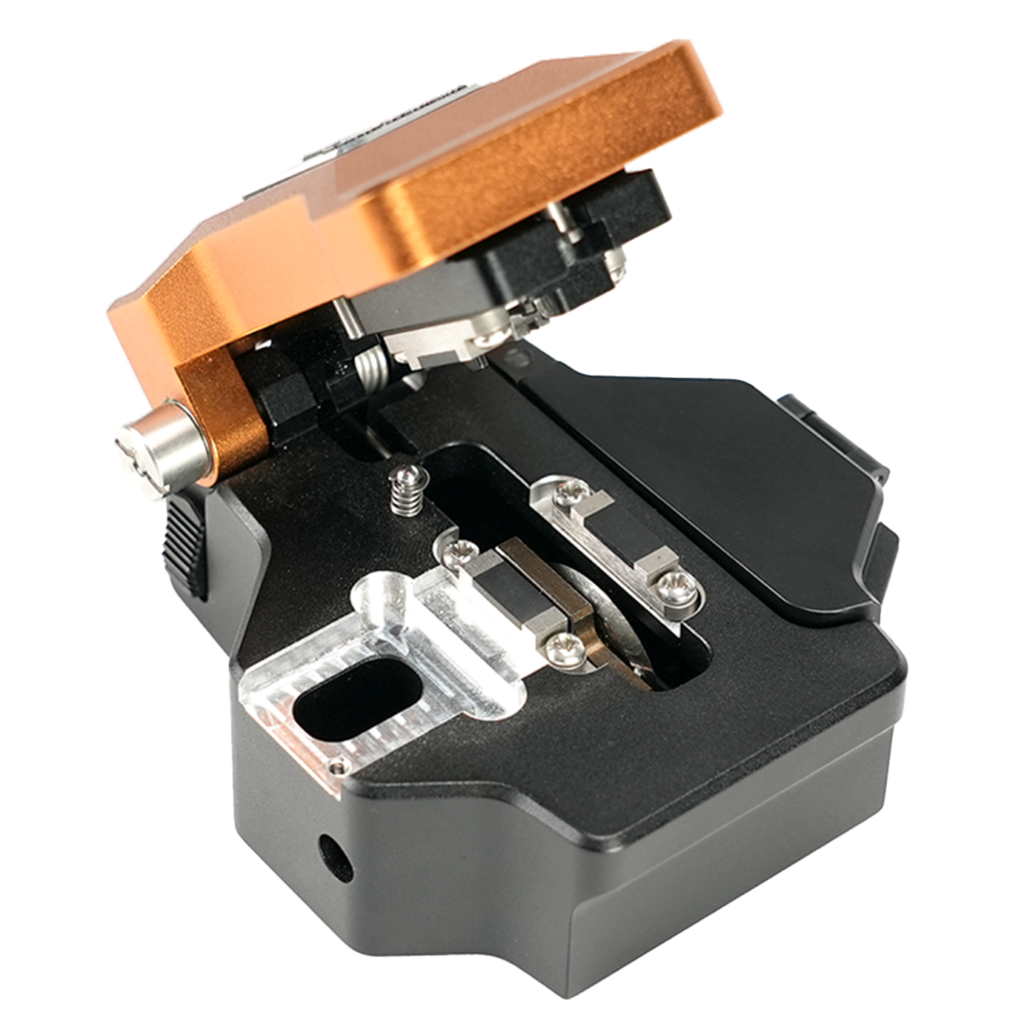

The INNO Instrument V1 Handheld Fiber Cleaver is a compact, efficient tool designed for simplicity and ease of use. It features a durable, handheld design that enhances fiber visibility and ensures precise cleaving. Compatible with all standard single fibers, the V1 is ideal for a variety of applications. Its drop-proof construction and maintenance-free operation make it a reliable choice for field use. The V1 cleaver is a straightforward, single-action solution for fiber cleaving, offering practicality and convenience in a portable format.
Specifications
Model | V1 |
Type | Single fiber |
Cladding Diameter | 125 μm |
Cleaved Length | 5mm ~ 20mm (Coating diameter ≤ 250μm) |
Applicable Fiber Cable | Single Fiber : 250 μm to 900 μm and drop cable |
Typical Cleaved Angle | 0.5 ° |
Typical Blade Life | Total 60,000 fiber cleaves (2,500 cleaves per each point, total 24 points) |
Dimensions | 90.7 W x 72.5 D x 45.8 H mm |
Weight | 220g |
Step | 1 |
