High Precision Automatic Rotating Blade One-step Fiber Cleaver FC-9S

Hot melt and cold junction can be used

4-in-1 fiber holder, imported tungsten steel blade.

High-precision cutting knives, assured quality.

Product description

Please read the instructions carefully before use

1. Please store the product in a dry and clean place at ordinary temperature.

2. Don’t wet the product, hit it violently, or wipe the rubber pad with alcohol.

3. Please clean the dirt on pressure board regularly.

4. Constantly clean the collector and ensure no dust and oil dirties inside.

Specifications

Applicable Fiber	Single-core silica optical fiber
Applicable Fiber Coating-layer Diameter	φ0.25, φ0.9, φ2.0, φ3.0
Applicable Bare Fiber Diameter	125μm
Cleaved Fiber Length	9-20mm
Dimensions	83mm(W)x76.5mm(D)x50mm(H)
Weight	230g
Cleaving Angle	≤0.8°
Blade Life	48000 times(1000 Times16 Position3 Adjustable Height)
Blade Type	Φ20(mm) φ4(mm) H:3(mm)
Fiber Fixture	4-in-1 Fixture

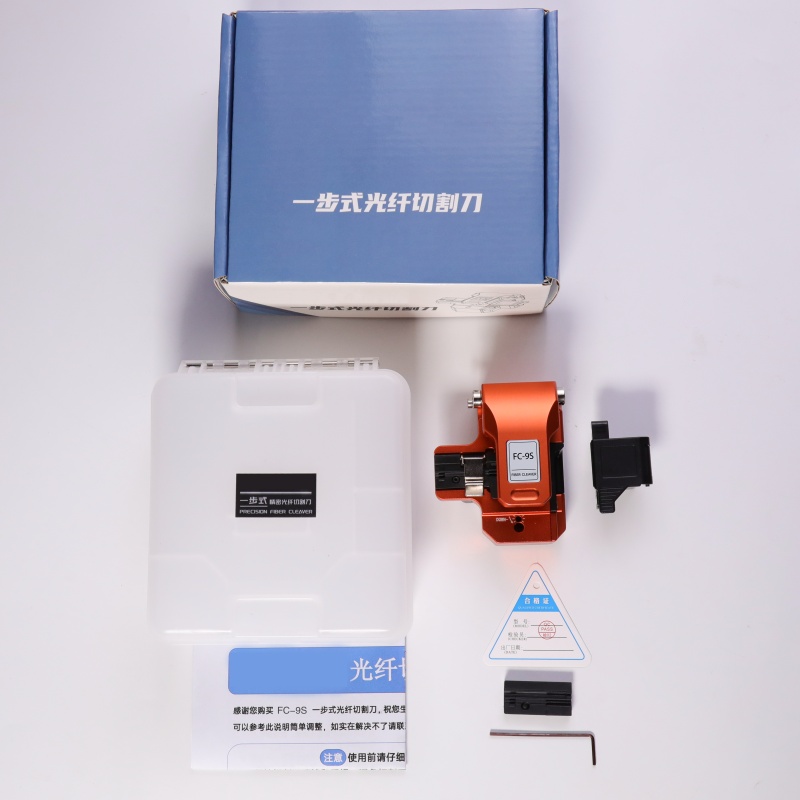

Standard Package	Collector/Box/Manual/Allen key
Optional Accessories	Multifunctional Fixture
