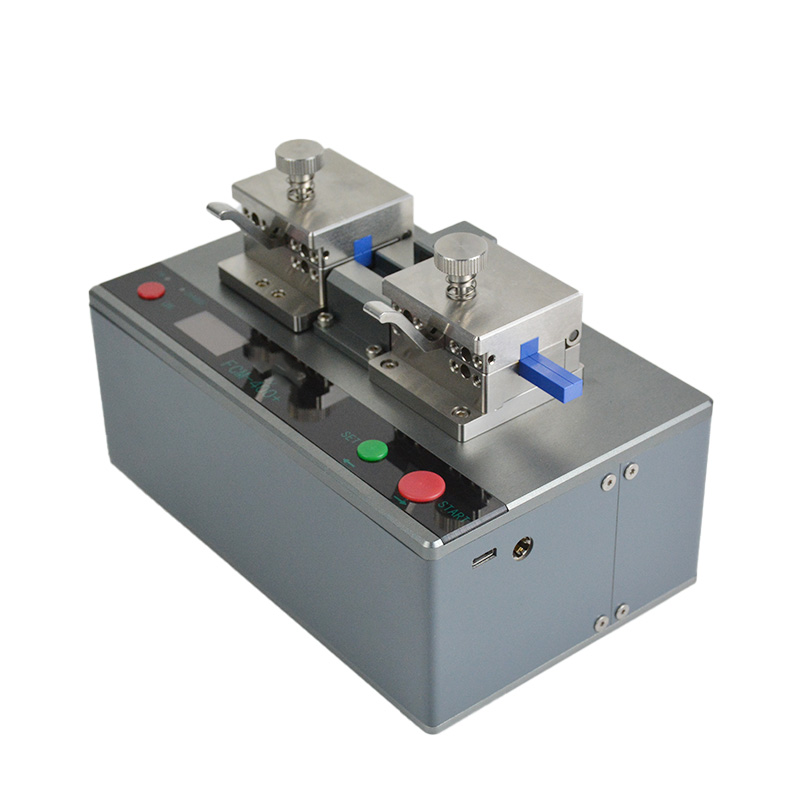

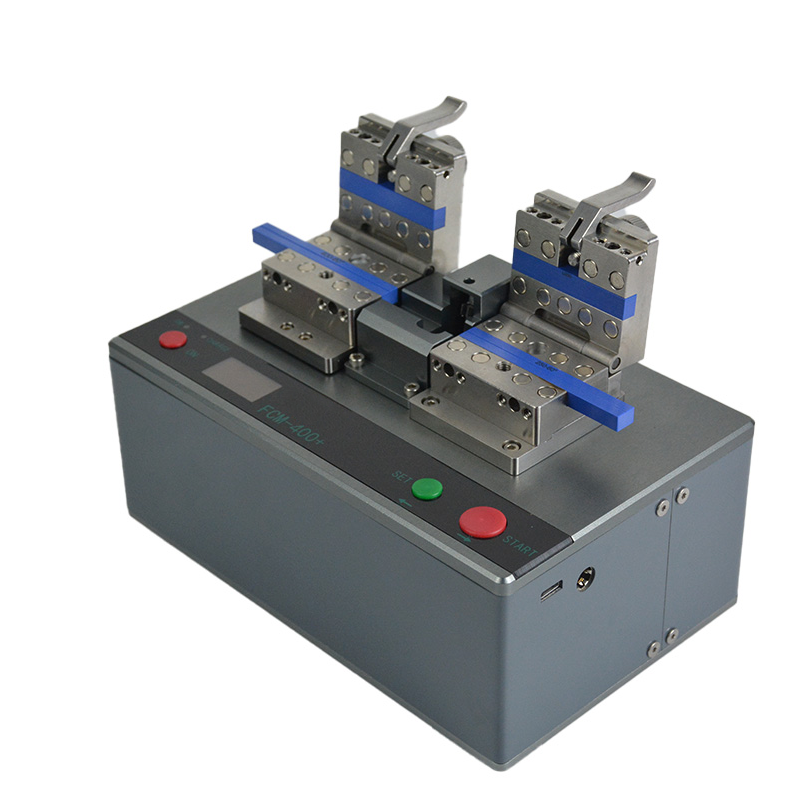

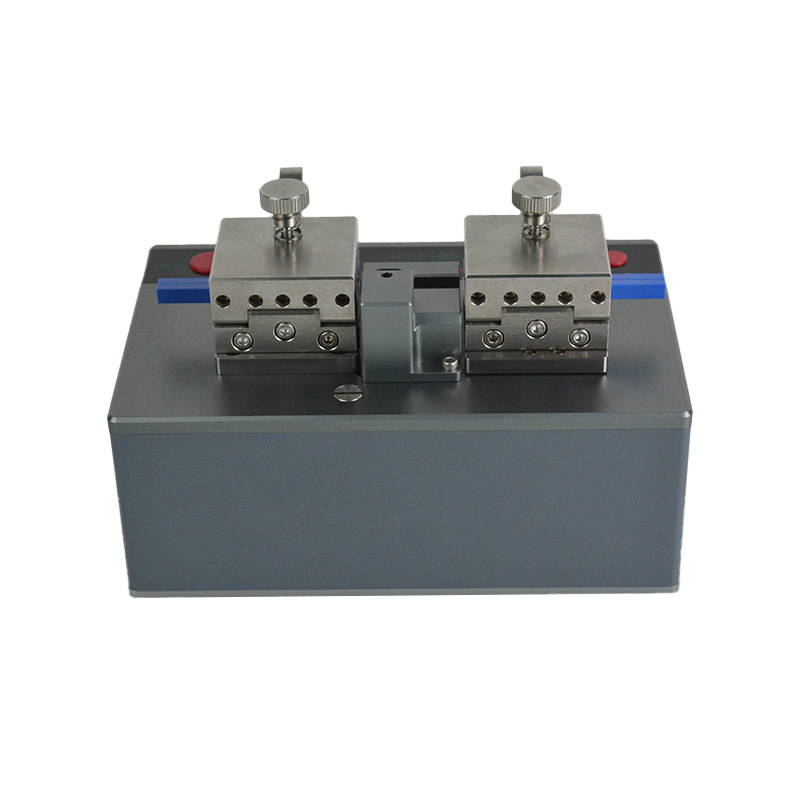

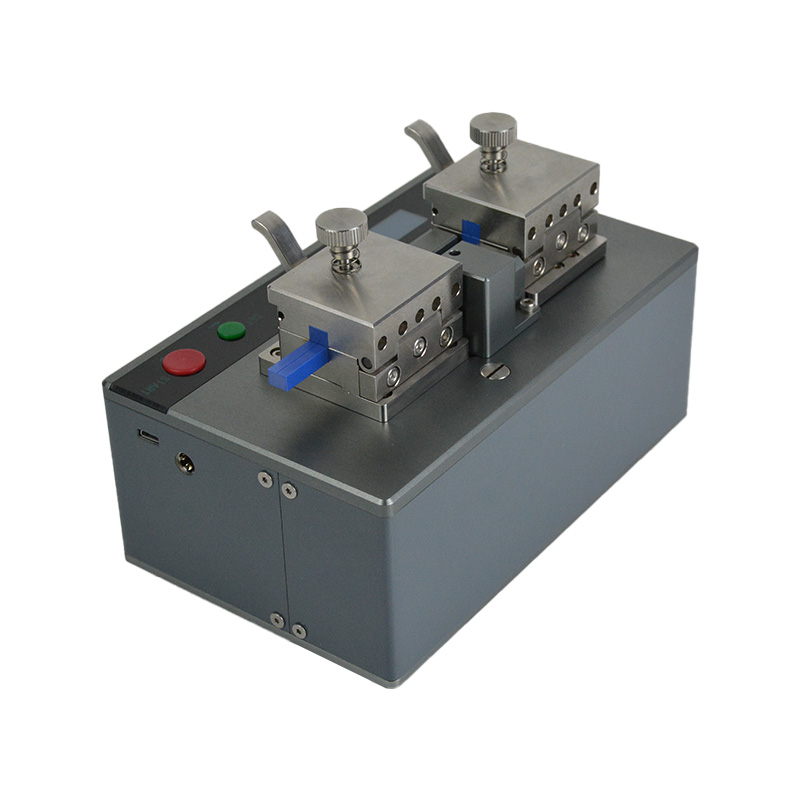

FCM-400+ is the first generation on large diameter fiber cleave and end-face fabrication on tool developed by FFS Company. FCM-400+ is mainly suitable for the fabrication on of 80-400μm cladding diameter optical fiber end- face, with fast cutting speed and good end-face effect. It is widely used in the manufacture of fiber lasers, fiber sensors and scientific research units such as universities and laboratories, etc.
Specifications
Model | FCM-400+ |
Applicable fiber | Silica fiber, active fiber, micro structured fiber, quartz tube. |
Fiber count | Single |
Cladding diameter | 80-600μm |
Coating diameter | 160-3000μm |
Clamping force adjustment | Under cladding dia. 400μm: Adjustment with magnet Cladding dia. 400μm to 660μm: Adjustment with magnet and screw Adjustment method: Magnetic Manual |
Capability of setting range for tension | 0-3000gf(Auto adjusting） |
Cleave angle range | Average 0.2°(Cladding 125μm) Average 0.3°(Cladding 250μm) Average 0.4°(Cladding 400μm) |
Blade life | Approx 200000 times(Cladding 250μm) |
Cleave mode | 200/300/400/500/600 |
Statistical methods | Total Count and Subtotal |
Language | CN/EN |
Monitor | 24*13mm Display |
Size | 160*100*113mm |
Weight | 1.95kg |
Power Supply | 19V, 2.5A |
Battery | Capacity: 3000mAh, 33.3Wh |
Operating condition | Temperature: 0~+40°C Humidity: 0~95% RH non-condensing, 0~5000m(altitude) |
Storage condition | Temprature: 0~+60°C, Humidity: 0~95% RH non-condensing |
Remarks 1. Clamp lid screw may be necessary depending on the fiber type when it cleaves < 400 μm；Clamp lid screw may be necessary if when cutting softer coated layers during clamping. 2. Measured with a splicer (FSM-100P+) at room temperature. The average cleave angle changes depending on the environmental conditions, blade condition, operating method and cleanliness. 3. Support 10,000 cleaves per position at cladding dia. 250μm and 400μm. 20pos.x10,000 cleaves = 200,000 cleaves. The blade life changes depending on the environmental conditions, operating method and the fiber type cleaved. 4. Total Count: Used to record the number of equipment cutting cycles. Resetting is not available for users. Subtotal: Used to track the number of equipment maintenance cycles. Users have the option to reset. | |
Standard Package
Description | Model | QTY/unit |
Large Diameter Fiber Cleaver | FCM-400+ | 1pc |
AC charger | ADC-19 | 1pc |
Instruction Manual | --- | 1pc |
Hexagonal Wrench | --- | 2pcs |
Magnifier for blade inspection | Magnifier-01 | 1pc |
Upper insert | INSERT_U250 | 1pc |
Lower insert | INSERT_L250 | 1pc |
Upper insert | INSERT_U400 | 1pc |
Lower insert | INSERT_L400 | 1pc |
Upper insert | INSERT_U500 | 1pc |
Lower insert | INSERT_L500 | 1pc |
Packing list | --- | 1pc |
QC Card | --- | 1pc |
Carrying case | BOX-01 | 1pc |
