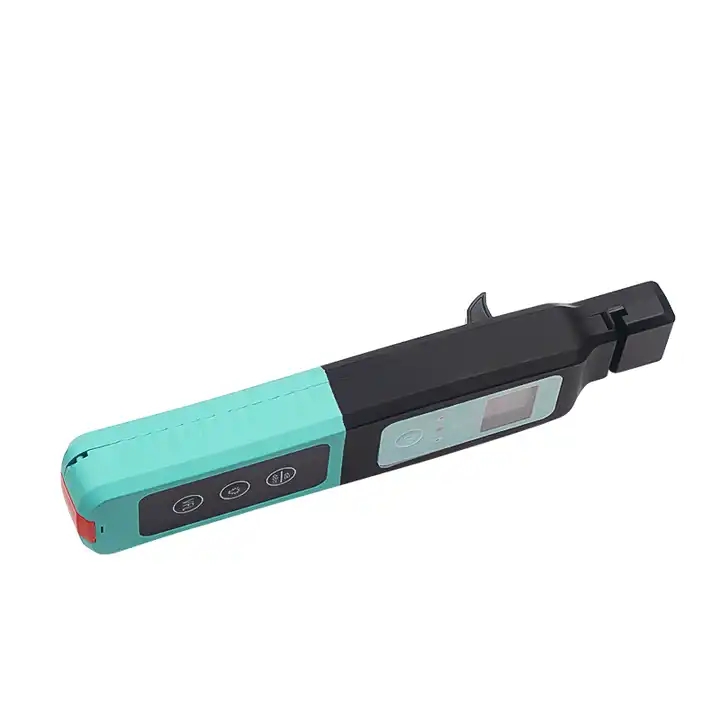

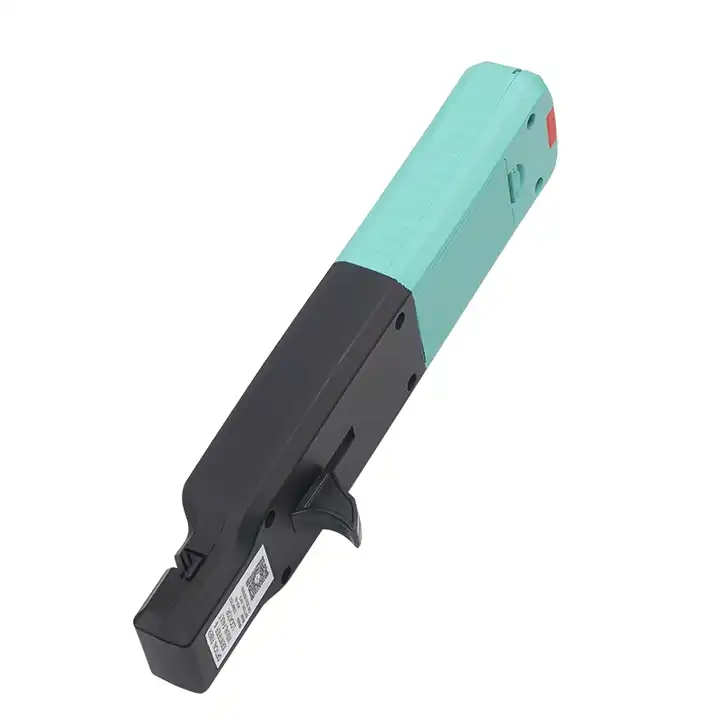

Optical Fiber Identifier is an important tool for optical fiber network maintenance, which is used for nondestructive fiber identification work, can be detect in any location of both SM and MM fiber.
Features
Direction indication of optical signal, for single mode and multi-mode
Automatic identification of three signal frequencies (270Hz/1kHz/2KHz)

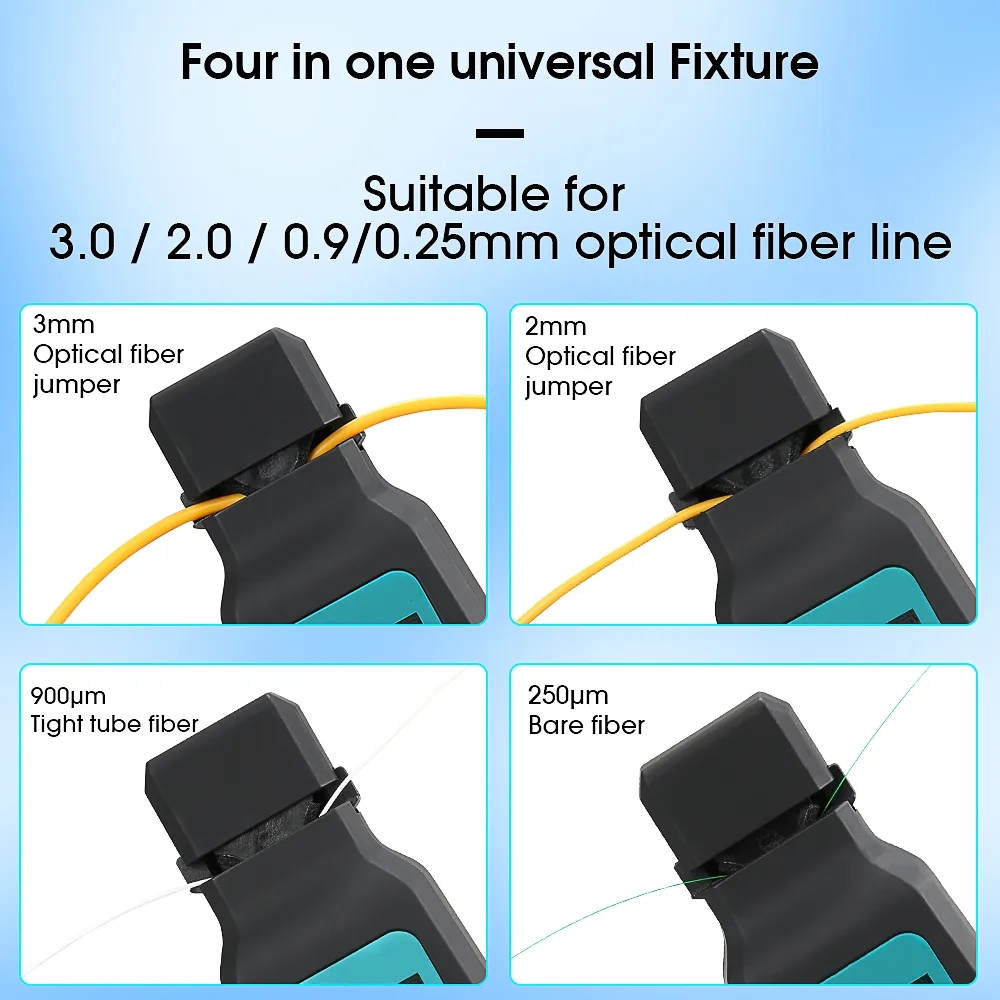

Four in one universal fixture, online testing, no need to replace the fixture

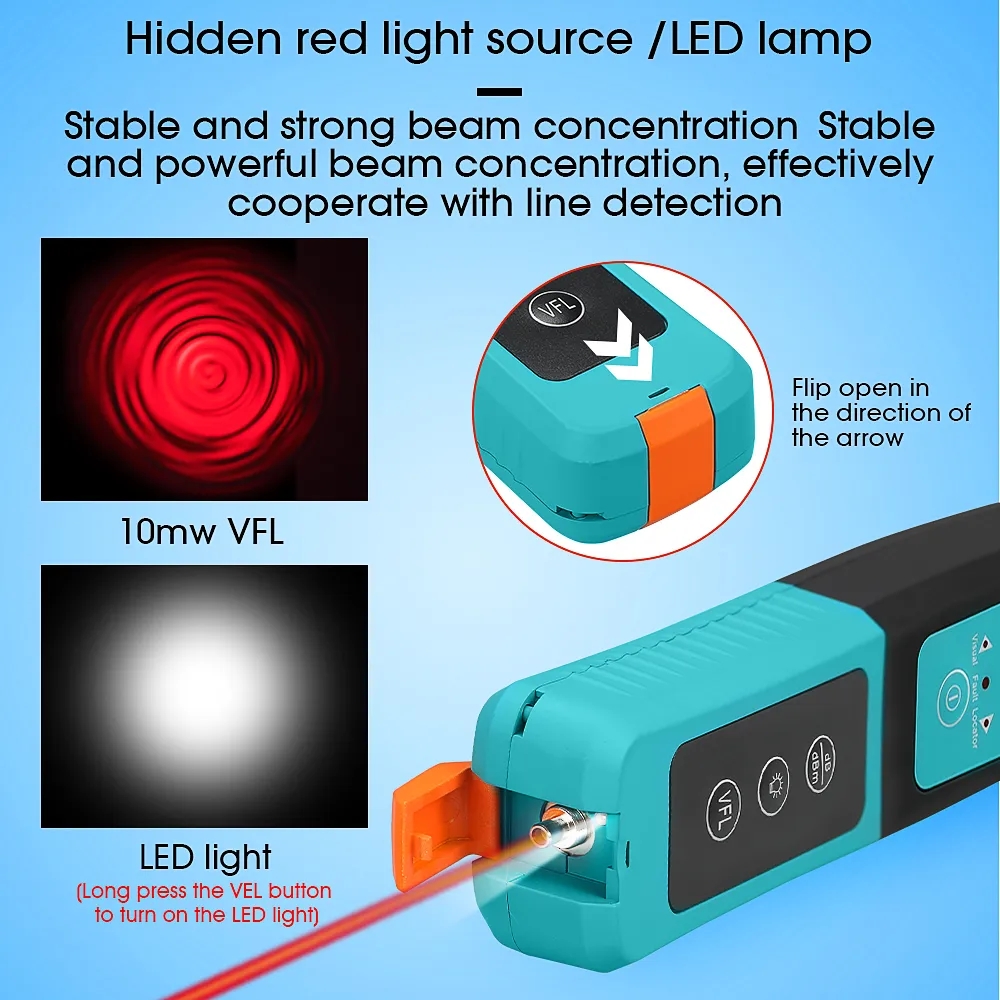

Hidden red light source, stable and strong light source, effective with line detection
Power display
Automatic shutdown
Specifications
Wavelength range | 800-1700nm |
Signal recognition type | CW,270Hz±5%,1kHZ±5%2kHz±5% |
Detector type | Φ1mm InGaAs 2pcs |
Adaptive fiber type | General purpose Φ 0.25 (bare fiber), Φ0.9,Φ2.0, Φ3.0 optical fiber jumper |
Signal direction | LED indicator light left and right direction indication |
Optical power reading range | -40dBm-+10dBm |
Signal frequency range | 270Hz,1kHz,2kHz |
Red light test wavelength | 650nm±10nm |
Red light output power | >10mW |
Alkaline battery | 2*AA 1.5V |
Operating Temperature(℃) | -10~+60 |
Storaae Temperature(℃) | -25~+70 |
Product weight | 187g |
Package weight | 292g |
