Komshine Original Optical Fiber Identifier KFI-35 with Built-in OPM & VFL

Display relative optical power
Test online without interruption of the link
Recognize the signal of 270Hz, 1KHZ, 2KHz.

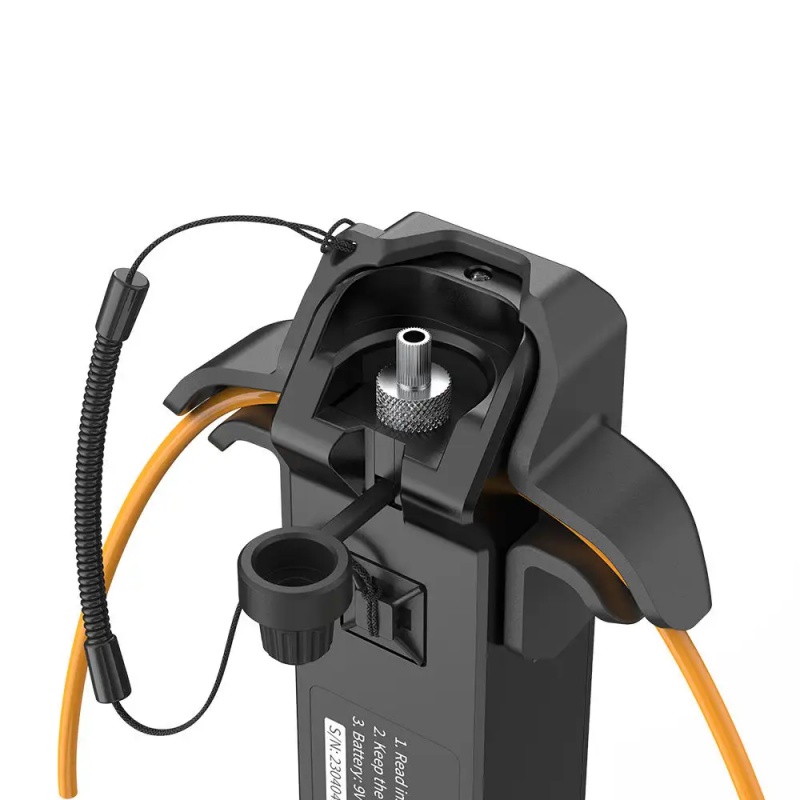

Comes with a hood to provide more accurate test results outdoors
Identify the propagation direction of light, sound alarm reminder.
Comes with VFL & OPM function

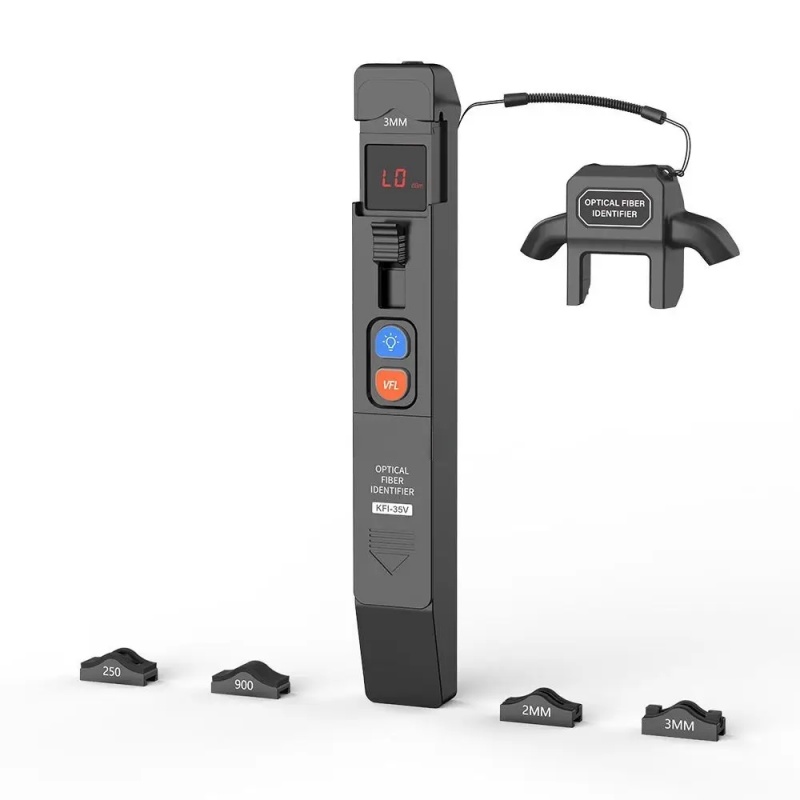

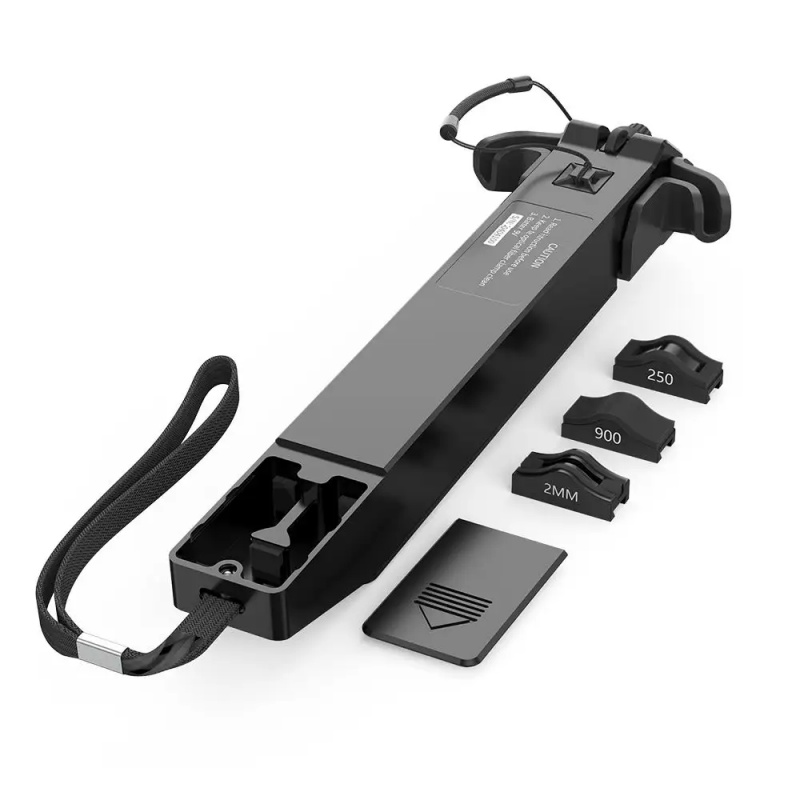

LED display, 4 fixtures support bare fiber, 0.9mm, 2mm, 3mm fiber.
Low power reminder

Product description

Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without interrupting the current service. The fiber identifier recognizes modulation like, 270Hz,1KHz and 2KHz with continuous audible tone. There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. This OFI is powered by 2pcs very normal AA batteries.

Specifications

Fiber type	0.9/ 0.25/ 2.0/ 3.0 (mm) fiber
Identification signal	270/ 1000/ 2000 (Hz)
Accuracy	+10dB~ -30dBm(continuous wave) +10dB~ -25dBm(Modulated signal)
Wavelength range	800~1700 (nm)
Detector type	InGaAs 2pcs
Sensitivity	+10dB~ -35dBm
Dimension	2448240mm
VFL
Power range	10mW
Testing distance	5~8KM
Wavelength range	650nm
Laser type	LD
Led flashlight	Support
OPM
Wavelength range	800~1700nm
Measurement range	-70 ~ +6dBm / -50 ~ +26dBm
Standard wavelength	850/980/1300/1310/1490/1550/1625nm
Optical connector	2.5mm Universal interface+SC
Detector type	InGaAs
Display resolution	0.01dB
Accuracy	±0.2dB
