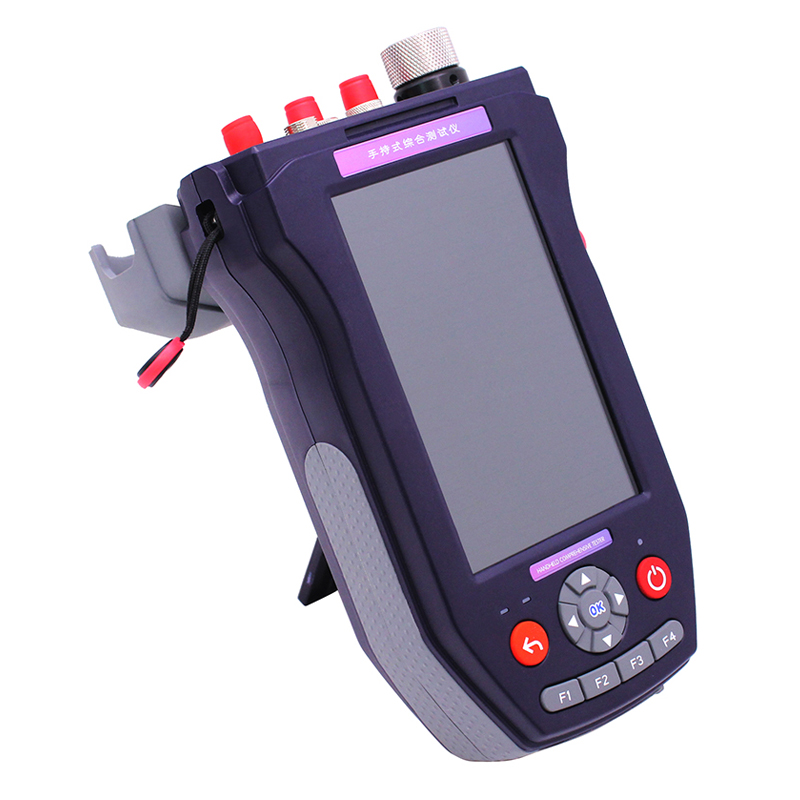

Fiber Optic Comprehensive Tester FFS750 Fiber Endface Inspection Microscope

User interface with 5-inch color touch screen.
Built-in jumper microscope: Universal φ2.5mm /Universal φ1.25mm fiber optic interface adapter.
Built-in OLS: 850/1300nm, 1310/1550nm, 1310/1490nm any pair of band light source.
Built-in OPM: 850/1300/1310/1490/1550/1625nm band.
Built-in VFL: 650nm red light source, test distance of 10km.

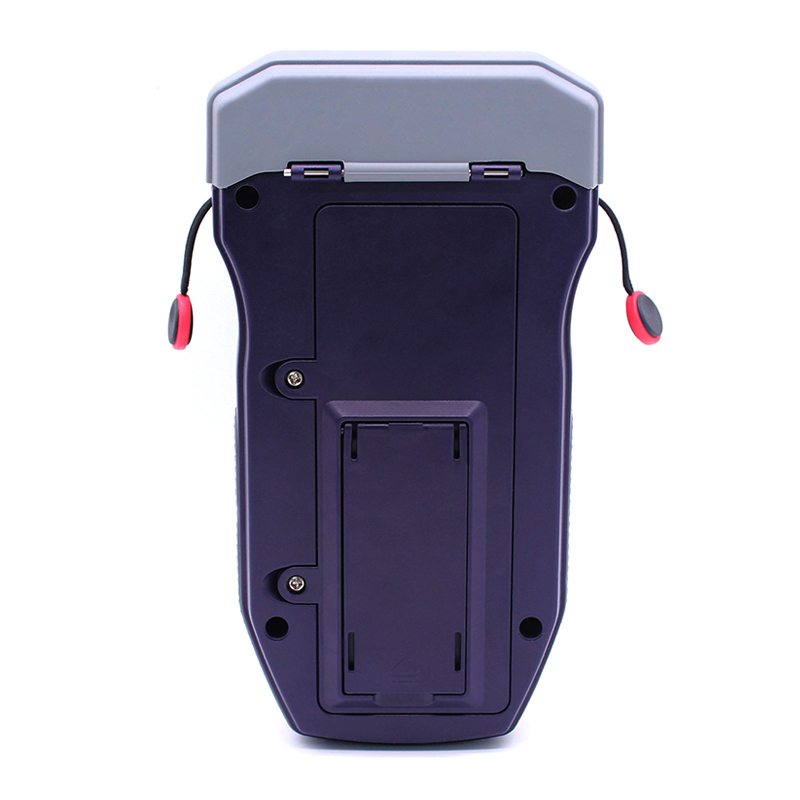

Built-in 4 knots 18650 lithium battery, easy to use for a whole day.
The "PASS/FAIL" analysis of optical fiber detection and optical testing can be completed automatically.
Support the built-in storage and export of optical fiber detection and test results.
Easily generate professional optical fiber test report files.
A safety lash that liberates both hands allows technicians to use it in any environment.

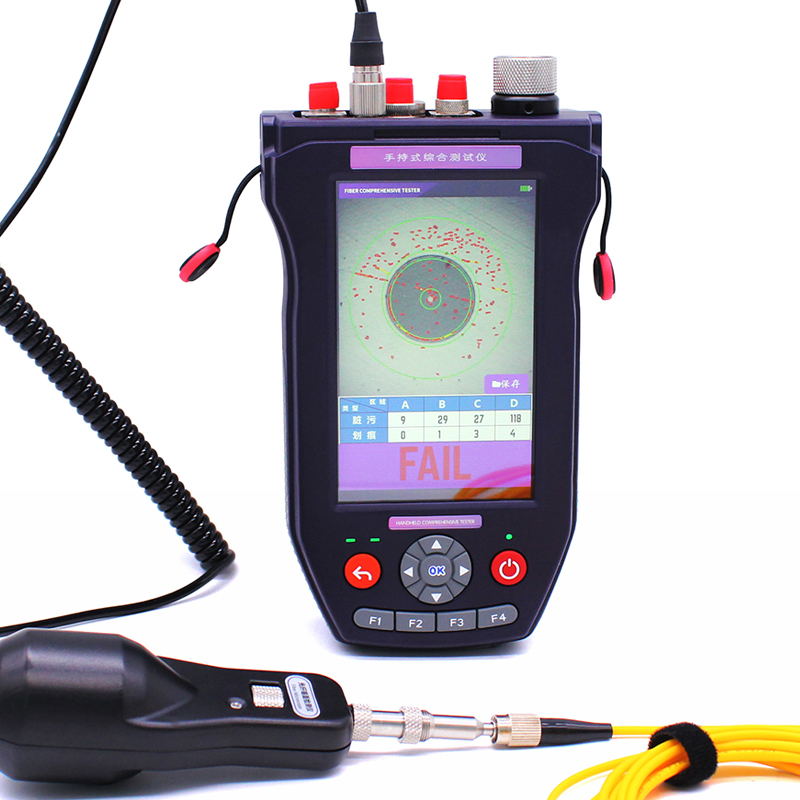

Expsible external probe type fiber microscope, automatic "PASS/FAIL" fiber inspection analysis.

Product description

The Fiber Optic Comprehensive Tester is an integrated solution that integrates fiber end analysis and optical power measurement. It is the perfect representation of a professional, versatile and compact instrument for a variety of application environments that measure optical power and loss in any fiber optic network.

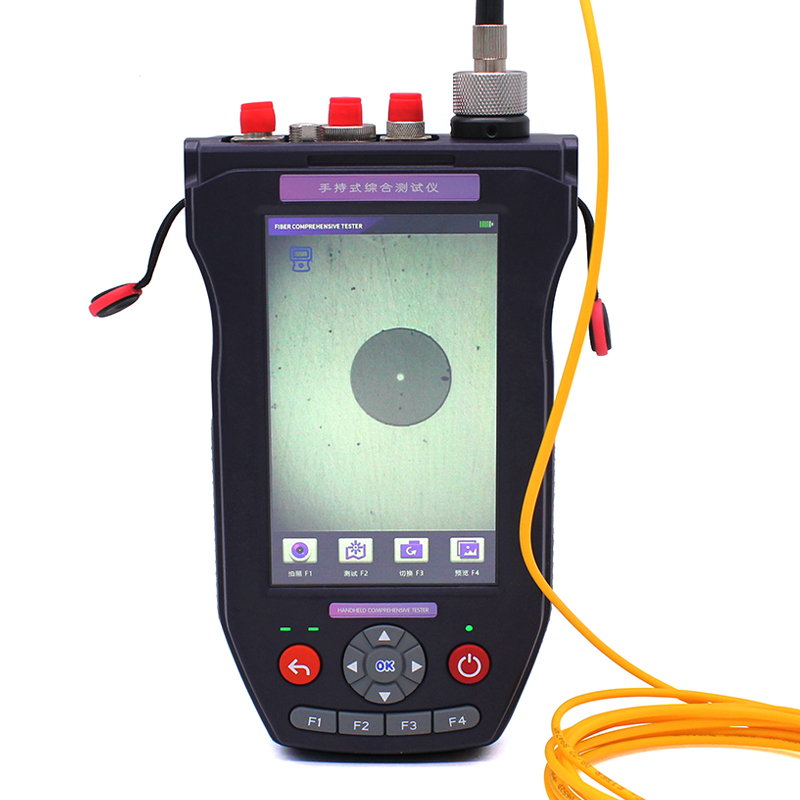

Built-in optical fiber end detector, by magnifying the image 200X, you can clearly judge the condition of the optical fiber end surface, such as scratches and dirt. Support test each band power 850/1300/1310/1490/1550/1625, 1310/1550 support nm double wavelength light source, 650nm red light. You can set threshold, plug loss test, zero setting and power display, and generate test reports, test data at a glance.

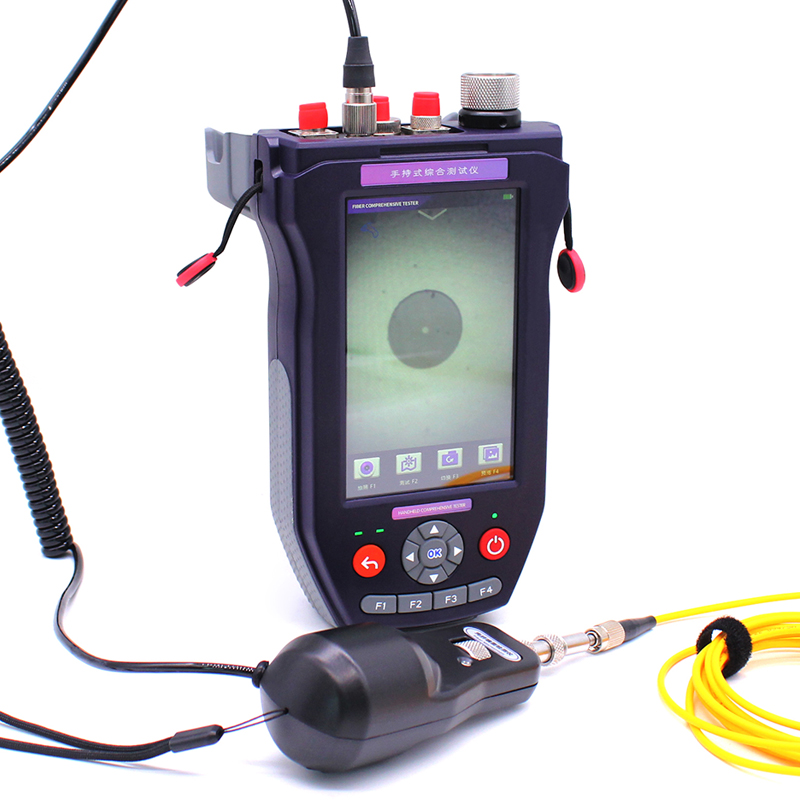

The handheld optical fiber inspection microscope can be extended to the comprehensive tester, and the user can detect the quality of the optical fiber end face and automatically distinguish "PASS/FAIL" to obtain the certification result.

Applications

Multi-protocol FTTx PON downstream service opening, testing, and maintenance.

Standardize fiber end surface inspection, analysis, and testing methods for the entire fiber network.

Provide certification report with "PASS/FAIL" fiber connection analysis.

Specifications

Fiber End-Face Testing
Image magnification	200X	Focus method	Manual operation
Video signal format	PAL	Storage temperature	-20~50℃
Power dissipation	3W	Power supply mode	5V2A, type-c Port
Display	5" TFT	Working hours	>8h
Storage	Plug in U disk	Battery	Polymer lithium battery
Display resolution	800*480	Service temperature	-10~50℃
Interface type	Active interface, FC/SC/ST/ Universal 2.5mm/1.25mm adapter
End-face test	Support internal and external end detection, one key switch.
OLS
Wavelength	1310/1550nm	Wavelength width	-20dB < 0. 5 nm
Optional wavelength	850/1300nm; 1310/1490nm	Output power stability	<= +/- 0.2 dB
Wavelength accuracy	+/- 10 nm	Output power	>= 0.25mW
Optical output interface	FC/PC	Wavelength width	-3dB < 1 nm
VFL
Wavelength	650±10nm	Number of channels	Single channel
Maximum output luminous power	10mw	Connector type	FC/PC
OPM
Wavelength	850/1300/1310/1490/1550/1625	Test specification	+3～-70dBm; +26~-50dBm
Display accuracy	0.01dB	Connector type	Universal 2.5/1.25mm adapter
