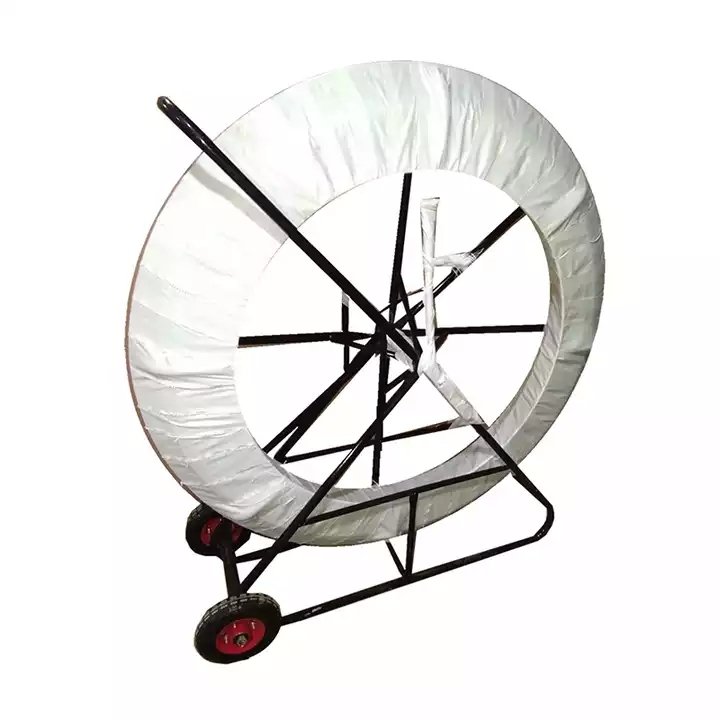

Fiberglass Cable Duct Rodder
Non-conductive, rust and corrosion resistant, superior pulling strength, sturdy and durable,is able to keep its shape under the pressure of 10KN.

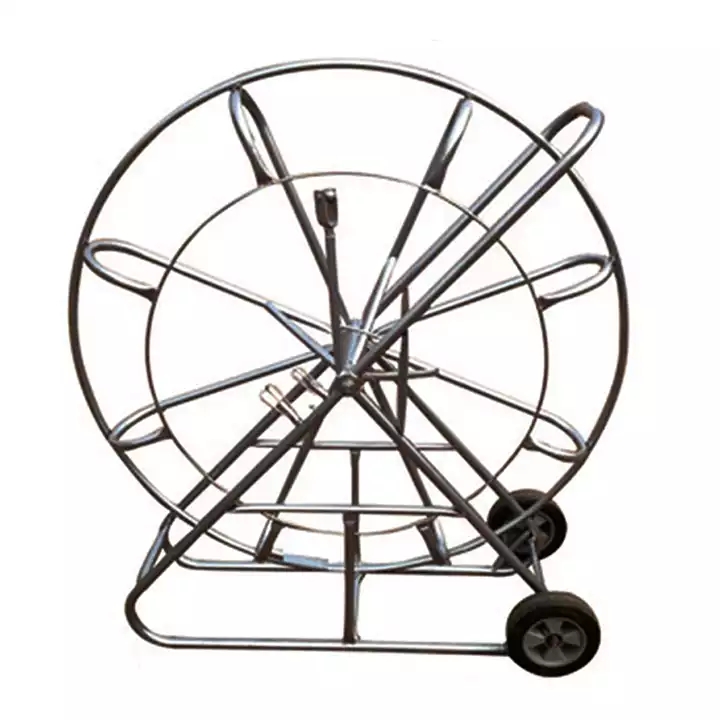

Light weight, movable bracket welded by high-quality steel, sturdy and durable, with good compression resistance capacity , easy to carry, two wheels for moving freely.

Good compression resistance capacity and proper structure,no easy to break and ageing resistance,great tensile strength and strong bending property.
Product description

Fiberglass Wire Cable is mainly used in the traction of sewer cable line. Glass fiber, non conductive, anti rust and anti-corrosion, excellent tensile strength. Using high quality steel, strong and durable, with good compression resistance and capacity, the appropriate structure of welding, under strong pressure to maintain its deformation. It has the advantages of time saving, labor saving, improved work efficiency, etc, and can be used for the cleaning and the optical cable, the cable and the plastic tube of the telecommunication pipeline.

Technical Data of Fiberglass Duct Rodder

Specifications

Rod Diameter (mm)

Φ4.5,Φ6,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16

Rod Length (m)

30~500

Frame Spec.(cm)

50*40*15, 67*55*16, 76*66*16, 95*90*48, 105*100*48

130*120*48, 150*140*48

Color

Blue, yellow, red, white, etc.

Material

Rod Inner

Extruded by fiber glass and high strength resin at high temperature

Rod Outer

High Density polyethylene coating

Frame

Steel with high-temperature Spray coating

Wheel

Rubber

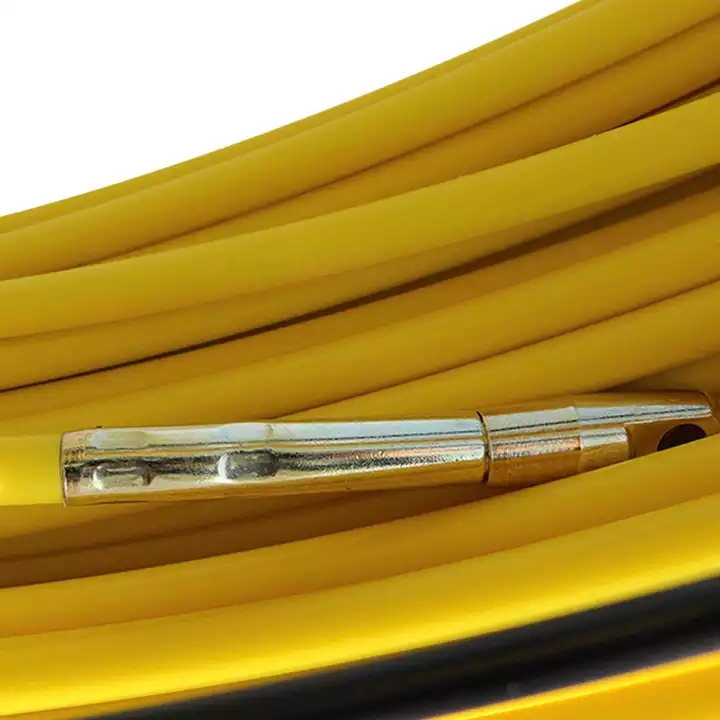

Drawing head

Copper

Physical Characters

Density

55g/m

Working temperature

-40°C to +80°C

Breaking tension

100kg

Bending Radius

295mm

Technology

Pultrusion

Package

Inside

Plastic woven strip wind around the frame

Outside

Carton, Wooden Pallet or Wooden Crate
