Features

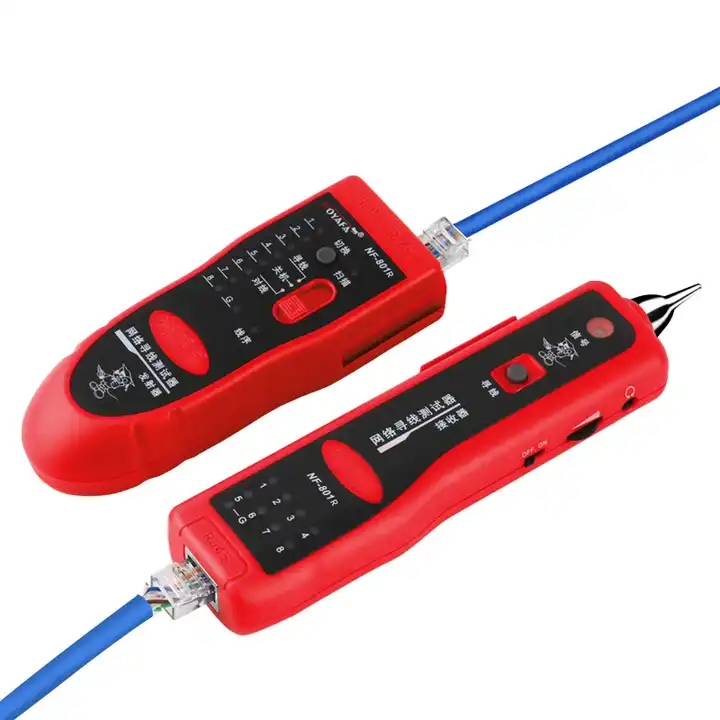

Quickly trace and identify cables among lots of unknown cables.
Check continuity of Lan cables, open, short, cross, etc.
Track the cables or wires, and diagnose the breakage.
Visible indication: pin-to-pin cable map for individual cable (not by pairs).
Low Voltage alarm function. Used on single conductors, twisted pairs, telephone cable and ed-energized electrical wiring.
Earphone permits use in noisy environments
LED light assists use in dark corners
Specifications

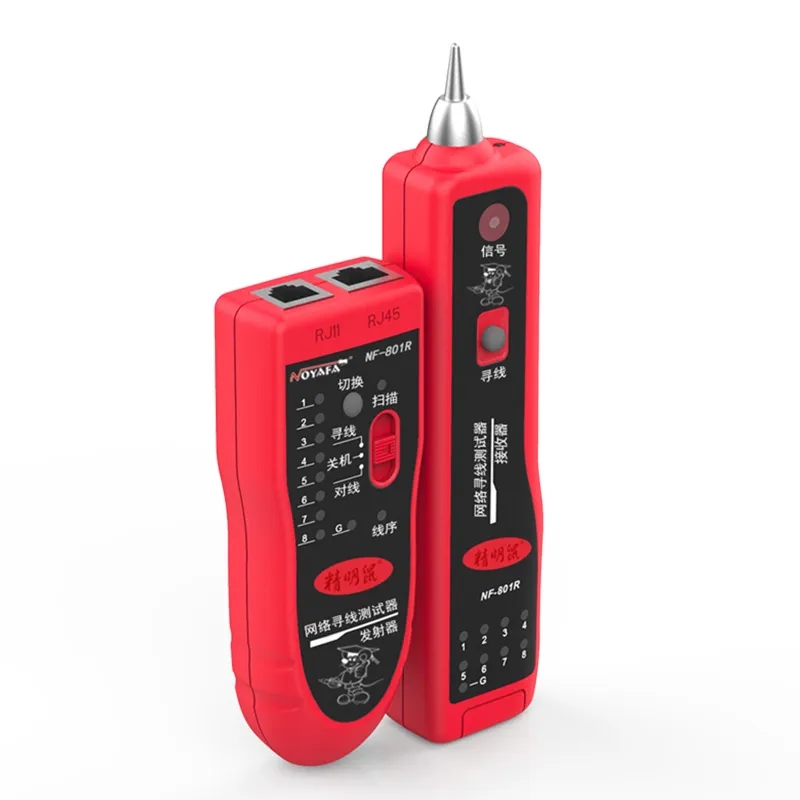

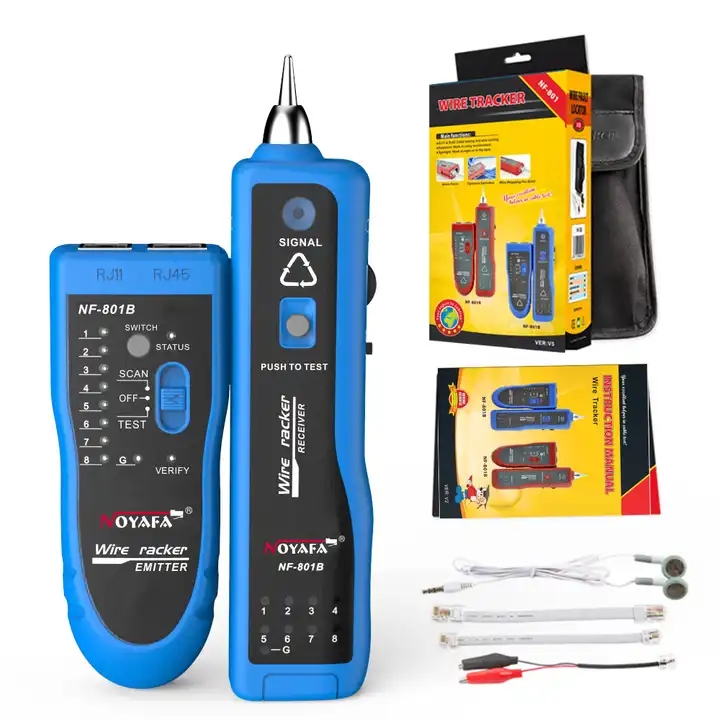

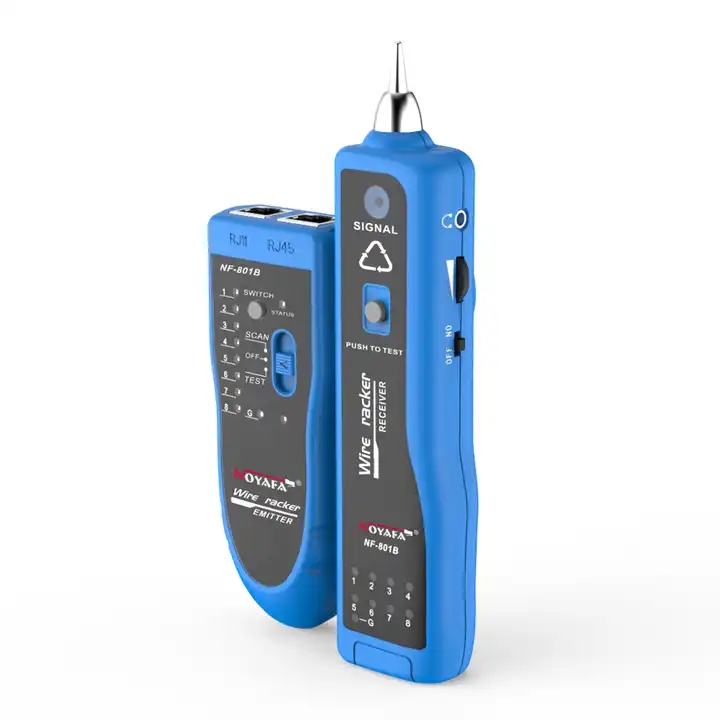

NF-801 Transmitter | |
Tone frequency | 1000Hz |
Max. distance of transmission | Up to 2 kilometers |
Max. working current | Less than 10mA |
Volume regulate function | Audio volume level control |
Tone mode | 2 Tones, adjustable |
Compatible connectors | RJ11, RJ45 |
Max. signal voltage | 8Vp-p |
LED lights display | Wire-map, tone, tracing |

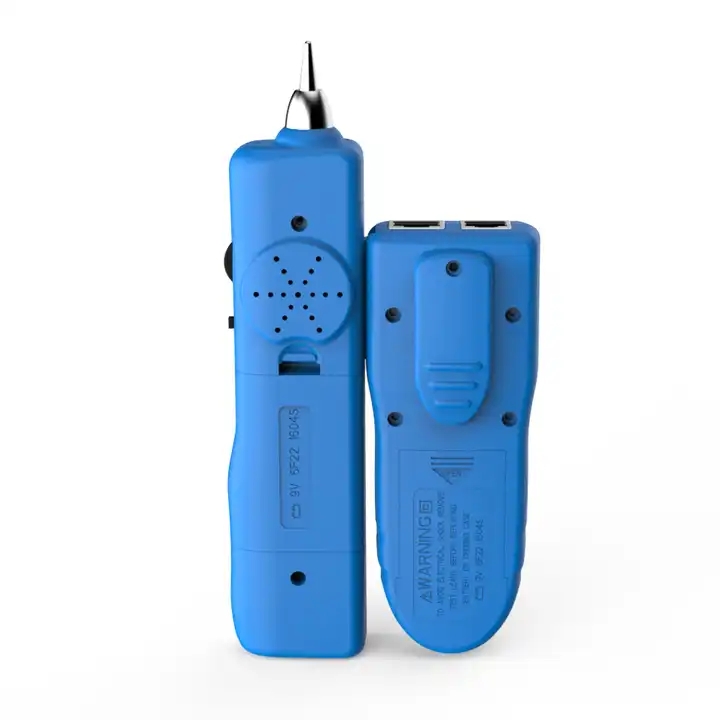

Battery type | DC9.0V(NEDA 1604/6F22) x 1pc |
Dimensions(L x W x D) | 15 x 3.7 x 2cm |
NF-801 Receiver | |
Frequency | 1000Hz |
Max. working current | Less than 30mA |
Earphone jack | 1 |
Battery type | DC9.0V(NEDA 1604/6F22) x1pc |
Dimensions(L x W x D) | 12.2 x 4.5 x 2.3cm |
