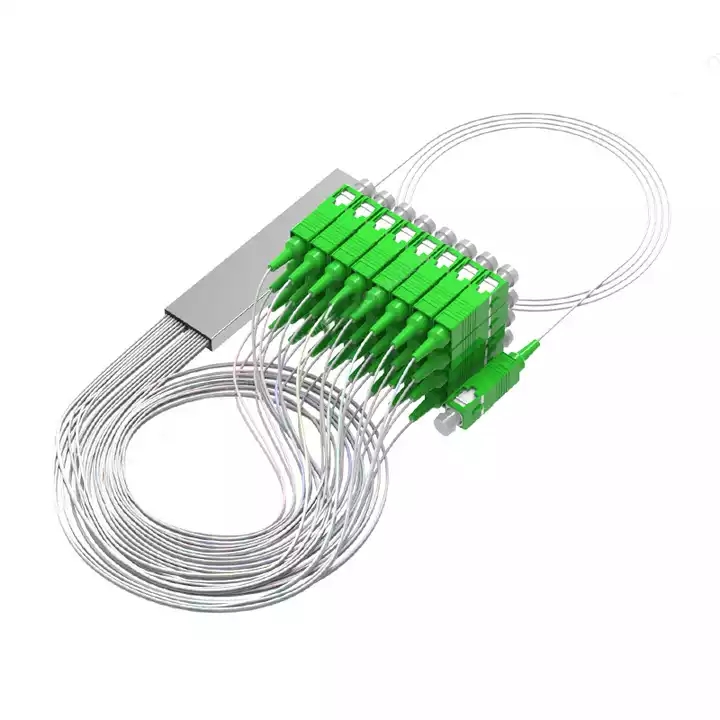

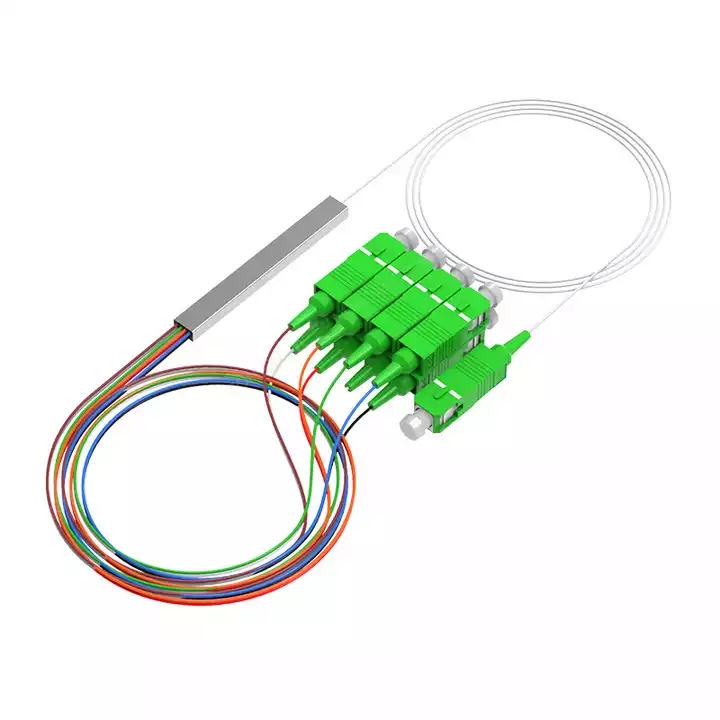

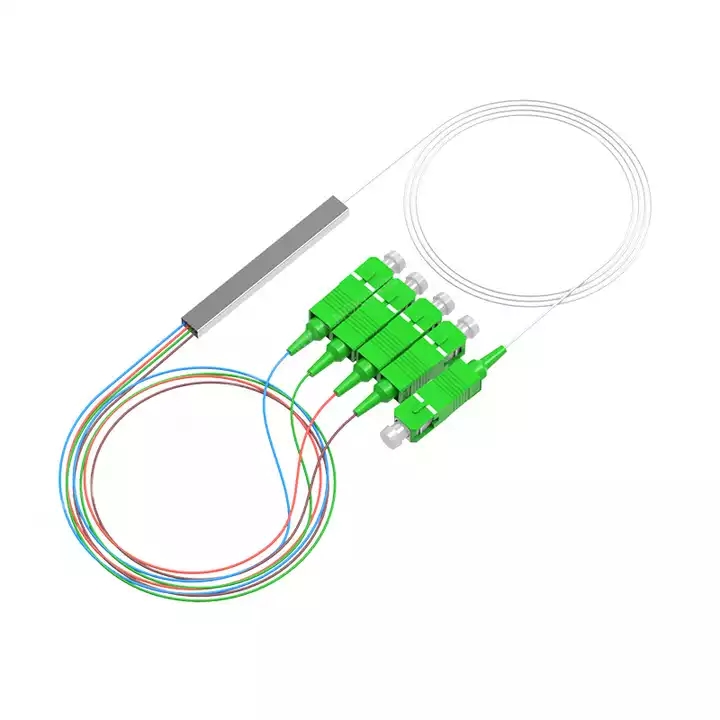

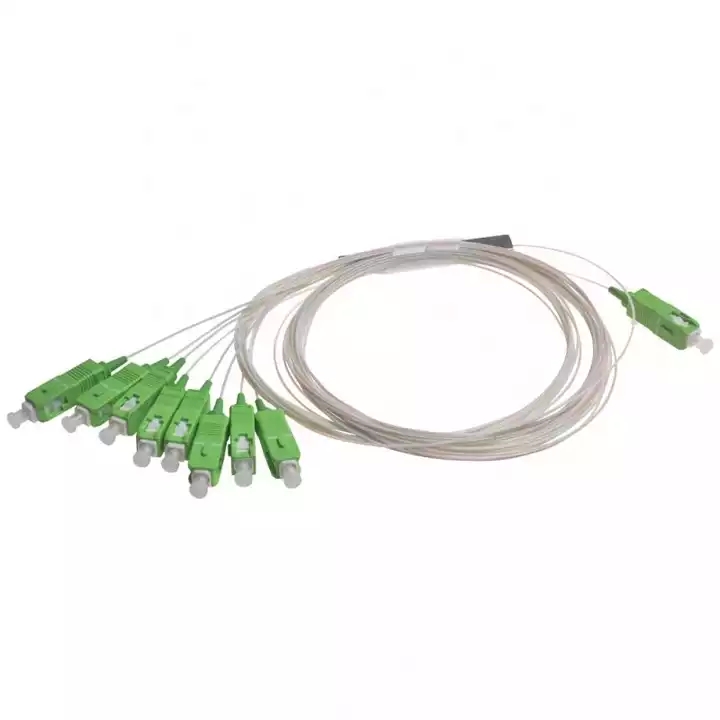

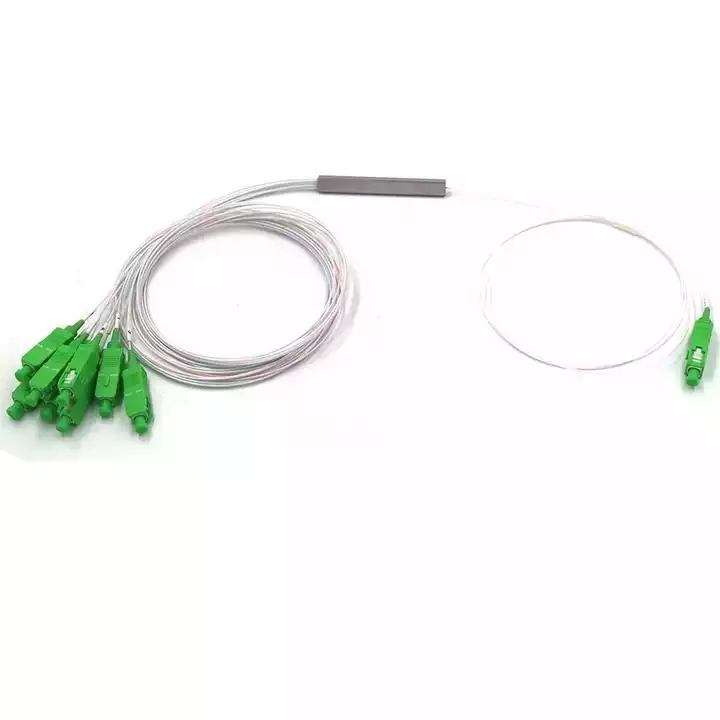

PLC optical splitter made by the semiconductor process. Optical wave guide needle is located at the top of the chip, in the chip to achieve shunt, PLC optical splitter can be divided into cassette, chip, rack, etc.
Features
High Polarization Extinction Ratio & Excellent Uniformity
Can be continuously covered with different fibers
Good uniformity and low insertion loss
2*2, 1*2, 1*4, .... 1*128 types optional.
Low additional loss
Full-core structure
Can be reused
Fiber types optional
Specifications
Product name | Fiber optic plc splitter 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 1x128 |
Application | FTTH |
Connector type | SC/FC/LC/ST |
End face type | APC/UPC can do customized |
Fiber type | SM |
Insertion loss(MAX) | 10.5dB |
Return loss | ≥50dB |
Color | Green/Blue |
Ferrule | CCTC ceramic ferrules |
Fiber diameter | 0.9mm |
Operating Wavelength | 1260nm~1650nm |
