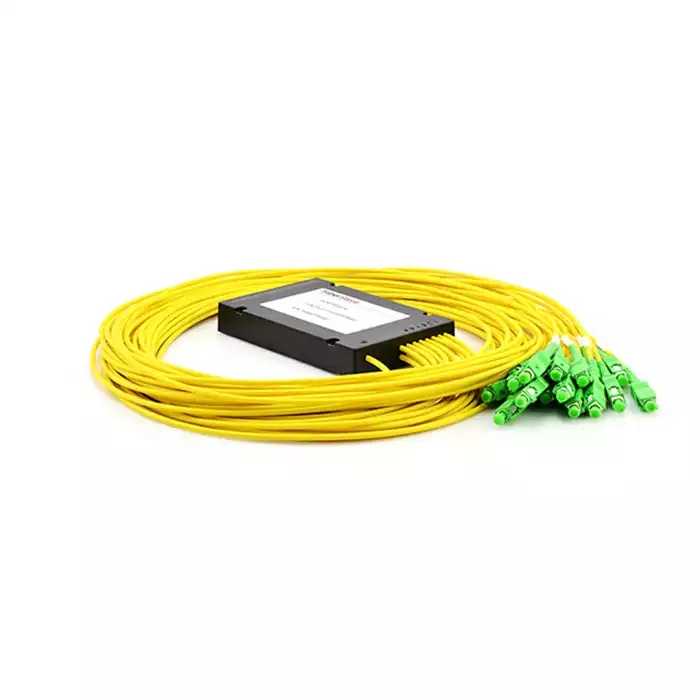

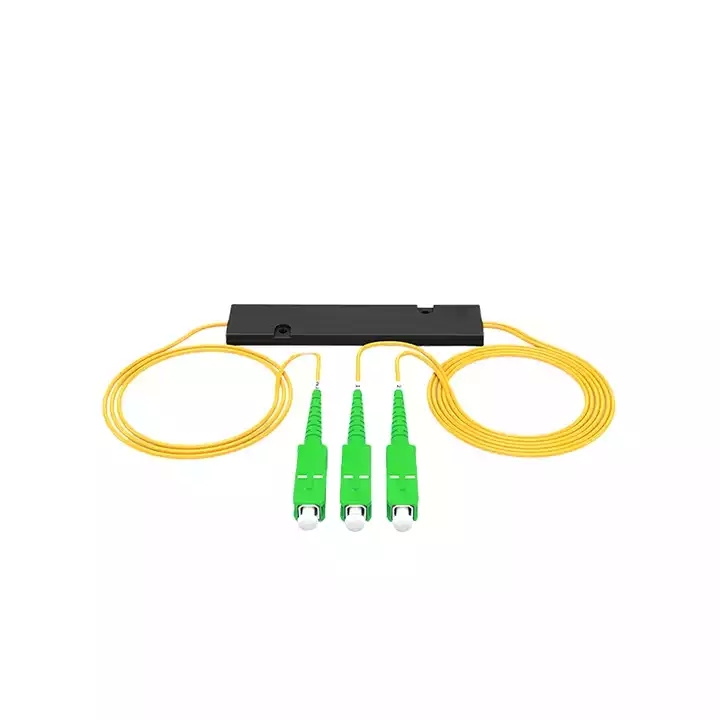

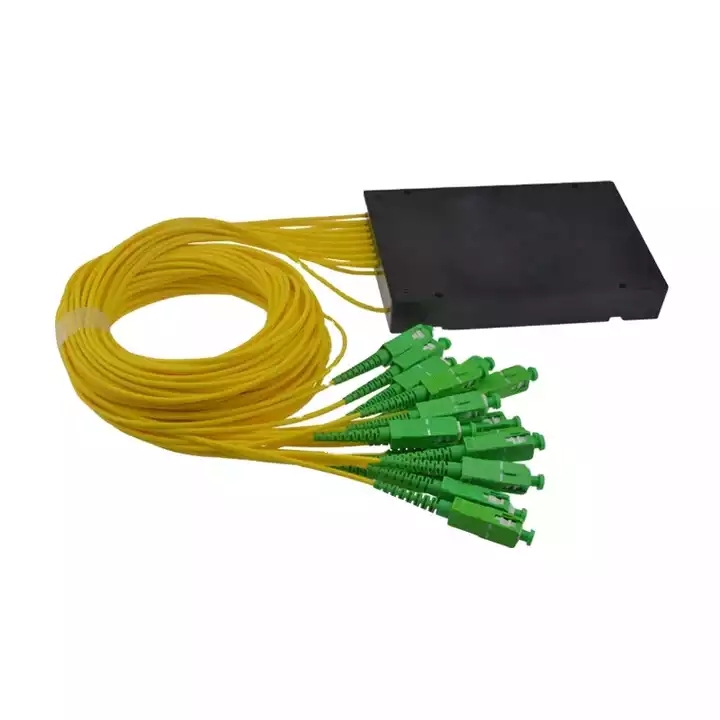

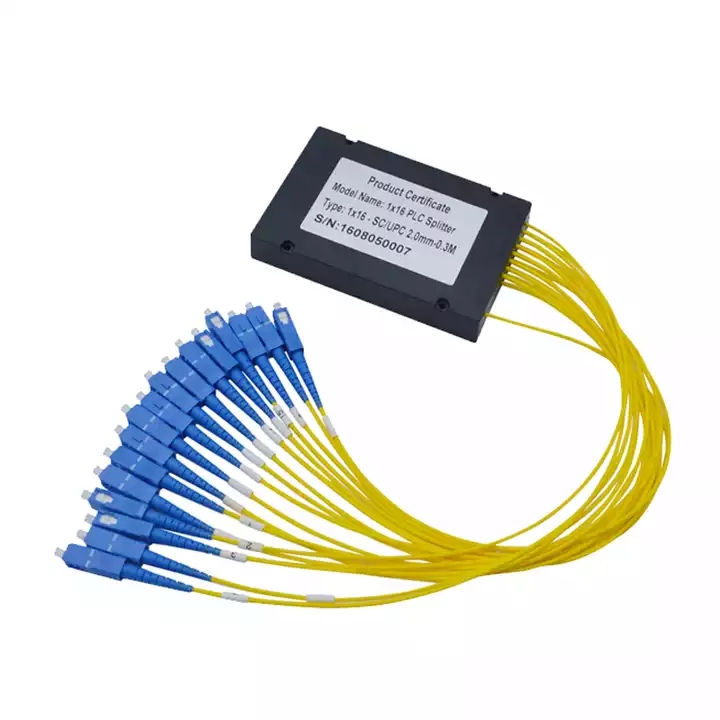

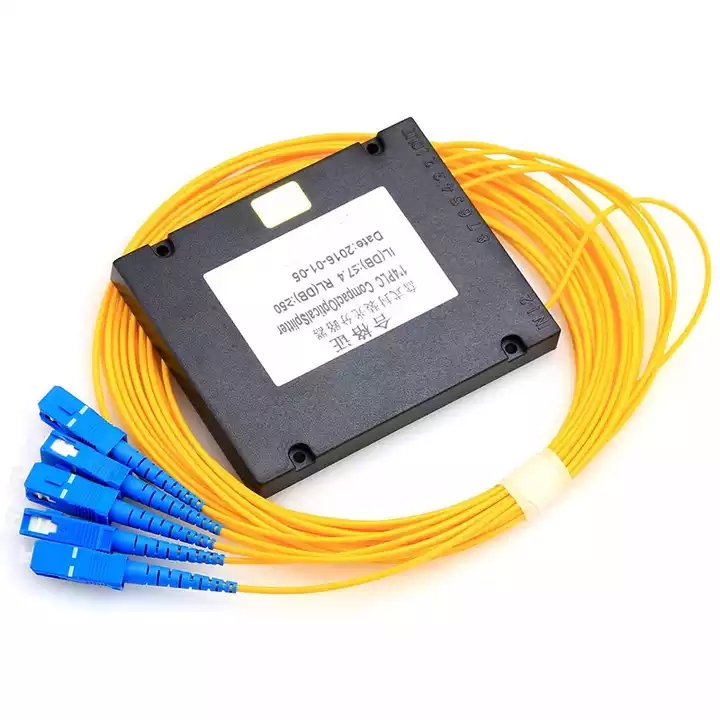

PLC splitter is based on plannar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently.
Features
Excellent Mechanical
Small Size
High Reliability
Low insertion Loss and low Polarization Dependent loss
High channel counts
Excellent Environmental Stability and Widely Used
Specifications
Parameter | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
Operating Wavelength (nm) | 1260-1650 | |||||
Fiber Type | SMF-28e or Customer specified | |||||
Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
Return Loss (dB) (S/P Grade) | 50/55 | |||||
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
Directivity (dB) | 55 | |||||
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature Stability(-40~85 °C)(dB) | 0.5 | |||||
Operating Temperature (°C) | -48~85 | |||||
Storage Temperature (°C) | -48~85 | |||||
Module Dimension (mm) (L×W×H) | 100*80*10 | 120*80*18 | 145*110*18 | |||
