Features
High Polarization Extinction Ratio & Excellent Uniformity
Can be continuously covered with different fibers
Good uniformity and low insertion loss
2*2, 1*2, 1*4, .... 1*128 types optional.
Low additional loss
Full-core structure
Can be reused
Fiber types optional
Specifications

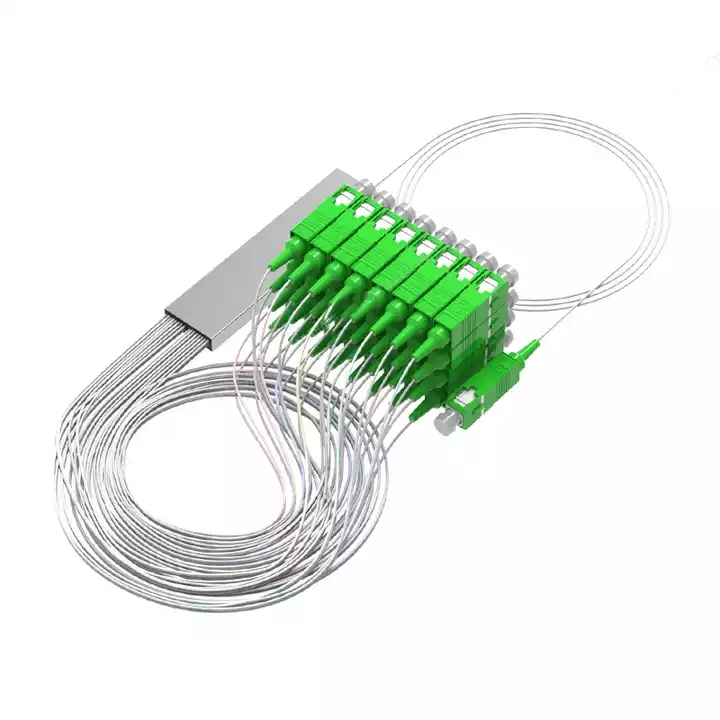

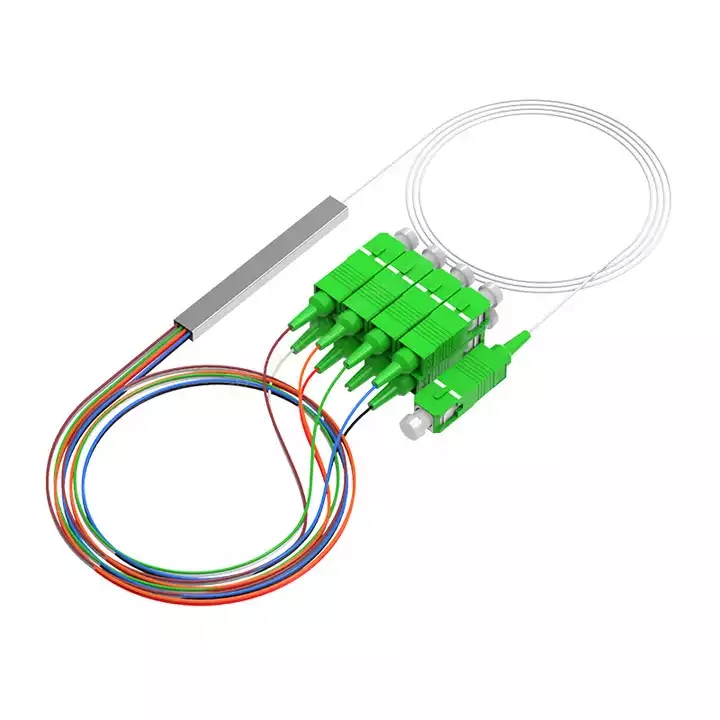

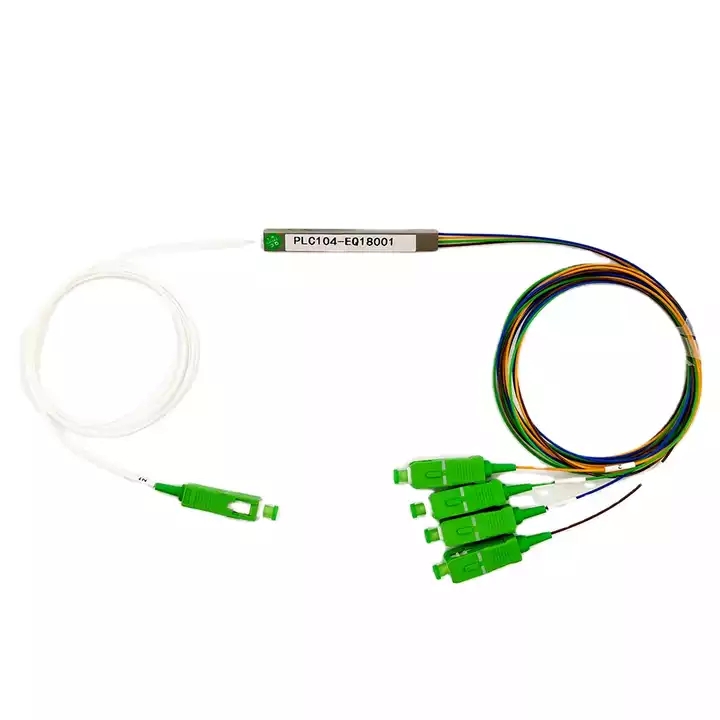

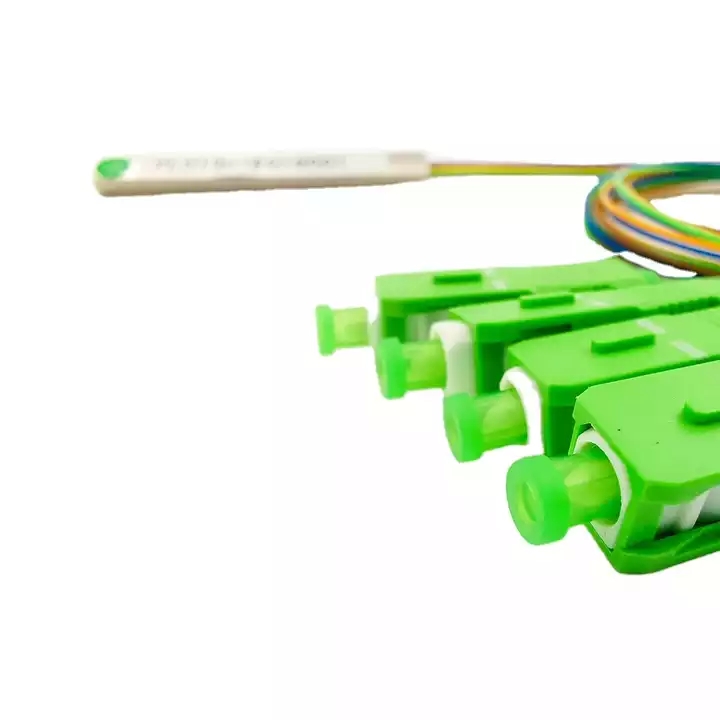

Product name | PLC optical splitter |
Product type | Steel mini-tube type |
Connector Type | SC/FC/LC/ST |
Wavelength | 1260 ~ 1650 |
Ports and connectors configuration | 1:2/1:4/1: 8/1:16/1:32 |
Loss of insert | 3.6dB |
Uniformity Loss | 0.4dB |
Loss of return | 55/50dB |
Operating temperature | -40 ~ + 85℃ |
