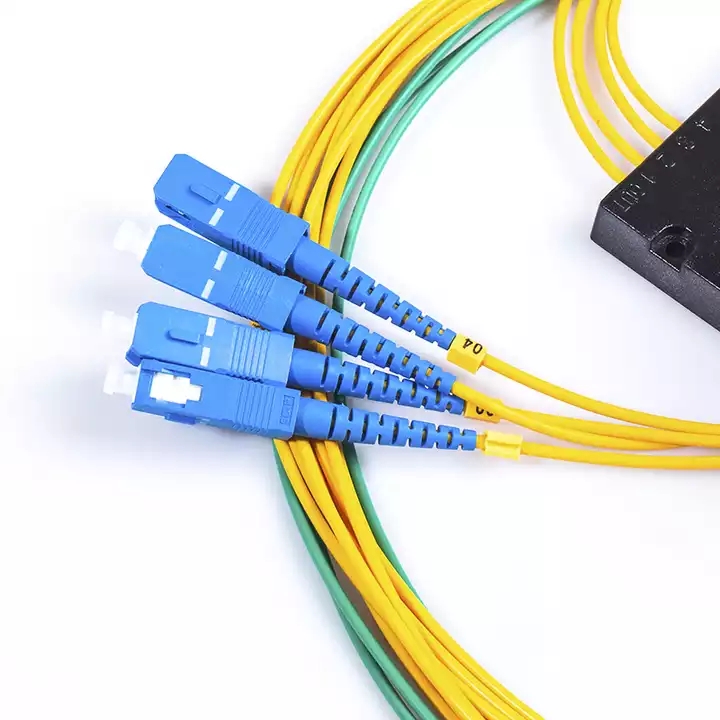

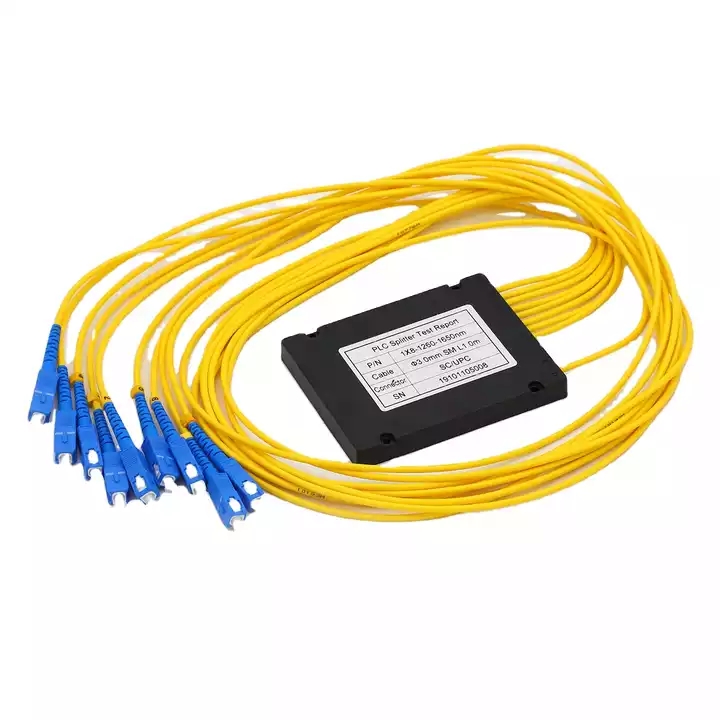

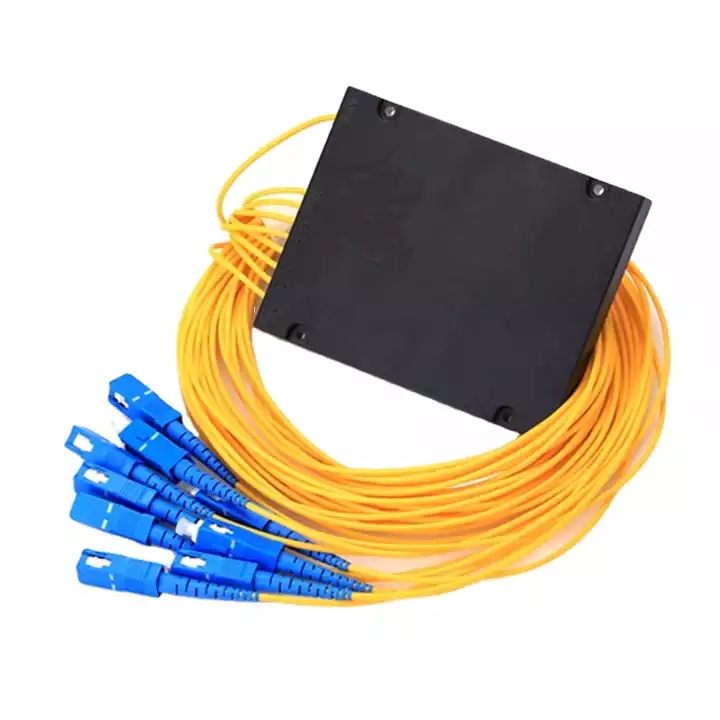

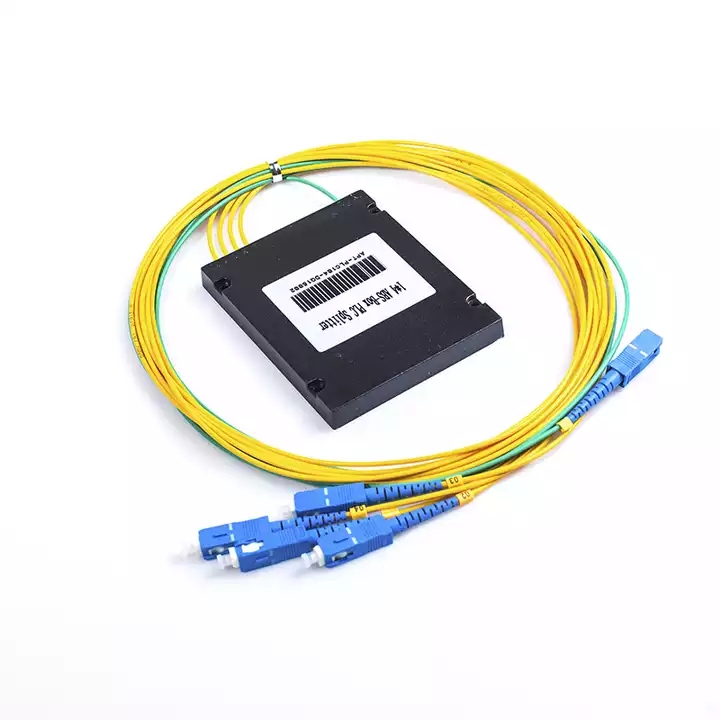

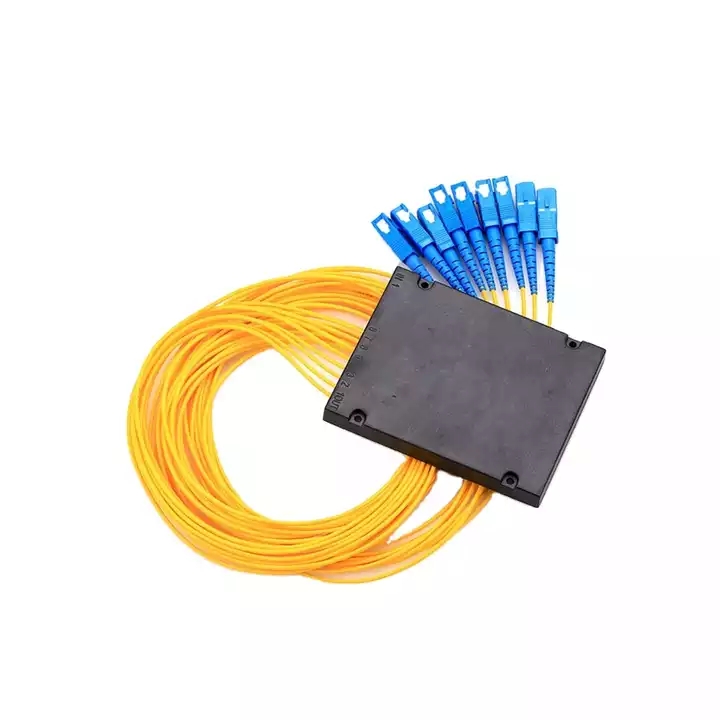

ABS Box Type PLC Splitter

PLC splitter is based on plannar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN.

PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently.

Product description

Features

Excellent mechanical
High reliability and stability
Low polarization dependent loss
Good uniformity and low insertion loss

Applications

FTTX system
Test equipment
Passive optical networks
Local area network

Specifications

Model number	1X2	1X4	1X8	1X16	1X32	1X64
Wavelength	1260-1650
Fiber model	G657A or decided by customer
Insertion Loss (dB)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity(dB)	0.4	0.6	0.8	1.2	1.5	2.0
Return Loss(dB)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Directivity(dB)	55	55	55	55	55	55
Wavelength dependent loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature stability (-40-85 C)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Model connector	SC,FC,ST decided by customer
Operating temperature(C)	-40~85
Storage temperature(C)	-40~85
