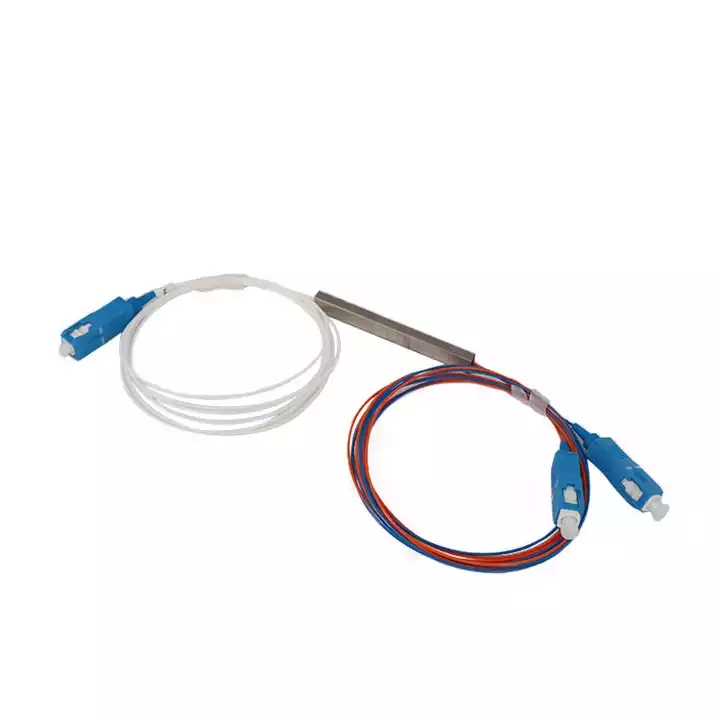

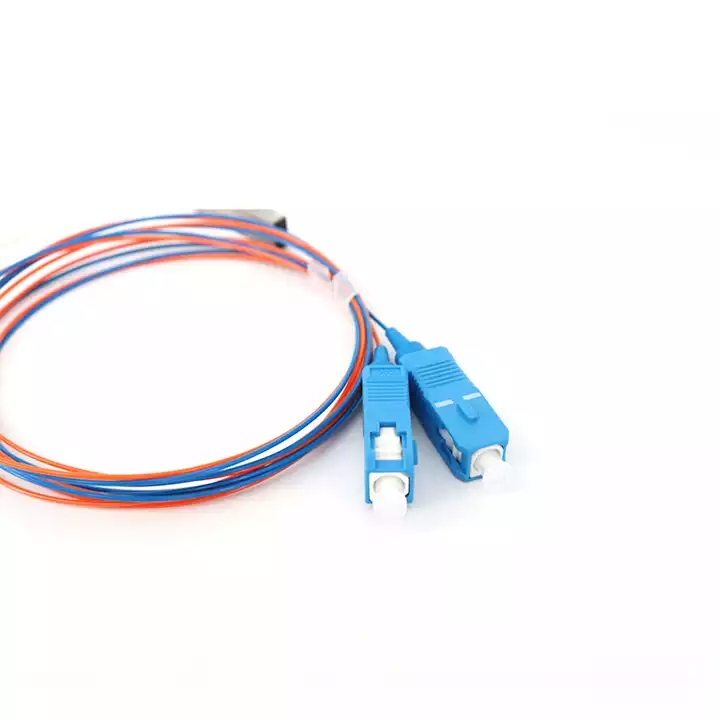

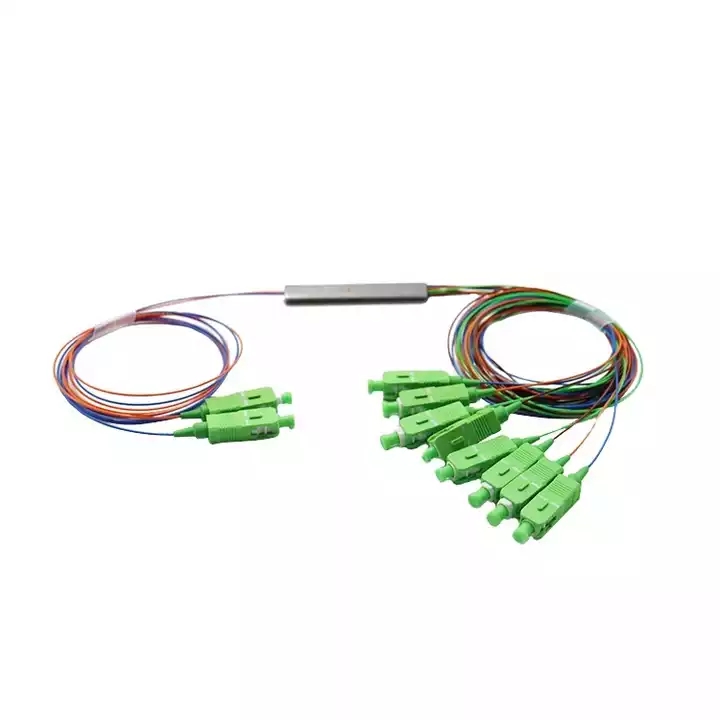

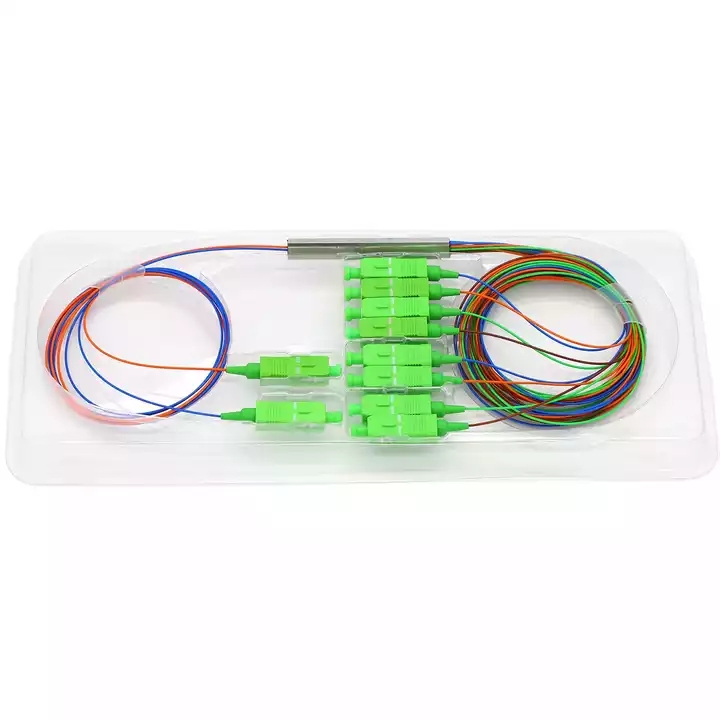

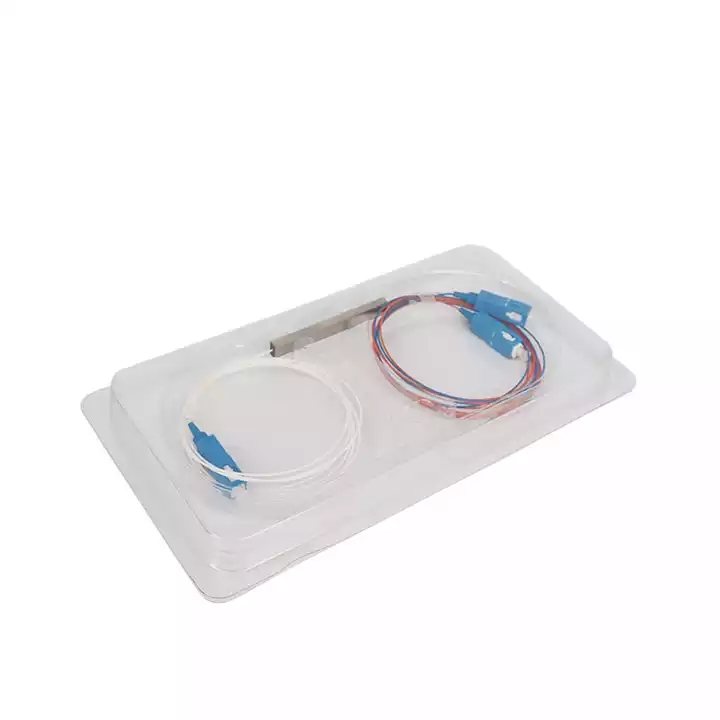

Planar light-wave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical wave-guide technology.
It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
All products meet GR-1209-CORE and GR-1221-CORE requirements.
Specifications
Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||
Type | 1x4 | 1x8 | 1x16 | 2x4 | 2x8 | 2x16 | 1x32 | 2x32 | 1x64 |
Insertion Loss (dB) Max. | <7.3 | <10.5 | <13.5 | <7.6 | <11.2 | <14.5 | <16.2 | <18.2 | <20.5 |
Uniformity (dB) Max. | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 |
PDL(dB)Max. | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 |
Directivity (dB) | ≥55 | ||||||||
Return Loss (dB) | UPC ≥55 APC ≥60 | ||||||||
Operating Temperature (°C) | -5~ +75 | ||||||||
Storage Temperature (°C) | -40 ~ +85 | ||||||||
Fiber length | 1m or customized length | ||||||||
Fiber Type | Corning SMF-28e fiber | ||||||||
Connector Type | Custom specified | ||||||||
Power Handling (mW) | 300 | ||||||||
