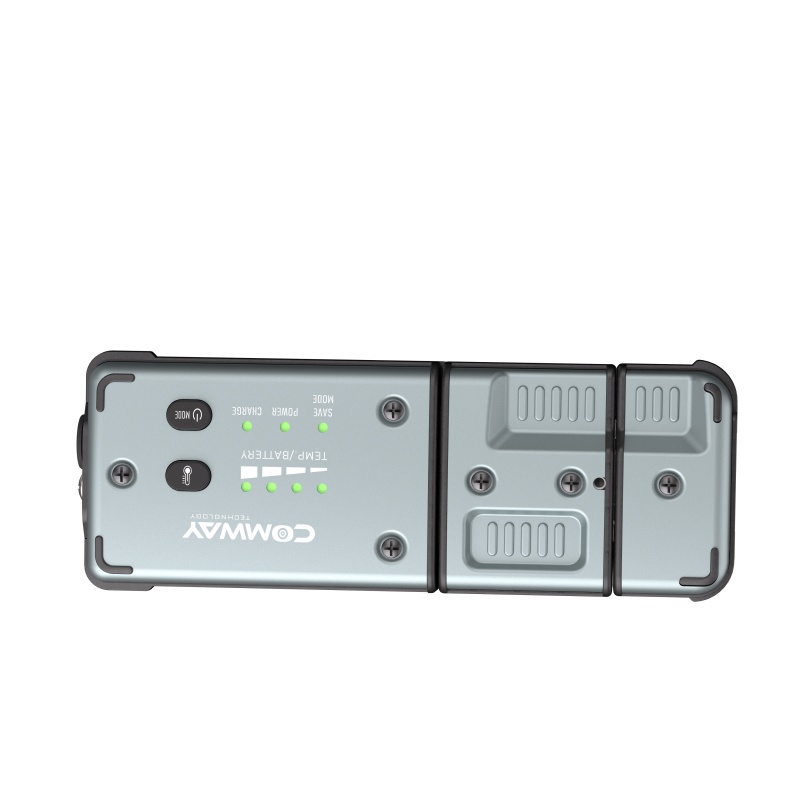

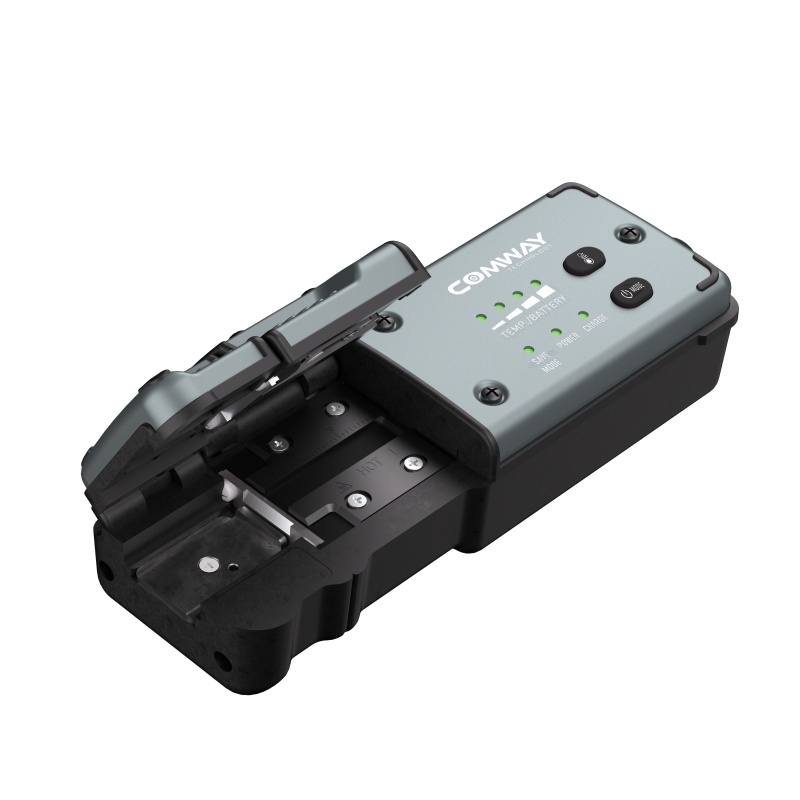

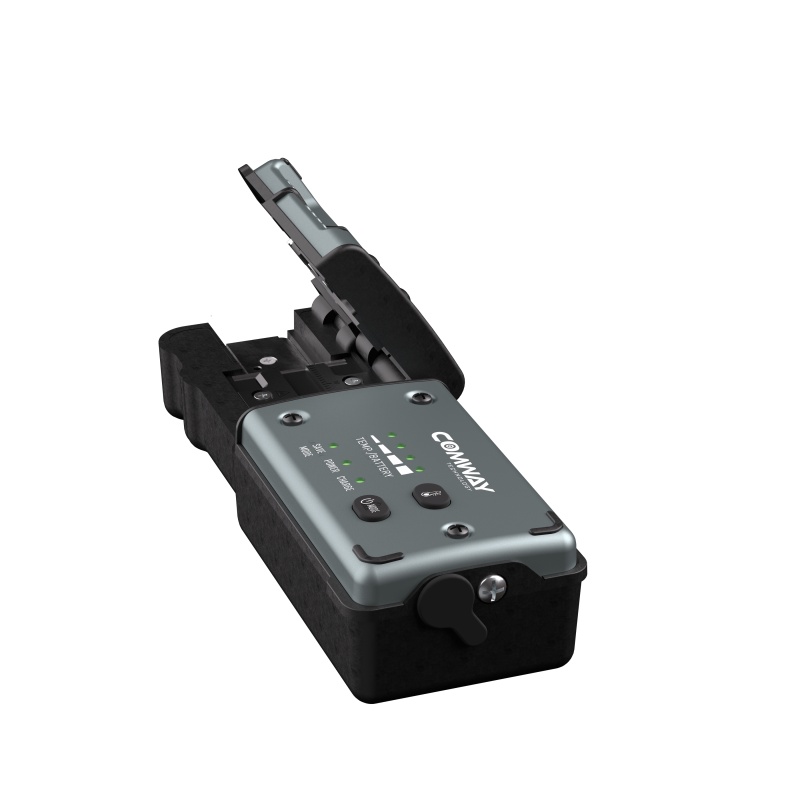

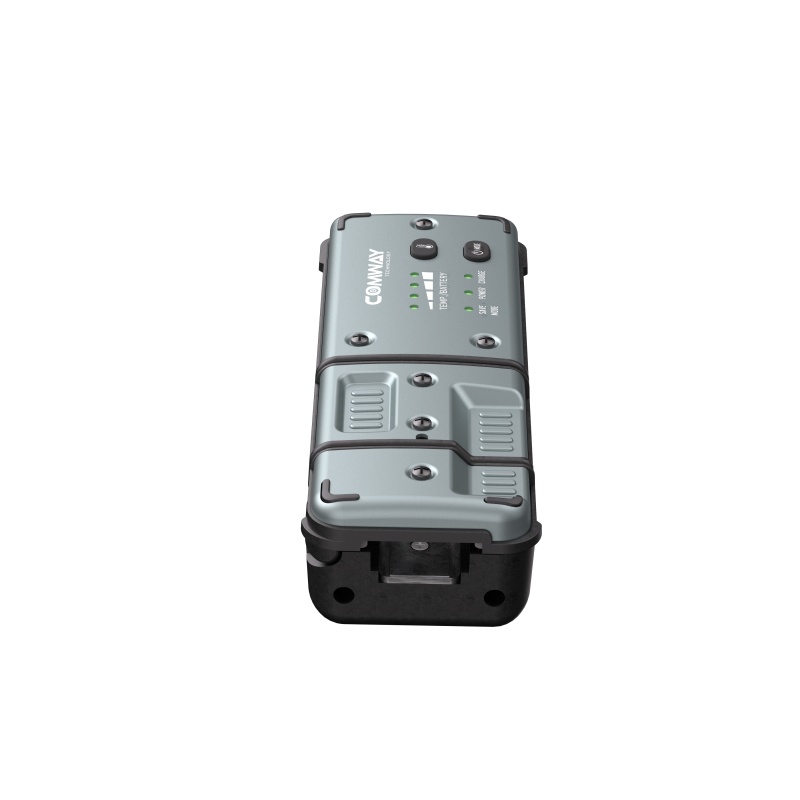

Comway Ribbon Fiber Thermal Stripper CS-09 Hot Jacket Remover
Compatible against all types/brand of ribbon cables with coating diameters 200um-400um

Rugged and ergonomic design for durability and ease of use

Removes coatings from a single fiber to 12 ribbon fibers

Stable and easy fiber coating removing capability

Fast heating and charging time with 660 cycles
Product description

Comway CS-09 is an universal thermal fiber stripper capable of removing coating and jacket of all types and brands of fibers. With its fast and straightforward operation, anyone can do precise stripping with near-zero failure. It provides long-lasting battery capacity: approx 660 cycles of ribbon fiber cable stripping. Comway CS-09 is also waterproof and can withstand the most challenging work environments.

Features

Compatible against all types/brand of ribbon cables with coating diameters 200um-400um

Rugged and ergonomic design for durability and ease of use

Removes coatings from a single fiber to 12 ribbon fibers

Stable and easy fiber coating removing capability

Fast heating and charging time with 660 cycles

Specifications

Model

CS-09

Fiber Material

Silica Glass

Coating Diameter

200 ~ 400μm

Cladding Diameter

125μm

Applicable Fiber

1 to 12

Stripping Length

Up to 30mm

Heating Mode

Normal Mode / Power Save Mode

Heating Time

Normal Mode: approx. 4sec / Power Save Mode: approx. 5sec

Temperature Setting

90ºC, 100ºC, 110ºC, 140ºC

Battery Capacity

2000mAh, 7.4V

Stripping Times

Around 660times after one-fully charged

Charging Port

Type-C(5V-12V, max.20W)

Operating Condition

Temperature: -10ºC ~ 40ºC / Humidity: 0% ~ 95%

Dimensions

132Lx48Wx32H(mm)

Weight

365g
