Applicable fibers

SM(ITU-T G.652), EB(ITU-T G.654), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-TG.655), BI(ITU-T G.657)

Diameter of cladding

80-150μm

Diameter of coating

160-900μm

Typical splice loss

SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB

Return loss

60dB

Fiber cleaved length

5-16mm(coating diameter<250um)

16mm(coating diameter: 250-1000um)

Splicing program

40 groups

Operate mode

Automatic/Manual

Auto-heating

Available

Typical splicing time

6 seconds

Typical heating time

18 seconds

Fiber magnification

300X(X or Y view), 150X(X and Y view)

Display screen

4.3inch colorful LCD monitor

Records storage

4000 results

Loss evaluation

Available

Tension test

1.8-2.2N

Interface

GUI menu interface, easy for operation.

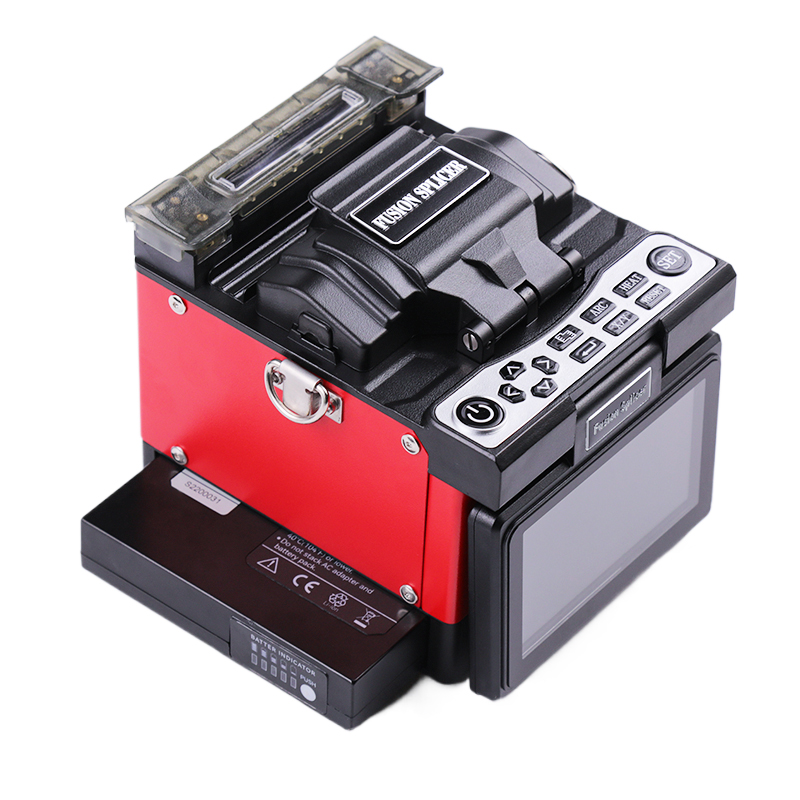

Battery

5800mAh Li battery, typical 250 cycles splicing and heating.

Power supply

Adapter input:AC100-240V(50/60HZ), output: 13.5V

Electrodes life

More than 4000 ARC discharges, can be replaced conveniently

Terminal

USB 2.0 port, for software upgrading and records exporting

Operating conditions

Altitude: 0-5000m, Humidity: 0-95%,

Temperature: -10℃~+50℃, Wind speed: Max. 15m/s

Dimensions

157mm(L)*136mm(W)*135mm(H)

Weight

1.65kg(battery included)

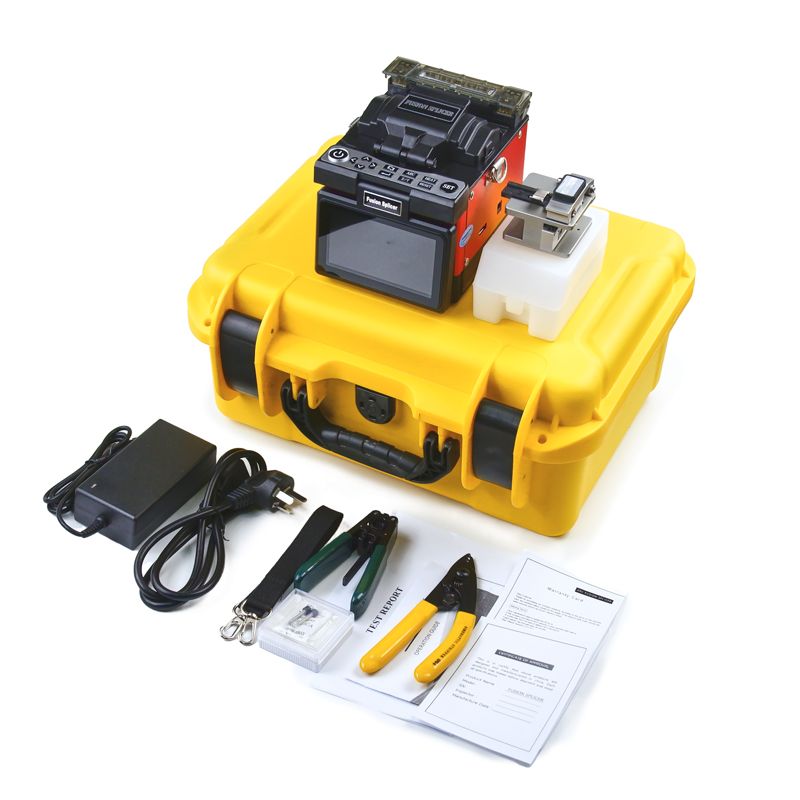

1

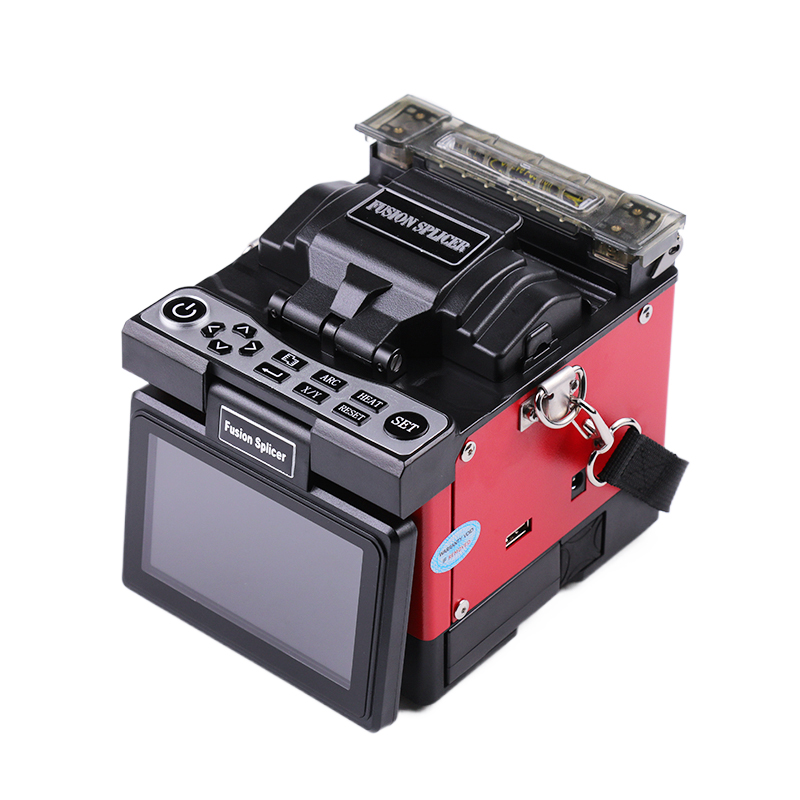

Fusion splicer

1

2

Fiber cleaver

1

3

Spare electrodes

1pair

4

Fiber stripper

1

5

Drop cable stripper

1

6

Adaptor

1

7

Power cord

1

8

Carrying case

1

9

Test report

1

10

Manual

1
