Features
1s boot up, 6s splicing, 18s heating.

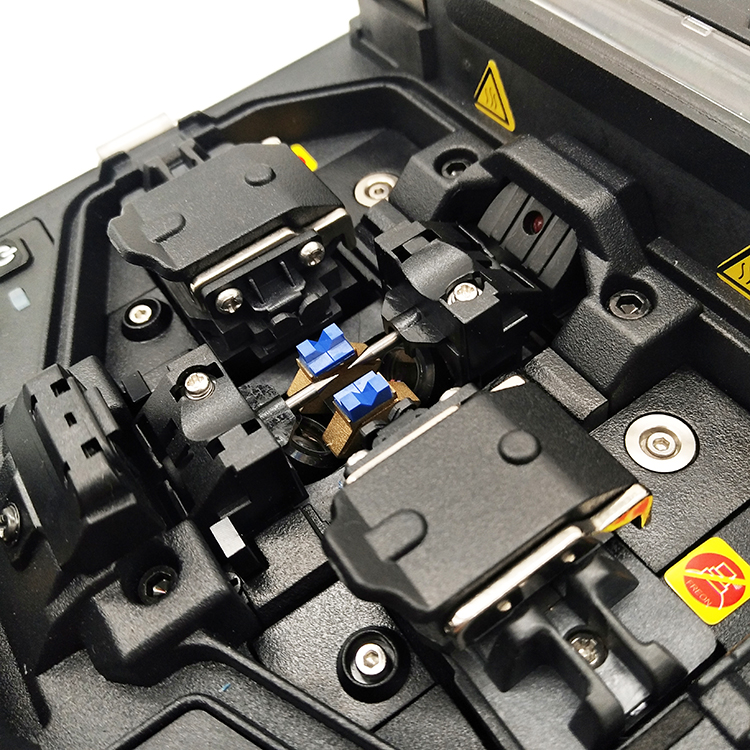

4 motors accurate fiber alignment technology
Fast splicing and heating, automatic ARC calibration.
Inductive automatic heater, upgraded quad-core CPU.
76cm dropping anti-shock, IP5X dustproof and IPX2 waterproof.
Specifications
| Applicable fiber | SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655) |
Diameter of cladding | 80 -150μm |
Diameter of coating | 160-1000μm |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
| Return loss | > 60dB |
| Fibe cleaved length | 5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um) |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 6 seconds |
| Typical heating time | 18 seconds |
| Fiber magnification | 250X (X or Y view), 125X (X and Y view) |
| Display screen | 4.3 inch color LCD monitor |
| Records storage | 4000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.25 N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5200mAh Li-battery, typical 250 cycles splicing and heating, support separating charging |
| Power supply | Adapter, input: AC 100-240 V(50/60HZ), output: 11-13.5V |
| Electrodes life | More than 4000 ARC discharges, can be replaced conveniently |
| Ternimal | USB2.0 port, for software upgrading and records exporting |
| Operating conditions | Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s |
| Dimension | 160mm(L) * 136mm(W) * 140mm(H) (with rubber armor) |
| Weight | 2.20kg (including battery) |
