Diameter of cladding

80-150μm

Diameter of coating

160-900μm

Typical splice loss

SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB

Return loss

＞ 60dB

Fiber cleaved length

10-16mm (coating diameter＜250um)

16mm (coating diameter:250-1000um)

Splicing program

40 groups

Operate mode

Automatic/Manual

Auto-heating

Available

Typical splicing time

6 seconds

Typical heating time

18 seconds

Fiber magnification

250X (X or Y view), 125X (X and Y view)

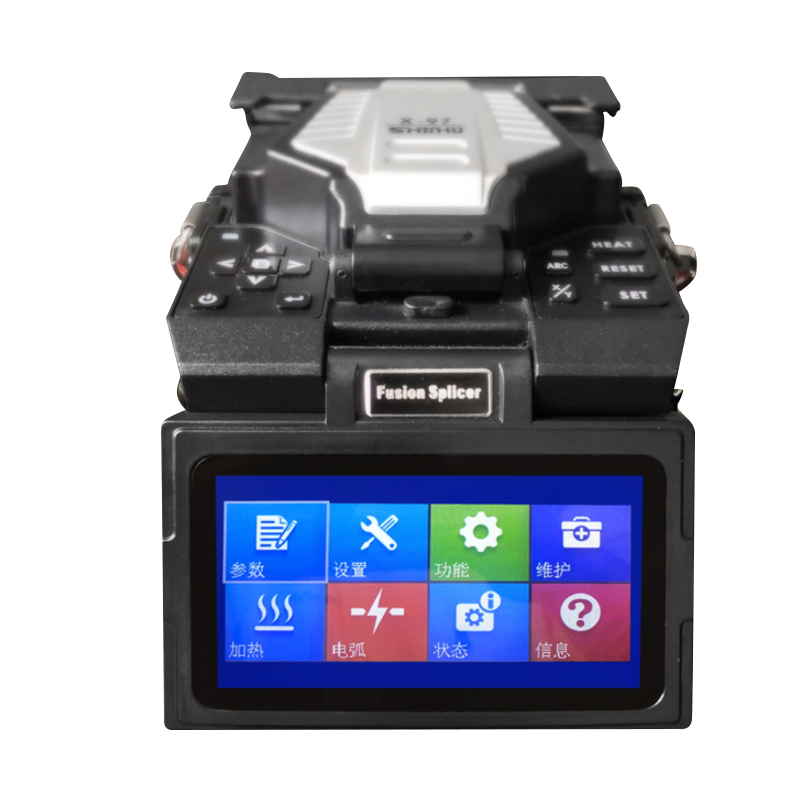

Display screen

4.3-inch color LCD monitor

Records storage

4000 results

Loss evaluation

Available

Tension test

1.8-2.2N

Interface

GUI menu interface, easy for operation.

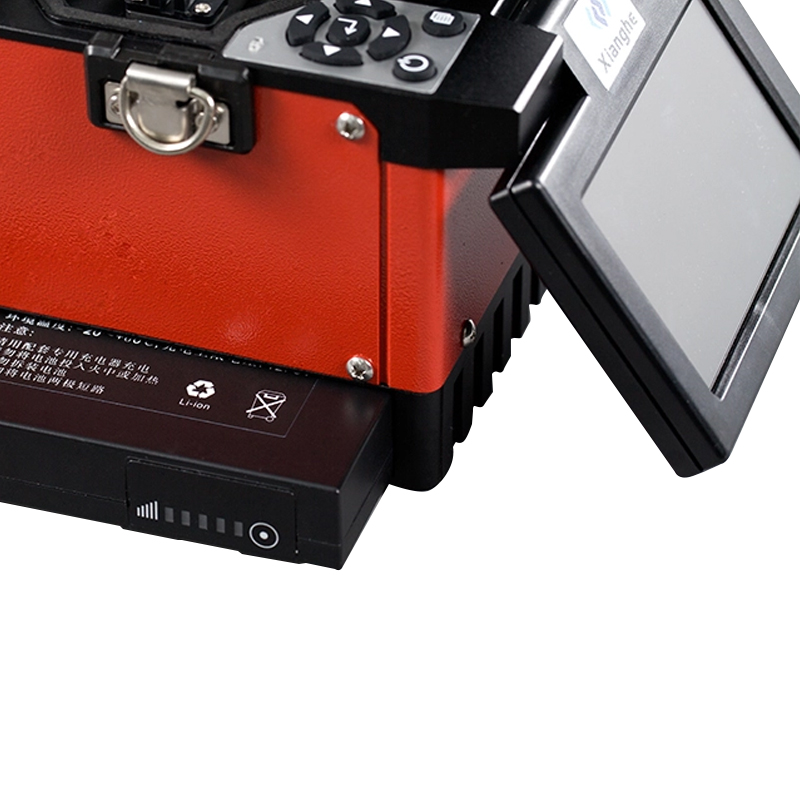

Battery

5200mAh Li-battery, typical 250 cycles splicing and heating.

Power supply

Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V

Electrodes life

More than 4000 ARC discharges, can be replaced conveniently.

Terminal

USB2.0 port, for software upgrading and records exporting.

Operating conditions

Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃,

Wind speed: Max 15m/s

Dimension

149mm(L) *120mm(W) *127mm(H)

Weight

1.90kg (including battery)
