Features
New fully-digitized design;
Small in size, lightweight: only 2.31kg with battery;
Takes only 8 seconds for splicing, 25 seconds for heating;
Can set automatic start of splicing or of heating upon close of the cover;
Simultaneous display of X/Y axis; zoom in up to 520 times original size;
Real time discharging for adjustment; no need for further adjustment;
Electrode has a long life; discharging times up to 3500;
With USB 2.0 and mini USB ports;
5 inch digital high resolution LCD;
Precise real-time display of remaining battery capacity;
Built-in high capacity battery, which enables up to 220 times of splicing and heating;

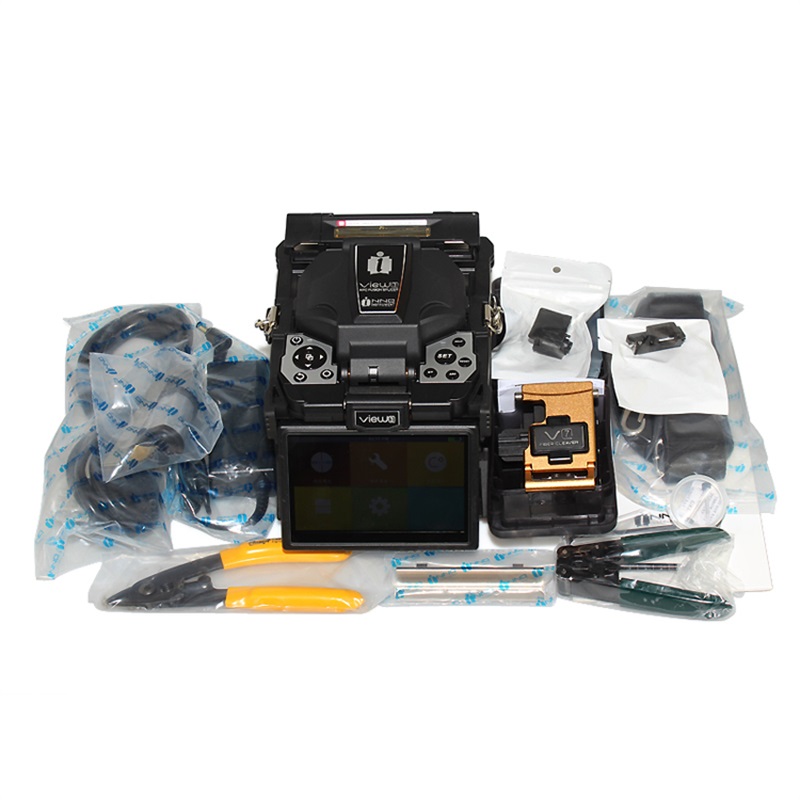

Specifications

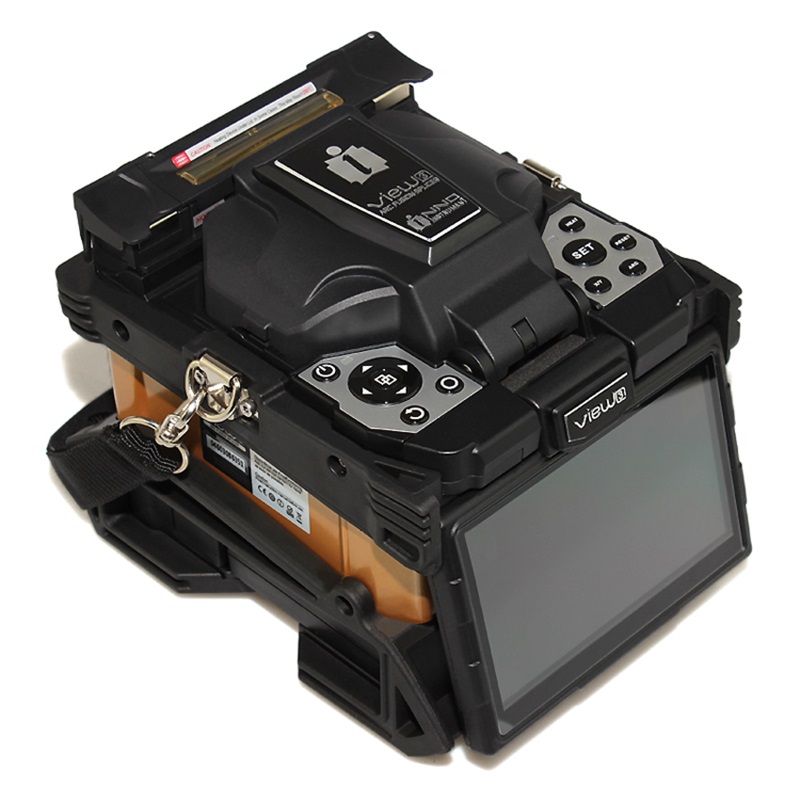

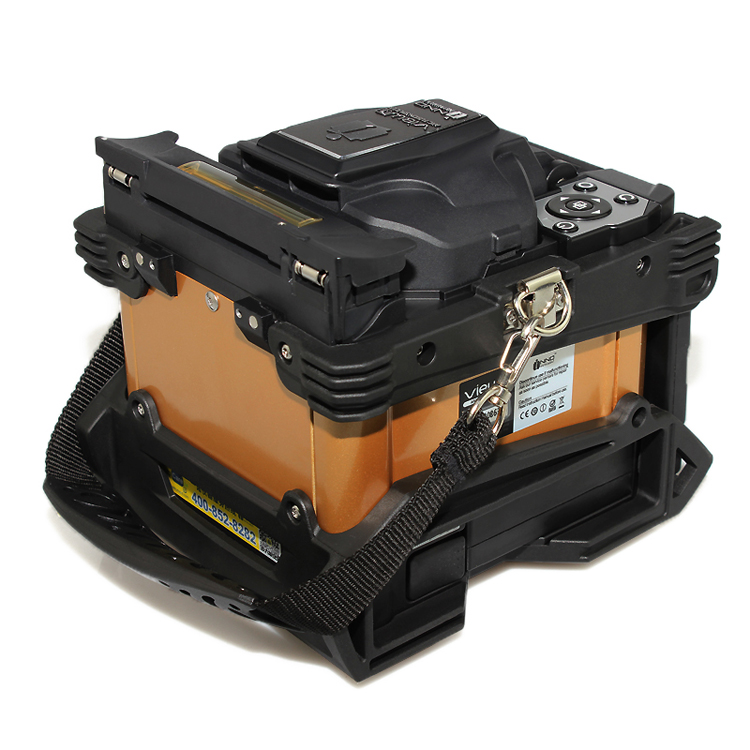

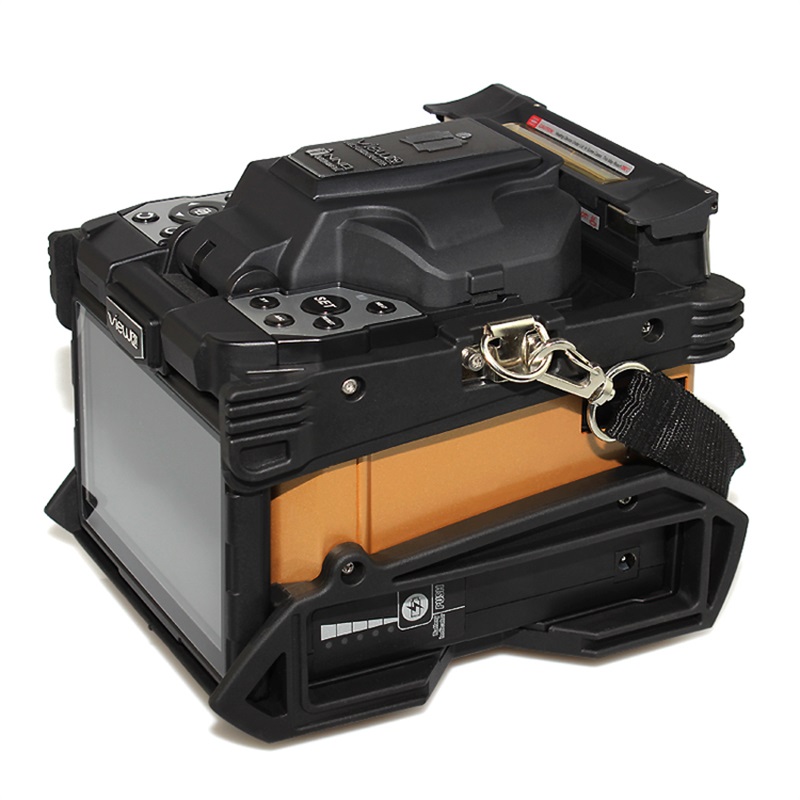

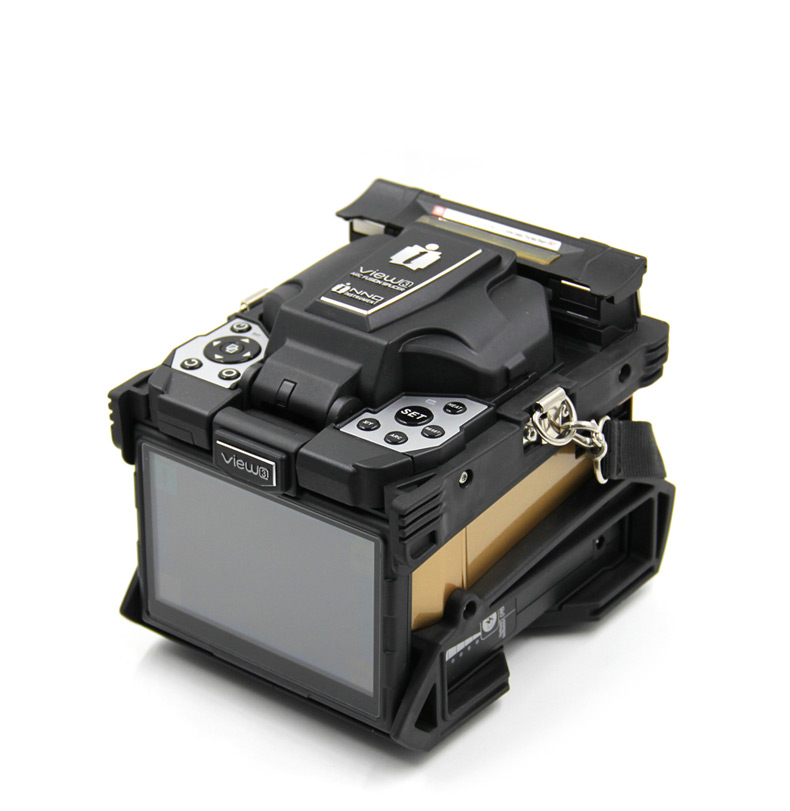

Model | View 3 Fusion Splicer Machine |
Dimension | 143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper) |
Weight | 2.31KG (with battery) / 1.95KG (without battery) |
Number of Fiber | Single |
Applicable Fibers | SM(G.652&G.657) / MM(G.651) /DS(G.653) / NZDS(G.655) |
Compatible Fiber / Cable | 0.25~3.0 mm / Indoor Cable |
Cleaved Length | Diameter: 0.125~1 mm / Cleave Length: 8~16 mm |
Cladding Diameter | 80~150 μm |
Splicing Mode | Max 128 modes |
Heating Mode | Max 32 modes |
Typical Splice Loss | SM:0.03dB / MM:0.02dB / DS:0.05dB / NZDS:0.05dB/G.657:0.03dB |
Return Loss | >> 60 dB |
Lighting | 3 White LEDs |
Splicing Time | Quick mode : 7 sec / Auto mode : 9 sec |
Estimated Splice Loss | Available |
Protection Sleeve Length | 20~60 mm |
Heating Time | FP-03 typical heating time: 30 sec |
Results Storage | The last 2000 results |
Tension Test | 1.96~2.25N |
Operating Condition | Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s |
Storage Condition | 0~95% relative humidity, -40~80°C |
Display | 90° bi-directional view, 5.0” Color High Resolution Display |
Fiber View & Magnification | X, Y, XY, X/Y : 520X Magnification |
Power Supply | AC Input 100-240V, DC Input 9-14V |
No. of Splice Heating with Battery | 4200mAh Battery Capacity Typical 170 times (Splice+Heat) |
Operating Methods | Button / Touch screen |
Automatic Calibration | Automatic arc calibration by air pressure and temperature |
Electrode Life | 3500 arcs, can be extended by using an electrode grinder |
Terminal | USB2.0 / MINI USB |
