Features
Applied for fibers, cables and SOC (splice-on connector)
Fully automatic, Semi-automatic and Manual operation.
Compact & light weight
Shockproof, drop resistance
Integrated holder design
Power saving function

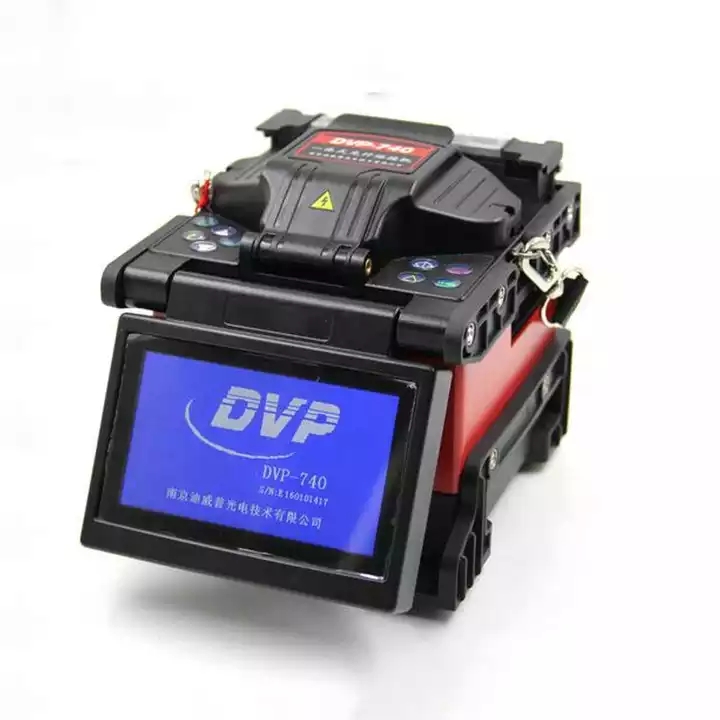

4.3 inch color LCD monitor
USB & DC interface
Specifications
Applicable fibers | SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector. |
Fiber cleaved length | 8-22mm |
Average splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
Return loss | ≥60dB |
Tension test | 2.0N(200gf)(Standard) |
Protection sleeve length | 20mm, 40mm, 60mm |
Splice Program | 5 groups of preset programs, 75 group of manual setting |
Language | English, Chinese, Russian, Spanish, Portuguese. |
Environment conditions | -25～＋50℃ (operation temperature), 0～95%RH (humidity), 0～5000m (altitude) |
Storage environment | -40～ +80℃ (temperature), 0～95％RH (humidity) |
Power supply | AC adaptor: 85～260V input voltage Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat |
Dimensions/Weight | 142(D)x 122(W)x 138(H)mm/1.95kg |
