Features

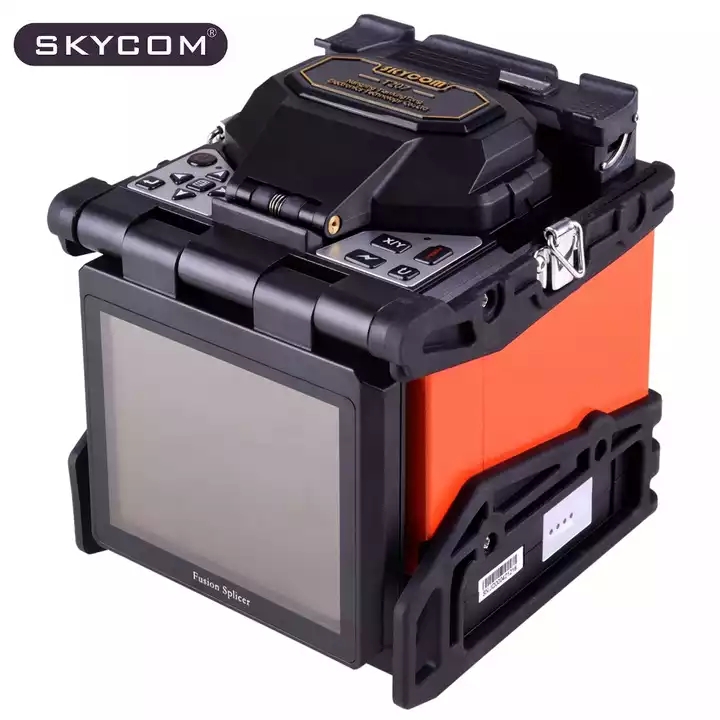

5 inches high resolution colorful LCD display, image can be turned according to position.
Average splice time: 10 seconds
Average tube-heat time: 30 seconds
Lithium battery: Rechargable and up to 180 times of continuous splice and heat after fully charged
X or Y axis Separately views with 360 times magnification, or Simultaneously 300 times
Cutting-edge technology for image processing
New developed technology providing strong wind and dust resistance
Splicing mode: Auto & Manual & Full-Auto

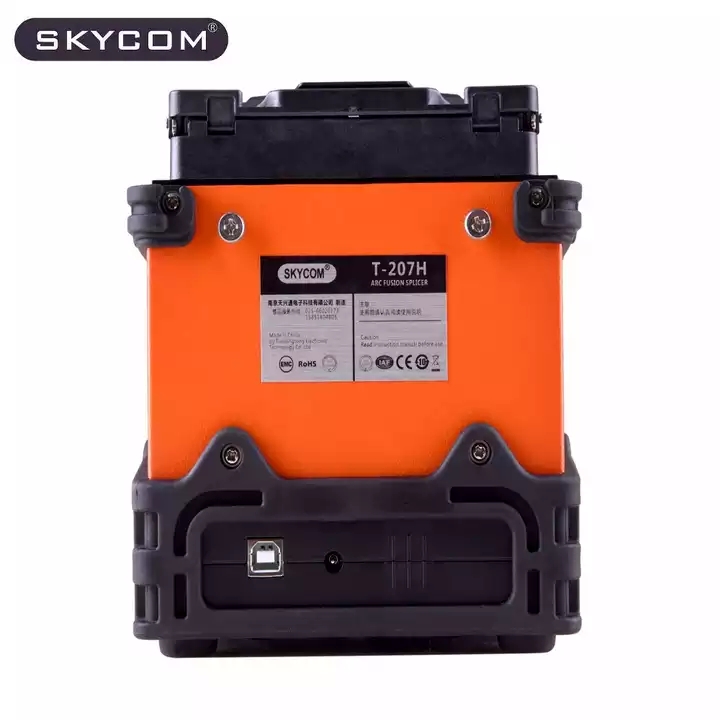

USB Port
Storing 6,000 groups of latest splice results
New technology of fiber core alignment, enhanced accuracy

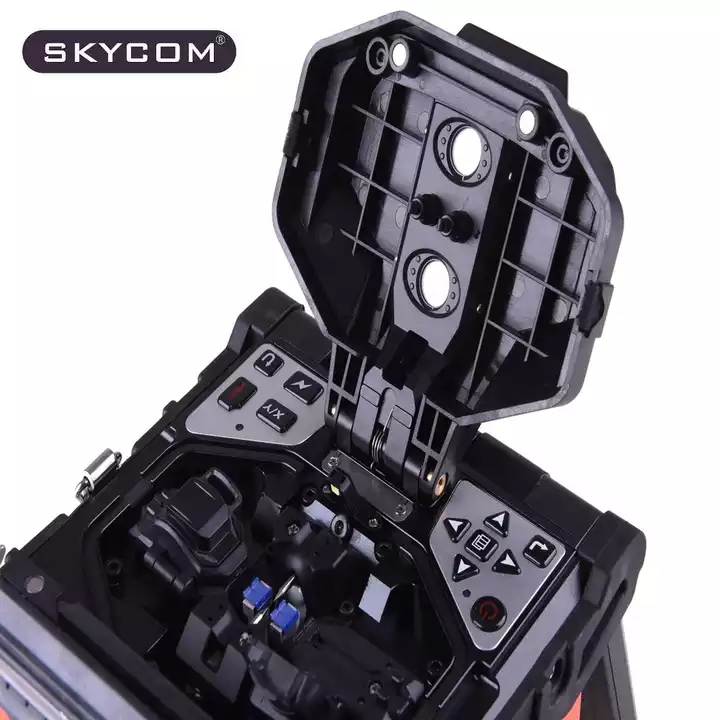

New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)
New Multipurpose 1+N fixture (Patented technology)
1+N: one 3-in-1 fixture ( for rubber-insulated wire, fiber optic pigtail, bare fiber) & optional fixtures ( for SC/LC/FC connector - T-207XF).
Specifications
| Applicable Fibers | SM, MM, NZ-DS, EDF AND OTHERS |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥ 60dB |
| Tension Test | 2.0N(200gf) ( Standard ) |
| Typical splicing time | 10 seconds |
| Typical heating time | 30 seconds |
| Splicing Program | 50 groups |
| Heat-shrinkable T Bush | 20mm, 40mm, 60mm |
| Language | Chinese, English, French, Portuguese, Spanish |
| Environmental Conditions | -10 ~ +50 ° C (operation temperature), 0 ~ 95% RH(humidity), 0 ~ 5000m(altitude) |
| Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC)Inner lithium battery: 11.1V, 6AH |
| Monitor | 5 inches high resolution colorful LCD display |
| Fiber Image Magnification | Simultaneously 360 times, more clearly |
| Storage of Splice Result | 6,000 groups of latest splice results |
| Splicing Model | Auto & Manual & Full Auto |
| Optical Fiber Fixture | 3-in-1 cutting fixture; Multipurpose 1+N fixture (T-207XF, for SC/LC/FC connector) |
| Dimensions | 130(W)*135(D)*130(H)mm; Package size: 53*32*30cm |
| Weight | 2.21kg+0.37kg (battery weight)=2.58kg; Package G.W.: 8.68kg |
