Average Splice Loss

0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)

Return Loss

≥60dB

Tension Test

2.0N(200gf)(Standard)

Typical splicing time

9 seconds

Typical heating time

25 seconds

Splicing Program

50 groups

Protection Sleeve Length

20mm, 40mm, 60mm

Operating Language

Chinese, English, French, Portuguese, Spanish

Operating Conditions

-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)

Power Supply

AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC)
Inner lithium battery: 11.1V, 5.2AH

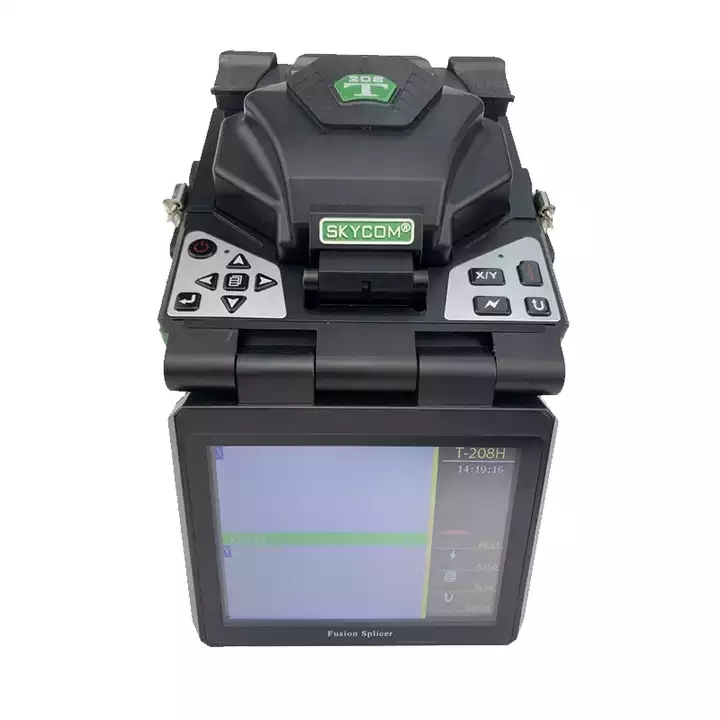

Monitor

5 inches high resolution colorful LCD display

Fiber Image Magnification

X or Y axis Separately views 400 times magnification, or Simultaneously 220 times

Storage of Splice Result

6,000 groups of latest splice results

Splicing Model

Auto & Manual & Full Auto

Optical Fiber Fixture

3-in-1 cutting fixture; Multipurpose 1+N fixture (T-208HF, for SC/LC/FC connector)

Dimensions

130(W)*135(D)*130(H)mm;                 Package size: 53*32*30cm

Weight

1.74kg+0.38kg (battery weight)=2.12kg;        Package G.W.: 6.03 kg

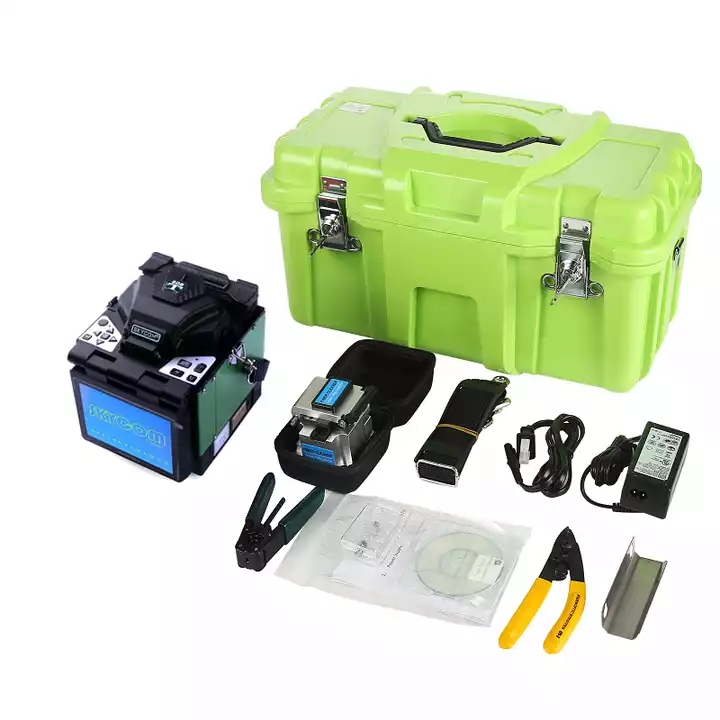

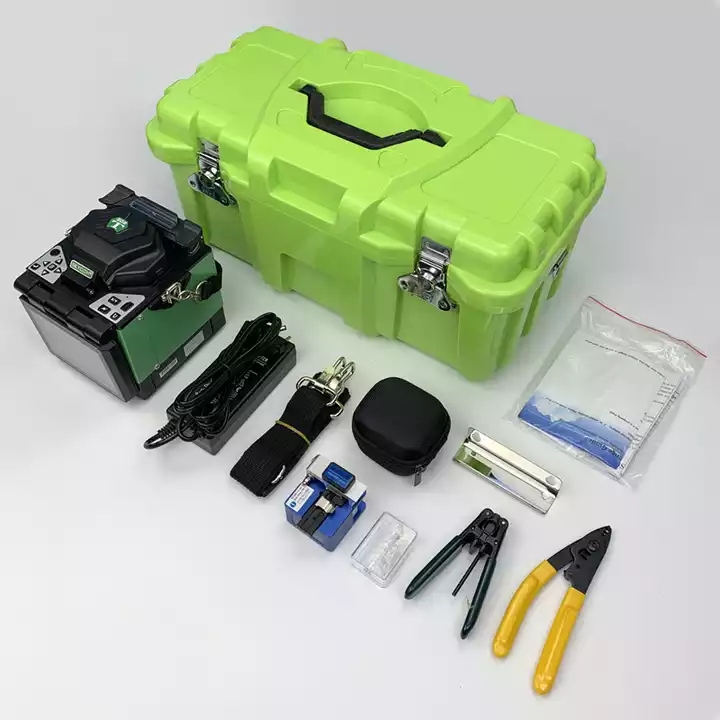

1

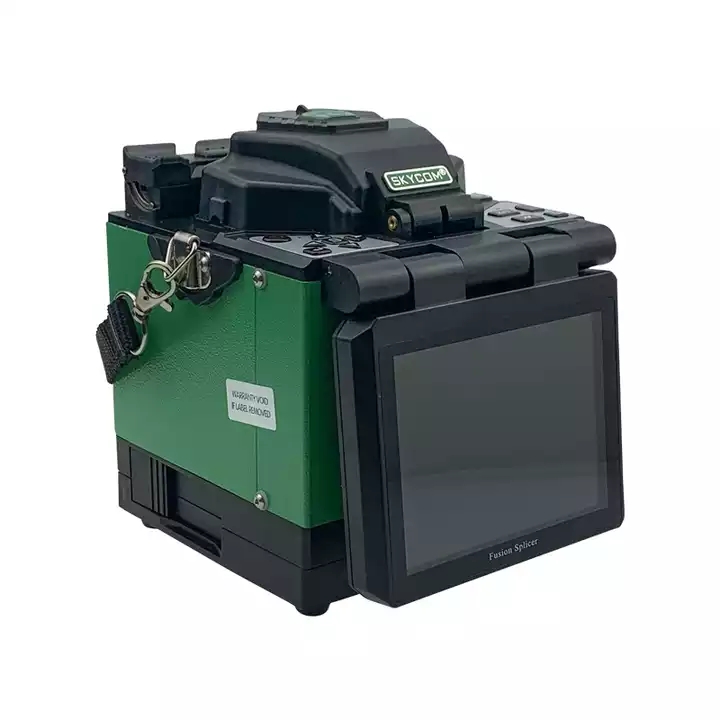

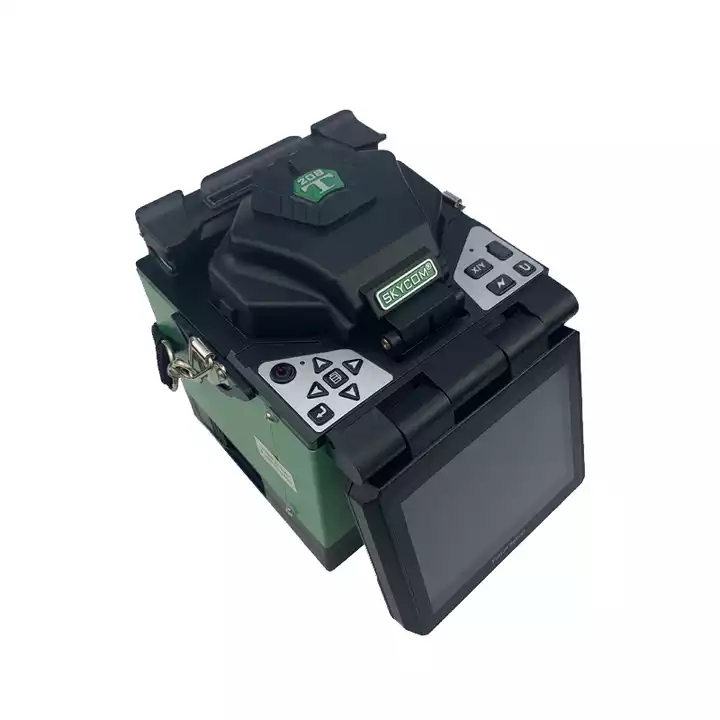

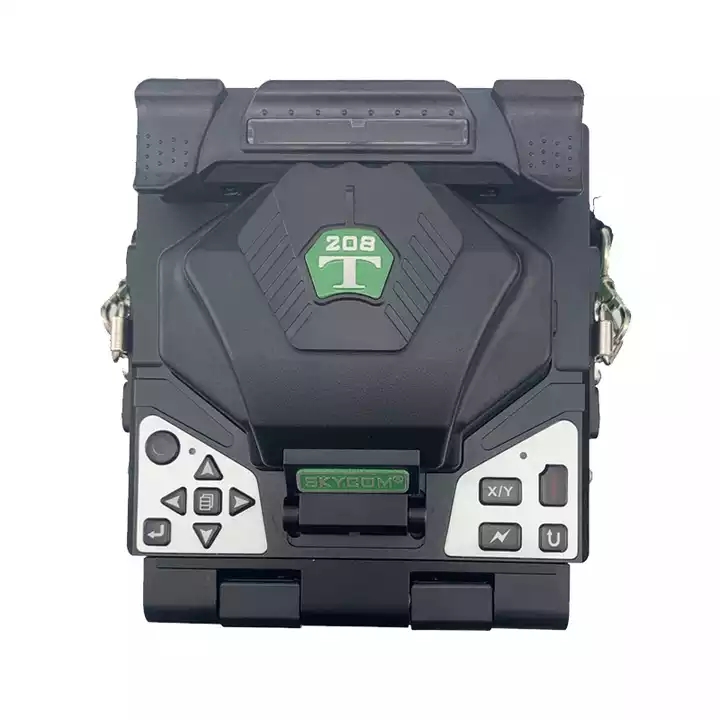

Machine T-208H

1

2

Fiber Cleaver

1

3

Fiber Stripper

1

4

AC Adaptor (Charger)

1

5

Battery

1

6

Spare Electrodes

1

7

Cooling Tray

1

8

Instruction CD

1

9

Quick Reference Guide

1

10

Rubber-insulated wire stripping pliers

1

11

Rubber-insulated wire 3-in-1 cutting fixture

1

12

Carrying Case with Carrying Strap

1
