Average Splice Loss

0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)

Return Loss

≥60dB

Tension Test

2.0N(200gf)(Standard)

Typical splicing time

6 seconds

Typical heating time

15 seconds

Splicing Program

50 groups

Protection Sleeve Length

20mm, 40mm, 60mm

Operating Language

Chinese, English, French, Portuguese, Spanish, Italian

Operating Conditions

-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)

Power Supply

AC adaptor: 100~240V input voltage, 50/60Hz;

12V, 5A output voltage(DC)/12V 8AH lithium battery

Monitor

4.3 inches high resolution colorful LCD display

Fiber image magnification

Simultaneous X and Y views with 400 times magnification

Storage of splice result

6,000 groups of latest splice results

Splicing Model

Auto & Manual&Full-Auto

Optical Fiber Fixture

3-in-1 cutting fixture; Multipurpose 1+N fixture

Dimensions

120(W)*120(D)*130(H)mm

Weight

1.29kg(without battery )

1

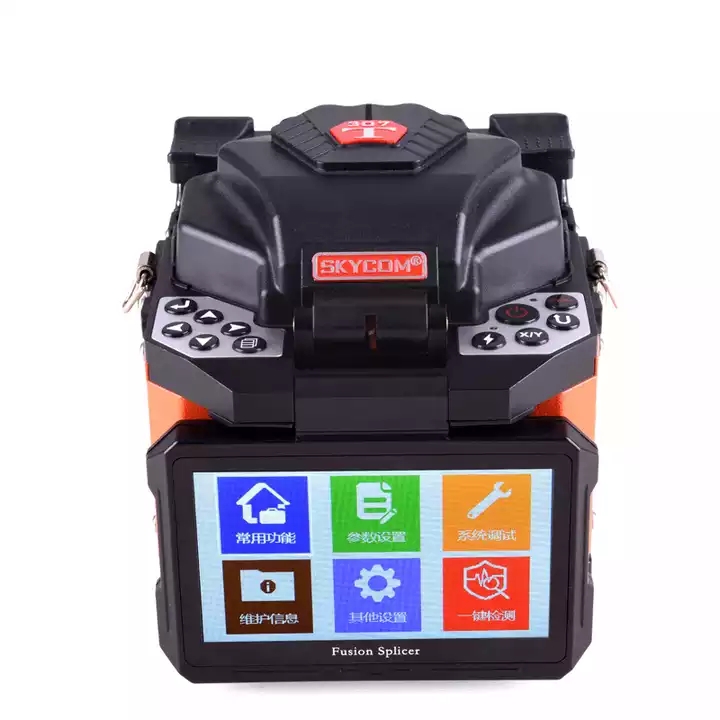

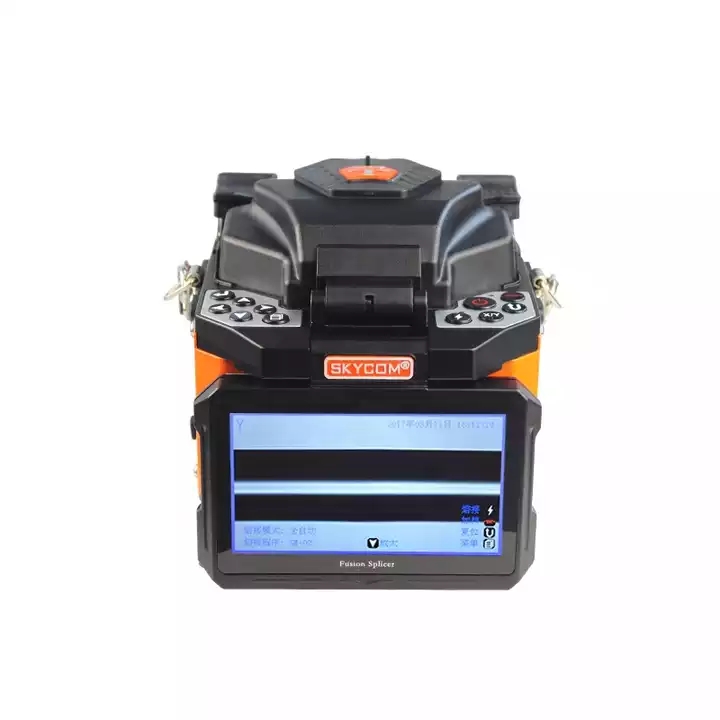

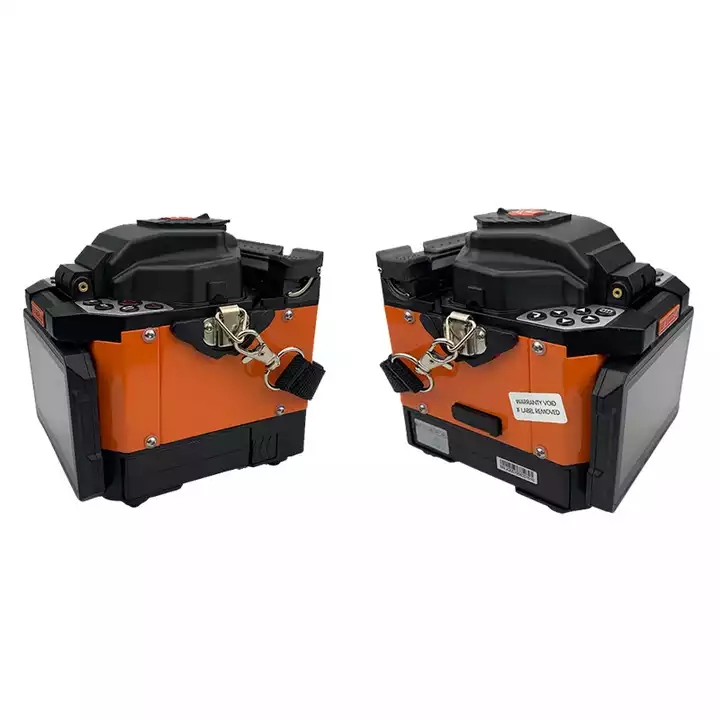

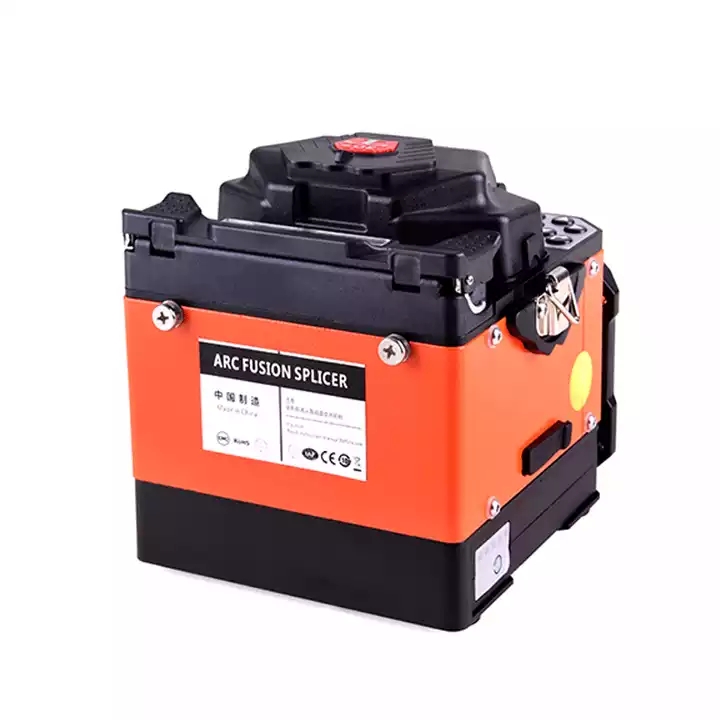

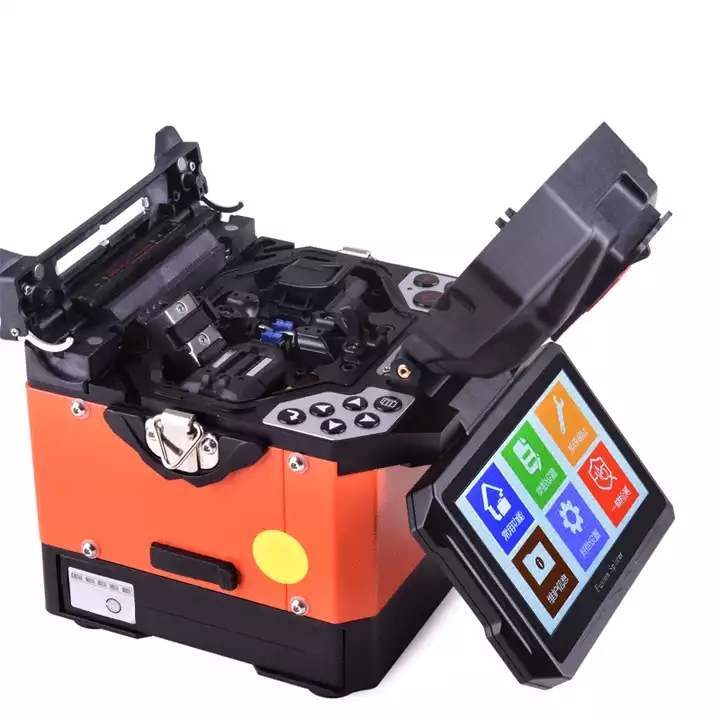

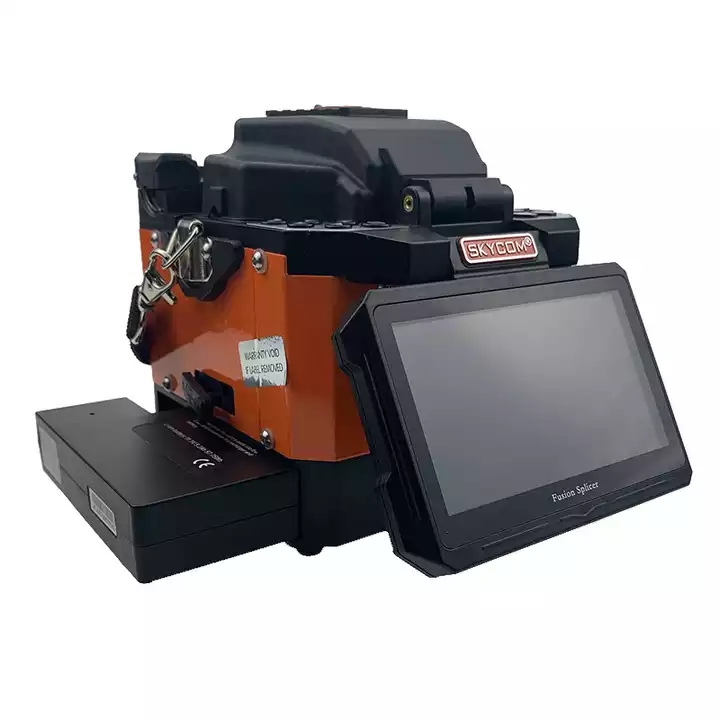

Machine (T-307)

1

2

Fiber Cleaver

1

3

Fiber Stripper

1

4

AC Adaptor (Charge)

1

5

Battery

1

6

Spare Electrodes

1

7

Cooling Tray

1

8

Instruction CD

1

9

Quick Reference Guide

1

10

Rubber-insulated wire stripping pliers

1

11

Rubber-insulated wire 3-in-1 cutting fixture

1

12

Transit case with Carrying strap

1
