Optical Fiber Core Number

Single core

Optical Fiber Diameter

Cladding Diameter:90-150μm, Coating diameter:125~1000μm

Fusion splice Model

Prestore:40 groups, User define:80 groups

Average Fusion Splice Loss

0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)

Echo Loss

Better than 60db

Fusion splice Duration Time

9s(typical parameter)

Loss Estimation

Exist

Tension Test

2N or more(optional)

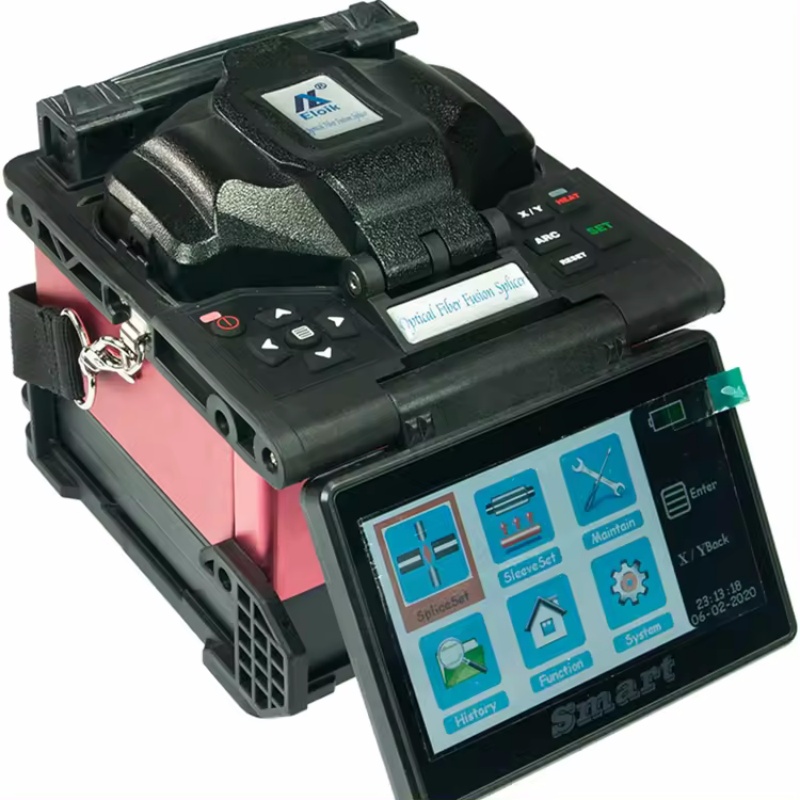

Monitor

5-inch LCD screen, touch screen(optional)

Language

Chinese, English, French, Spanish, Russian, German, Polish, Thai, Italian, etc.

Fiber Magnification Times

X/Y:200 times, X or Y:400 times

Power Supply

11.1V lithium battery,13.5V/5A power adapter

Battery

5200mAh lithium battery

Typical work more than 200 times (welding/heating)

single charge 3H, can be recharged 500 times.

Splice Results Storage

10000 Records, splice image(optional)

Data Interface

USB2.0

Operating Environment

Elevation:0~5000m, Relative humidity:0~95%

Temperature:-20℃~55°C, Maximum wind speed:15m/s

Storage Environment

Relative humidity: 0~95%

Temperature: -40℃~80℃ (no battery)

Temperature: -10℃~40℃ (with battery)

Size

145D×143W×158H(mm)

Night work lighting

Double LED White light

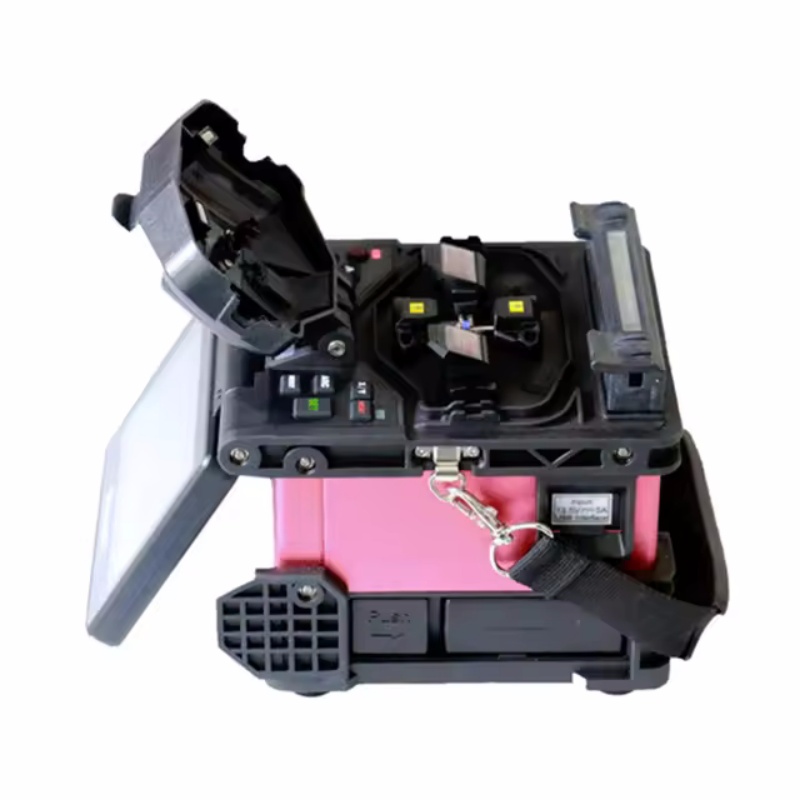

Fiber Holder

Multi-functional fiber holder(250um, 900um, 2-3mm)

SC/LC/FC fiber holder(optional)

Applicable Sleeve Length

60mm,45mm,40mm(FP-03)

Heating time

Fusion-Protection Sleeves 22s Fast heating (customization)

Heating temperature

Below 200℃(customization)
