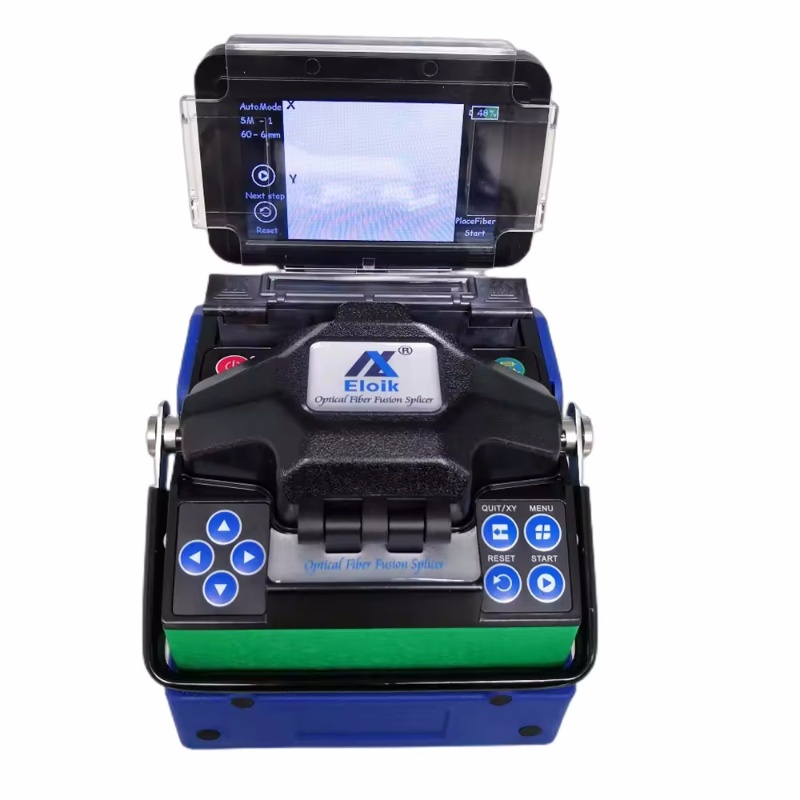

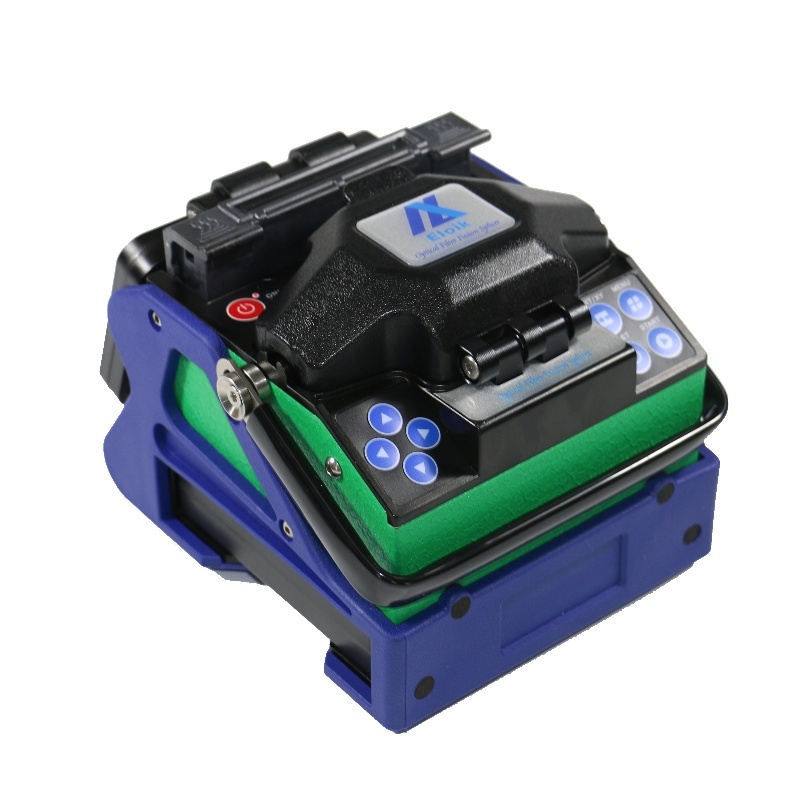

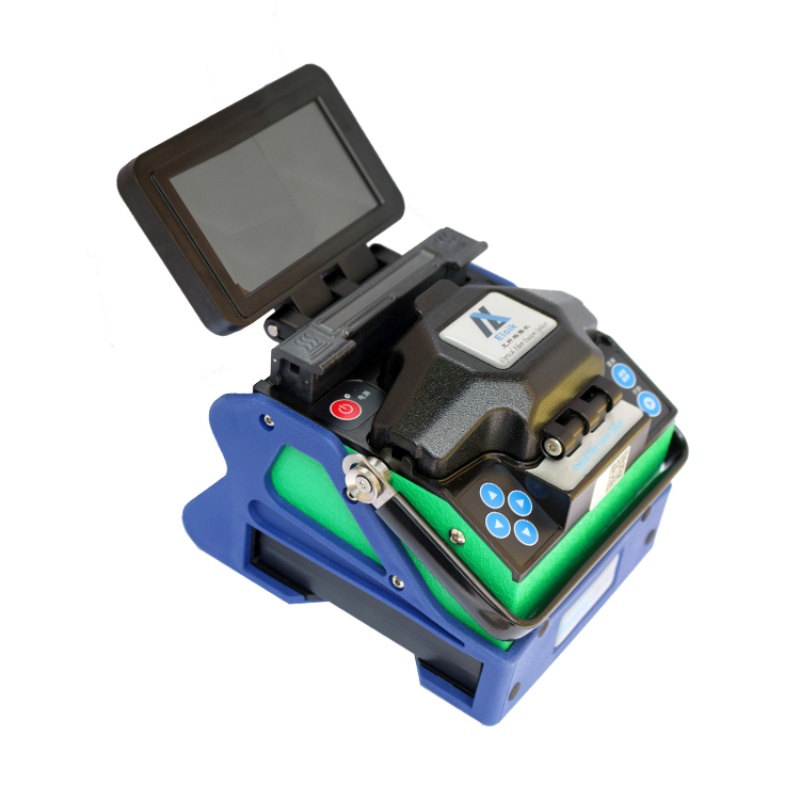

Eloik ftth Core Alignment Fusion Splicer ALK-88A

ALK-88A optical fiber fusion splicer is a mini fiber splicing equipment which is compactly designed,easy to carry and operate. It has vivid and exquisite image-forming system and high precision image processing technology on fiber alignment, which leads to its high proficiency in splicing and low loss.Its beautiful operation interface and body design conforms to operation principle of ergonomics, which greatly improves user experience.

Product description

Features

Hardness: The body is made from titanium alloy, and it has rubber protection function, quake-proof, waterproof, dust-proof.
Fast: 7s fast splicing, 9s fast heating, support continuous heating average efficiency improve 2-3times.
Long lifetime: 1group batteries. 260 fiber splicing, no memory effect Lithium Batteries, the fiber cleaver has 16 blade, long lifetime.
Convenience: convenient for maintenance
4.3 inches high Resolution LCD display

USB Port Shockproof, Dust-proof, Rain-proof.

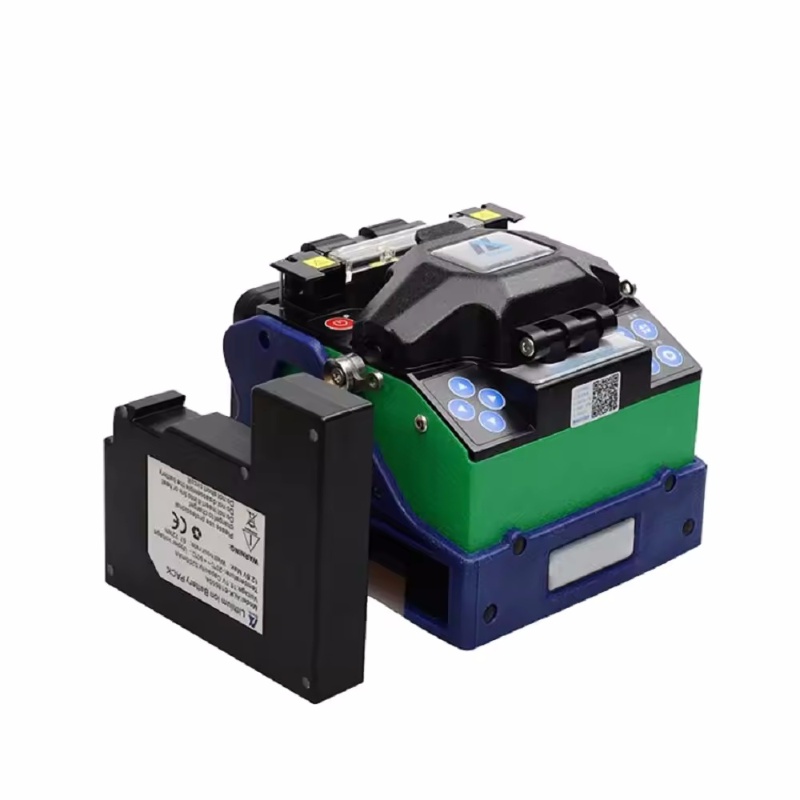

6800mAh Plug-gable battery

Bright Low-Power LED Lights, To Ensure Normal Splicing At Low Light Conditions.

The languages: Chinese, English, Russian, Portuguese, French, Spanish, Italian, Polish, Thai, etc.

Specifications

Applicable fiber Type	SM(Single mode), MM(Multi-mode), DS(Dispersion shift), NZDS(Non zero dispersion shift)
Applicable fiber Count	Single
Applicable fiber diameter	Cladding diameter of 80~150um, coating diameter 100~1000um
Splice Mode	Stored 40 groups, 80 groups of user-defined
Average splice loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS), 0.04db(BIF/UBIF)
Return Loss	More than 60dB
Connecting time	9s(typical time)/7s(Fast Mode)
Splice loss evaluation	Have
Tensile test	2N
Screen	4.3inch color LCD Display
Optical magnification	X/Y:180 times, X or Y: 360 times
Power Supply	6800mAh Lithium battery, 13.5V/5A power adapter
Battery	Typically work 220 times(Fusion splicing / Heating /Hot stripping), Single battery charge 3Hour, can be recycled 500 times
Splice Results Storage	10000 groups of the latest records
Data interface	USB2.0
Operating environment	Altitude 0~5000m, 0~95% relative humidity. Temperature -10°C ~55°C, the maximum wind speed 15 m/s
Storage Conditions	0~95% relative humidity, temperature:-40°C~80°C(no battery) temperature: -10°C~40°C(with battery)
Weight	2kg(including battery)
High altitude operation	Cornering, machines can be directly hung on the operators neck normal operation
Size	166D * 142W * 139H (mm)
Applicable fiber diameter	250um, 900um, 2~3mm
Applicable Sleeve Length	60mm,45mm,40mm(FP-03)
Heating Time	Cover and automatic heating, v-shaped 19S rapid thermal shrinkage (user-defined)
Heating Temperature	0~300°C(user-defined)
The heating process	60 groups
Languages	Support Chinese, English, Russian, Portuguese, French, Spanish
