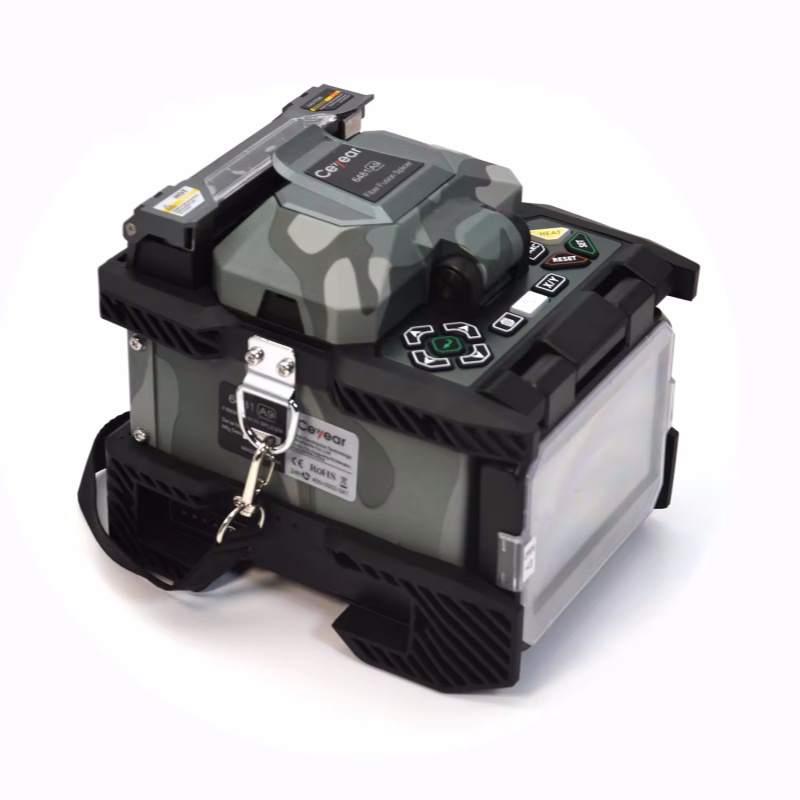

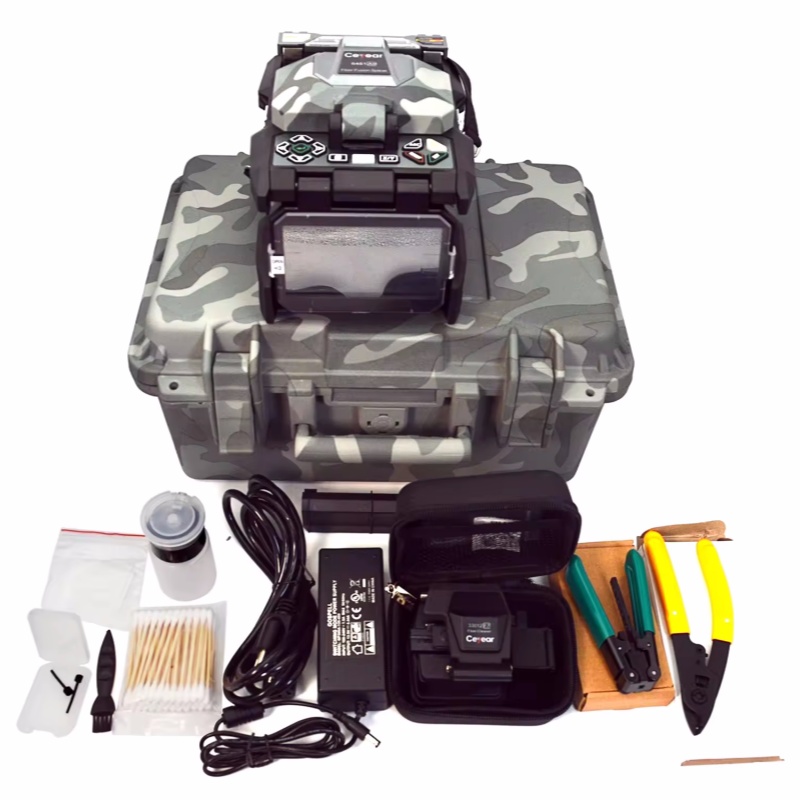

Ceyear Original 6481A9+ Core Alignment Fusion Splicer

Obtaining 16 patents of invention and 58 technical innovations, a brand-new product 6481A9+ Optical Fiber Fusion Splicer is launched, thanks to 5 years of painstaking research of 28 engineers. 6481A9+ implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. Compared with old models, our star product, 6481A9+ lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) by 200%. You can get unprecedented fusion splicing experience.

Product description

Features

Precise fiber core alignment, ultra-low fiber fusion splicing consumption
7s fast fusion splicing, 18s highly efficient heating.
320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length
300 groups of fusion splicing modes, 100 groups of heating modes
10000 groups of fusion records, 64 images storage

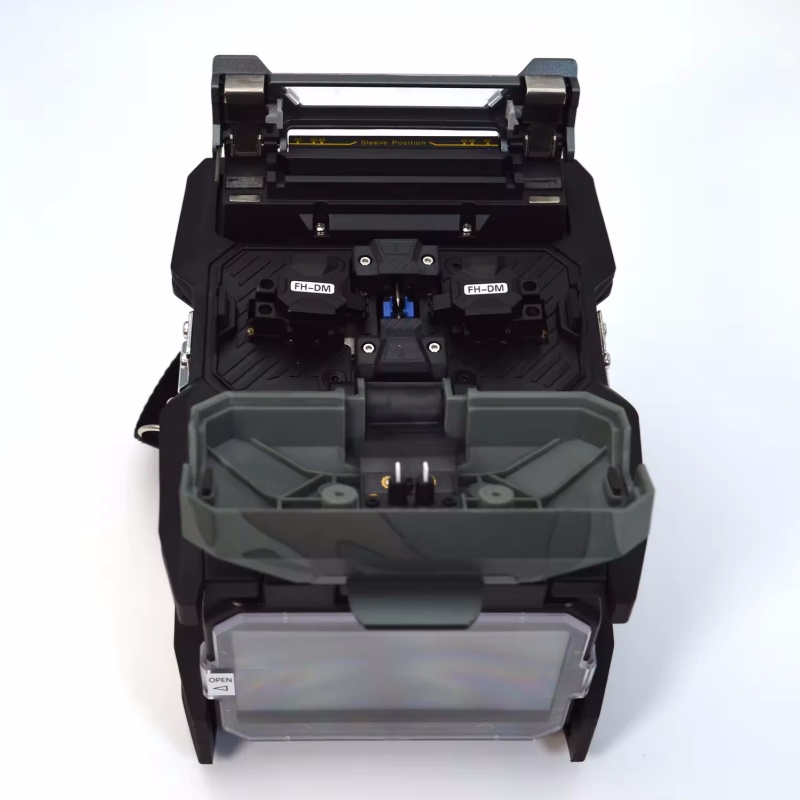

Ceramic presser foot, ceramic V-block, all-in-one fixture
Dual-direction splicing, automatic splicing, intelligent pyrocondensation
USB and SD card interfaces, U-disk automatic software upgrade
Built-in modular lithium battery, supports 220 times of splicing and heating cycles

Specifications

Model	6481A9+
Alignment method	Precise core alignment
Applicable fibers	Any common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657.
Optical fiber diameter	Cladding:80~150μm, coating layer: 0.1~3mm
Cutting length	5~16mm(coated optical fiber diameter≤250μm);10mm(coated optical fiber diameter:0.25~3mm)
Fusion splicing loss	0.02dB(SMF); 0.01dB(MMF); 0.04dB(DSF); 0.04dB(NZDSF)
Return loss	Better than 60dB
Fusion splicing time	7s
Heating time	18s
Pulling force test	1.96~2.25N
Thermal shrinkage tube	60mm, 40mm and a series of thermal shrinkage tubes

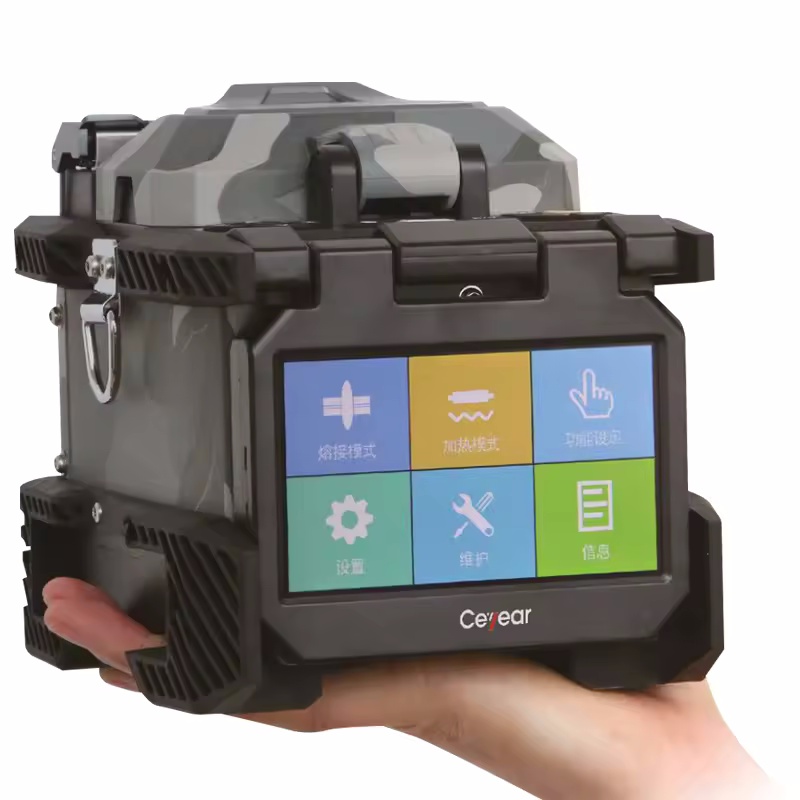

Graphical display	High-performance 4.3 inch LCD
Magnification time	320 times/88 times
Fusion splicing record	10000 groups
Battery capacity	11.1V,6400mAh,typical value of fusion splicing and thermal cycle is 220 times
Battery service life	Cycle charging times reach 300~500, can be replaced by customers
Electrode service life	Typical value is 4000 times, can be replaced by customers
Construction lighting	Built-in lights with high-brightness and wide lighting area
Working environment	Temp:-10~50ºC;hum: 0~95%RH,height above sea level:0~6000m
Operation interfaces	GUI graphical operation interfaces
External power	AC: AC100~240V,60Hz,0~1.5A;DC: DC10~15V
External port	USB/SD
Dimensions	120mm(W)×130mm(H)×154mm(D)(without rubber anti-vibration pad)
Weight	1.59kg(host engine),0.37kg(battery)
