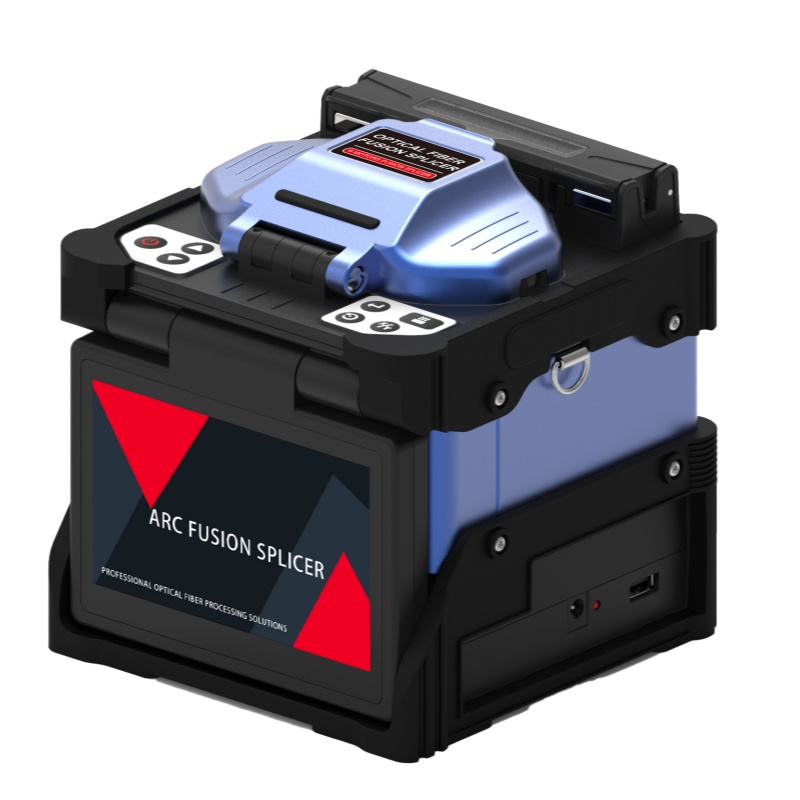

Features
Precise fiber core alignment, ultra-low fiber fusion splicing consumption.
6s fast fusion splicing, 15s highly efficient heating.
380 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length.
10000 groups of fusion records

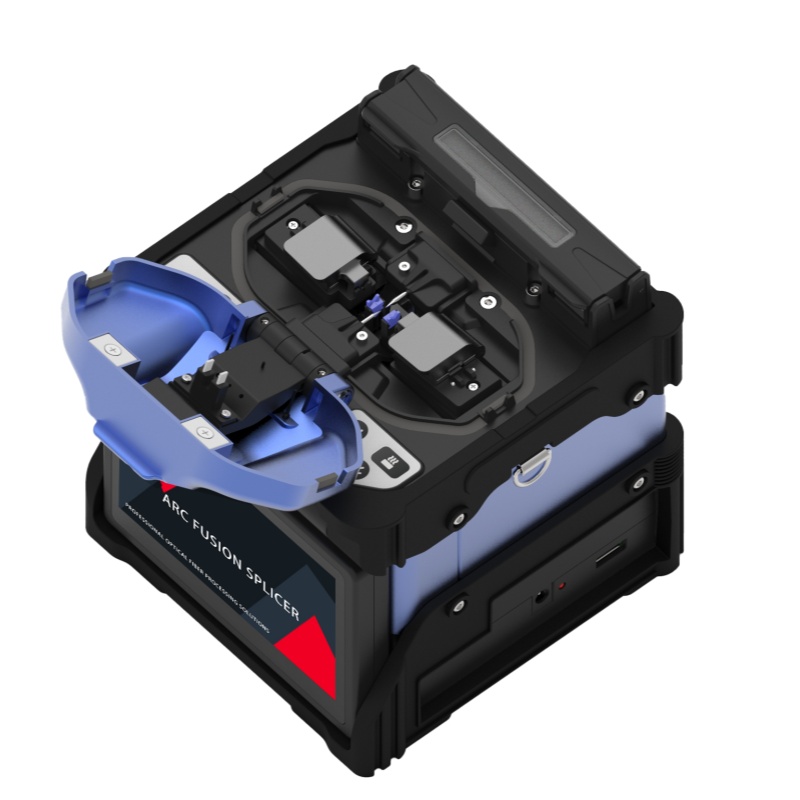

Ceramic presser foot, ceramic V-block, all-in-one fixture.
Dual-direction splicing, automatic splicing.
USB interface, U-disk automatic software upgrade.
Built-in modular 7800mAh lithium battery, supports 500 times of splicing and heating cycles.
Specifications
CPU | Industrial grade dual CPU with 4 cores |
Motors | 6 |
Fiber Alignment | Core/cladding alignment/auto-focus |
Applicable Fibers | SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), BIF/UBIF(G.657) |
Fiber Diameter | Cladding diameter: 80~150μm; Coating diameter: 100μm~3mm |
Fiber Cleaved Length | 5-16mm |
Align Mode | Auto focus |
Operation Mode | Manual/auto |
Welding/Heating Mode | Preset a variety of welding mode and heating mode, can be customized. |
Average Splicing Loss | 0.02dB(SM), 0.04dB(MM), 0.04dB(DSF), 0.04dB(NZDSF) |
Splicing Time | 6s |
Heating Time | 15s |
Storage | 10000 groups |
Image Magnification | 380 times |

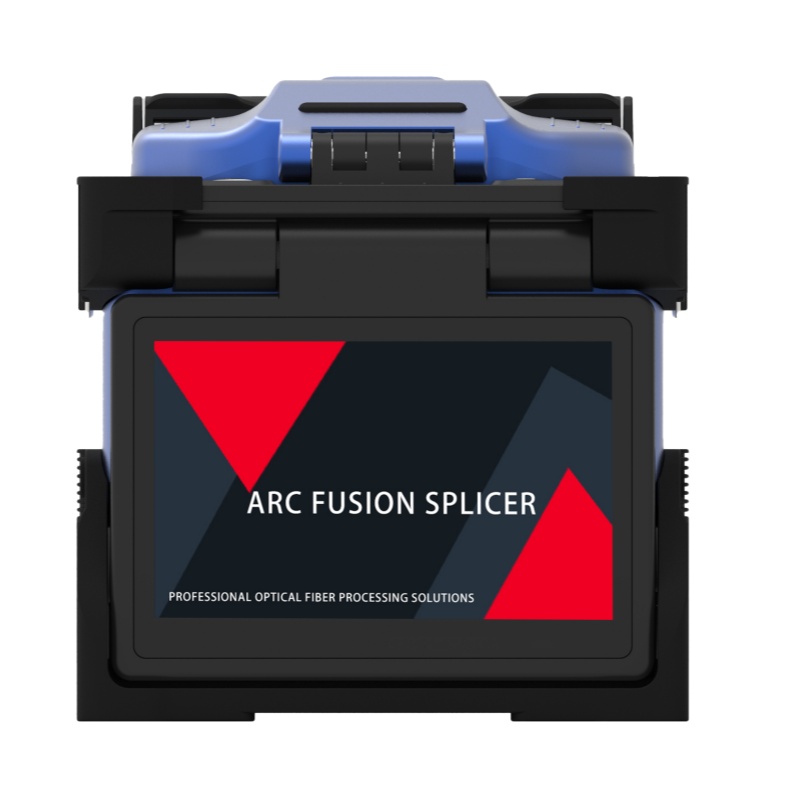

Screen | 5 inch digital high-quality touch LCD screen |
Lighting | Built-in high beam lighting |
Power Supply | Input: AC 100-240V(50-60Hz), output: DC 10~13.5V |
External Interface | DC adapter, USB interface. |
Tensile Testing | 1.96-2.25N |
Shrinkable Sleeve | 10-60mm |
Battery Life | 7800mAh, 500 cycles splicing and heating. |
Electrode Lifetime | 3000-5000 counts(Recommended) |
Communication Interface | U-disk automatic software upgrade, Melding data export. |
Operating Condition
| Altitude:0~5000m, wind speed:15m/s, temperature:-10~+50℃, humidity:0~95%RH |
Resistance | Dust/shock/water |
Storage Condition | Humidity: 0-95%,Temperature: -20-50℃; Battery storage：-20-30℃ |
Dimensions | 144*142*151mm, 2.2kg |
