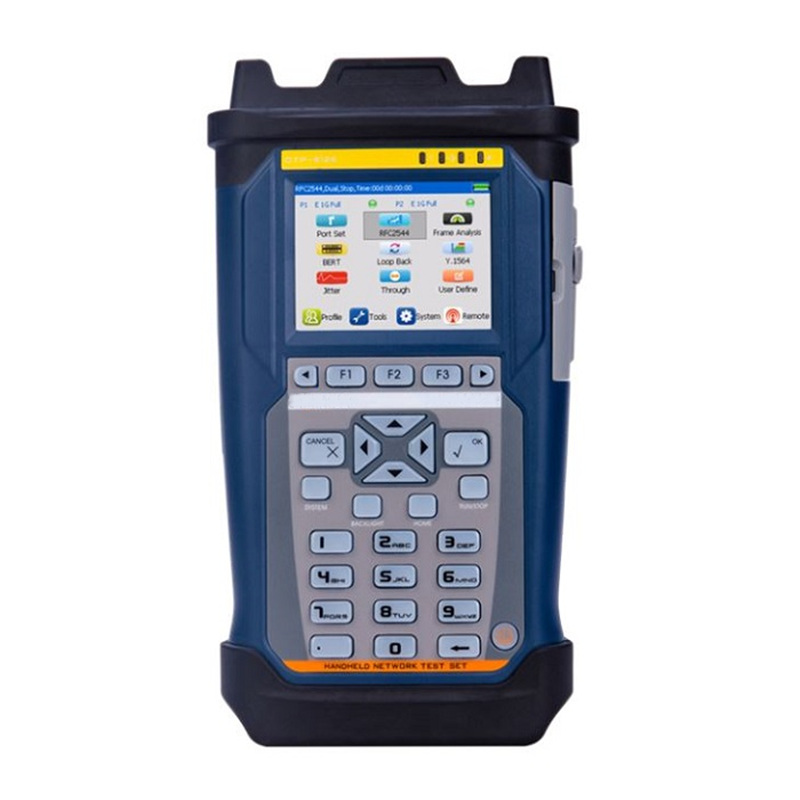

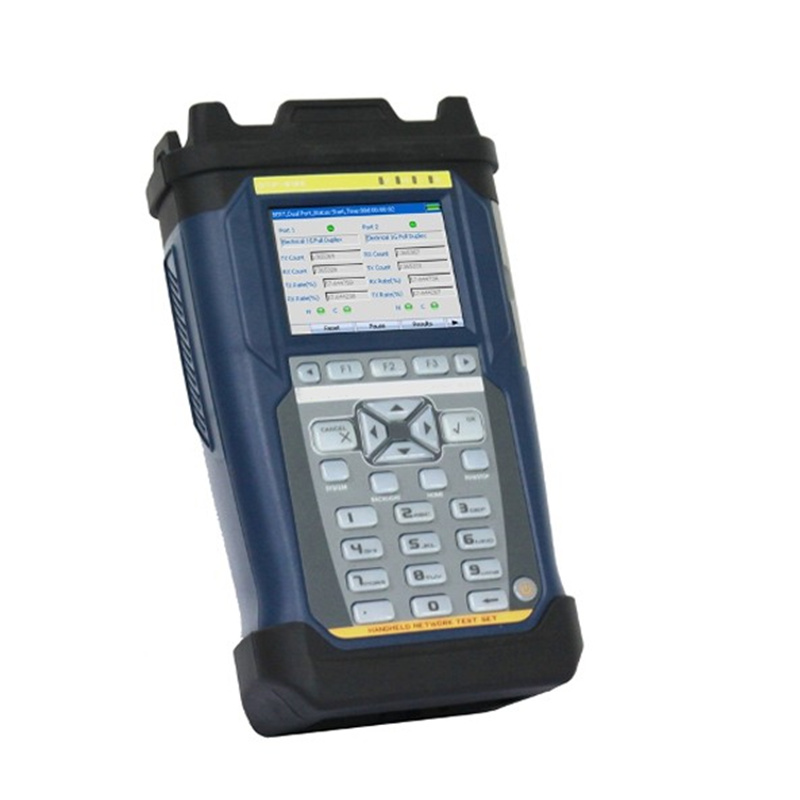

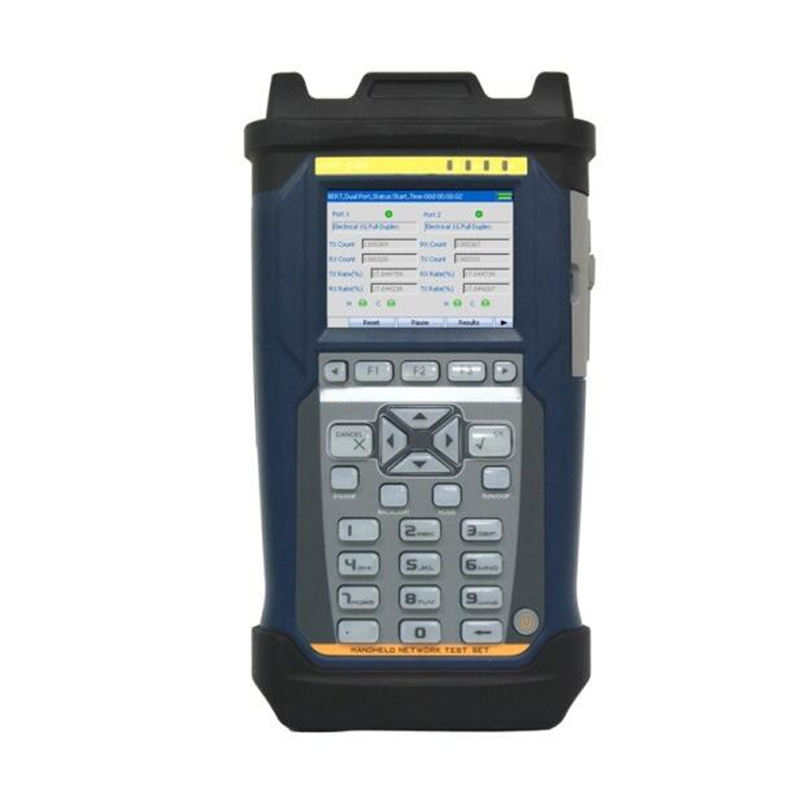

Screen

3.5 inch TFT touch screen (320×240);

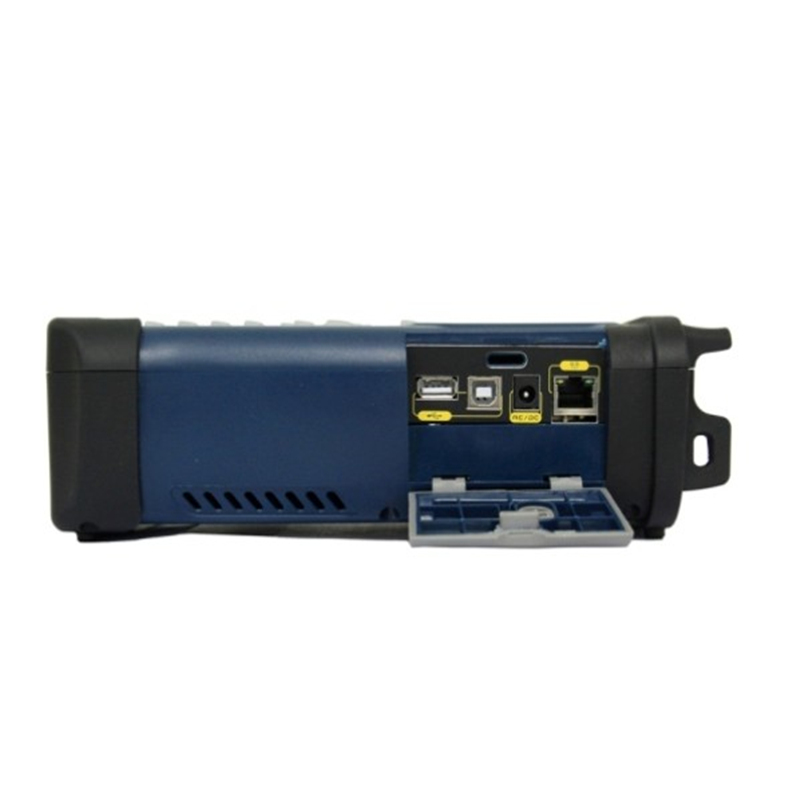

Other Interface

USB

· USB2.0, type A,1;

· USB2.0 type B, 1;

Ethernet

10/100M Base-T, RJ45;

Storage

128M;

Physical Specifications

Size

80(H)x 135 (W) x 250(D) mm;

Weight

1.1kg;

Temperature

· Operating: -10°C to 50°C;

· Storage: -40°C to 70°C;

Relative Humidity

0% to 95% (non-condensing);

EMC

· EN55022/CIPSR22;

· EN61000-3-2;

· EN55024;

Battery and Power Supply

Battery

· Rechargeable Li-Lon battery;

· Working time: 8 hour;

· Charging time: <3 hours (typical: 25°C);

Power Supply

· Input: 100-240V AC, 50-60Hz, 2A;

· Output: 15V DC, 2A.

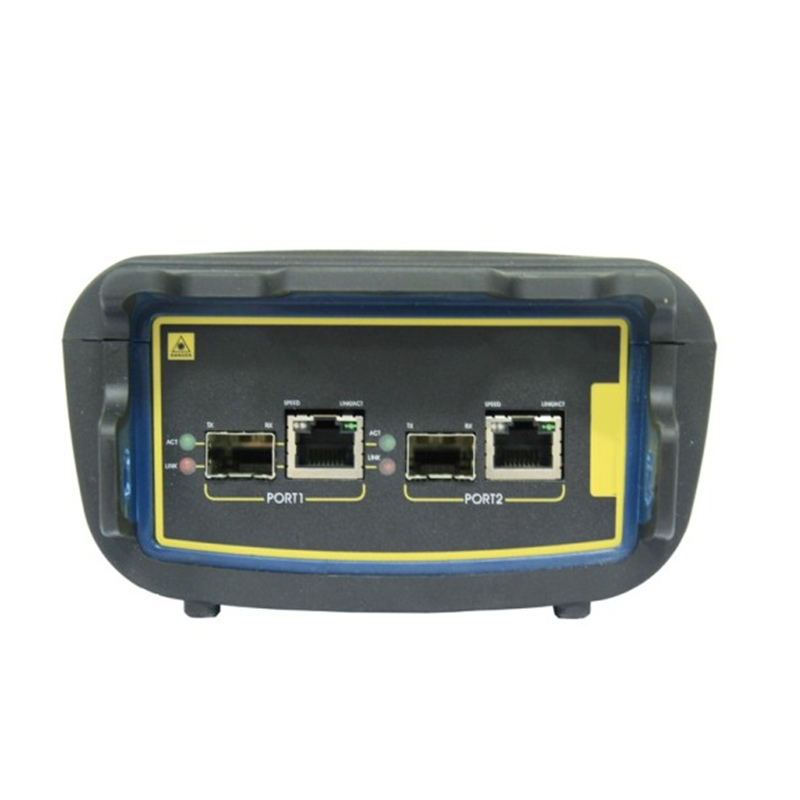

Port

· Electrical interface: 2 ports, 10/100/1000M Base-T;

· Optical interface: 2 ports, 100/1000M Base-X;

User select-able optical module: 850nm, 1310nm, 1550nm.

Ethernet Feature

Auto negotiation, full and half duplex, flow control;

Configuration

Monitor/generate, pass-through;

Encapsulation

Ethernet type II, IEEE802.3 with 802.2, IEEE802.3 with SNAP;

Configuration, Monitoring and Generation

Traffic Generation

· Variable line rate traffic generation, up to full line rate;

· Traffic generate mode: continuous, burst, ramp, n-frame, n-burst, n-ramp;

· Adjustable frame size: 38 bytes to 16000 bytes;

· Frame size: constant, iMAX, random;

· User-defined traffic mix of unicast and broadcast frames;

· Fixed or increment MAC/IP identifier;

· User programmable DSCP/TOS byte;

·  Configurable IP and Ethernet source and destination addresses (support IPv4 and IPv6 addressing);

·  User programmable TCP/UDP address;

·  Generate pause frames, respond to pause frames;

·  Answer incoming ARP, Ping requests (ON/OFF);

Stacked VLAN

· Up to 3 user-settable VLAN tags;

· Parameters per VLAN tag:

· Ethernet type II 0x8100 (802.1Q), 0x88a8 (802.1ad), 0x9100, 0x9200, or 0x9300;

· User-defined VLAN ID, CFI, VLAN priority;

Multi stream

Number of streams: up to 8 streams per port can be activated;

Error Injection

FCS, IP check sum error, CRC4 error, bit error;

Alarm generation

No link;

Result, Monitoring and Generation

Status

· Link status, interface type, jabber detected, frames present, MPLS/VLAN, speed, full or half duplex, signal present, bit rate of incoming Ethernet signal, auto negotiation complete;

· Link partner abilities: speed/duplex;

· Indicators of utilization, throughput, error-ed frames;

· Signal level indication for optical Ethernet interfaces;

Performance Statistics

Utilization, throughput, frame rate;

Frame Statistics

· Total frames, total testing frames, total not testing frames, uni-cast/multicast/broadcast frames, number of pause frames;

· Total VLAN frames;

· Total MPLS frames;

· Total error-ed framed, number of oversized, normal, and runt frame, number of FCS error-ed;

Multi stream

Display information per steam:

· Frame loss count/rate, throughput, latency, packet jitter, frames and bytes received and transmitted;

Transmit Statistics

Total frames, unicast/multicast/broadcast;

Filter

Filter condition support:

· Source and destination MAC/IP, IPv6, VLAN ID and VLAN Priority, MPLS, IP TOS, TCP/UDP source and destination port, Ethernet type and IP protocol;

BER Test and Service Disruption Test

BER Test

· Generation and detection of test pattern, count of errors in received test pattern;

· Pattern generation: layer 1 to layer 4;

· Frame loss count and frame loss seconds;

· BER measurement results;

· Test pattern: PRBS9, PRBS11, PRBS15, PRBS20, PRBS23, PRBS31, CRPRJ, JTPAT, SPAT, 32bits user defined;

Error Injection

FCS, IP check sum error, UDP/TCP check sum error, bit error;

Service Disruption Test

Service disruption test activated as part of BER test:

·  Max/avg service disruption test, resolution: 0.1us;

·  Number of service disruption;

Loopback and Pass Though

Loopback Test

· Layer 1 to layer4 loopback test;

· Advanced loopback test:

· Packet loss setting: percentage, packet count, time;

· Loopback drop enable: protocol loss, protocol pass, control, CRC error, IP/TCP/UDP error;

Pass Through Test

· Pass through monitoring function between 2× 1GE electrical or 2×1GE optical ports;

· Advanced pass through test;

· Packet loss setting: percentage, packet count, time;

· Pass through drop enable: protocol loss, protocol pass, control, CRC error, IP/TCP/UDP error;

RFC3393

Jitter Test

· G.711, G.723.1, G.729 and so on VoIP packet jitter test;

· Jitter result: hits, min, max, current, average;

RFC2544

RFC2544 Test

· Switch/router test and single ended network test mode:

· Throughput, frame loss, latency, back-to-back;

· End-to-end network test mode (2 units in local-remote setup):

· Throughput, frame loss, back-to-back;

Service Activation Test (Y.1564)

Service Activation Test

ITU-T Y.1564 Service Activation Test:

· Up to 8 services per port;

· Colour-aware and non-colour-aware in combinations;

· Test modes: one-way (uni-or bi-directional, symmetrical, or asymmetrical), round-trip;

Service Activation Test

· Verification against service acceptance criteria: information rate, frame transfer delay, frame delay variation, frame loss rate, availability;
