OTDR Launch Cable Box

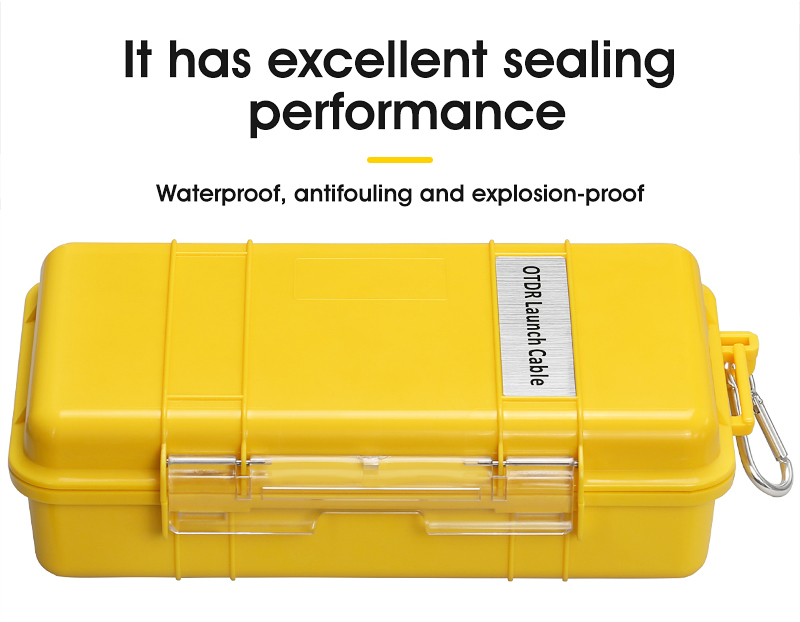

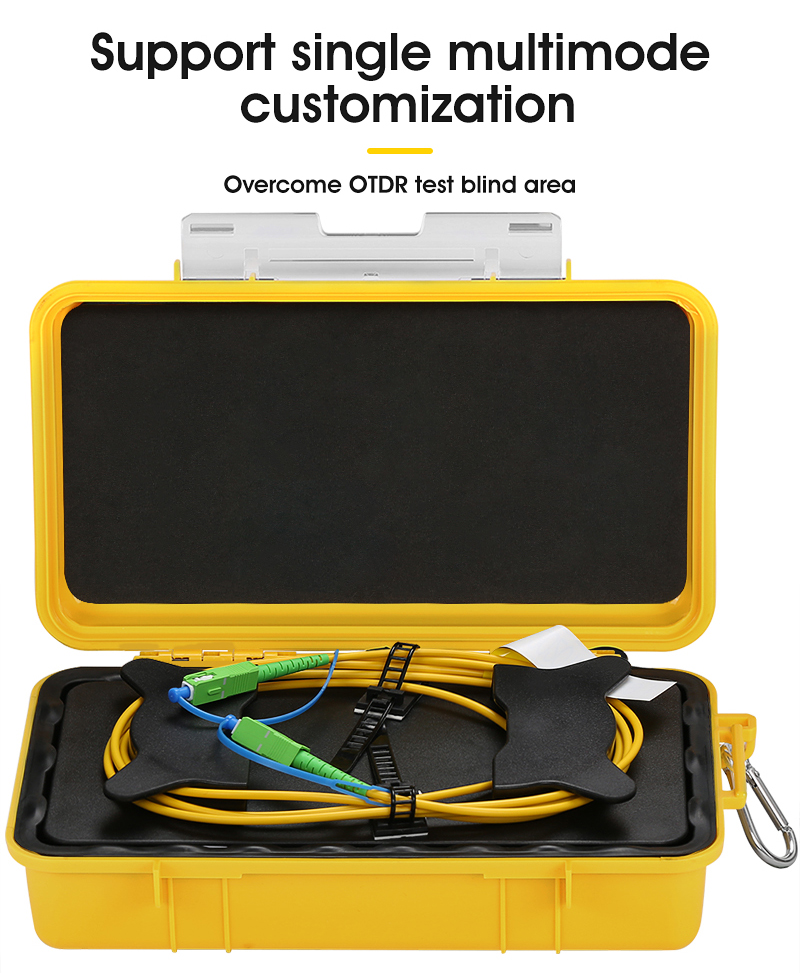

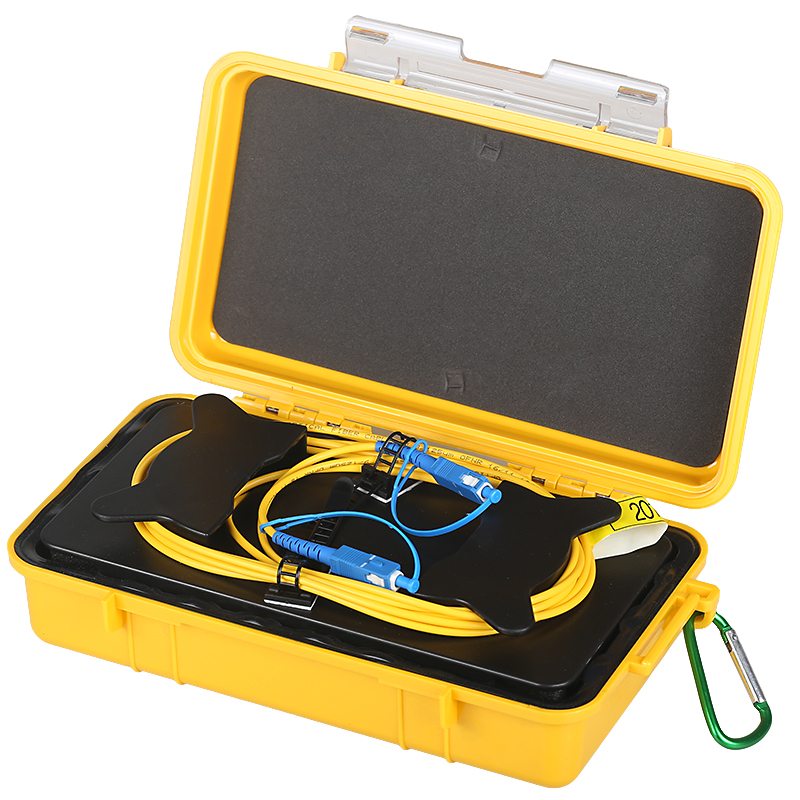

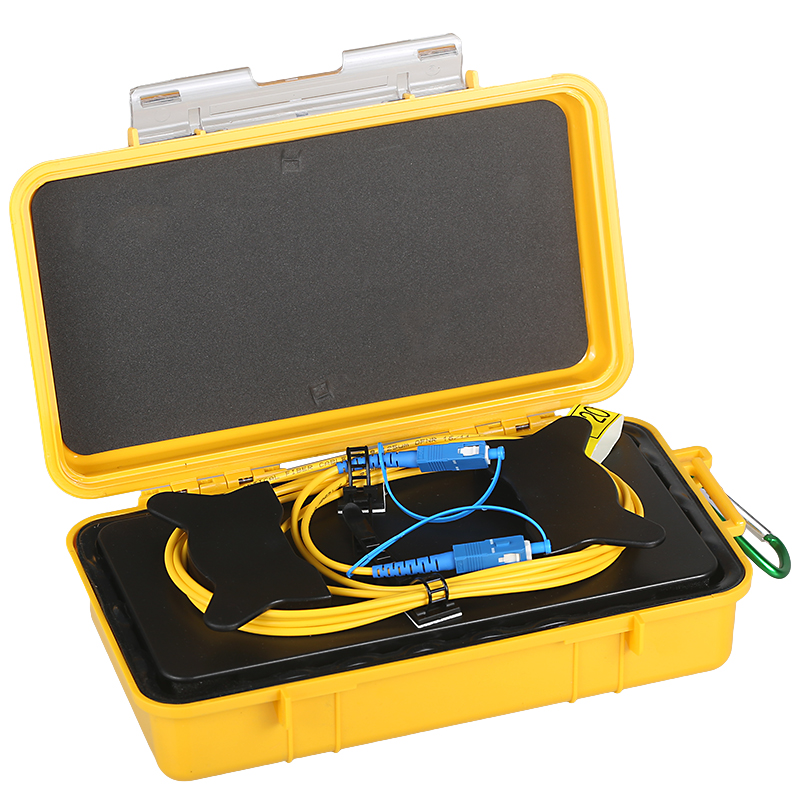

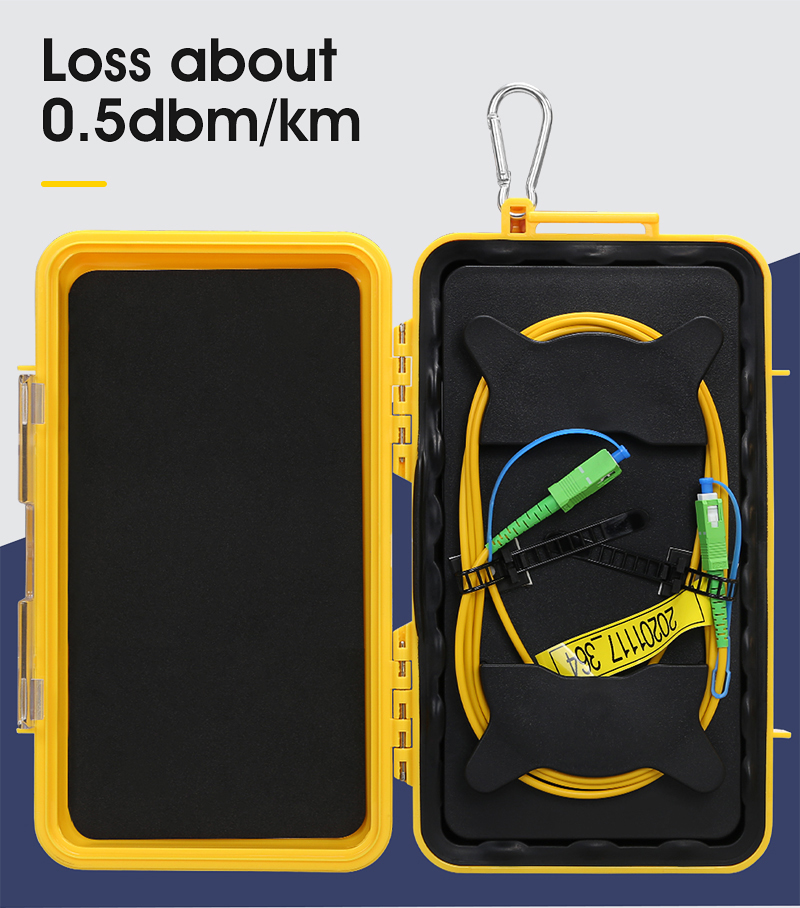

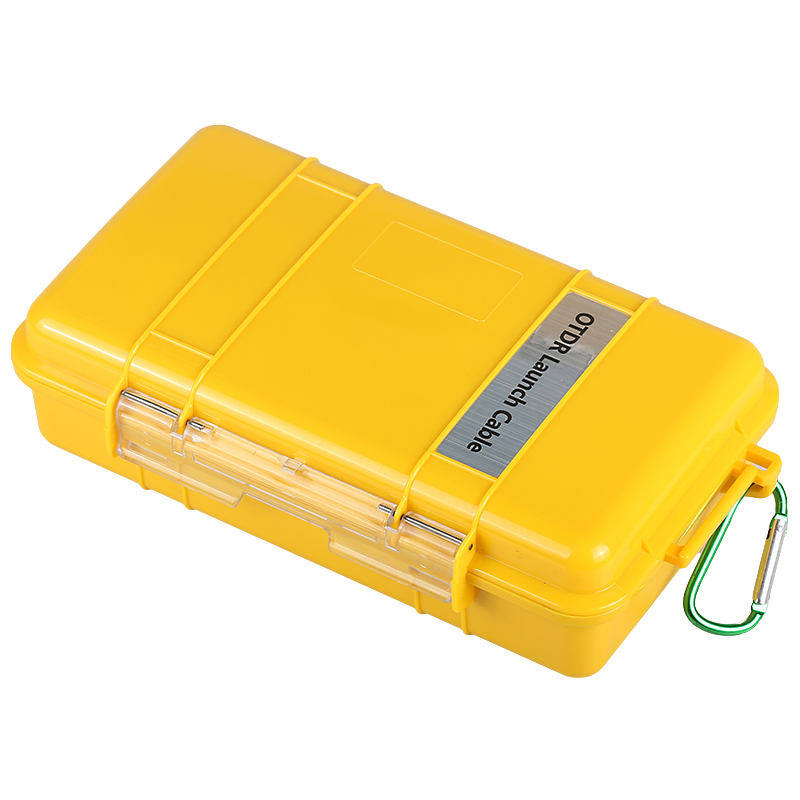

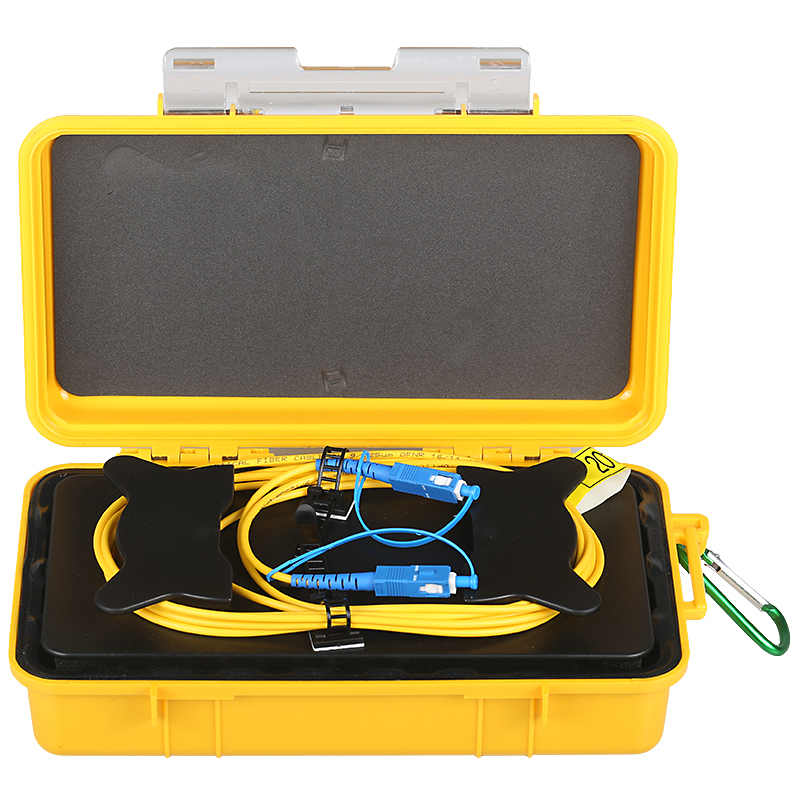

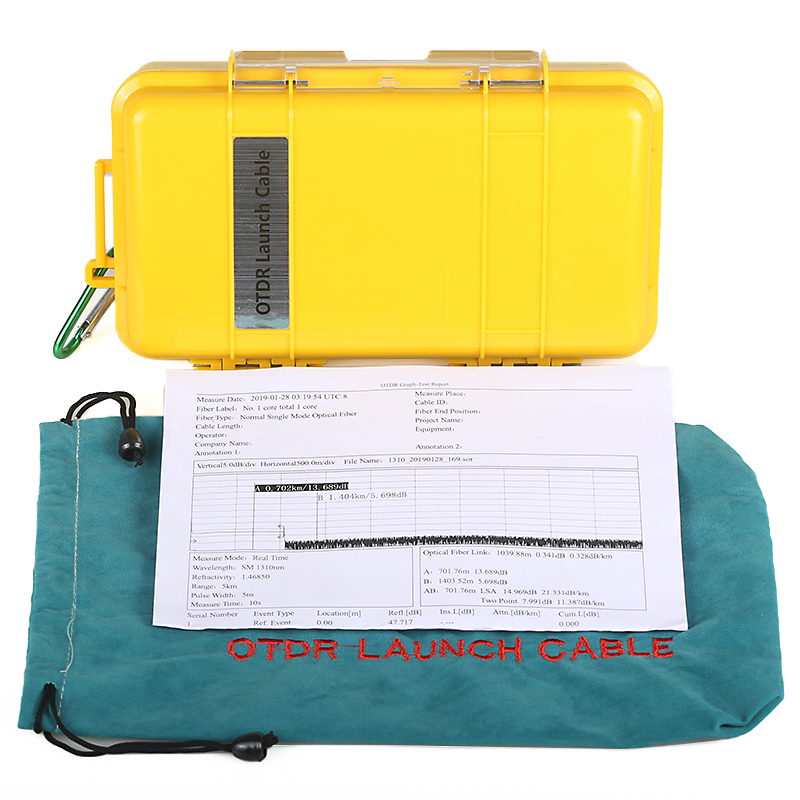

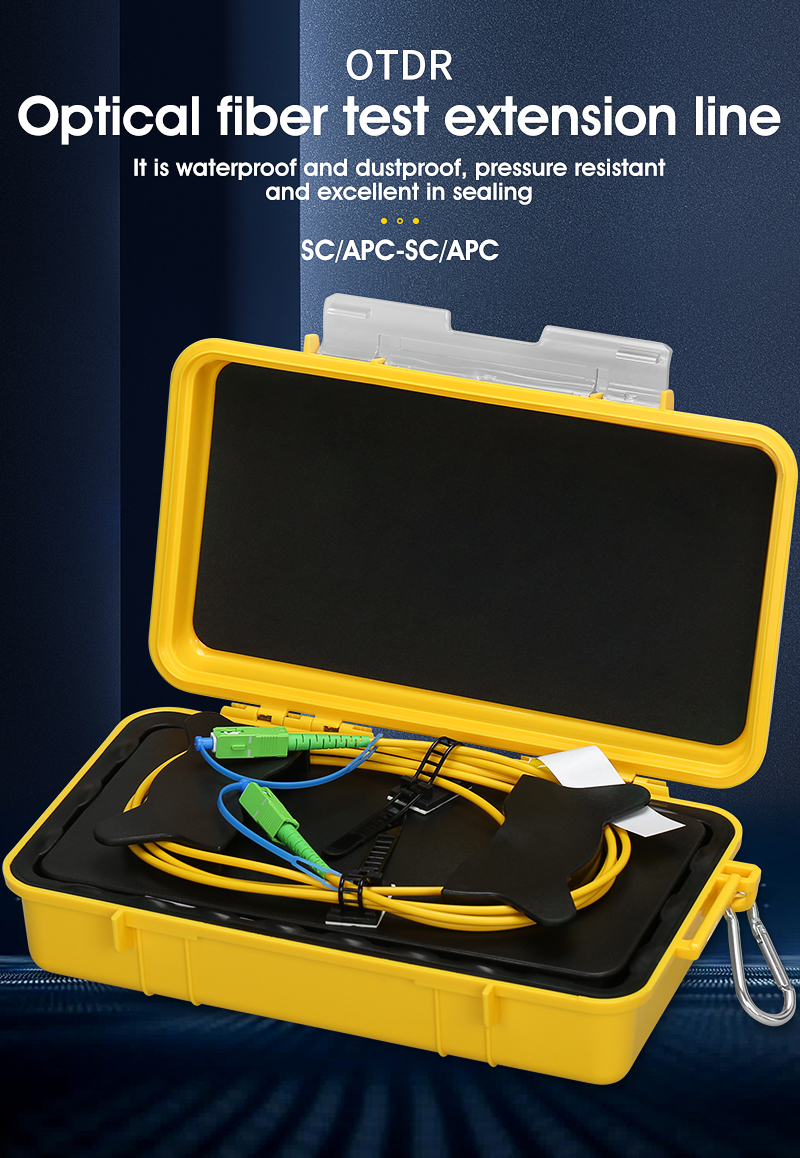

OTDR Launch Cable box is mainly used to make up the dead zone of OTDR test. There are no fusion joints in the center of optical fiber, small size, light weight and easy to carry. The loss is less than or equal to 0.5dBm/km. It has excellent sealing properties, waterproof and anti-fouling. Come with a plastic box to conveniently store the OTDR launch cable.

Product description

Features

Use as a pulse suppressor, OTDR launch box, delay line, product demonstrations, training, calibration.

Solid internal housing protects spool and leads

Leads wrap in the same direction for quick, easy access and storage.

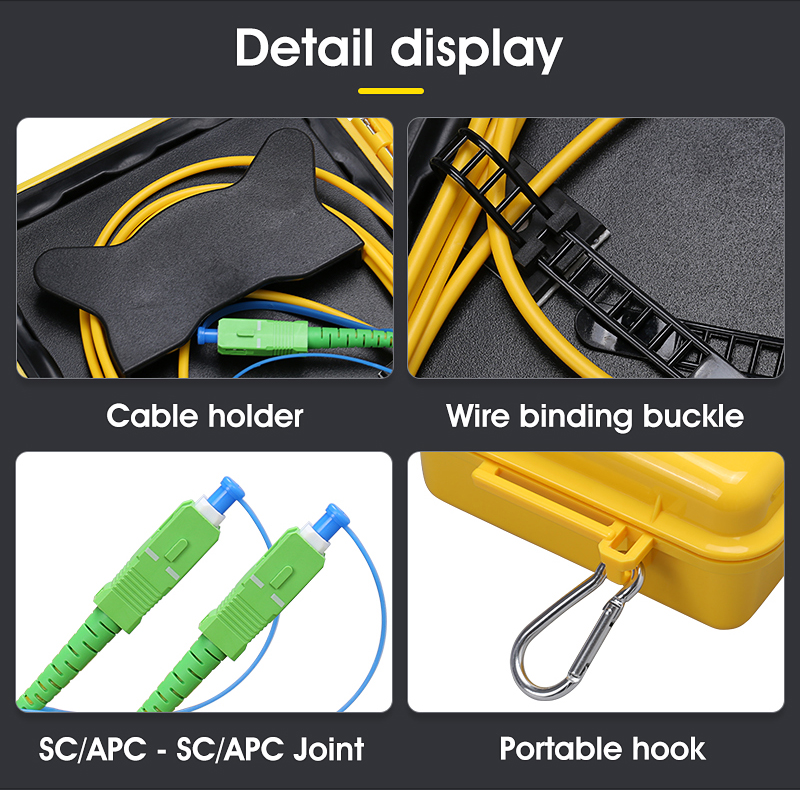

Karabiner Clip included allows unit to be attached to equipment straps, belts and rack mounts.

Light weight, easy to carry, small/low profile design portable for field use.

Measures only 6.25" x 1.25"

Single-mode 9/125, Multi-mode 62.5/125, Multi-mode 50/125 OM2 and Multi-mode 50/125 OM3

Custom length configurations available

Specifications

Dimensions(mm)	Diameter 6.25 ", Height 1.25"
Fiber Length(m)	500m, 1km, 2km
Fiber Types	Single-mode 9/125, Multi-mode 62.5/125, Multi-mode 50/125 OM2, Multi-mode 50/125 OM3
Lead Length	2 Meters, 3mm buffer
Insertion Loss	<0.3dB/km typical, <0.5dB/km max
Back Reflection (RL)	UPC: <-50dB, APC: <-60dB
Mating Reliability	<.2dB
Storage Temp.	-40° to +85° C
Humidity	0 to 95%, non-condensing
Weight	5 oz.
