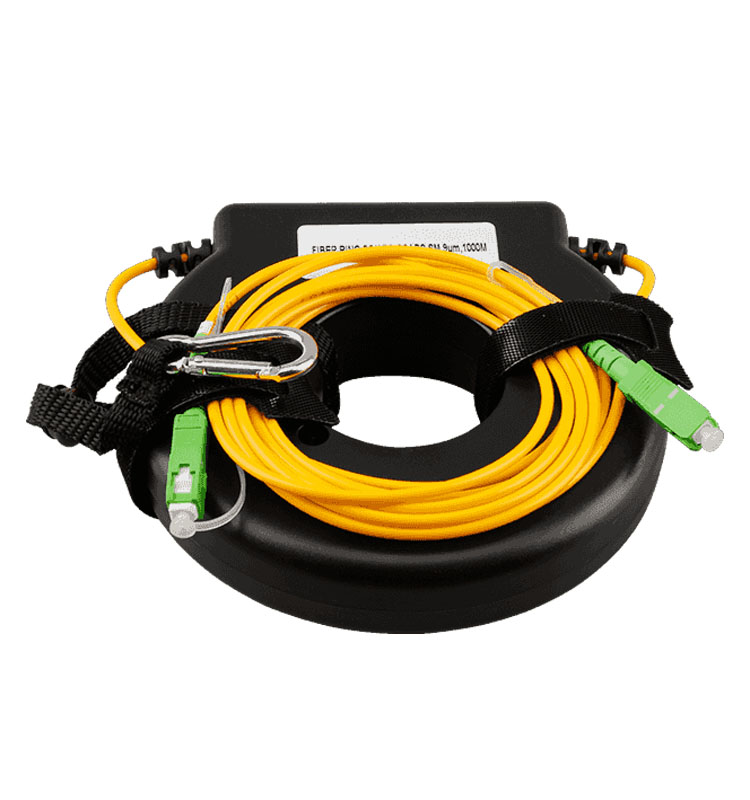

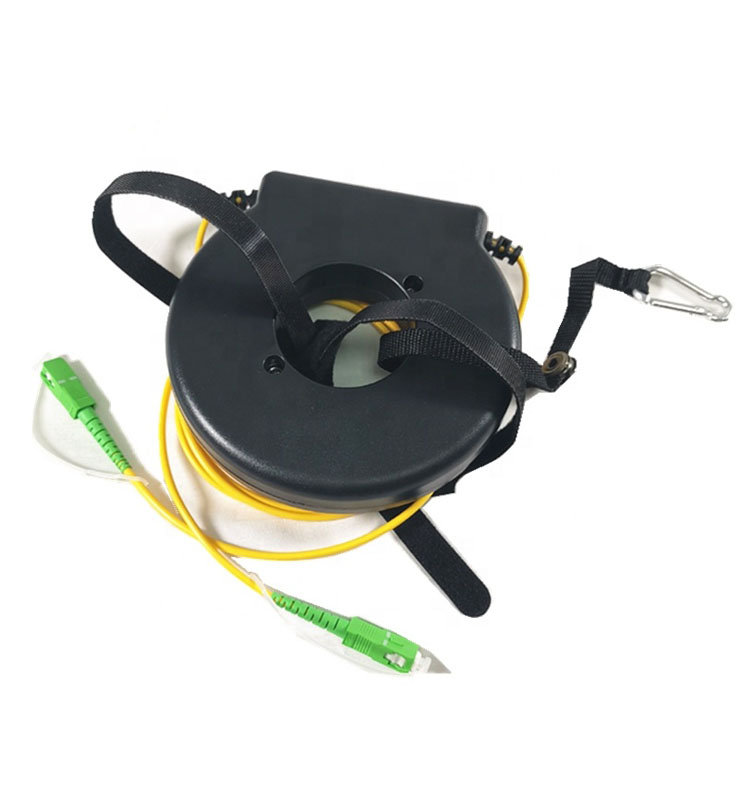

OTDR Launch Coil Fiber Rings

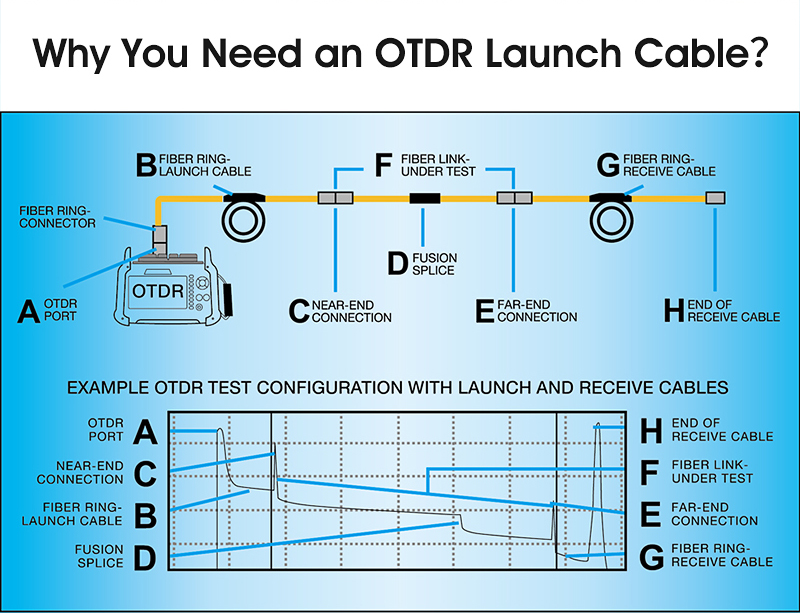

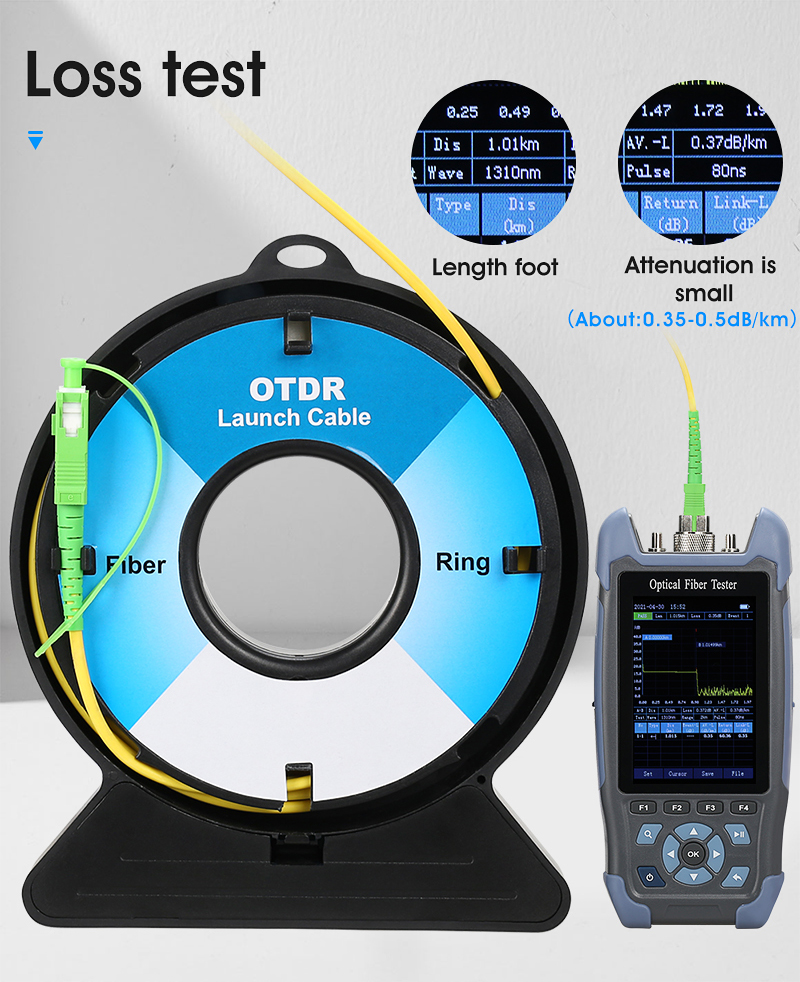

SC/FC/LC connectors are selectable as well as the UPC and APC polishing mode.Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber Ring is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty

Product description

Features

Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.
Compound Latch for positive seal and easy opening with locking feature.
Nonmetal construction will not dent, corrode, or conduce electricity.
Water and dust proof allowing the unit to be taken into almost any environmen
Auto Purge Valve for changes in altitude and temperature

Specifications

Dimensions(mm)	Diameter 6.25 ", Height 1.25"
Fiber Length(m)	500m, 1km, 2km
Fiber Types	Single-mode 9/125, Multi-mode 62.5/125, Multi-mode 50/125 OM2, Multi-mode 50/125 OM3
Lead Length	2 Meters, 3mm buffer
Insertion Loss	<0.3dB/km typical, <0.5dB/km max
Back Reflection (RL)	UPC: <-50dB, APC: <-60dB
Mating Reliability	<.2dB
Storage Temp.	-40° to +85° C
Humidity	0 to 95%, non-condensing
Weight	5 oz.
