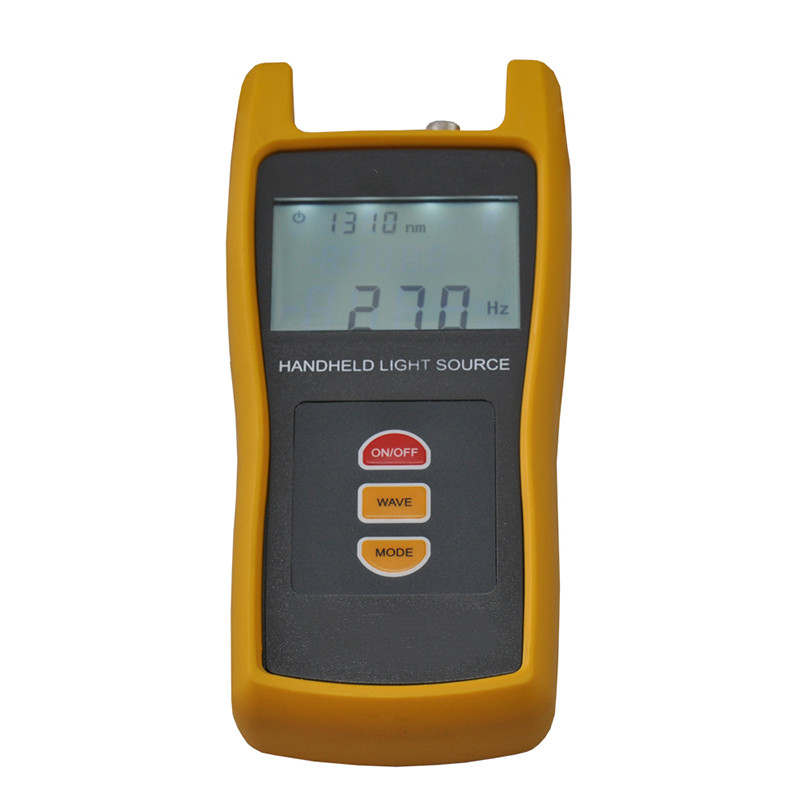

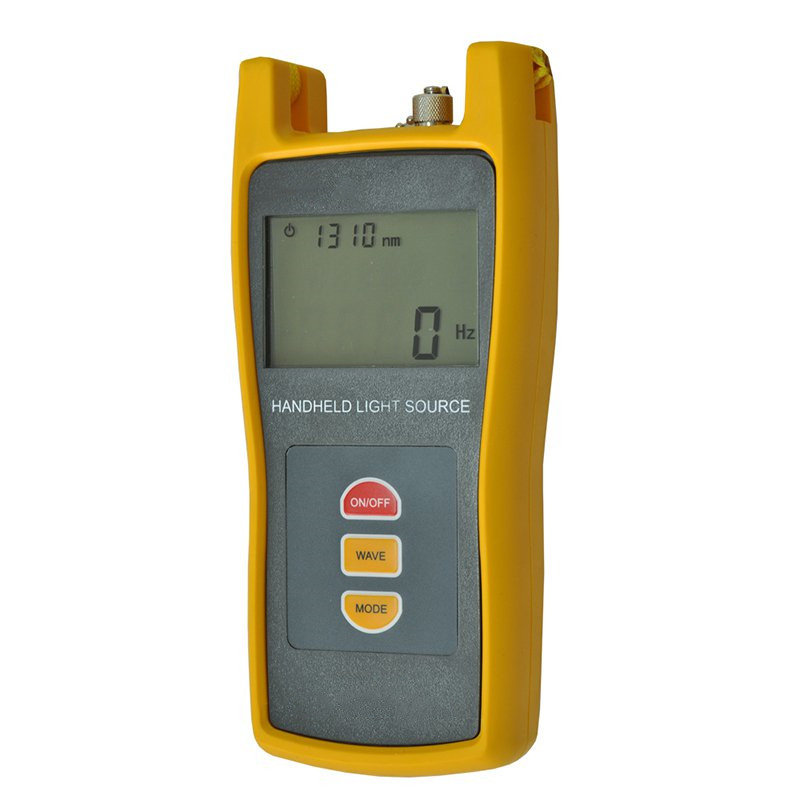

Optical Light Source FFS309

Optical light source is one of the latest self developed test instrument. It can provide 2 to 5 wavelength output according to the specific requirements including the 650nm red source, 1310/1550nm wavelength for the single-mode fiber and 850/1300nm wavelength for the multi-mode fiber or other wavelengths according to customer needs. Together with optical power meter, it acts as a perfect solution for the fiber optic network work.

Product description

Features

Provides 1~4 output wavelengths which can be optional according to customer’s needs

CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.

High stability of the output power

Stable output wavelength

Backlight LCD display supports night operation

Compact size and decent appearance

Large LCD, easy operation

Alternative 10 minutes Auto-off function conserving battery life
Specifications

Type	FFS309
Wavelengths(nm)	650	1310/1550	850/1300	850/1300/1310/1550
Emitter Type	FP-LD, LED or others, please specify
Typical Output Power(dBm)	0	-7dBm for LD, -20dBm for LED
Spectral Width(nm)	≤10
Output Stability	±0.05dB/15mins; ±0.1dB/ 8hours
Modulation Frequencies	CW, 2Hz		CW, 270Hz, 1KHz, 2KHz

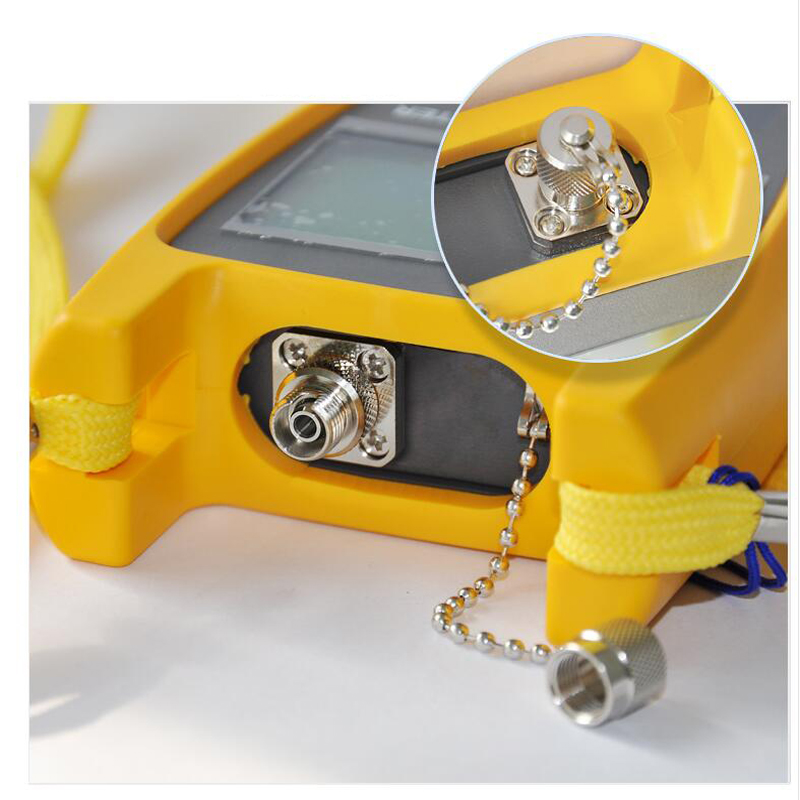

Optical Connector	FC/universal adaptor		FC/PC
Power Supply	Alkaline Battery(3 AA 1.5V batteries)
Battery Operating Time(hour)	45
Operating Temperature(℃)	-10~+60
Storage Temperature(℃)	-25~+70
Dimension	23.5168cm
Weight	0.6kg
Recommendation
FFS309 Handheld Light Source is designed for optimal use with FFS308 Optical Power Meter for measuring optical loss on both single mode and multi mode fiber cable.
