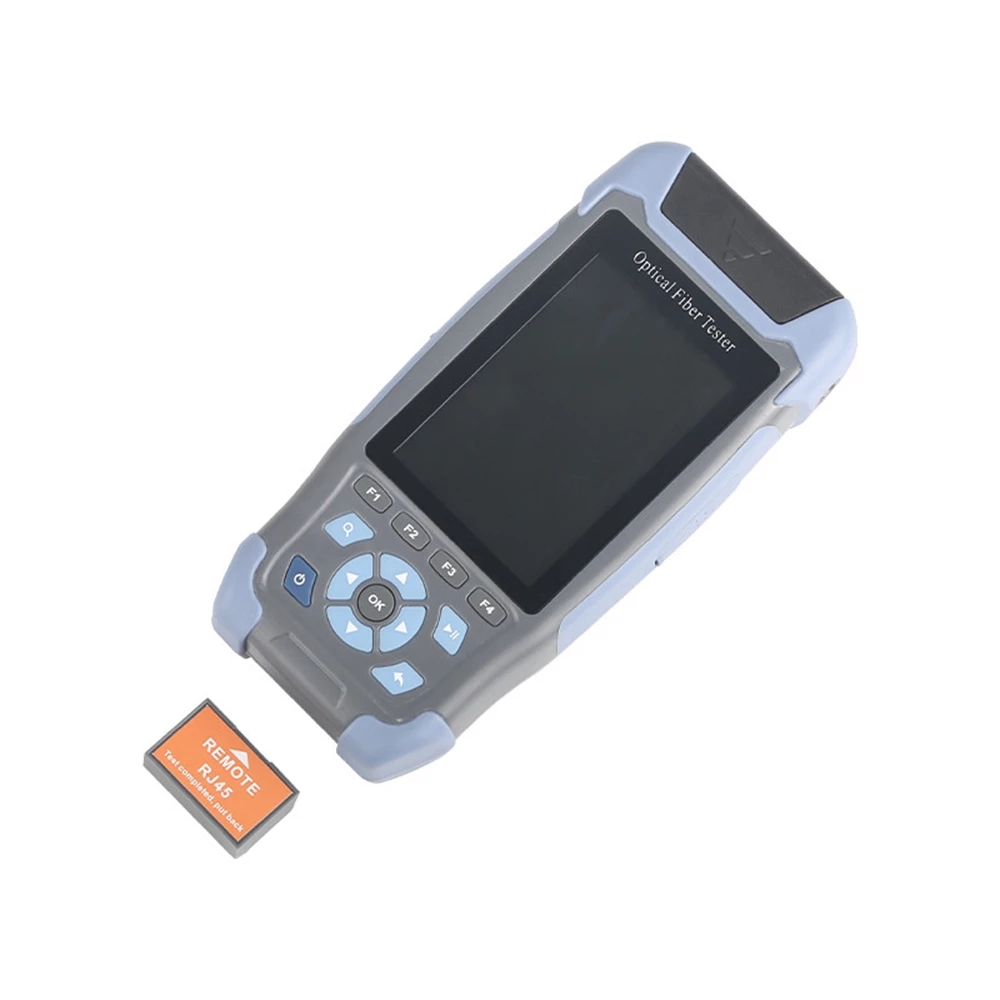

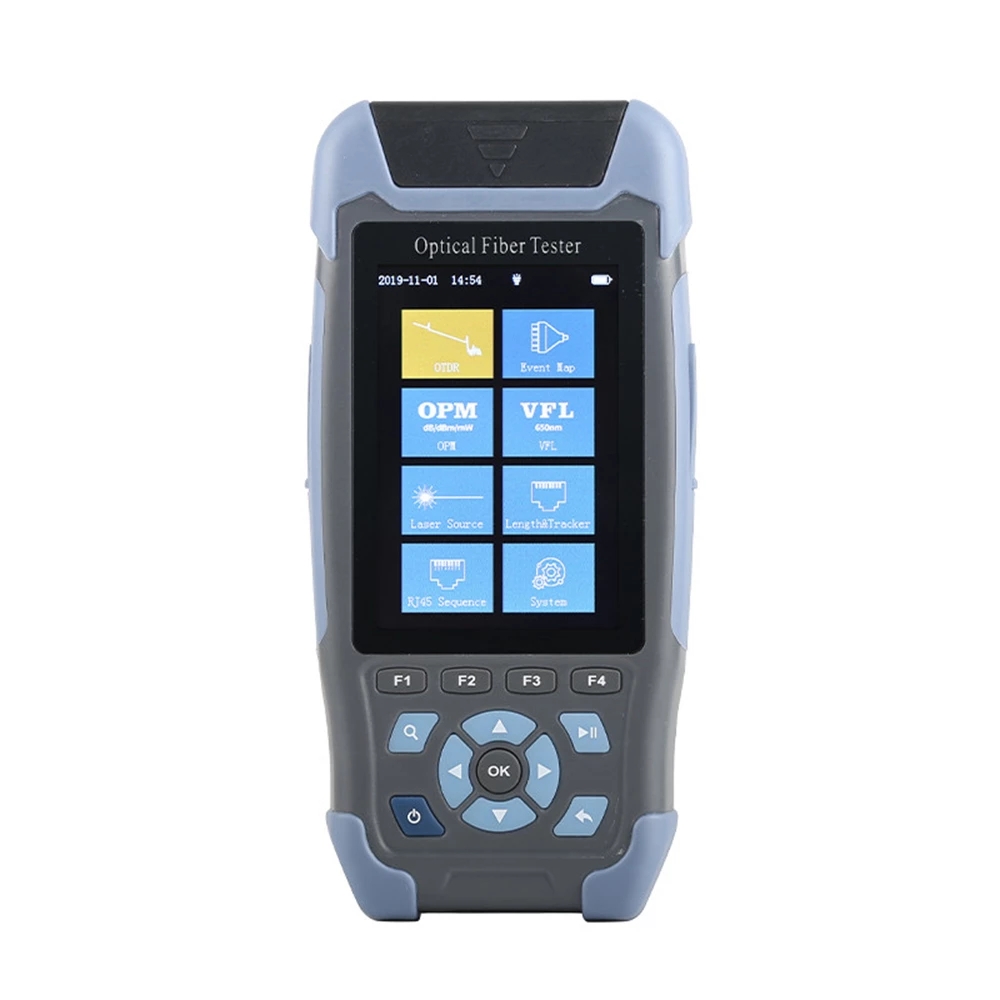

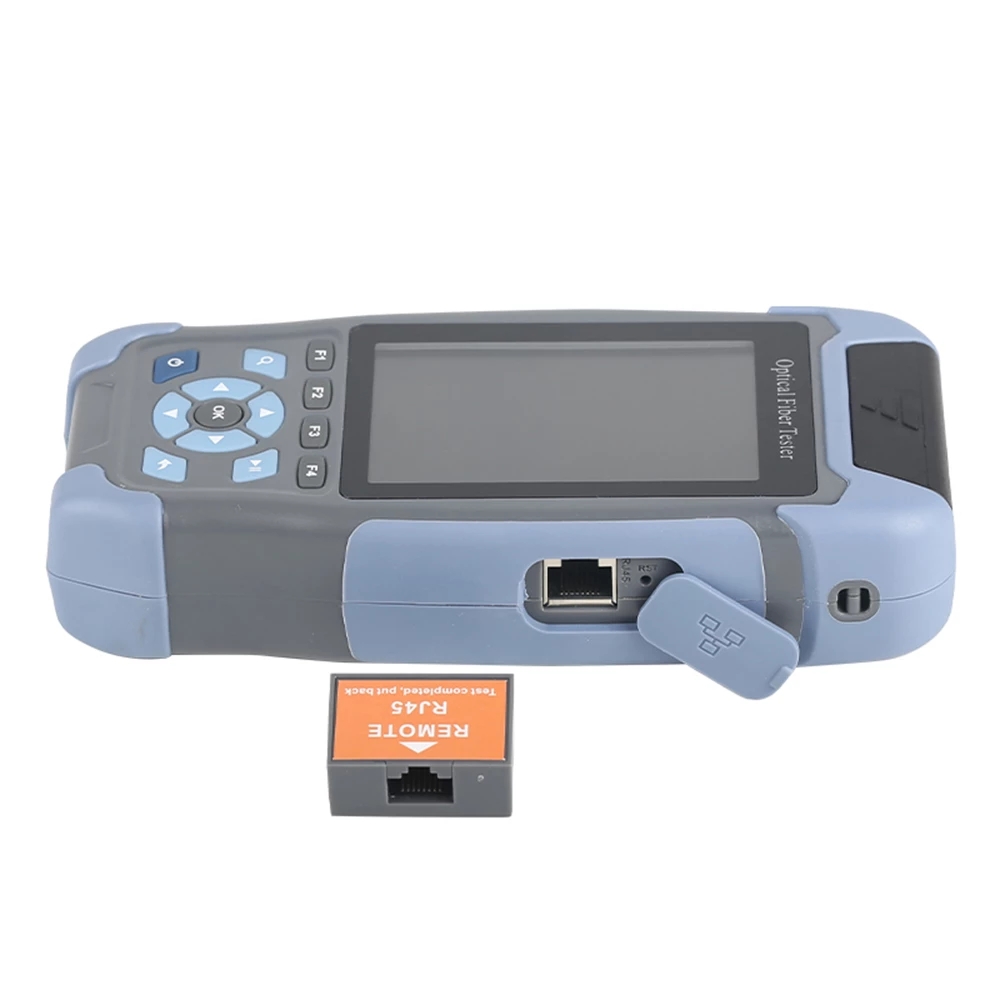

Optical Fiber Tester Mini OTDR FFS3200 is a unique mainly designed for construction and maintenance of telecommunication and CATV networks. It can be widely used in engineering construction,maintenance test and emergency repair of all fiber optics related systems. Comparing with a regular OTDR,it is more compact in size and easier for field use.
Specifications

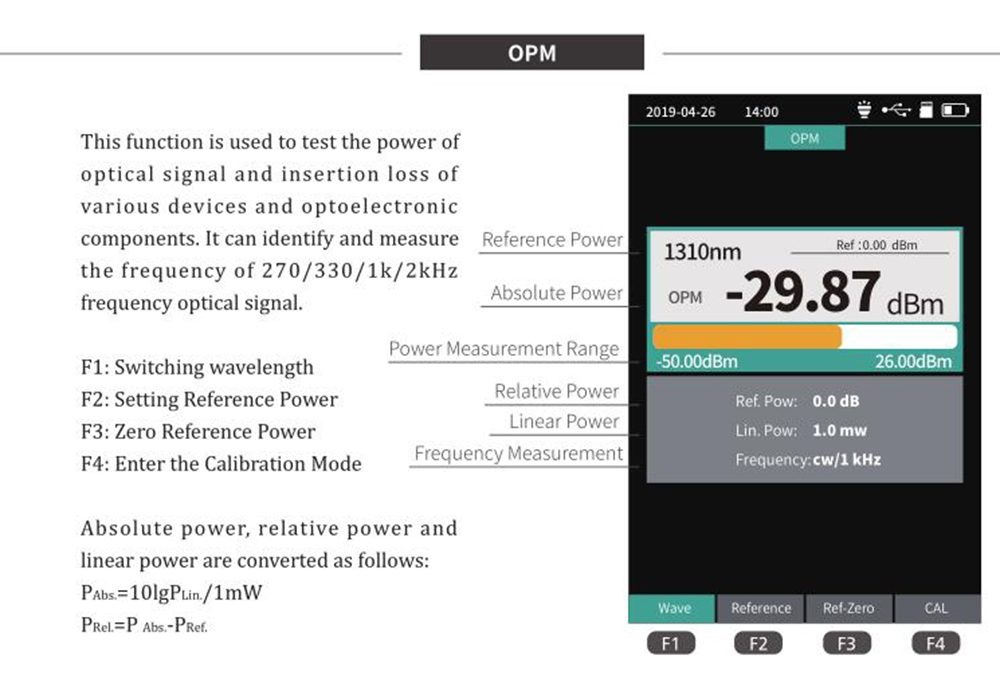

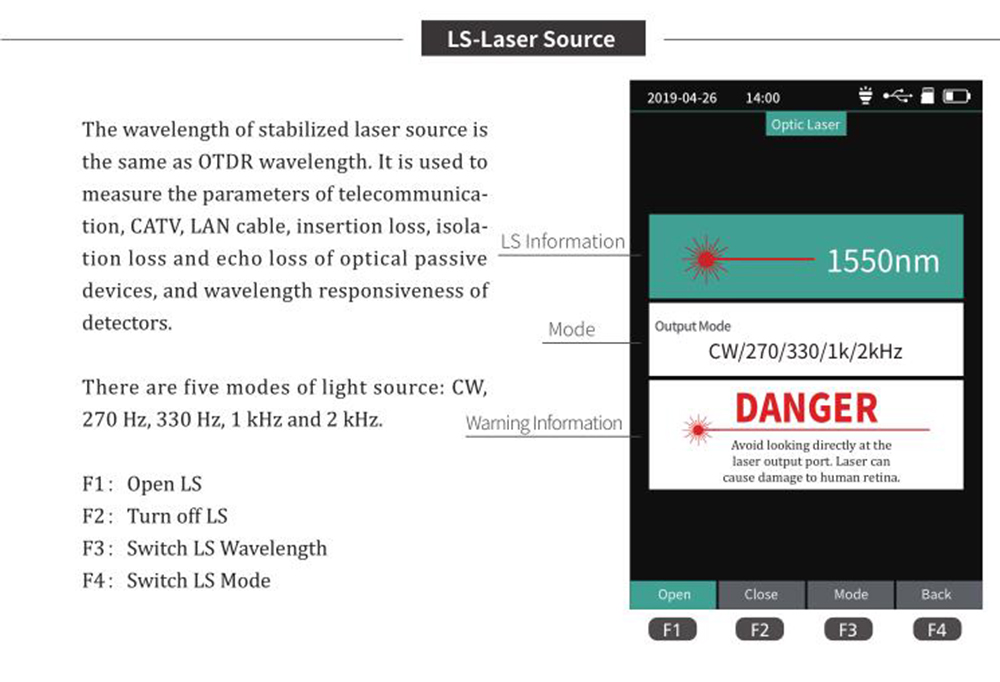

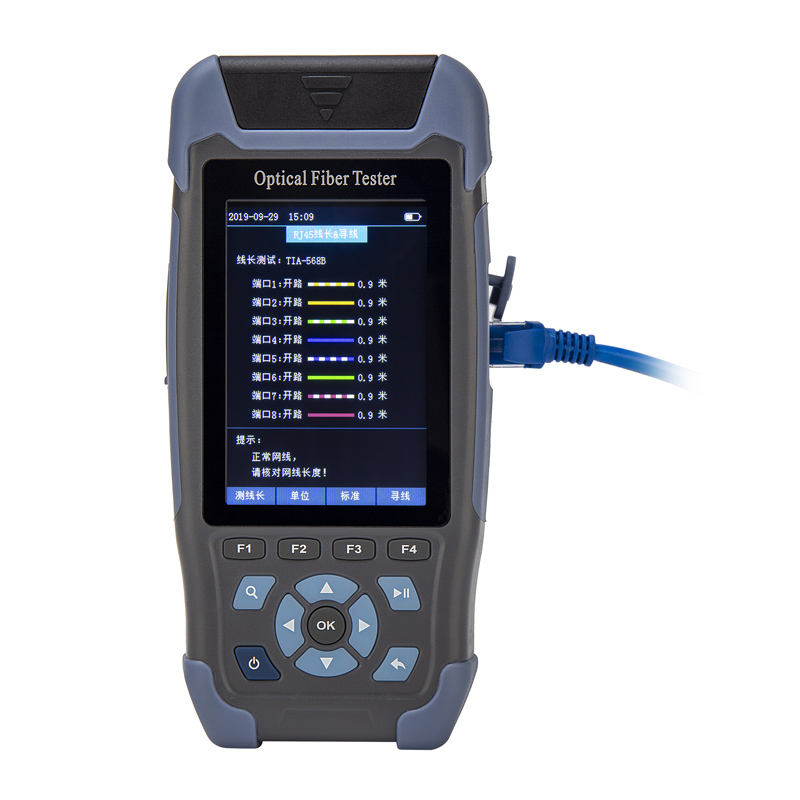

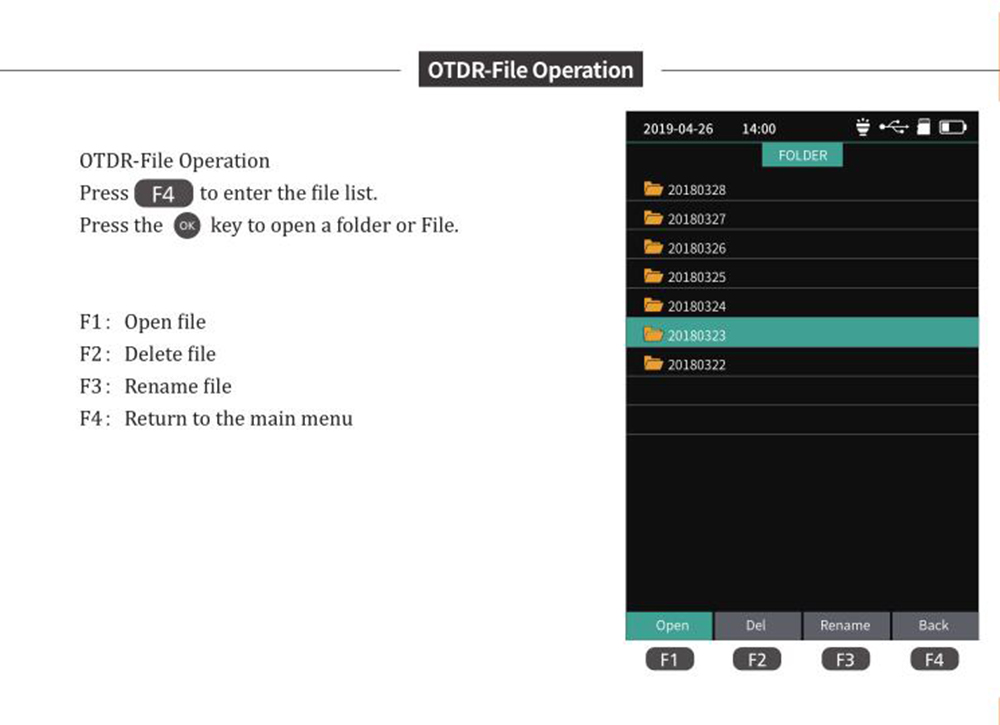

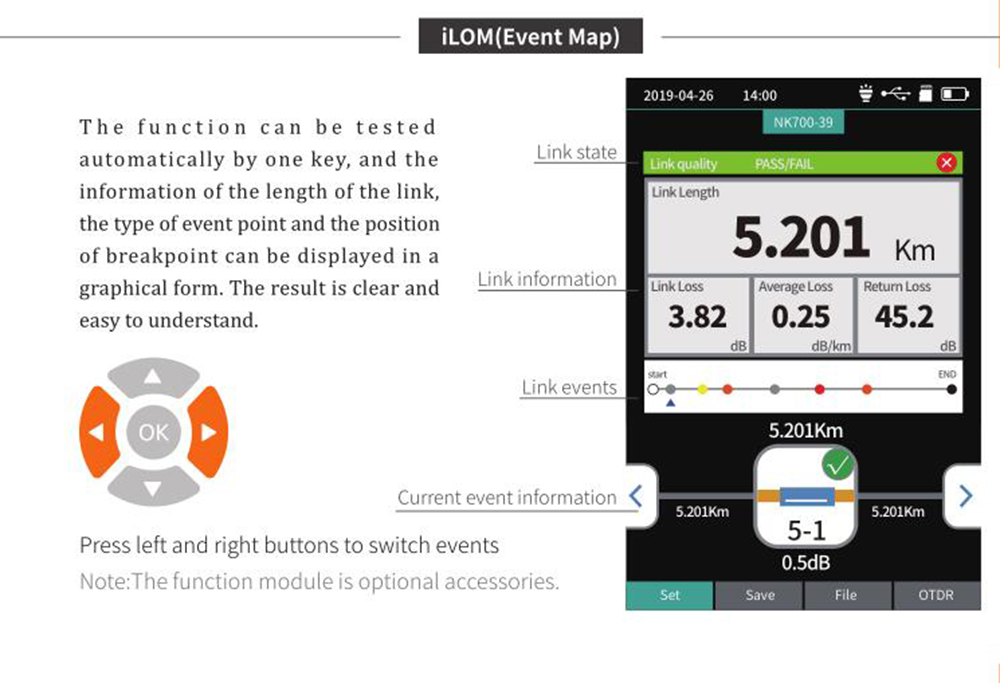

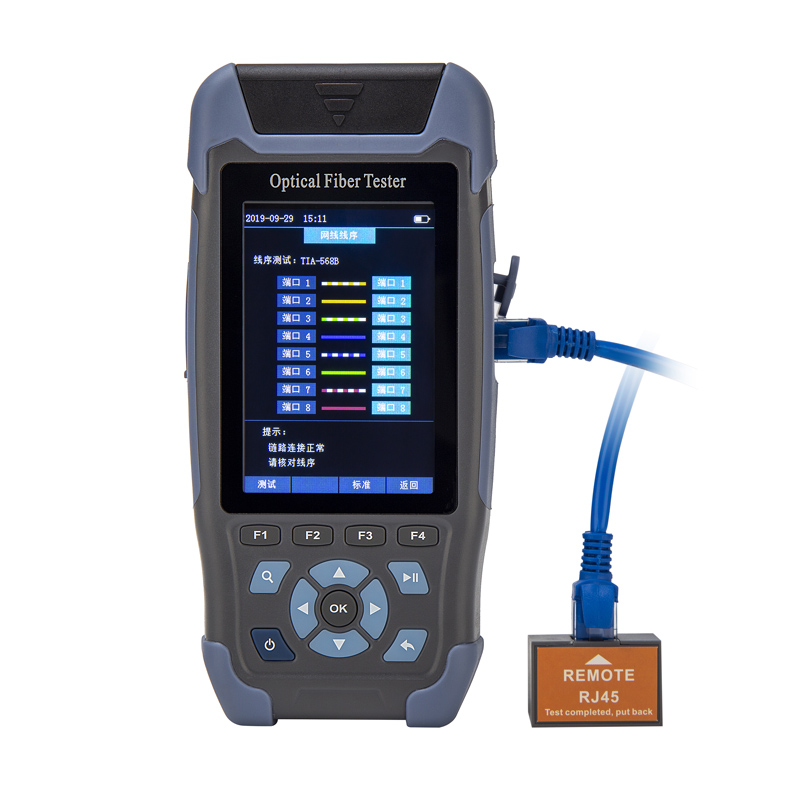

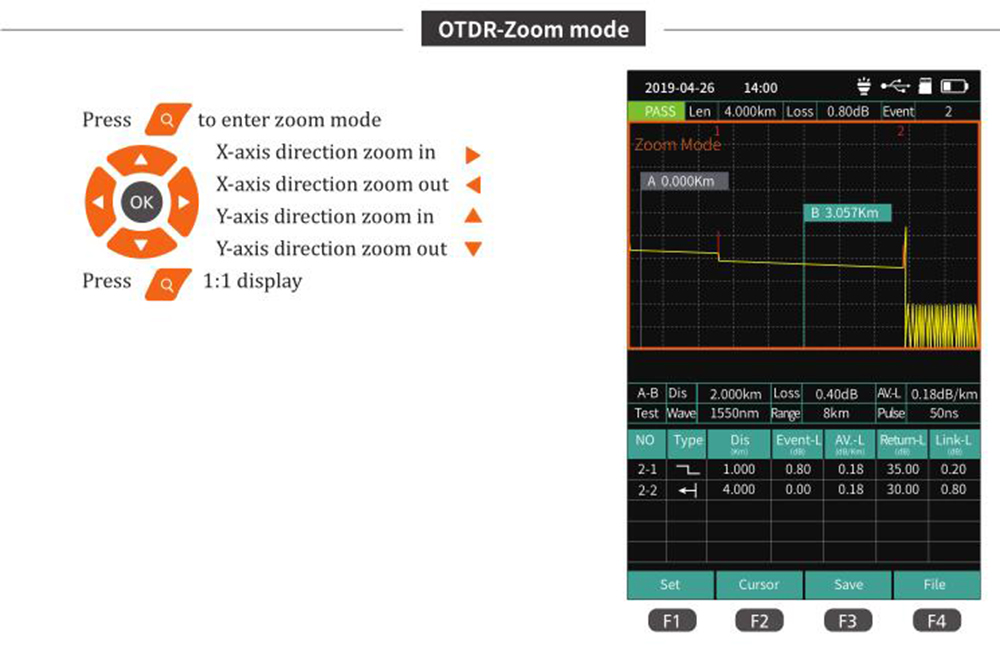

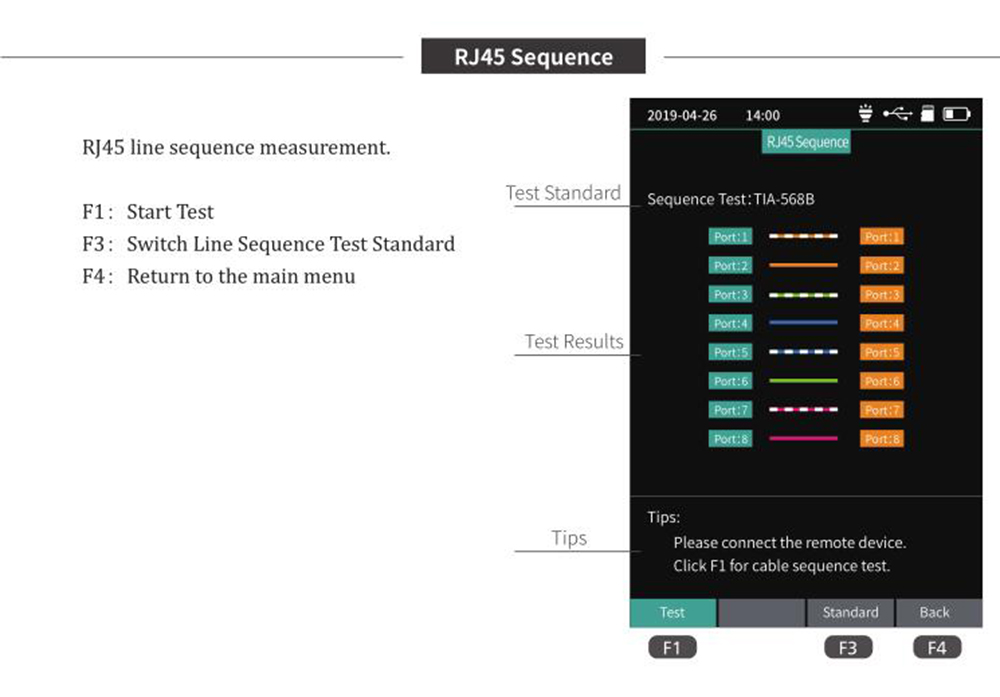

Mini-Pro OTDR | ||
Wavelength | 1310nm/1550nm±20nm | |
Fiber Type | G.652 | |
Dynamic Range | 24/22 dB | |
Event Blind Zone | 3m | |
ATT Blind Zone | 8m | |
Test Range | 500m-60km | |
Pulse Width | 3ns-10us | |
Ranging accuracy | ±(1m+ Sampling interval +0.005％×Test distance) | |
Loss accuracy | ±0.05dB/dB | |
Sampling Points | 16k-128k | |
Sampling resolution | 0.05m-8m | |
Reflection accuracy | ±3dB | |
Data Storage | Internal: ≥600, External: TF Card | |
Laser Safety Level | Class Ⅱ | |
File format | SOR Standard file format | |
Connector | FC/UPC(Interchangeable SC, ST) | |
OPM | ||
Wave Range | 800nm-1700nm | |
Interface Type | Universal Joint FC/SC/ST | |
Test Range | -50dBm - +26dBm | |
Uncertainty | ±5% | |
Frequency Identification | CW/270/330/1k/2kHz | |
Calibration wavelength | 850/980/1300/1310/1490/1550/1625/1650nm | |
LS | ||
LD Type | FP-LD | |
Wavelength | 1550nm±20nm | 1310nm/1550nm±20nm |
Output Power | ≥-5dBm | |
Modulation Frequency | 270/330/1k/2kHz | |
Stability | CW, ±0.5dB/15min (Test after 15 minutes of preheating) | |
Connector | FC/UPC(Interchangeable SC, ST) | |
VFL | ||
Wavelength | 650nm±20nm | |
Output Power | ≥10mW | |
Mode | CW/1Hz/2Hz | |
Connector | FC/SC/ST | |
RJ45 Cable Length Measurement | ||
Test Range | 300m | |
Other Parameters | ||
Display | 3.5-inch Color LCD | |
Data Interface | Micro USB | |
External storage | TF Card | |
Power Supply | Polymer Li-Battery: 3.7V, 4000mAh Adapter: 5VDC, 2A | |
Battery Life | Standby＞20h, Measuring time＞12h | |
Operating Temperature | -10℃～+50℃ | |
Storage Temperature | -40℃～+70℃ | |
Relative Humidity | 0-95％Non Condensing | |
Size | 173mm×82mm×37mm | |
Weight | ≤350g | |
Functions OTDR/EVENT MAP/OPM/LS/VFL/RJ45 Sequence/RJ45 Cable Tracker (Additional purchase detector)/RJ45 Line length/Flashlight | ||
Note
1. Test temperature is 25℃+2℃, maximum pulse width, the average time is more than 3 minutes.
2. Test conditions of Event Blind Zone are minimum range, minimum pulse width, reflection loss of optical fiber end (> 45dB), typical value.

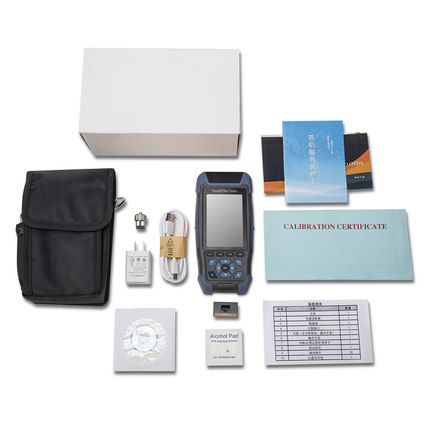

Configuration List
No. | Name | Quantity | Remarks |
1 | Host | 1 | Battery included |
2 | Adapter | 1 | |
3 | Data Line | 1 | |
4 | CD-ROM (Analysis software/User’s Manual) | 1 | |
5 | User’s Manual | 1 | |
6 | SC/UPC | 1 | |
7 | Qualification Certificate Service Guarantee Card | 1 | |
8 | Calibration Certificate | 1 | |
9 | Clean Cotton Slices | 10 | |
10 | Instrument Backpack | 1 |
