Features
● High cost effective OTDR choice
● With online light alarm function

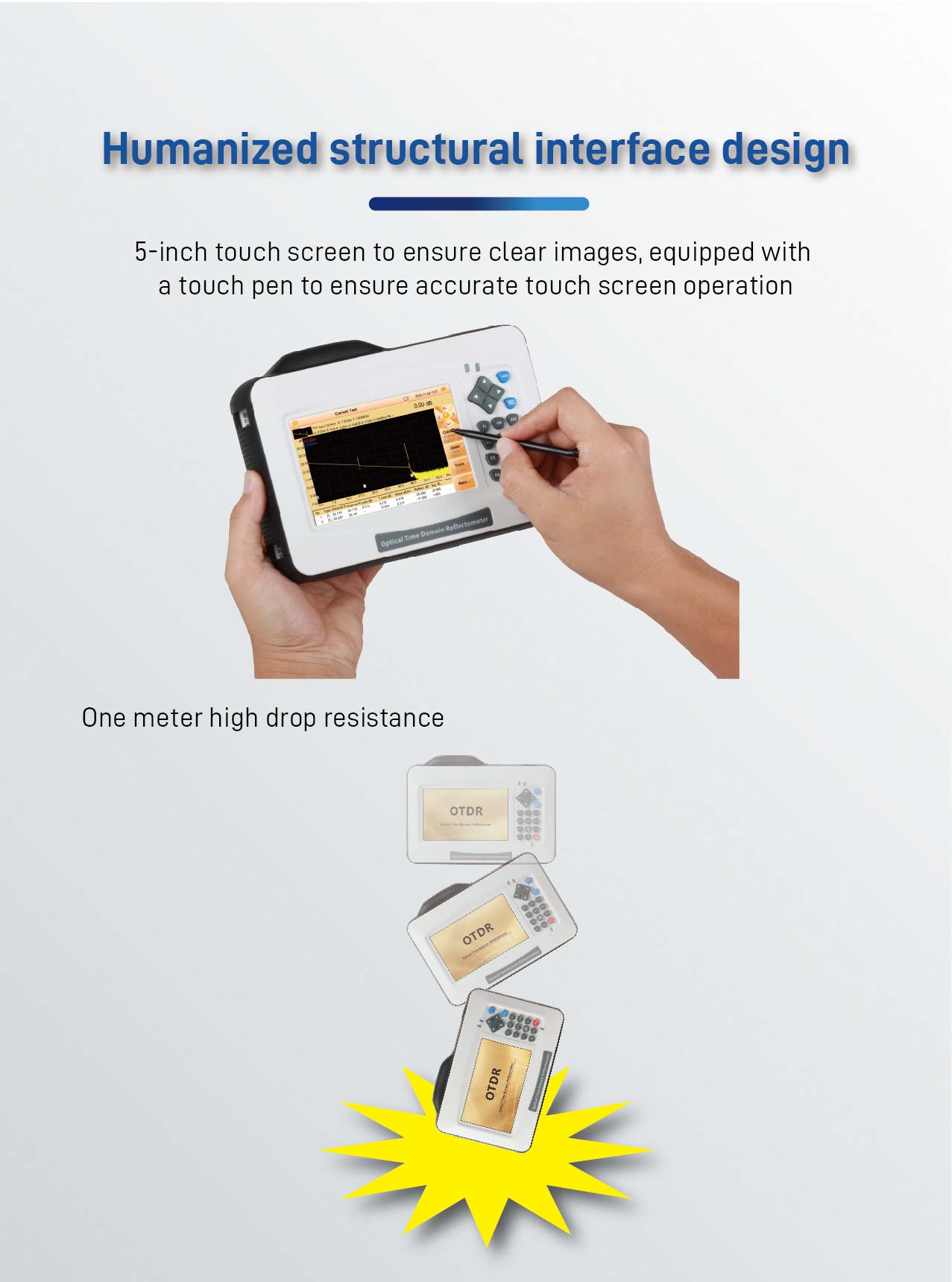

● 5-inch LCD touch screen

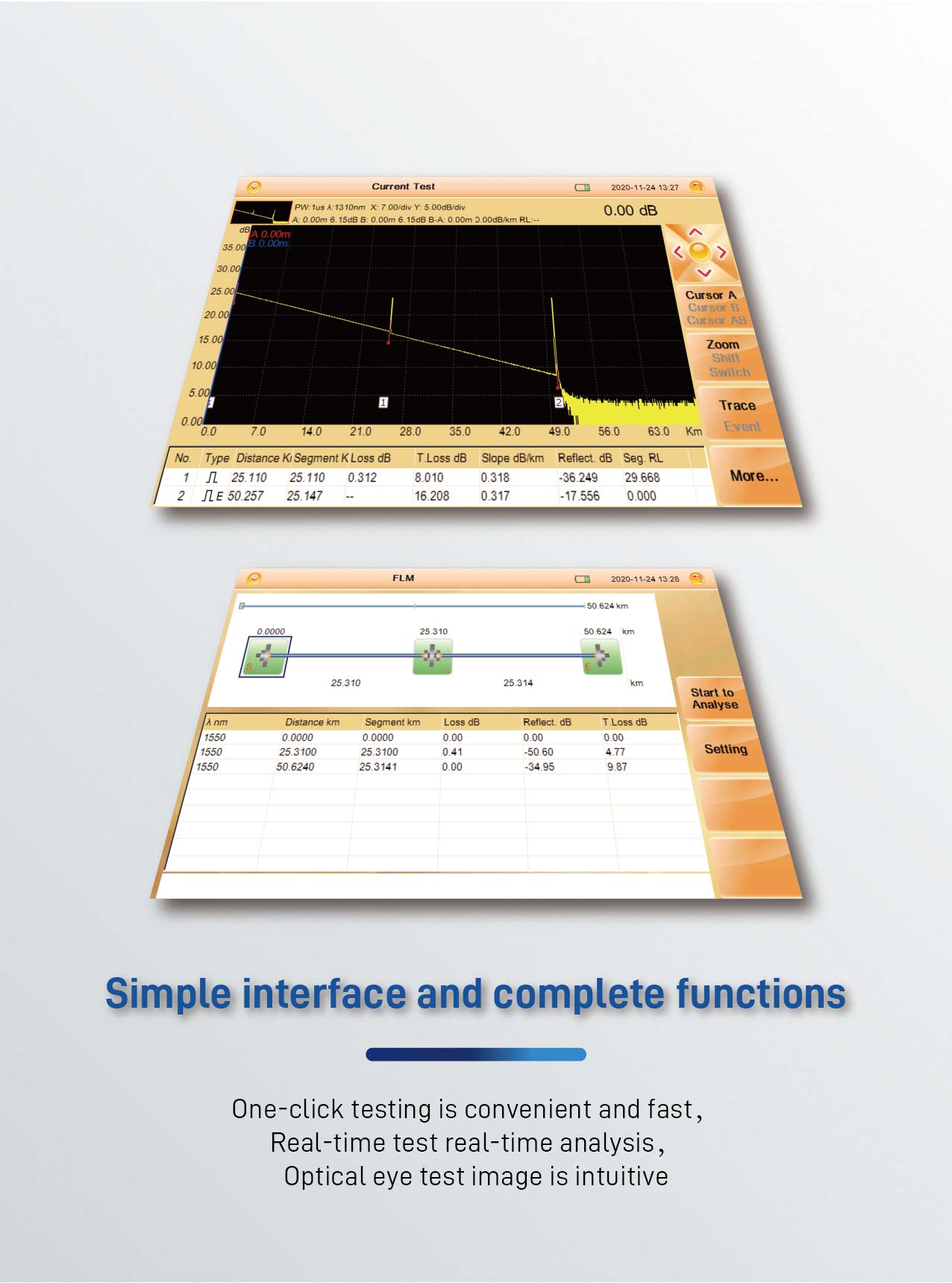

● FLM (Fiber Link Map ) function, icon display fiber events
● Support customer customization needs
● One button screenshot function
Specifications
Model Number | FHO3000-D26-A/D30/D35 |
Wavelength | 1310/1550nm |
Dynamic Range | 26/24dB, 30/28dB, 35/33dB |
Dead-zone | 3/8m, 1/5m, 1/5m |
Pulse Width | 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs |
Sampling Resolution | Min 0.05m |
Sampling Points | Max 128,000 |
Linearity | ±0.03dB/dB |
Loss Threshold | 0.01dB |
Distance Resolution | 0.01m |
Loss Resolution | 0.001dB |
IOR | 1.2000~1.7000 |
Distance Accuracy | ±(1m+test distance×3×10-5+sampling resolution), (excluding IOR uncertainty) |
Memory Capacity | 80,000 groups curve |

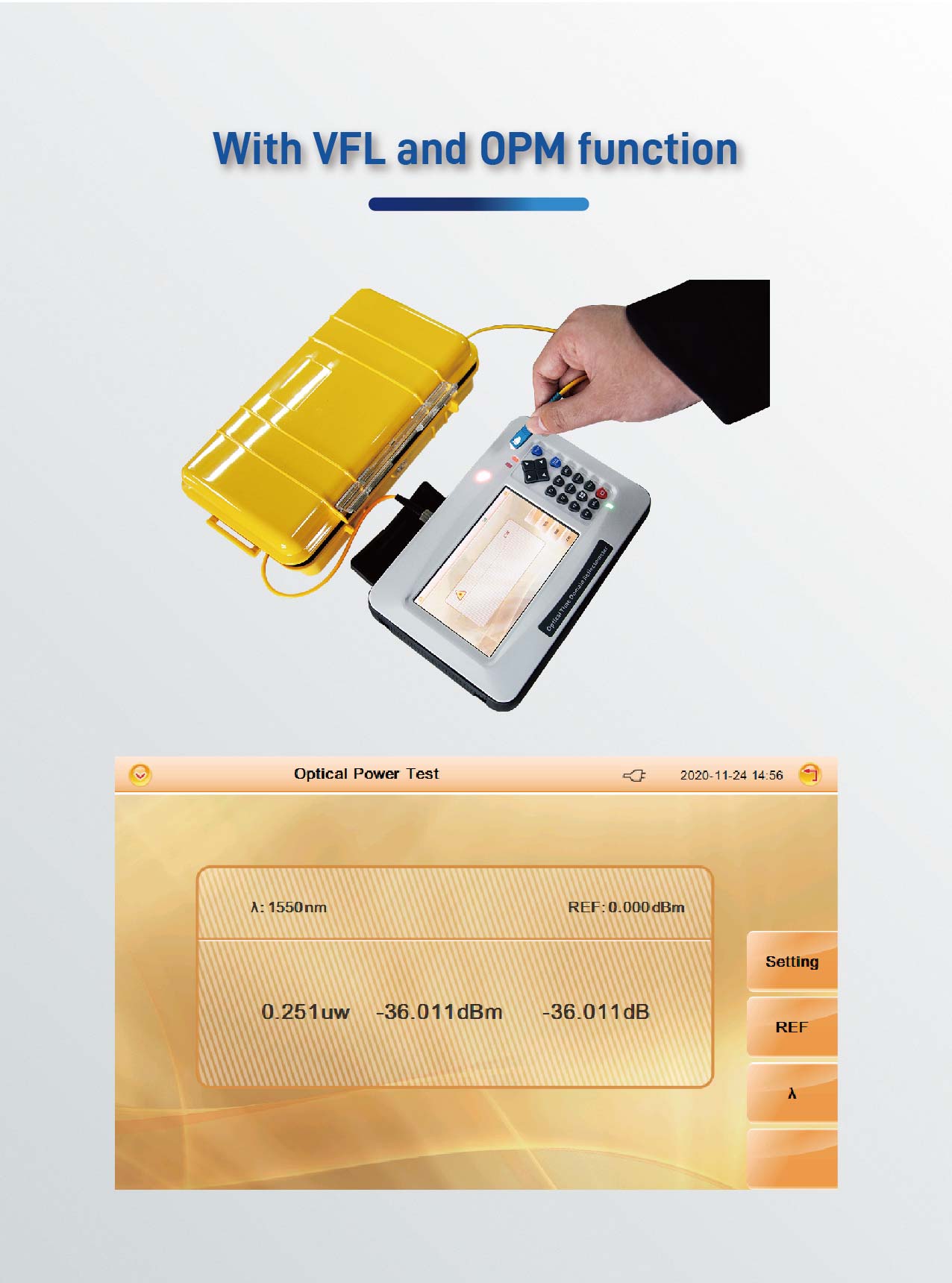

VFL | 10mw, CW/2Hz |
OPM | Calibrated wavelength: 850/1300/1310/1490/1550/1625/1650nm |

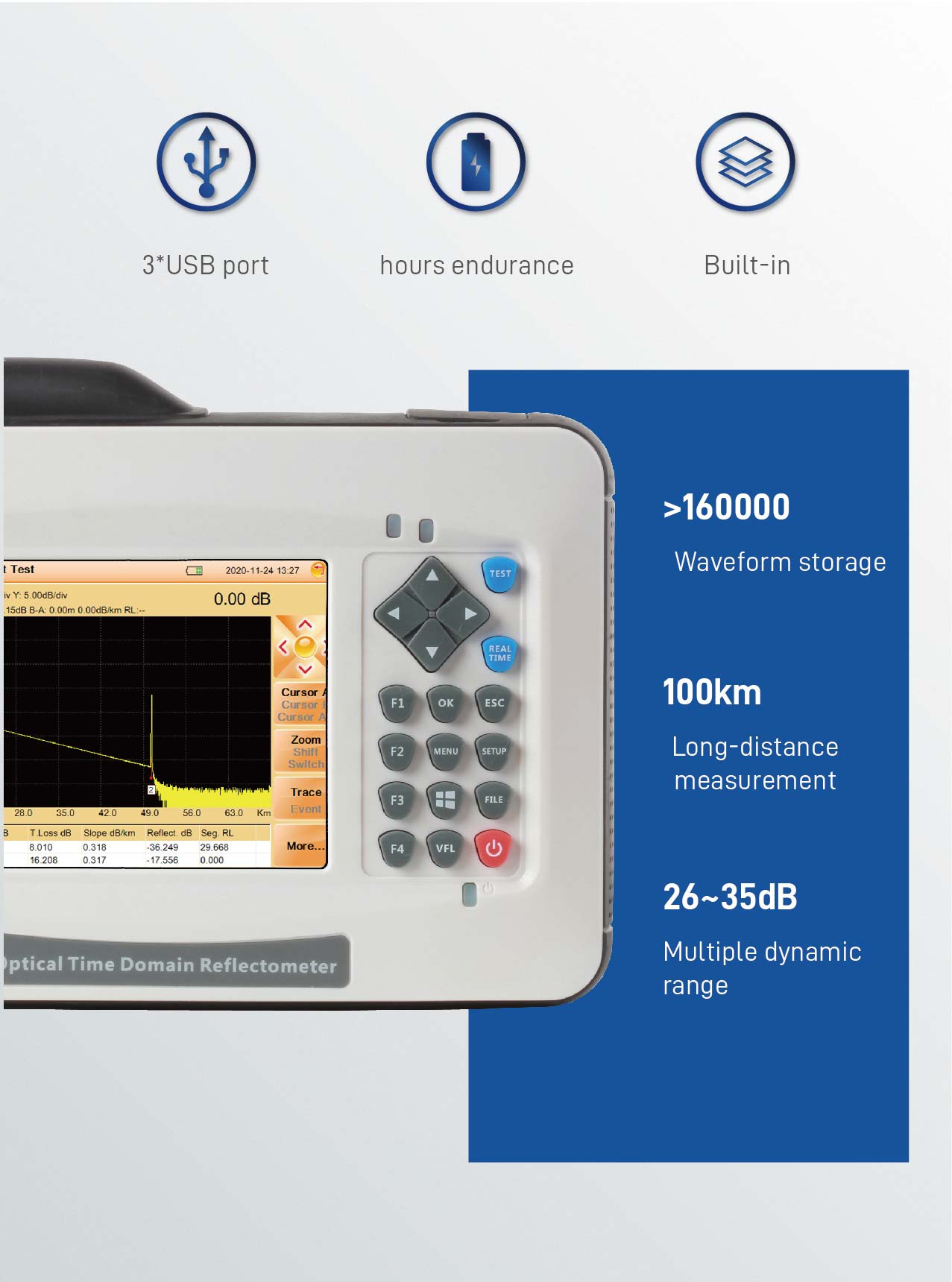

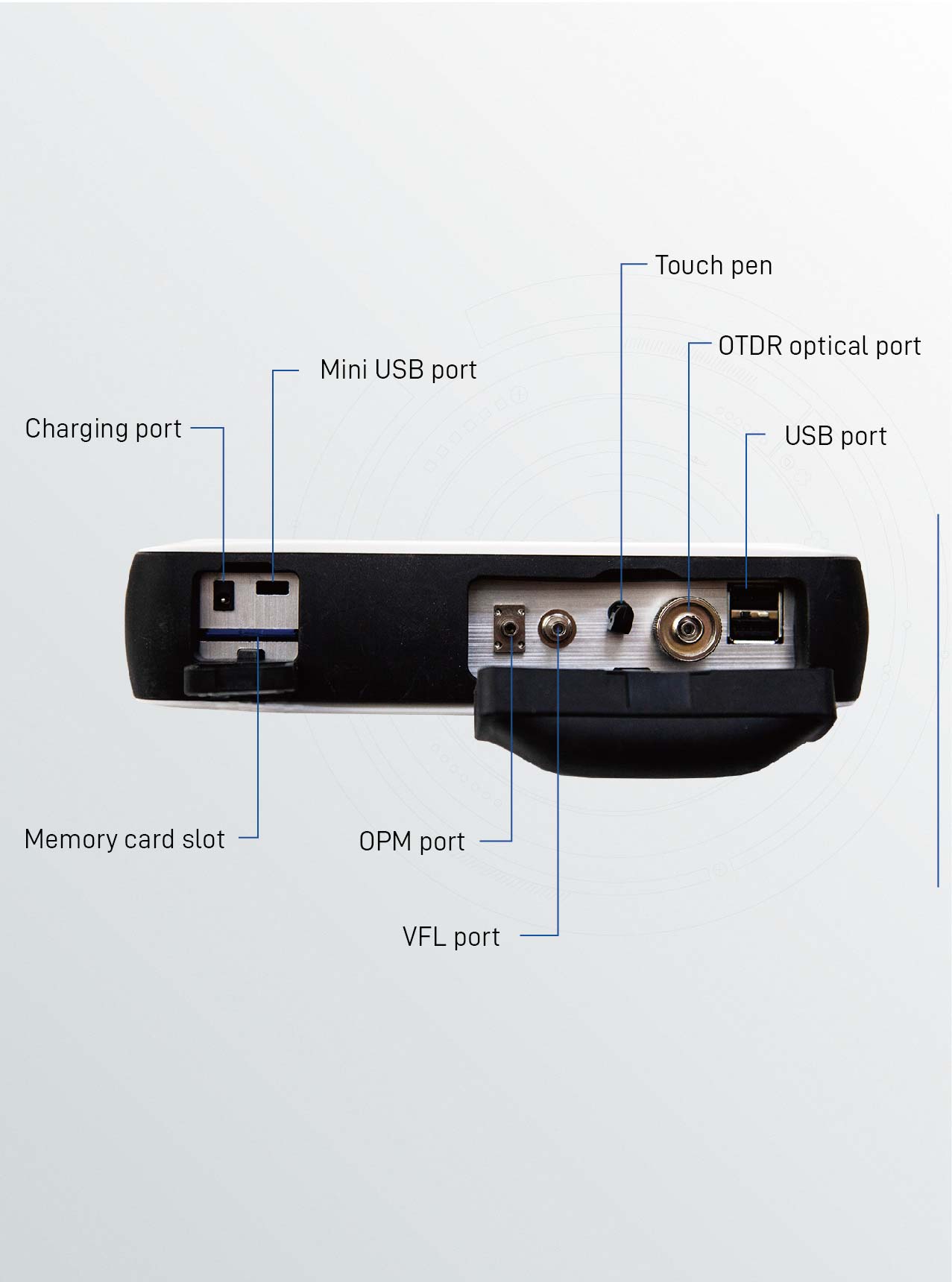

Interface | 3*USB port(Type A×2, micro USB×1) |
Display | 5-inch TFT-LCD touch screen |
Battery | 7.4V/3300mAh lithium battery, Continuous work: 6 hours(backlight off)Charge time: 3.5 hours |
Dimension/Weight | 195×141×44mm / 0.9kg(with battery) |

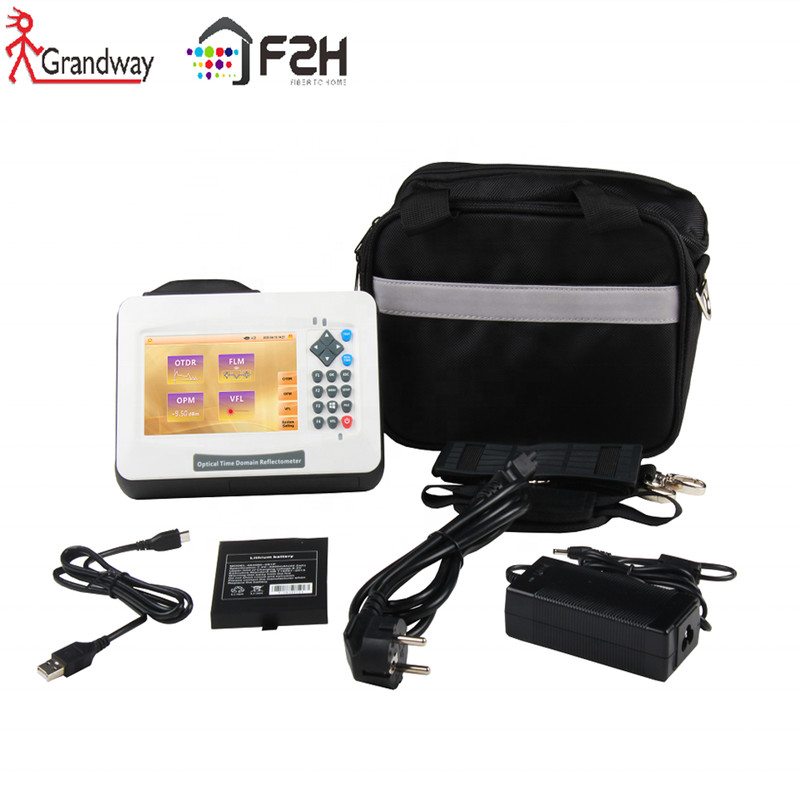

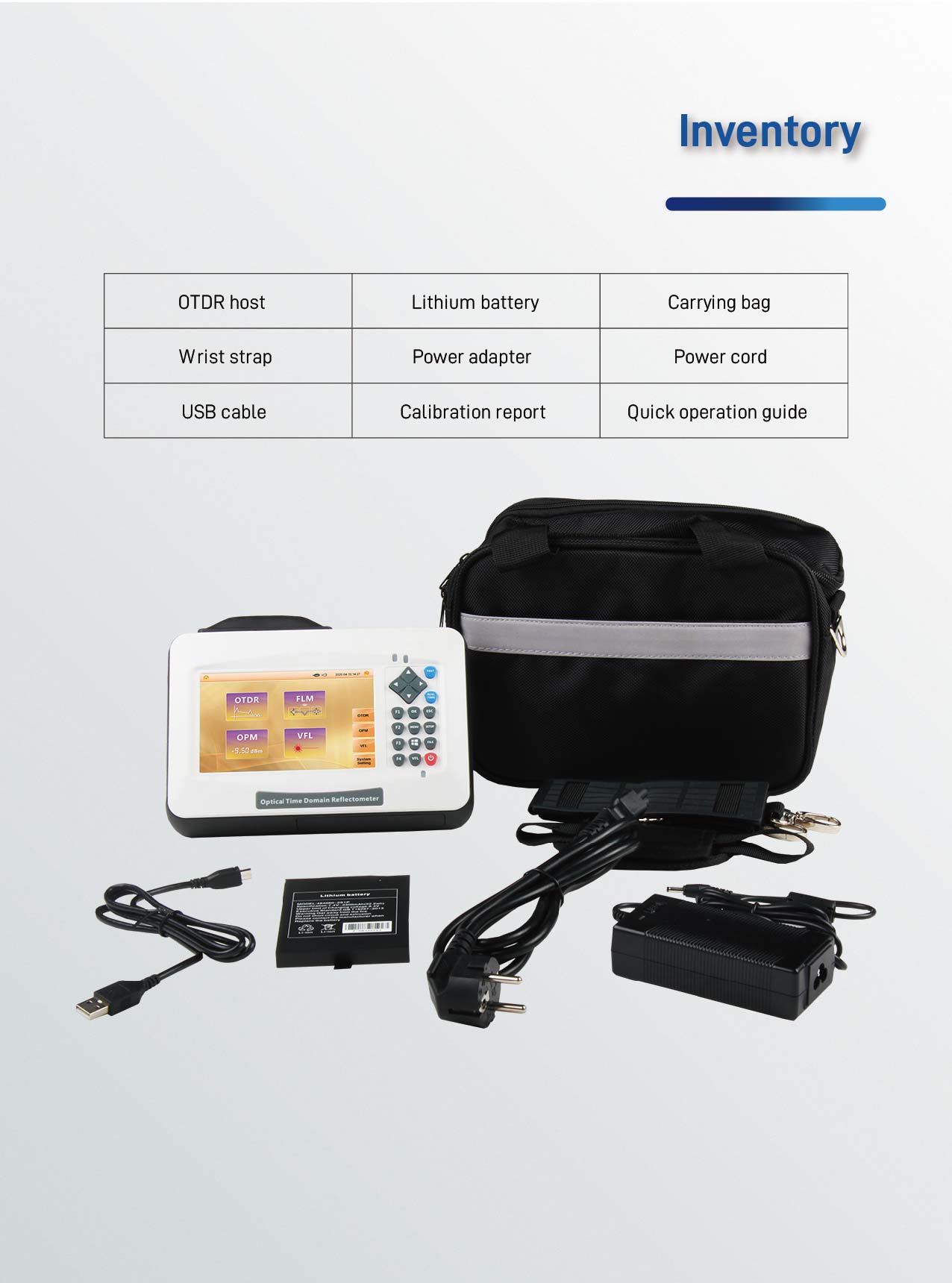

Accessories | Power adapter, Charge cord, Lithium battery, FC adapter,USB cable,Quick guide, Test report, CD, Carrying bag, Wrist strap. |
Optional | SC/LC adapter, Launch cable box. |
