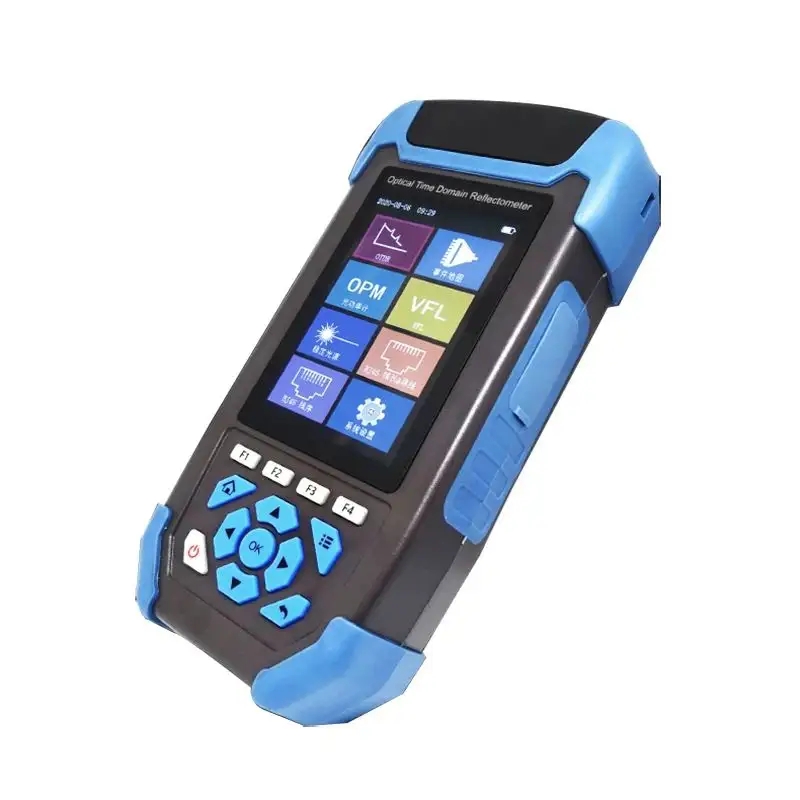

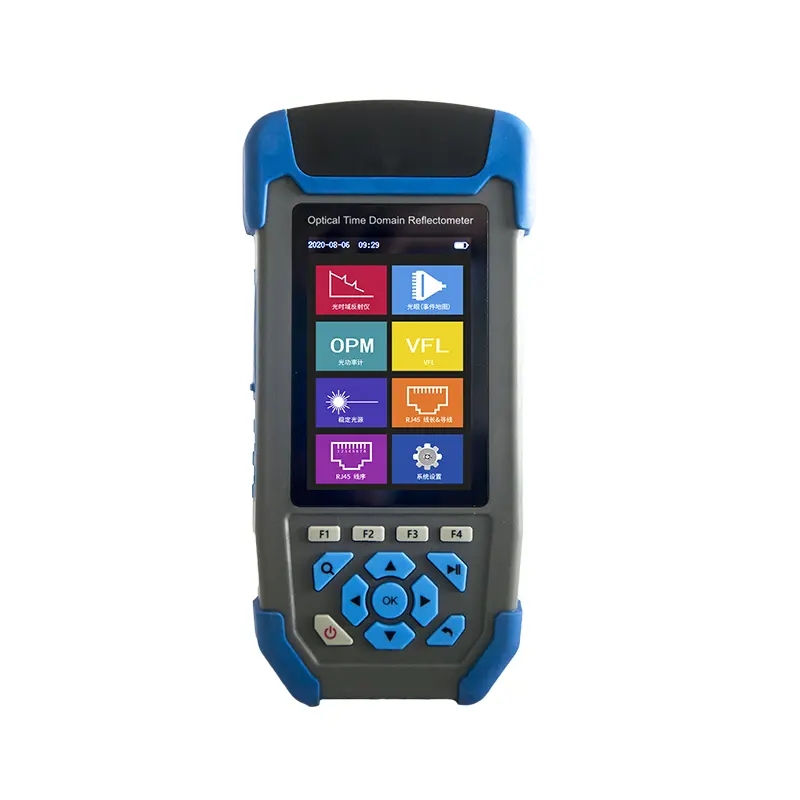

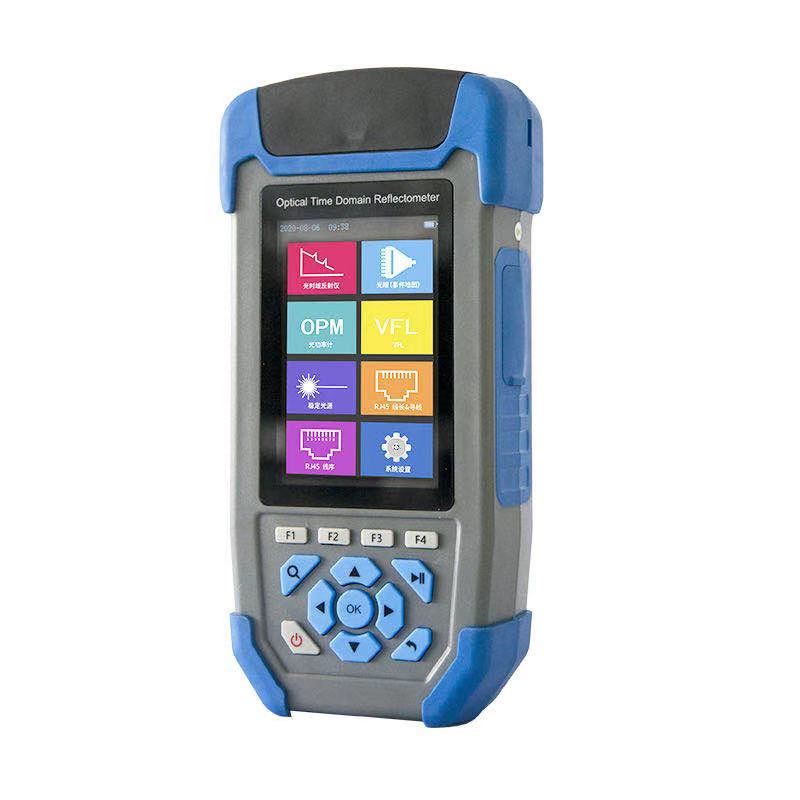

FFS3302 mini-pro OTDR is apply to FTTx and access network construction and maintenance, to test fiber breakpoint, length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5inch colorful LCD screen, new plastic shell design, shock-proof and drop-proof. The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source, Optical power meter, Visual fault locator, cable sequence proofreading, cable length measurement and lighting functions. It could quick detection of breakpoint, universal connector,600 internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging. It is a good choice for long term field work.
Specifications
Mini-Pro OTDR | |||
Model | FFS3302 | ||
Wavelength | 1310/1550nm | 1610nm±20nm online(apc) | |
Fiber Type | G.652 SM Fiber | ||
Dynamic Range | 24dB/22dB | 24dB | |
Event Blind Zone | 3m | ||
ATT Blind Zone | 8m | ||
Test Range | 10m~60km | ||
Pulse Width | 5ns~10us | ||
Ranging Accuracy | ±(1m+Sampling Interval +0.005％×Test Distance) | ||
Loss Accuracy | ±0.2dB/dB | ||
Sampling Points | 16k~128k | ||
Sampling Resolution | 0.05m~8m | ||
Reflection Accuracy | ±3dB | ||
Data Storage | Internal: ≥600, External: TF Card | ||
Laser Safety Level | Class Ⅱ level | ||
File Format | SOR Standard File Format | ||

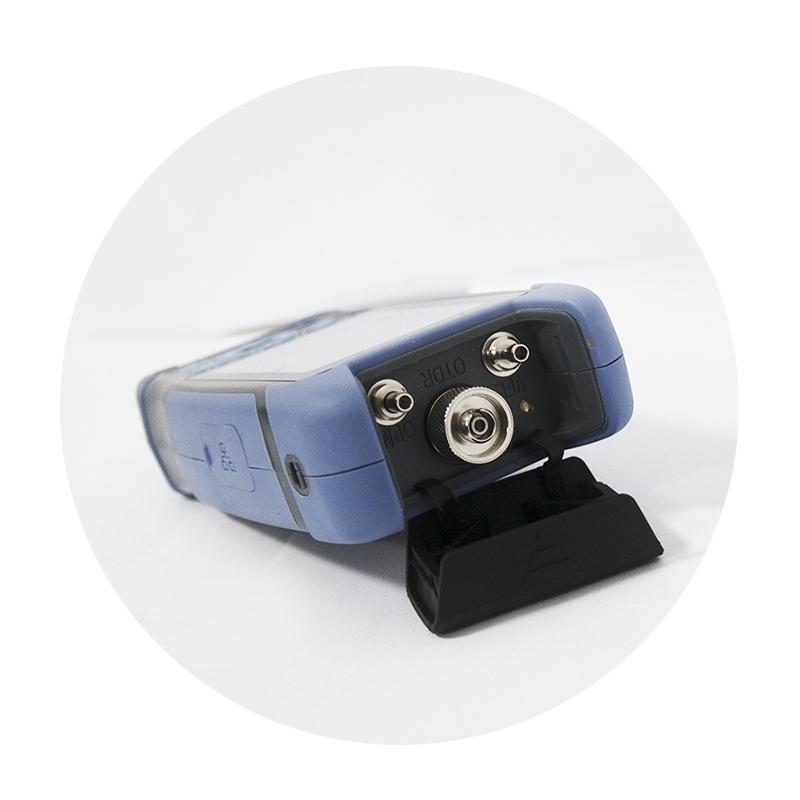

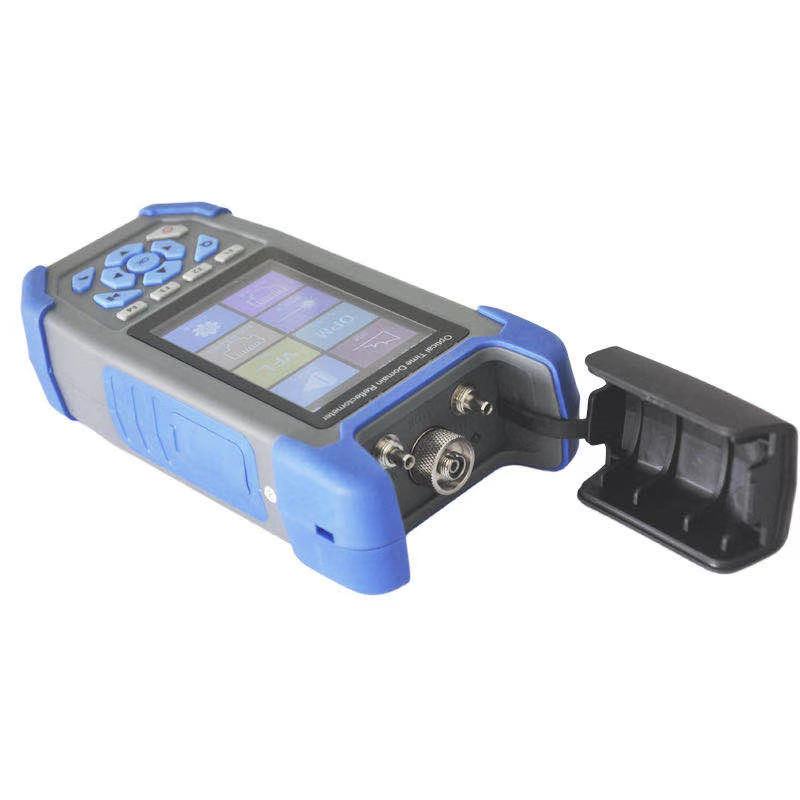

Connector | FC/APC(Interchangeable SC, ST) | ||
OPM | |||
Wave Range | 800nm~1700nm | ||
Interface Type | Universal Joint FC/SC/ST | ||
Test Range | -50dBm～+26dBm | ||
Uncertainty | ±5% | ||
Frequency Identification | CW/270/330/1k/2kHz | ||
Calibration Wavelength | 850/1300/1310/1490/1550/1577/1625nm | ||
Laser Source | |||
LD Type | FP-LD | ||
Output Wavelength | 1310/1550nm | 1610nm±20nm(apc) | |
Output Power | ≥-5dBm | ||
Modulation Frequency | 270/330/1k/2kHz | ||
Stability | CW, ±0.5dB/15min(Test after15mins of preheating) | ||
Connector | FC/APC(Interchangeable SC, ST) | ||
VFL | |||
Work Wavelength | 650nm±20nm | ||
Output Power | ≥10mW | ||
Mode | CW/1Hz/2Hz | ||
Connector | FC/SC/ST | ||

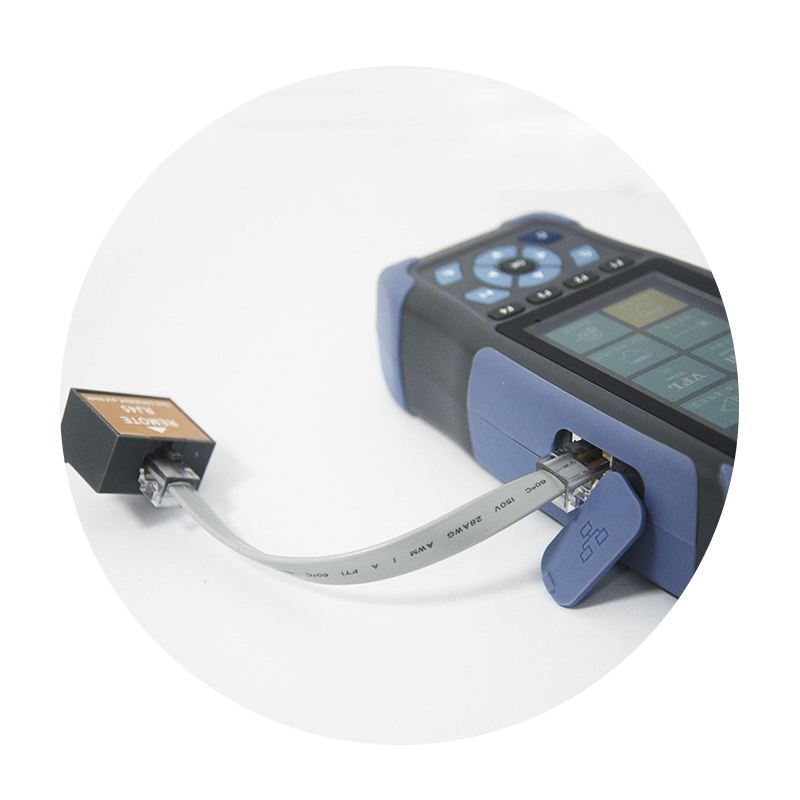

RJ45 Sequence | |||
Other Parameters | |||
Display | 3.5 inch Color LCD | ||
Data Interface | Micro USB | ||
External Storage | TF Card | ||
Power Supply | Polymer Li-battery: 3.7V, 4000mAh Power Adapter: 5VDC, 2A | ||
Battery Life | Standby＞20h, Measuring Time＞12h | ||
Operating Temperature | -10℃～+50℃ | ||
Storage Temperature | -40℃～+70℃ | ||
Relative Humidity | 0～95％Non Condensing | ||
Weight | ≤350g | ||
Dimension | 173mm×82mm×37mm | ||
Functions: Orange, OTDR/OPM/LS/VFL/IL/RJ45 Sequence/ | |||
Note
1. Test Temperature25℃±2℃, Maximum pulse width, Average time≥3min.
2. Test conditions of Event Blind Zone are minimum range, minimum pulse width, reflection loss of optical end≥45dB, typical value
Configuration List
NO | Name | Qty | Remark |
1 | Host | 1 | Battery Include |
2 | Adapter | 1 | |
3 | Data Line | 1 | |
4 | CD(Analysis software, User Manual) | 1 | |
5 | User Manual | 1 | |
6 | SC/APC Connector | 1 | |
7 | Calibration Certification | 1 | |
8 | Qualification Certificate/Service Guarantee Card | 1 | |
9 | Clean Cotton Slices | 10 | |
10 | Instrument Bag | 1 |
