Two wavelength: 1310/1550nm or single wavelength 1310/1550/1610/1625nm
Measurement distance: 80km

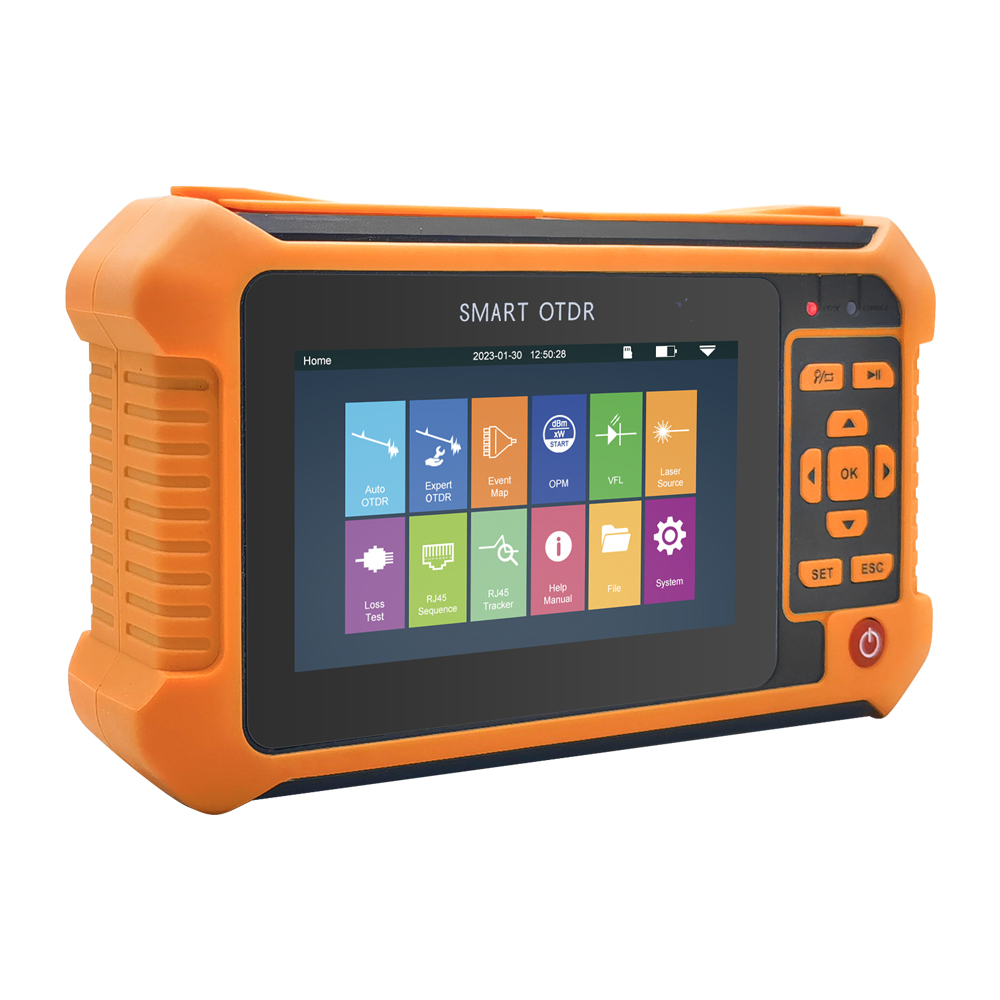

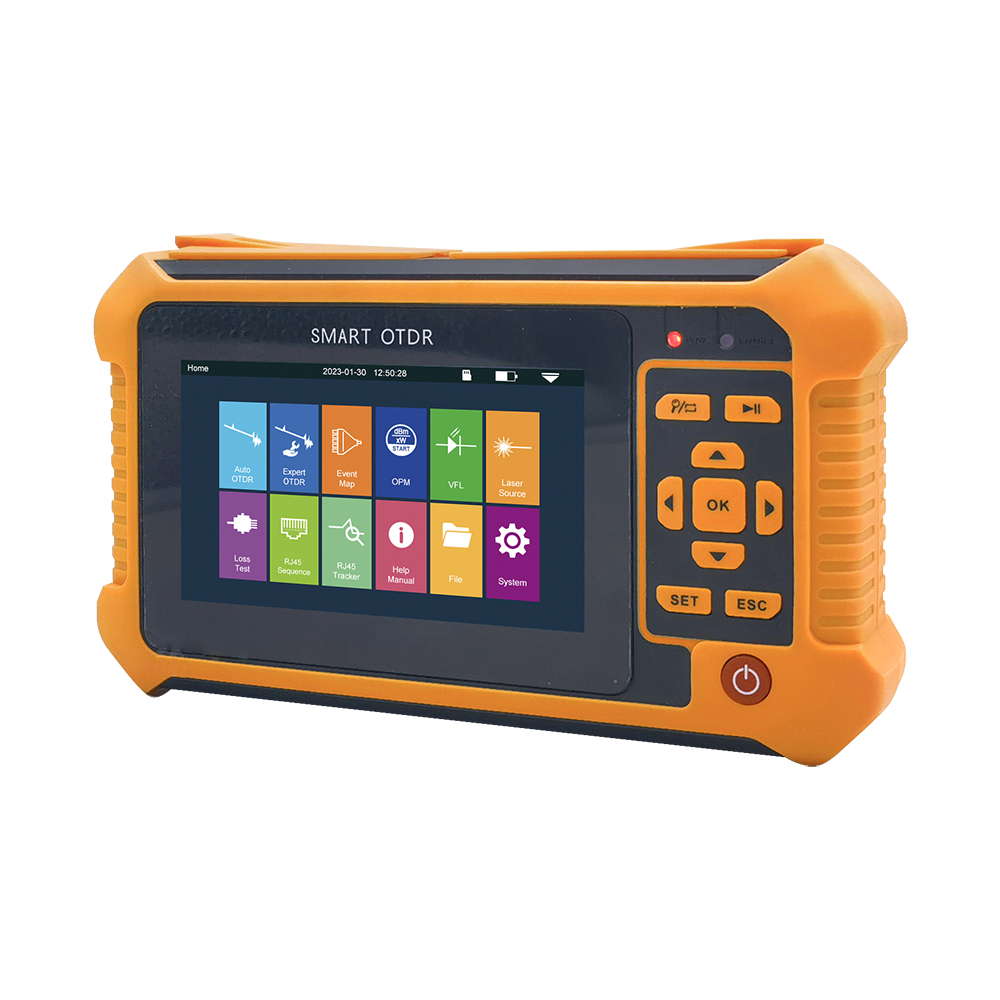

Capacitive touching screen, clear, sensitive touch and quick response, can operate by both key and touching screen.
Test record is saved as SOR format.
Standard function: OTDR, Event Map, Optical Power Meter, Optical Light Source, VFL, Optical Loss Test, RJ45 Sequence, Flash Light. Optional function: RJ45 Tracker
Keyboard input, can edit and save file name and line number.
Support user upgrading

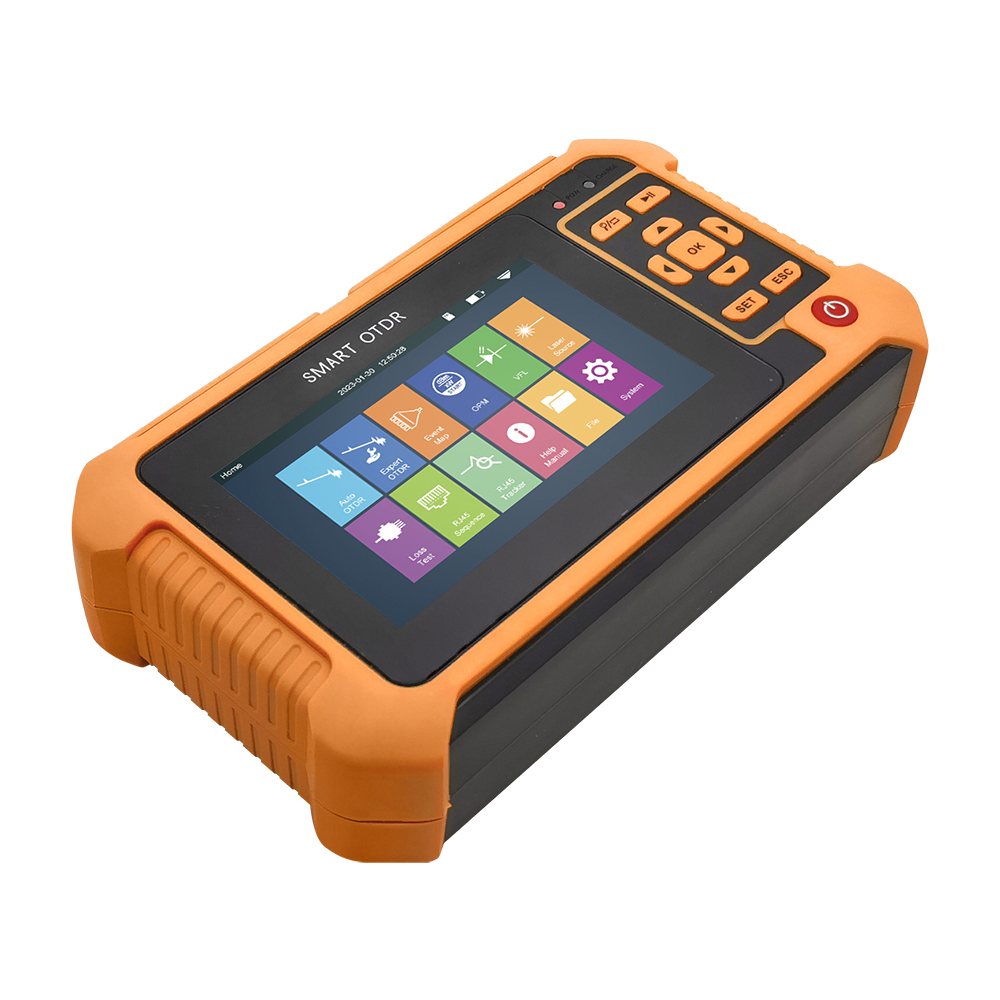

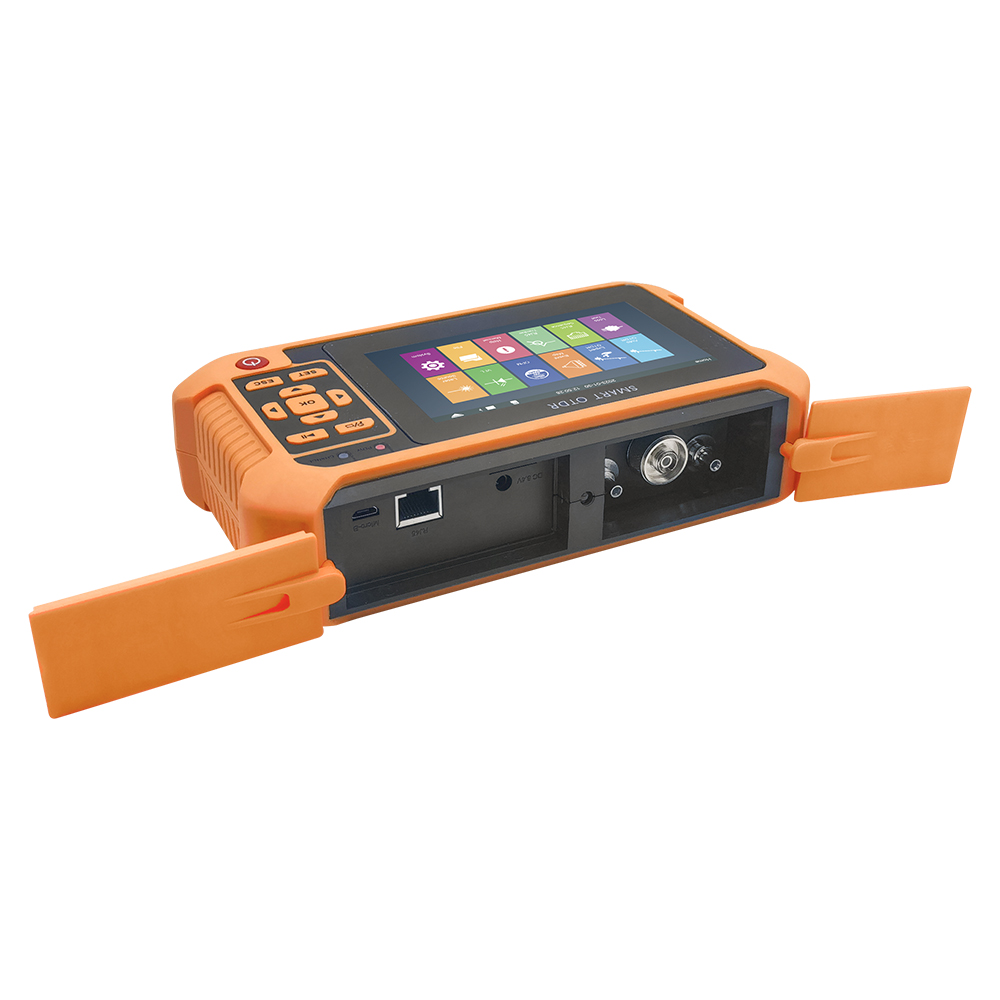

With USB and TF card data interface, easy to export curve data.
Fast startup, only 2 seconds to test.
OTDR | ||||||
Wavelength(nm) | 1310/1550nm | 1310nm | 1550nm | 1610nm | 1625nm | 1650nm |
Dynamic Range(dB) | 26/24dB | 24dB | 22dB | 22dB | 22dB | 22dB |
Type of Fiber | 9/125um SM | |||||
Type of Connectors | FC/PC;SC/PC (FC/APC, SC/APC--Optional) | |||||
Peak Value of laser | ≥30mW | |||||
Unit | Meter/ inch/ mile | |||||
Dead Zone of Reflection | 2m | |||||
Dead Zone of attenuation Event | 12m | |||||
Accuracy Distance (Reflection Event) | About ±(1m+2 *10(-4)* distance) | |||||
Storage of records | 200 groups | |||||
Visual Fault locator(VFL) | ||||||
Wavelength(nm) | 650nm | |||||
Output power | ≥10mW | |||||
Mode | CW, 1Hz, 2Hz | |||||
Fiber type | SM | |||||
Optical Power Meter | ||||||
Measurement range dBm | -70～+10 dBm | -50～+26 dBm | ||||
Wavelength range(nm) | 800～1650 | |||||
Calibrated wavelength | 850/980/1270/1300/1310/1490/1550/1577/1625/1650 | |||||
Detector | InGaAs | |||||
Accuracy | <±3%(-10dBm, 22℃) | |||||
Resolution | Linearity: 0.1%, Non-linearity: 0.01dBm | |||||
Connector | Changeable FC/PC SC/PC ( ST as Optional) | |||||
Optical Light Source | ||||||
Emitter | FP-LD | |||||
wavelength(nm) | 1310/1550nm | |||||
Connector | FC/PC(SC/ST as optional) | |||||
Output power | ≥-5dBm | |||||
Output stability(dBm) | ±0.04@20℃@15min | |||||
Modulation | CW/270Hz/1KHz/2KHz | |||||
Fiber type | SM | |||||
Optic Loss | ||||||
Connector | FC/ SC | |||||
Test Range | 0-30dB | |||||
Accuracy | 10% | |||||
Others | ||||||
LCD | 3.97inch,800*480pixels, IPS screen | |||||
Battery | Lithium-ion battery, >5000 tests | |||||
Temperature | Work temperature: -5 ~ 50 ° C, storage temperature: -10 ~ 60 ° C | |||||
Humidity | 0～85%(Non-condensing) | |||||
Dimensions(mm) | 185×105×50 | |||||
Weight(g) | 530 | |||||

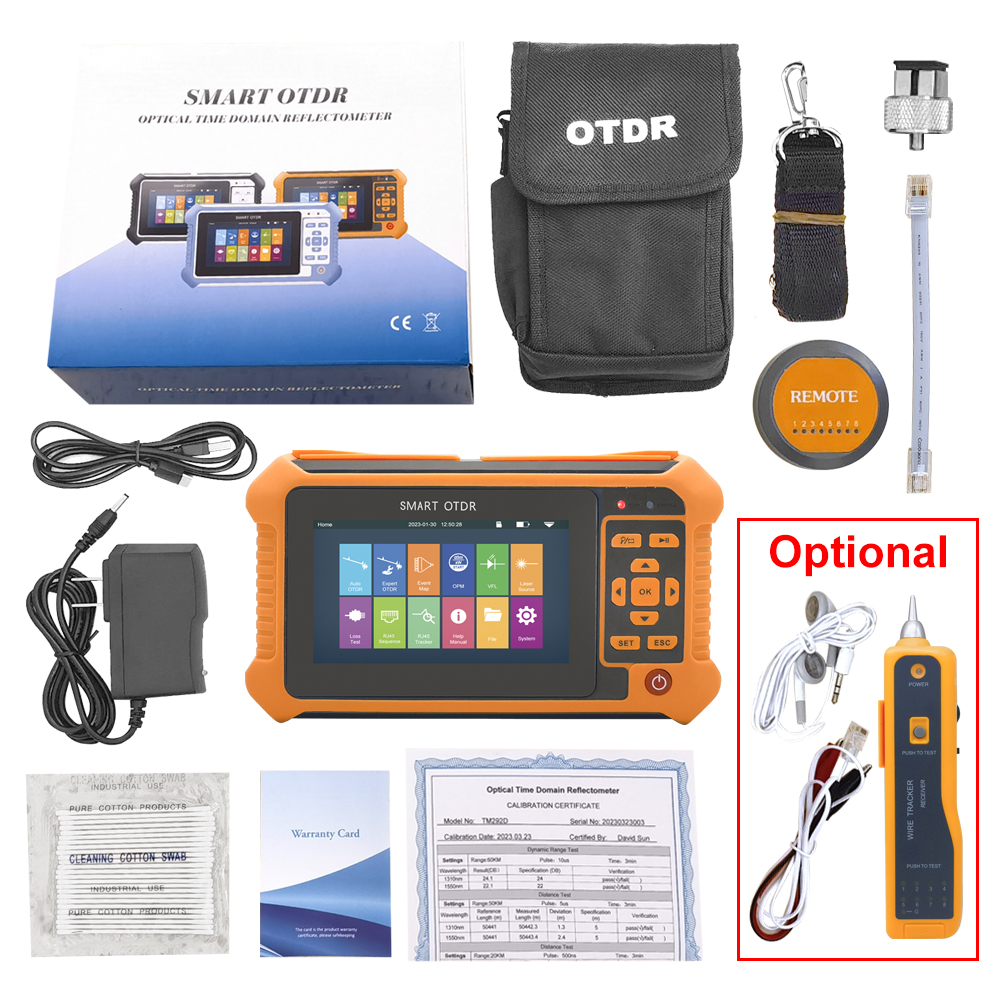

Ordering Details
FFS292A | 1310/1550nm, 26/24db | Touching screen |
FFS292B | 1310nm, 24dB | Touching screen, support active test |
FFS292C | 1550nm, 22dB | Touching screen, support active test |
FFS292D | 1610nm, 22dB | Touching screen, support active test |
FFS292E | 1625nm, 22dB | Touching screen, support active test |
FFS292F | 1650nm, 22dB | Touching screen, support active test |
Function
Standard Function | OTDR, Event Map, OPM, VFL, Laser Source, Loss Test, RJ45 Sequence, Light. |
Optional Function | RJ45 Tracker |
