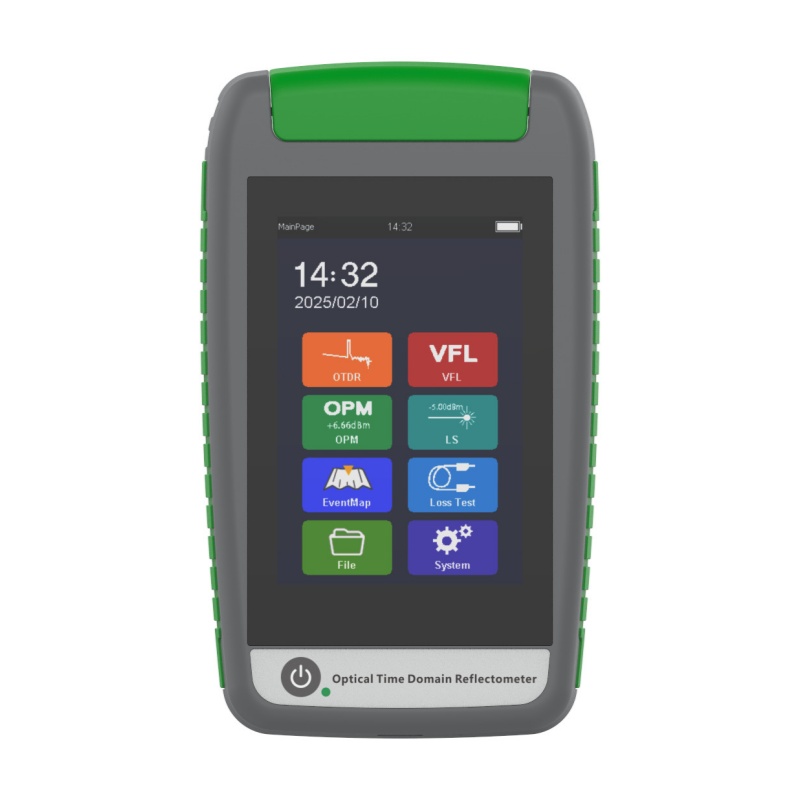

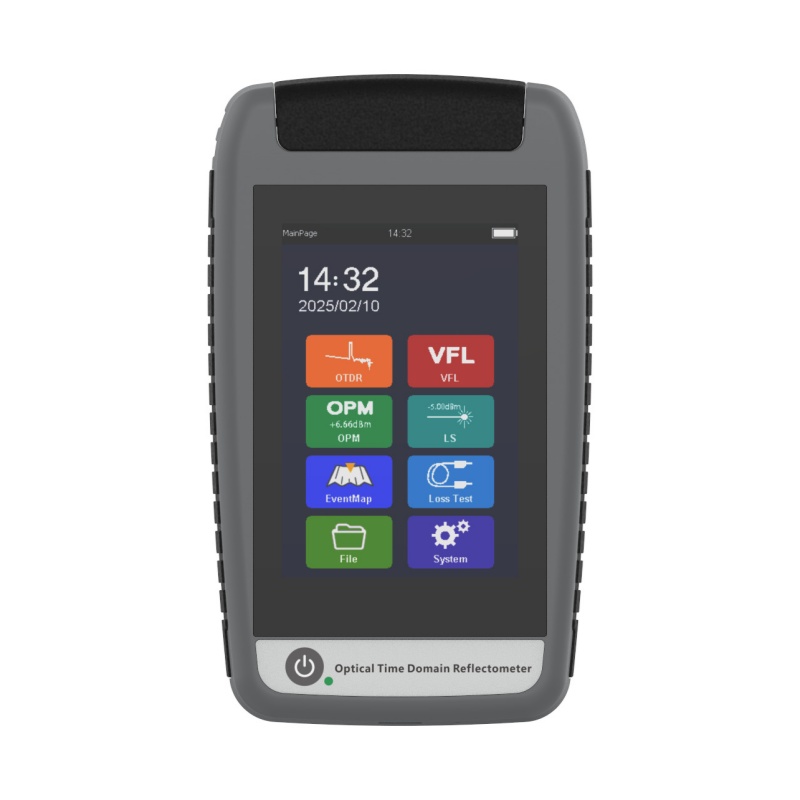

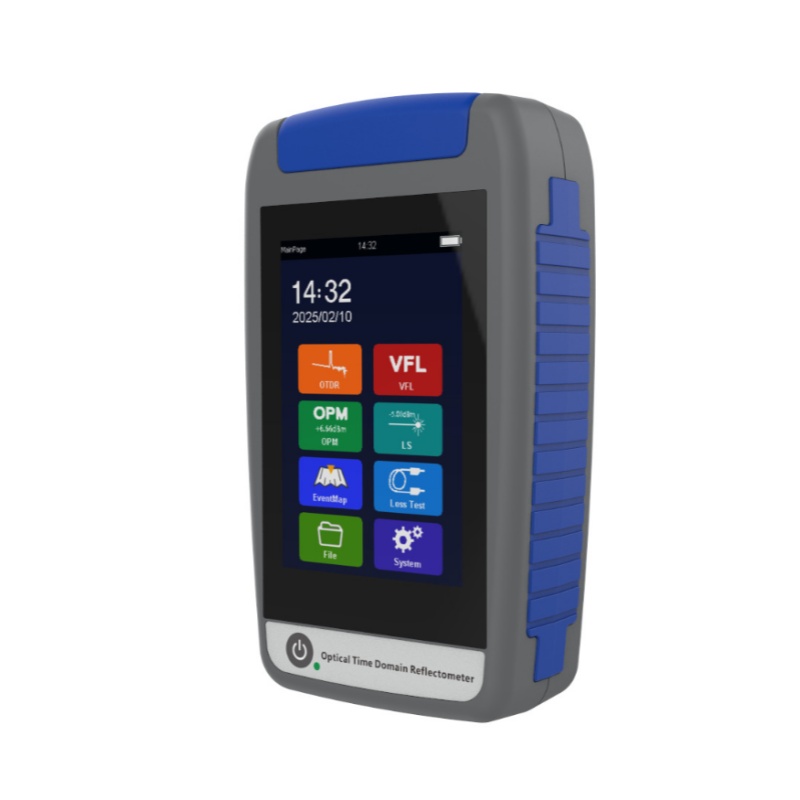

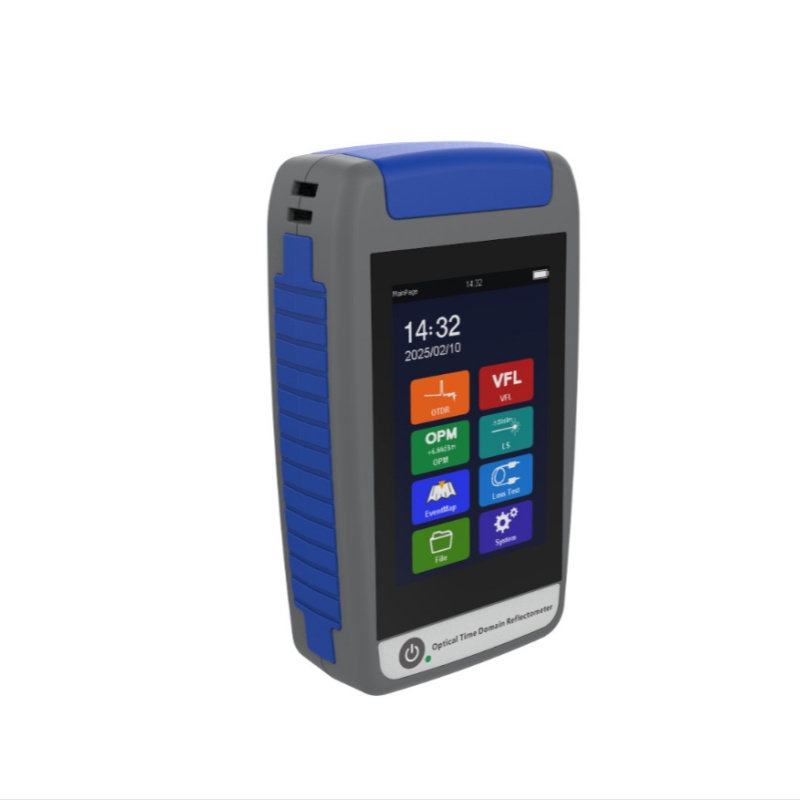

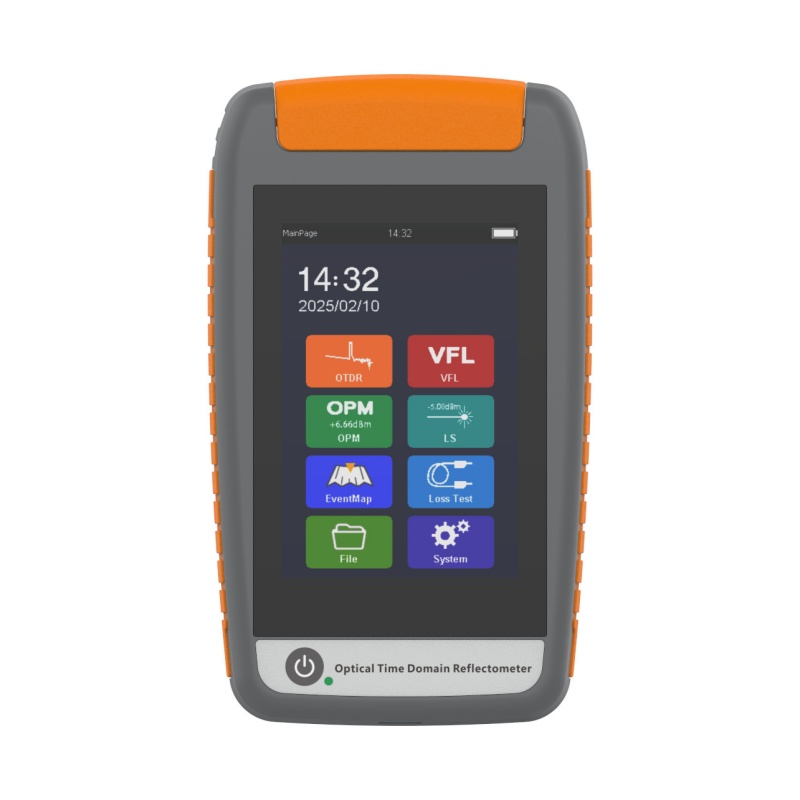

The FFS350 series OTDR is mainly used to measure the length, loss, average loss, return loss, connection quality, etc. of various fiber optic cables. It has automatic optical protection function to prevent damage to the optical module. This model with a filter can support online testing, with a maximum online optical power of 0dBm. It can be widely used in the engineering construction, fault repair, fiber optic line maintenance, engineering acceptance, development and production of fiber optic communication systems and other fields.
Features
3.5’ FTF LCD, Capacitive TP
Minimum measurement: 2.5m
Type-C USB
Palm design,compact and lightweight.
Large capacity battery, 8 hours.
Hidden interface, shock and fall resistant.
Multi-function integration: OTDR / LS /VFL/Flashlight
Support PDF output report
Specifications
Module | FFS350A | FFS350B | FFS350C | FFS350D | FFS350E | FFS350F | |||||
Wavelength | 1310/1550±20nm | 1310±20nm | 1550±20nm | 1610±5nm | 1625±5nm | 1650±5nm | |||||
Dynamic range | 22/20dB | 22dB | 22dB | 22dB | 22dB | 22dB | |||||
Fiber type | G.652D | ||||||||||
Event dead zone | 2m | ||||||||||
Attenuation zone | 8m | ||||||||||
Measuring range | 100m/500m/1km/2km/5km/10km/20km/40km/60km/80km | ||||||||||
Pulse width | 5ns/10ns/20ns/50ns/100ns/275ns/500ns/1us/2us/5us/10us | ||||||||||
Accuracy | ±(1m+Sampling interval+0.005% X measuring range) | ||||||||||
Linearity | ±0.2dB/dB | ||||||||||
Sample points | Maximum sampling points: 20000 | ||||||||||
Sampling resolution | 25cm~8m | ||||||||||
Loss resolution | 0.001 dB | ||||||||||
Range resolution | 0.001m | ||||||||||
Refractive index | 1.0000~2.0000 | ||||||||||
Reflection accuracy | ±3dB | ||||||||||
File format | Standard sor. File format | ||||||||||
Safety level | OTDR/LS: Class 2, VFL: Class 3B | ||||||||||
Temperature/ humidity | Ambient temperature: - 10℃~50℃, Storage ambient temperature: -40℃~+70℃ Humidity: 0~90%(non condensing) | ||||||||||
Size/weight | Size: 130x78x35mm / weight: 215g(include battery) | ||||||||||
OPM | LS | Other | |||||||||
Wavelength | 850/1270/1300/1310/1490/1550/1577/1610/1625/1650nm | Wavelength | OTDR wavelength | VFL (optional) | (Red)650nm: ≥10mW (Green)515nm: ≥10mW | ||||||
Range | A:-70~+10dBm, B:-50~+26dBm | Laser type | FP-LD/DFB | ||||||||
Frequency | 270Hz/330Hz/1kHz/2kHz | Power | -5dBm±3dB (Adjust) | Battery | 2000mAh/3.7V | ||||||
Uncertainty | ±5% | Uncertainty | ±5% | Adapter | USB(Type C) | ||||||
Connector | Universal | Connector | SC | Memory | Inside≥400, External:SD | ||||||
