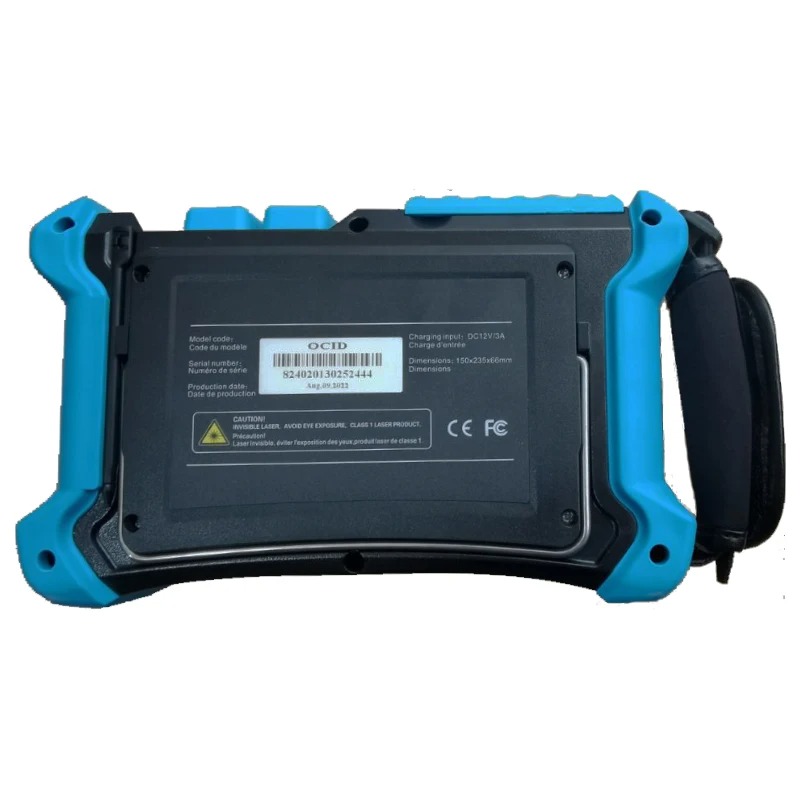

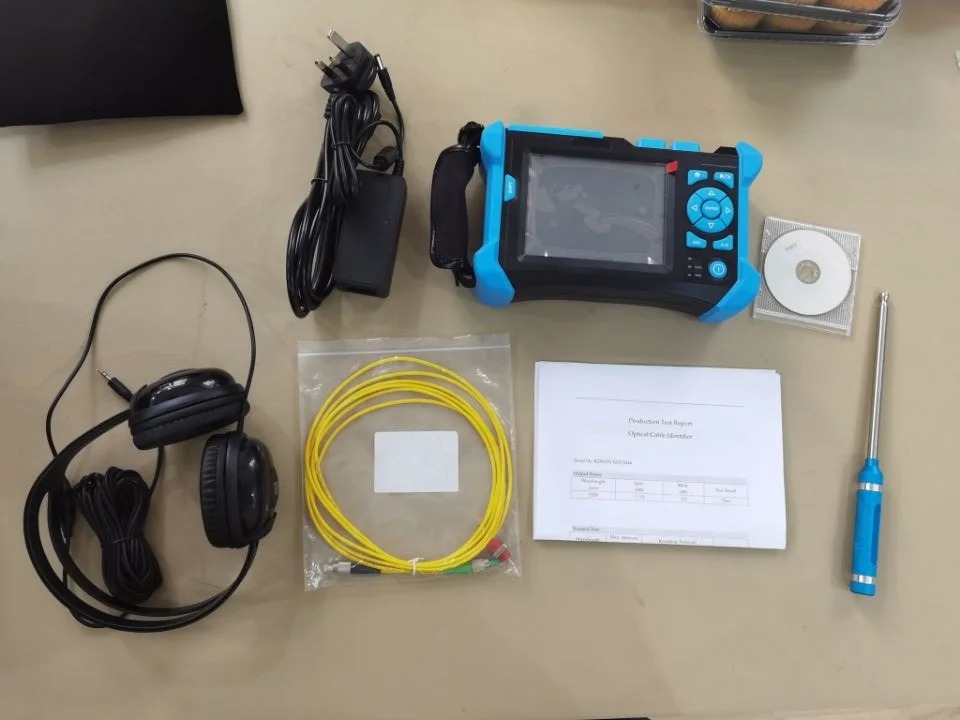

Based on the properties of photo elastic effect, the OCID TK200 converts the coherent laser energy into visual or audio signal, so user can easily locate the target desired fiber in manholes, tunnels conduits, and aerial, etc. With the OCID TK200, the user can easily recognize the target optical cable from the rest by gently tapping them.
Features
Touch Screen + Keypad, easy to use.
Large capacity of lithium battery and low power consumption, longer operating time.
Dynamic range of sensitivity to mechanical perturbation from tens of kilometer distance
Locate target cable using audio and visual signal even under noisy environment
Self-calibration for optimization, adapt to different length of fiber cables.
Non-invasive detection with high accuracy
Specifications

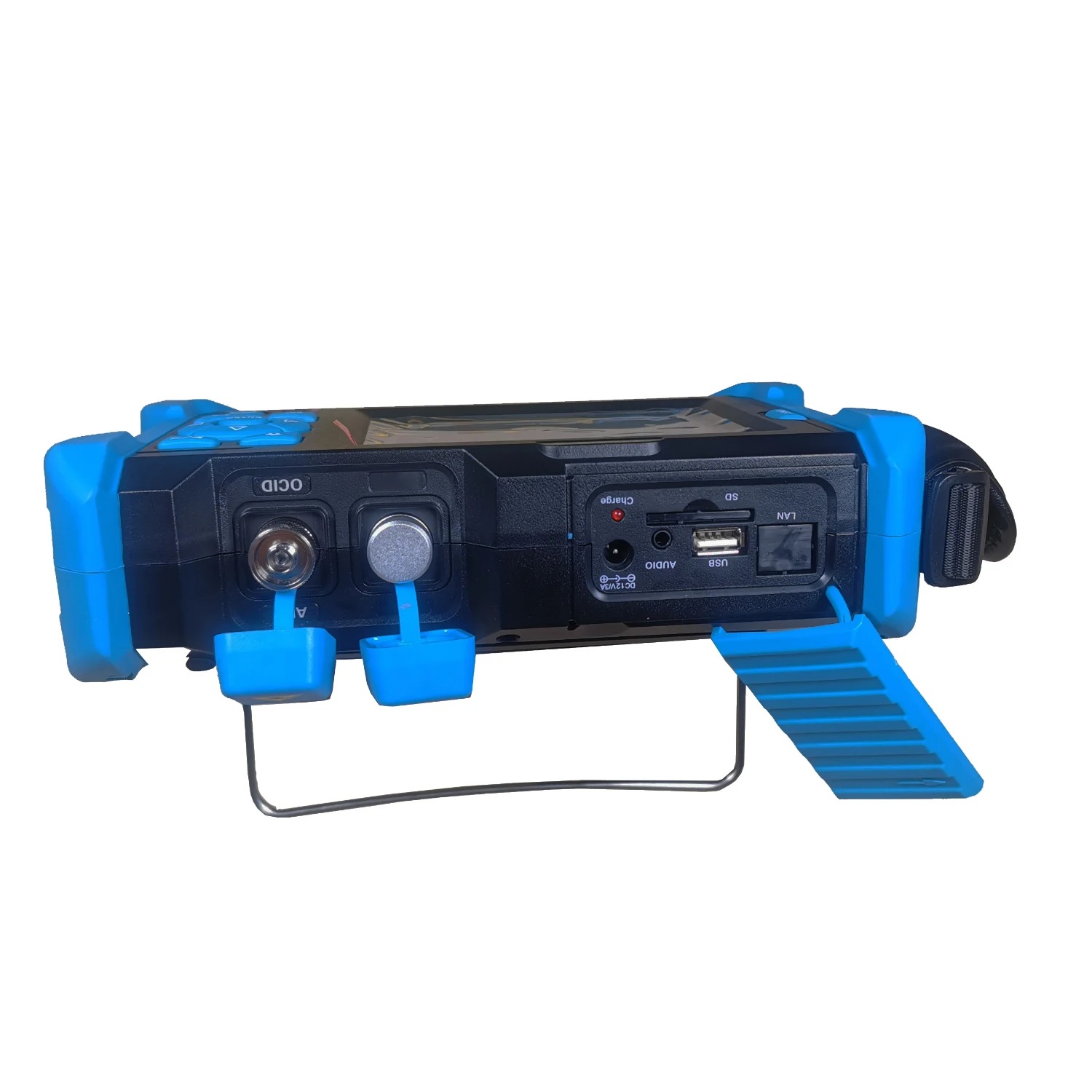

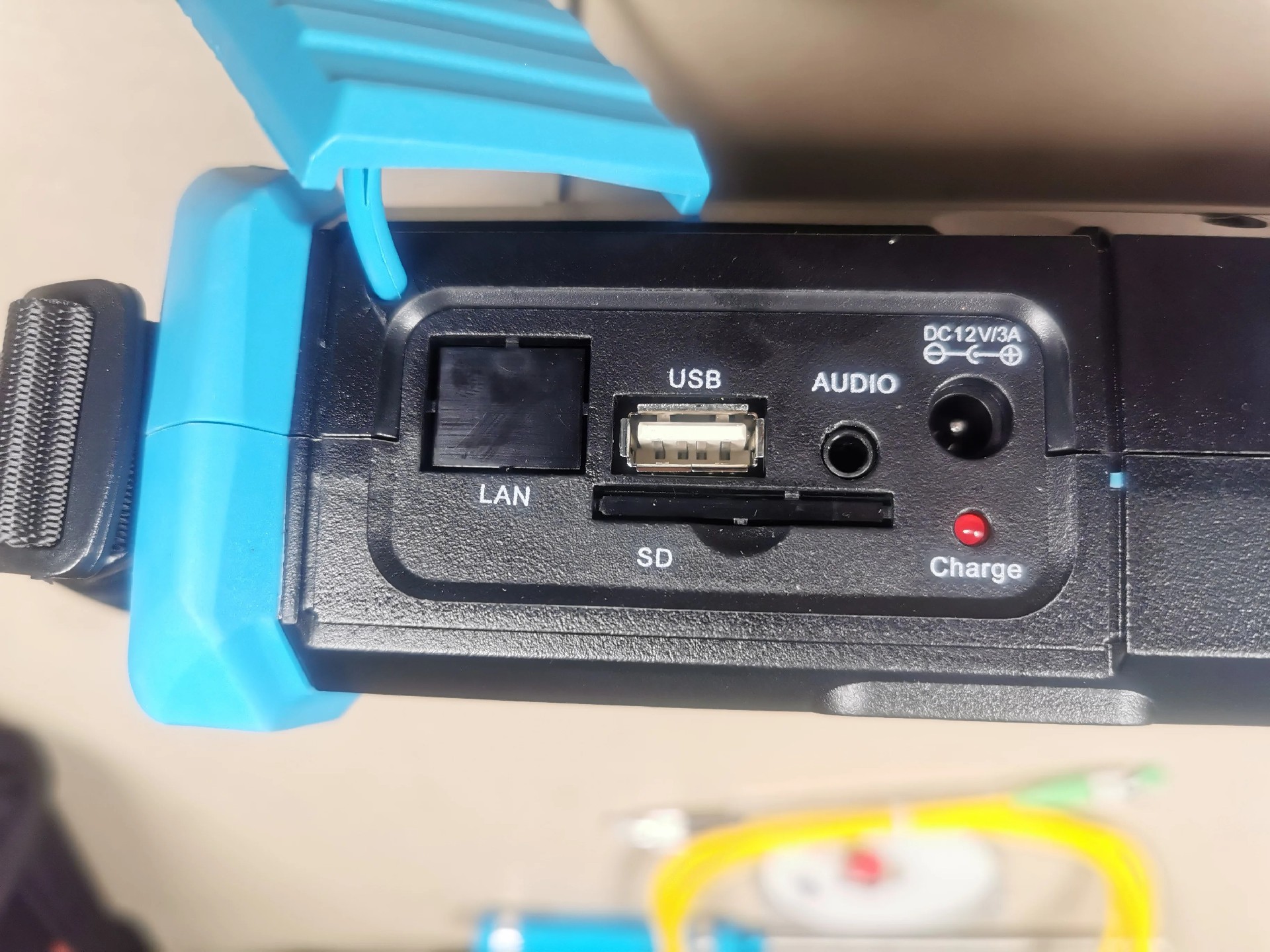

Model | TK200-40/N | TK200-100/N |
Measurement method | Single fiber test | |
Wavelength | 1550nm | |
Unidirectional fiber loss | 10dB | 30dB |
Measurement distance | 40Km | 100Km |
Initial blind zone | No blind zone | |
Signal to noise ratio | >40dB | |
Optical fiber interface | SM | |
Optical connector | FC/APC | |
Displaying screen | 5.6’ touch screen | |
Input model | Touch screen LCD + buttons | |
Output model | Visible: vibration amplitude (touch screen LCD), audio: sound (corresponding excitation intensity) | |
Power supply | DC12V/3A | |
Battery | Lithium battery (7.4V 10.4Ah), continuous work ≥14 hours | |
Power | ≤8W | |
Volume(H×W×L) | 65×150×235mm | |
Weight | 1.5Kg (including battery) | |
Working temperature | 0~45℃ | |
Storing temperature | -20~55℃ | |
VFL visual failure location | Wavelength: 650nm Output power (dBm): ≥-3 Maximum testing distance: 5km | |
Guarantee period | 12 months | |
