Features

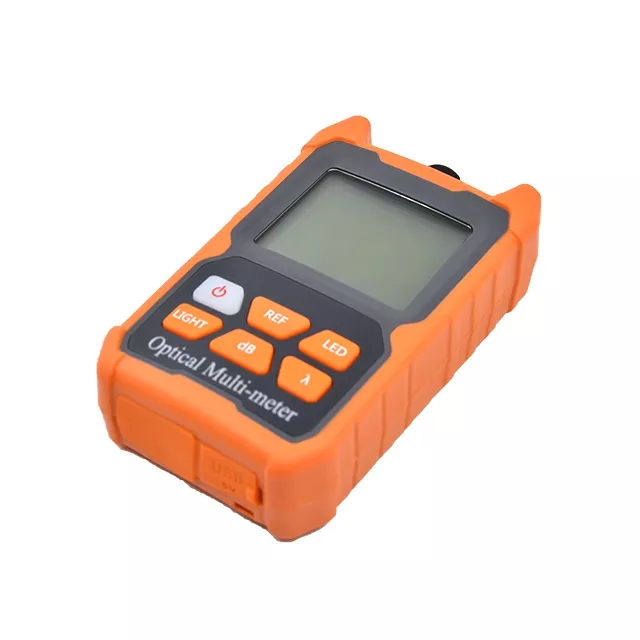

Practical and Compact Design.It is portable and easy to bring with large screen and LED backlight;

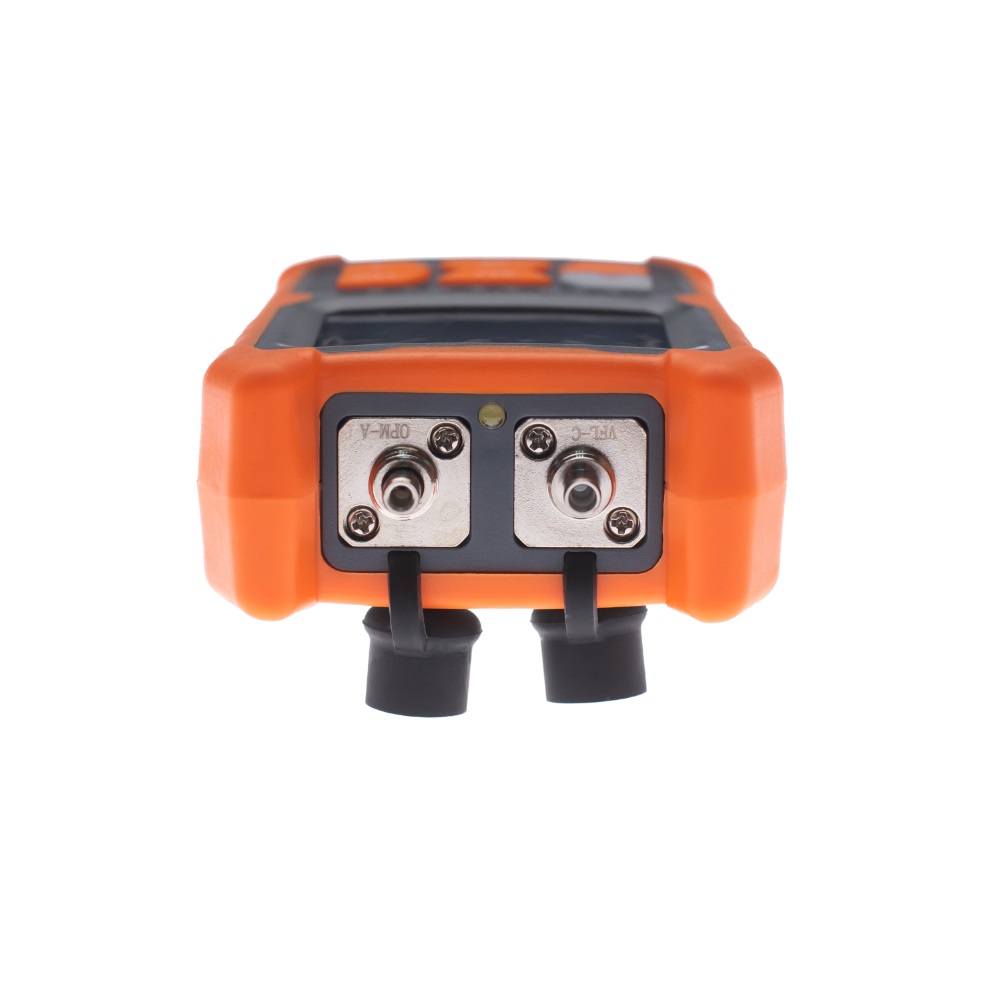

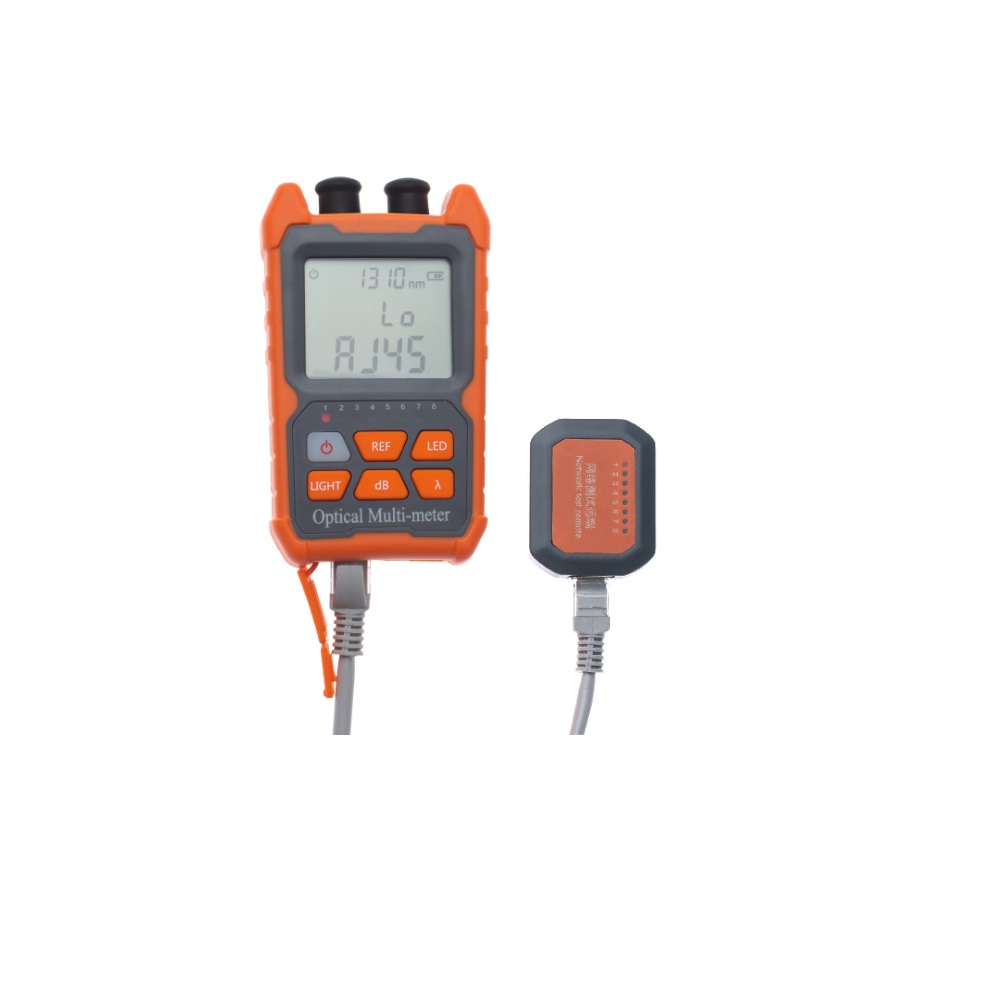

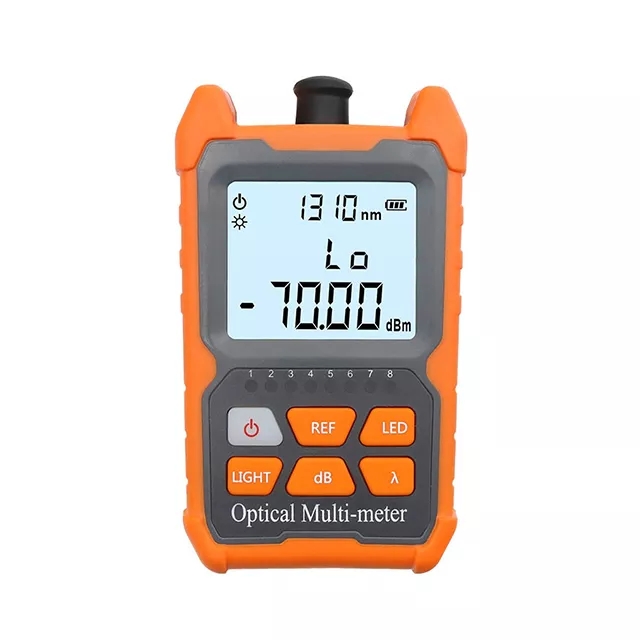

It is the Combination of the optical power meter and Visual Fault locator.
Light power one machine function: can measure 850/980/1300/1310/1490/1550/1625nm
and other 7 wavelength of the optical absolute power, test range: -70dBm~+10dBm;
10mW visual fault locator can measure the distance is about 10 kilometers
Applications
Fiber CATV Test Engineering
Optical fiber CCTV test communication engineering
Integrated wiring system
Optical device production and research
Optical communication teaching and testing
Other fiber optic engineering, etc.
Specifications
Model | FFS200 |
Wavelength(nm) | (800nm to 1700nm ) |
Detector | InGaAs |
Measurement Range(dBm) | -70~+6(Type A) or -50~+26(Type B) |
Uncertainty | ±5% |
Calibrated Wavelength(nm) | 850,980,1300,1310,1490,1550,1625 |
Resolution(dB) | Linear 0.1% or Non-linear 0.01dBm |
Optical Connector | FC/SC/ST |
Power Supply | Alkaline Battery(3pcs of AA 1.5V batteries) |
Battery Operating Time | 48 hours |
Operating Temperature(°C) | -10 ~ +60 °C |
Storage Temperature(°C) | -25 ~ +70 °C |
Dimension(mm) | 190x100x48 |
Weight | 310g |
