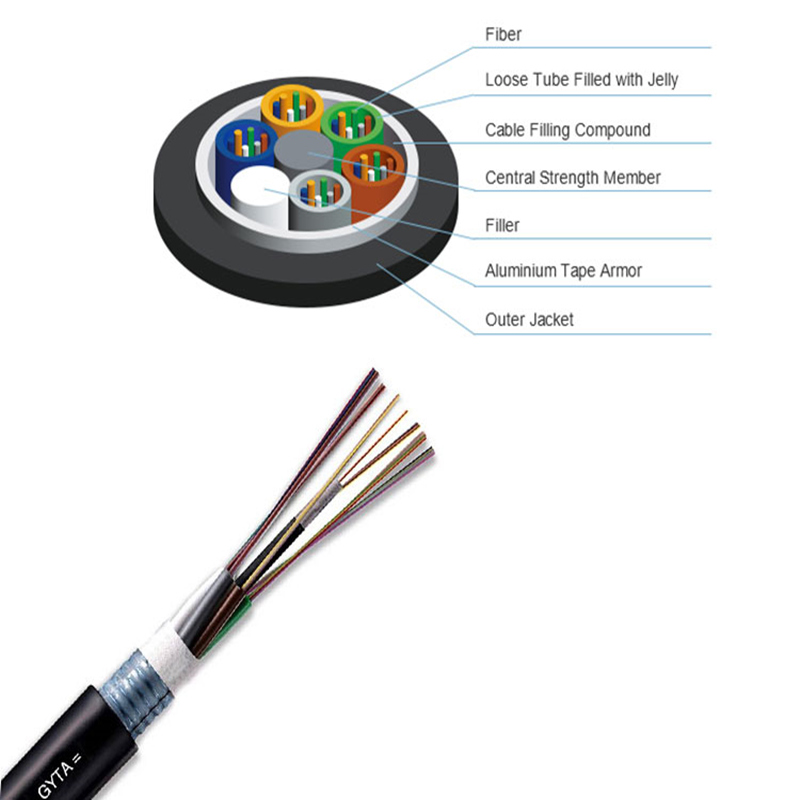

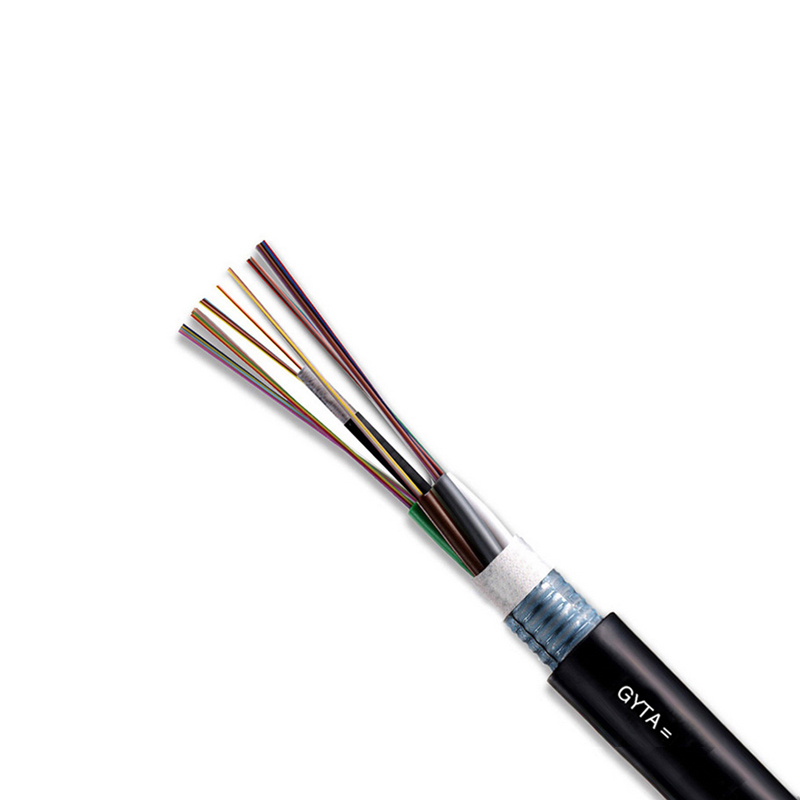

The structure of GYTA cable is to insert 250μm fiber into the loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the core is a metal reinforced core. For some cores, a layer of polyethylene (PE) is required to be extruded outside the metal reinforced core. The loose tube (and the filling rope) is twisted around the center reinforcing core into a compact and round core, and the gap in the core is filled with a water blocking filler. The plastic coated aluminum strip (PL) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.

Features

Has good mechanical properties and temperature characteristics.

The loose tube material itself has good water resistance and high strength.

The tube is filled with a special grease to protect the fiber.

The specially designed compact cable structure effectively prevents the casing from retracting.

The PE jacket has excellent UV radiation resistance.

The following measures are taken to ensure the waterproof performance of the cable.

Single wire center reinforcement core.

The loose tube is filled with a special waterproof compound.

Full core filling.

Plastic coated aluminum tape (APL) moisture barrier.

Specifications
